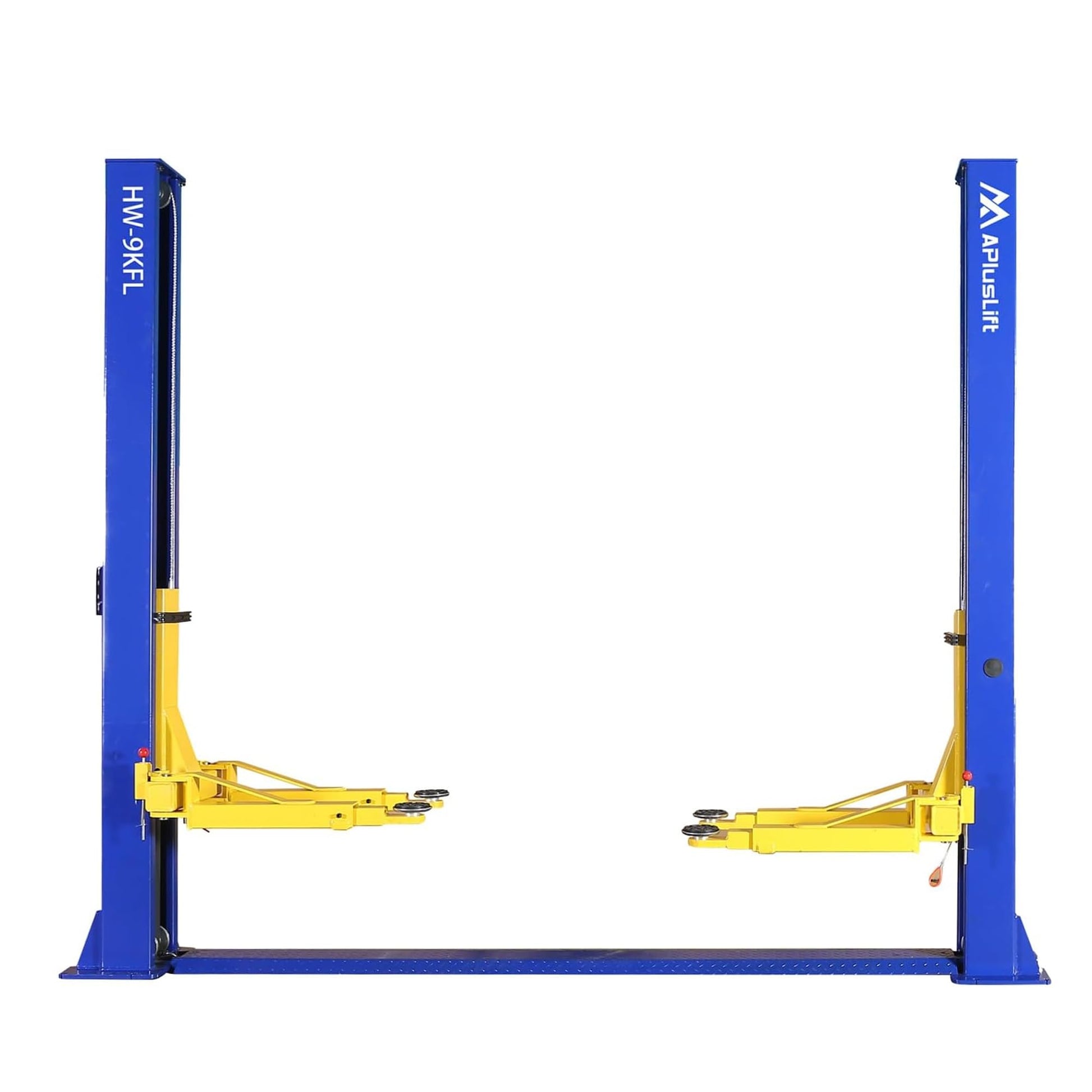

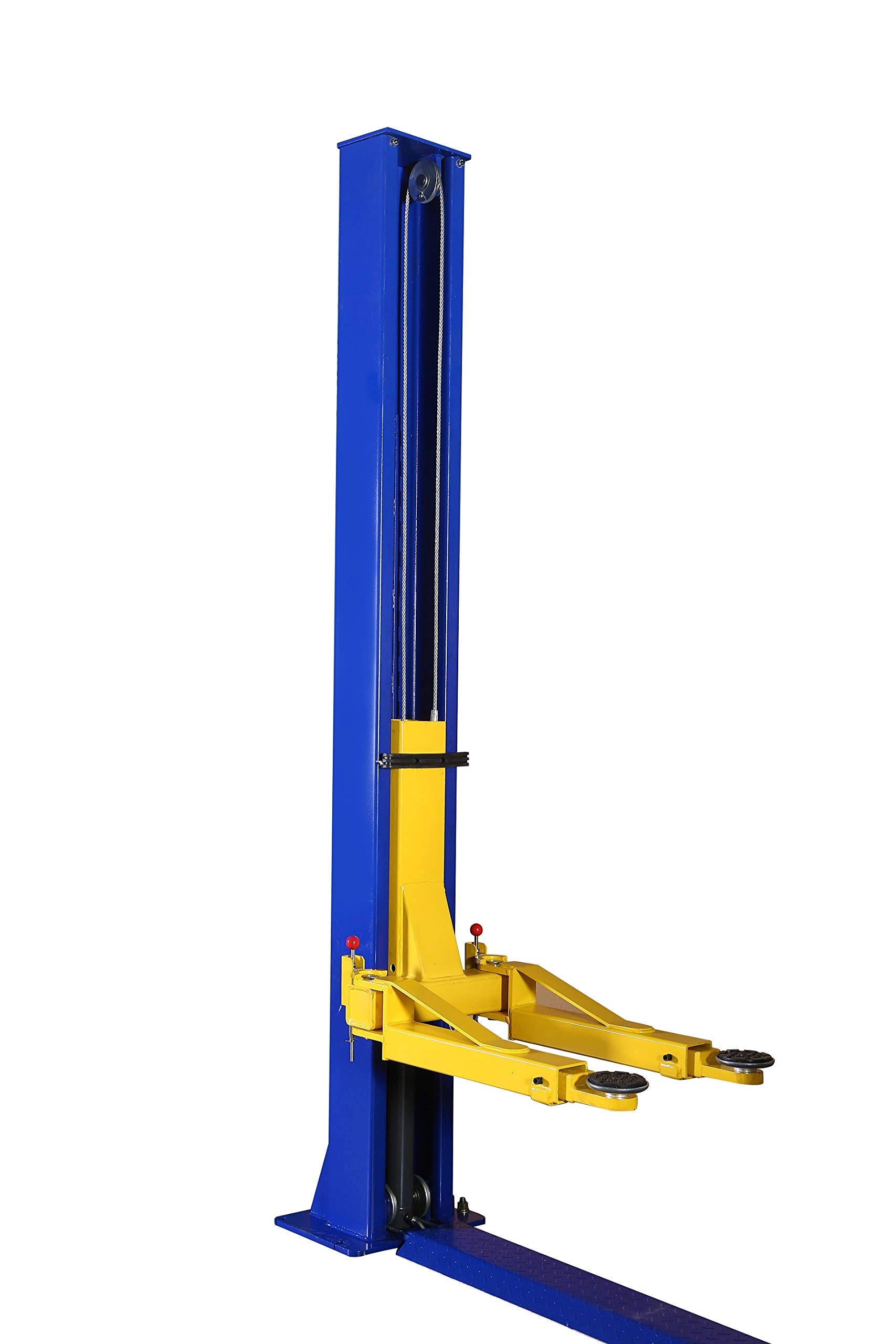

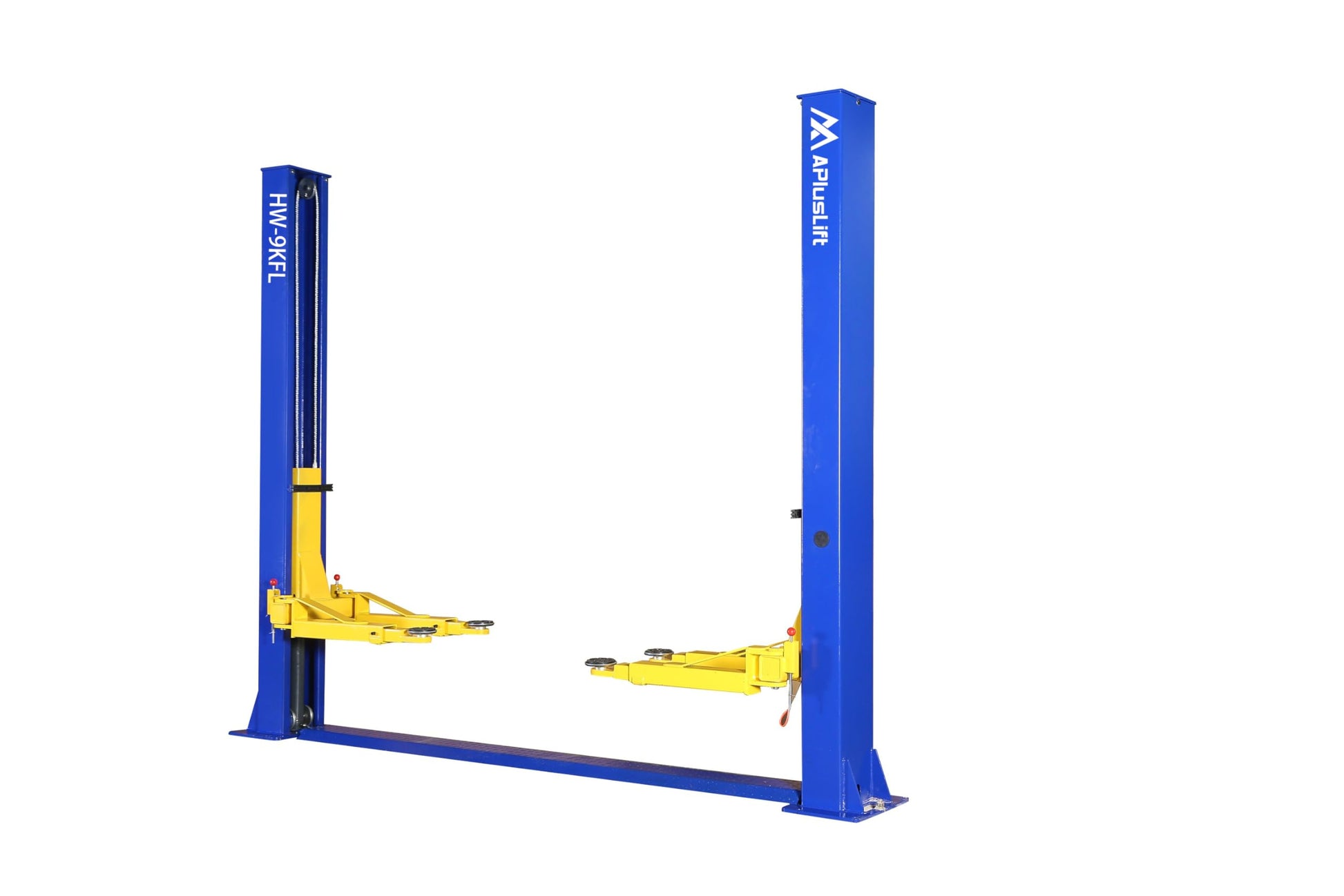

APlusLift HW-9KFL 9,000LB 2-Post Floor Plate Car Lift/Industry Leading 3 Year Warranty

Brand: APlusLift

Color: HW-9KFL 9,000LB Car Lift

Features:

• Industry Leading 36 Months Replacement for All Parts (A $499 Value)
• CE Certified Lift Structure and Hydraulic System - Tested 115% Dynamic Load Capacity and 150% Static Load Capacity
• Durable Powder Coated Finish on Steel; All Robot Welded Structure
• Double Seal Rings Protecting PU Material
• Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32" with Supporting Bracket.
• 6'9" Lift Height Maximum with Truck Adapters

model number: 9KFL

Part Number: Songa Enterprises

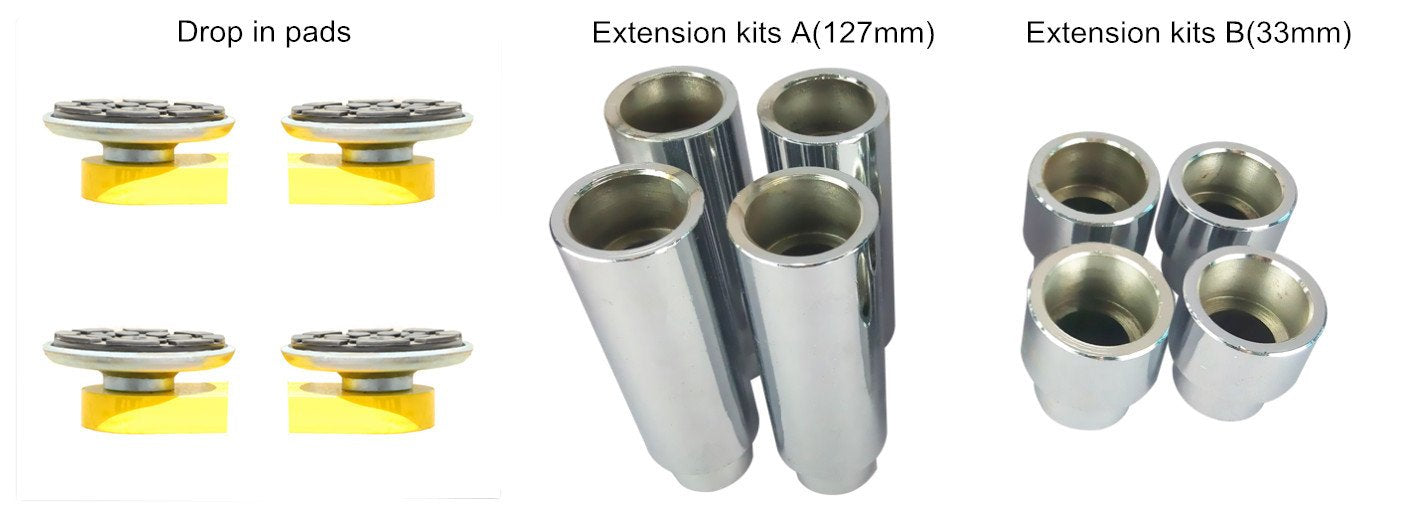

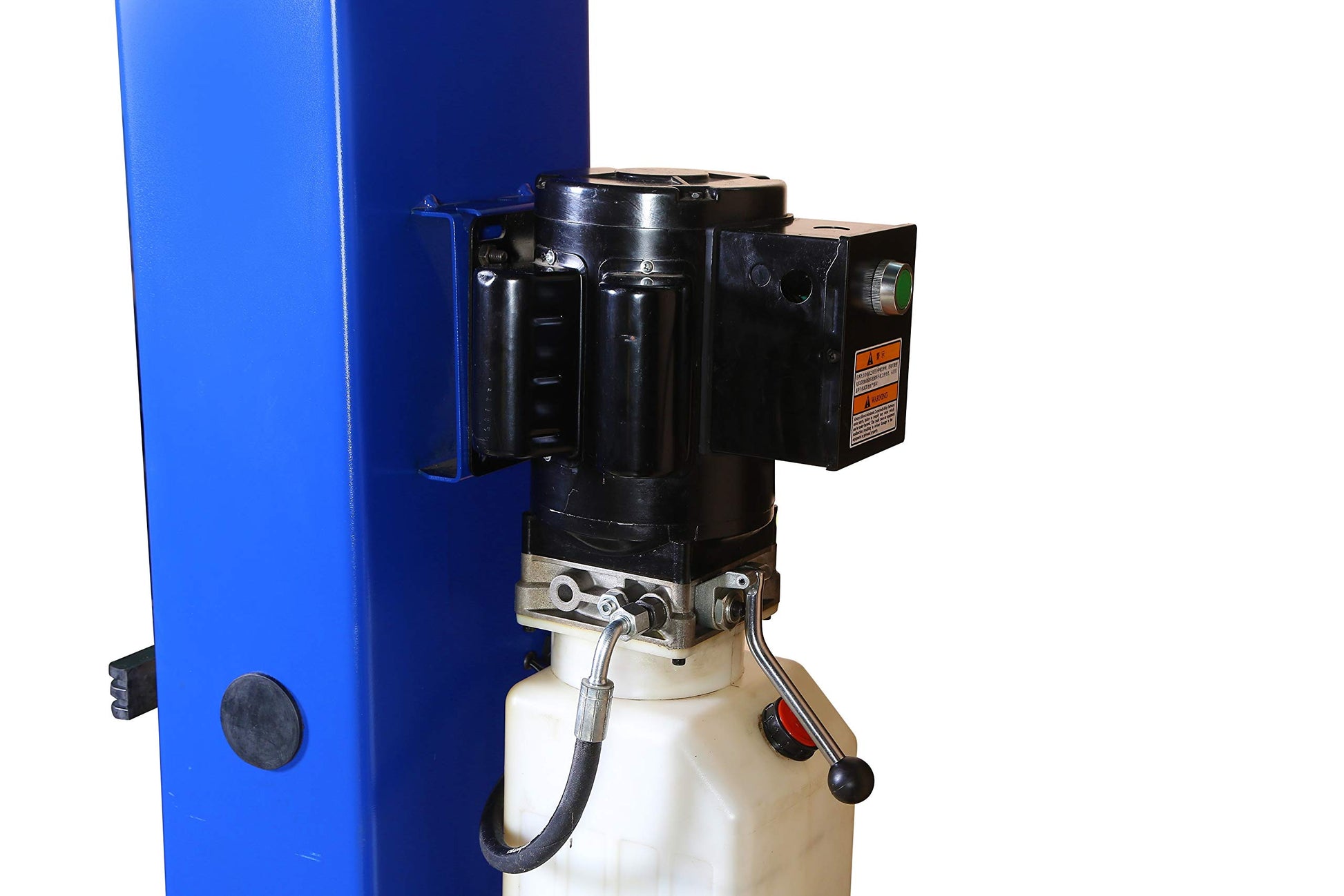

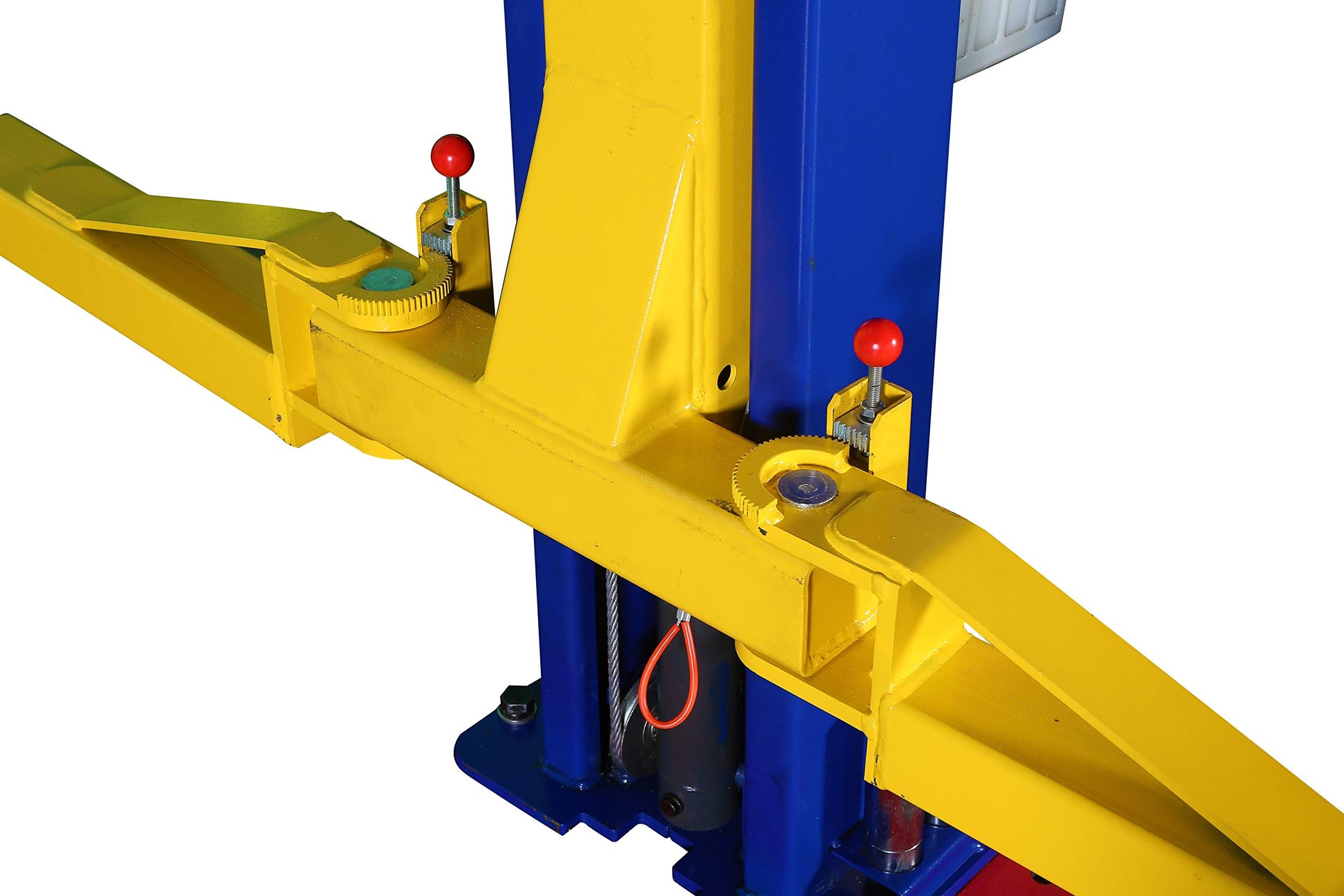

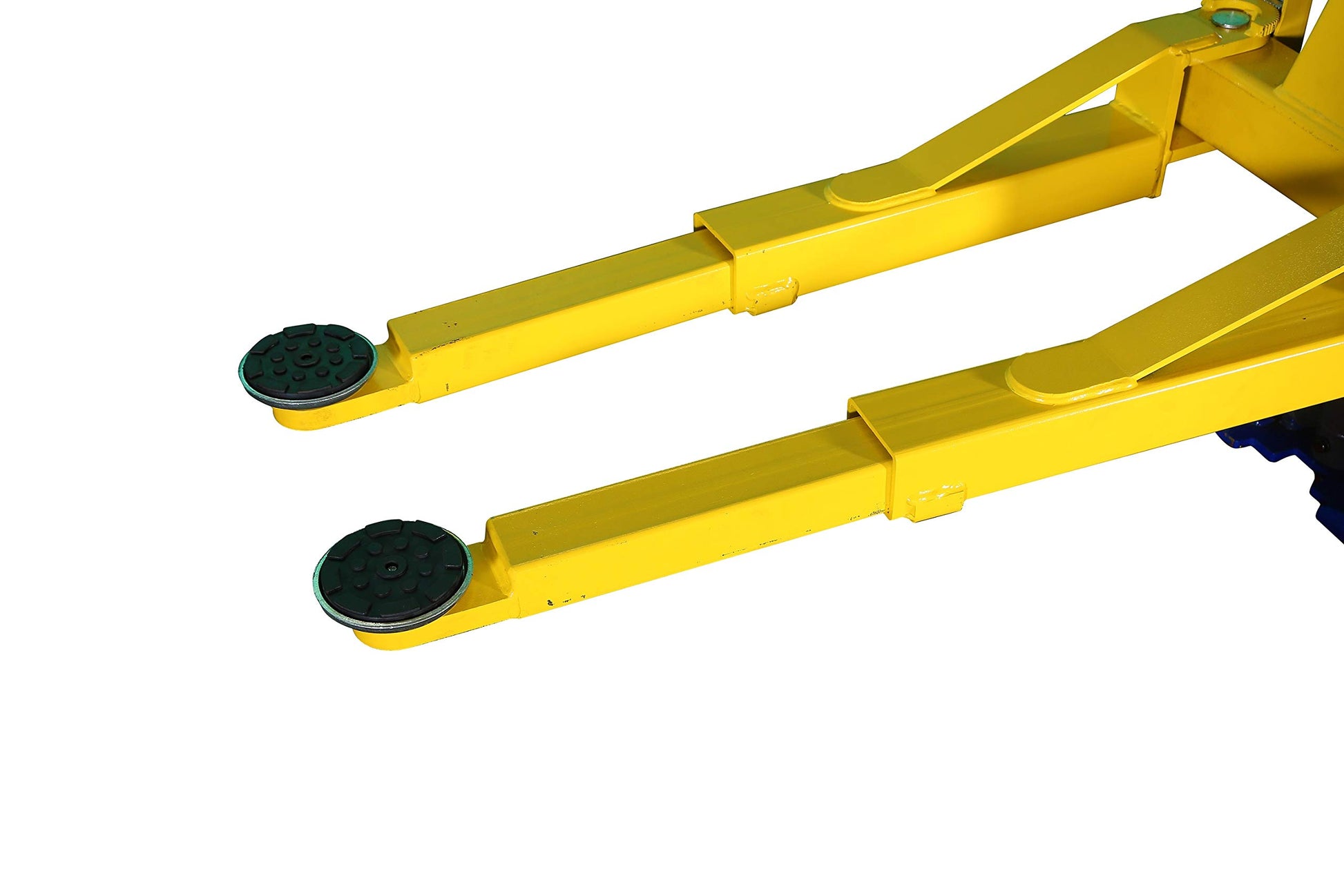

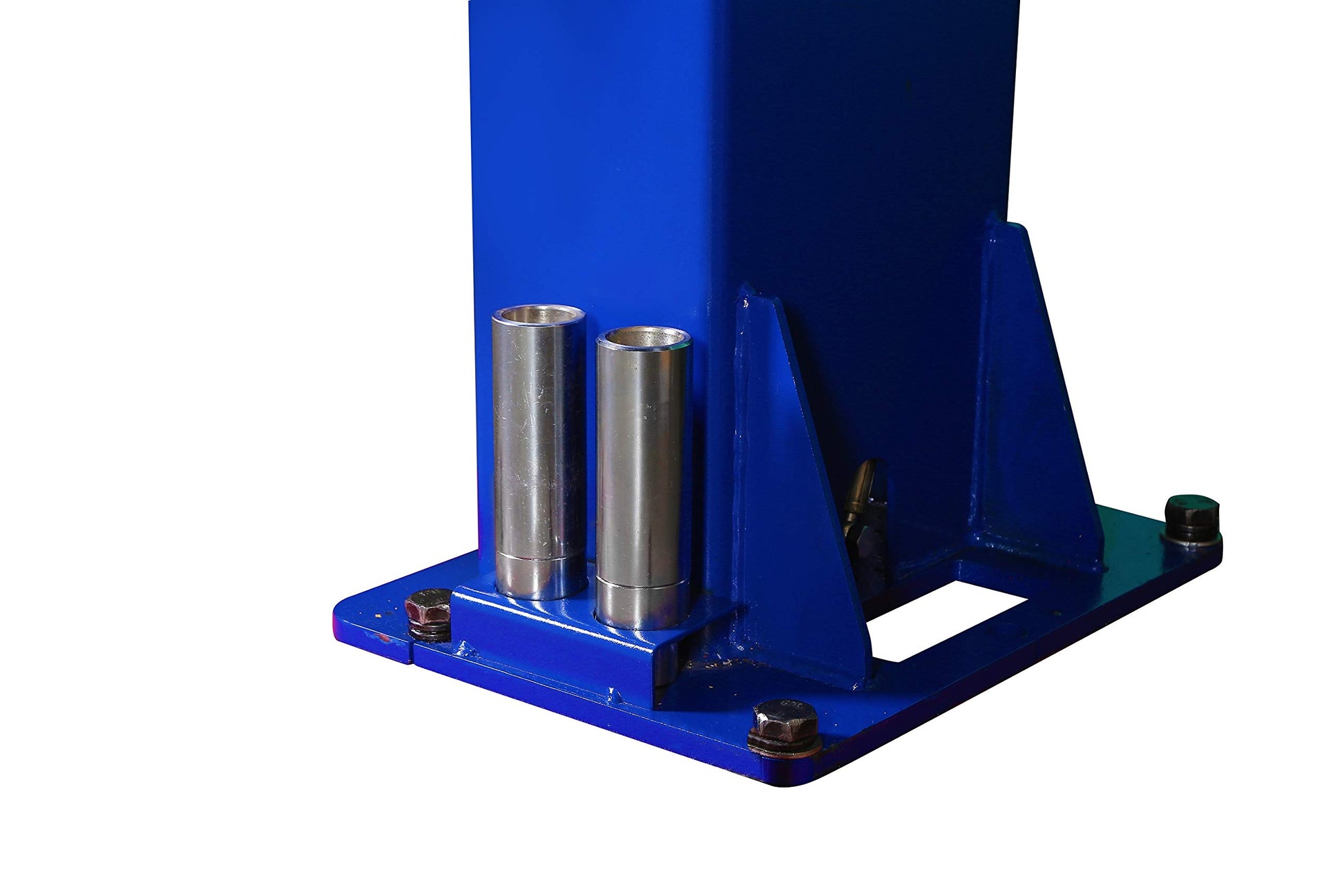

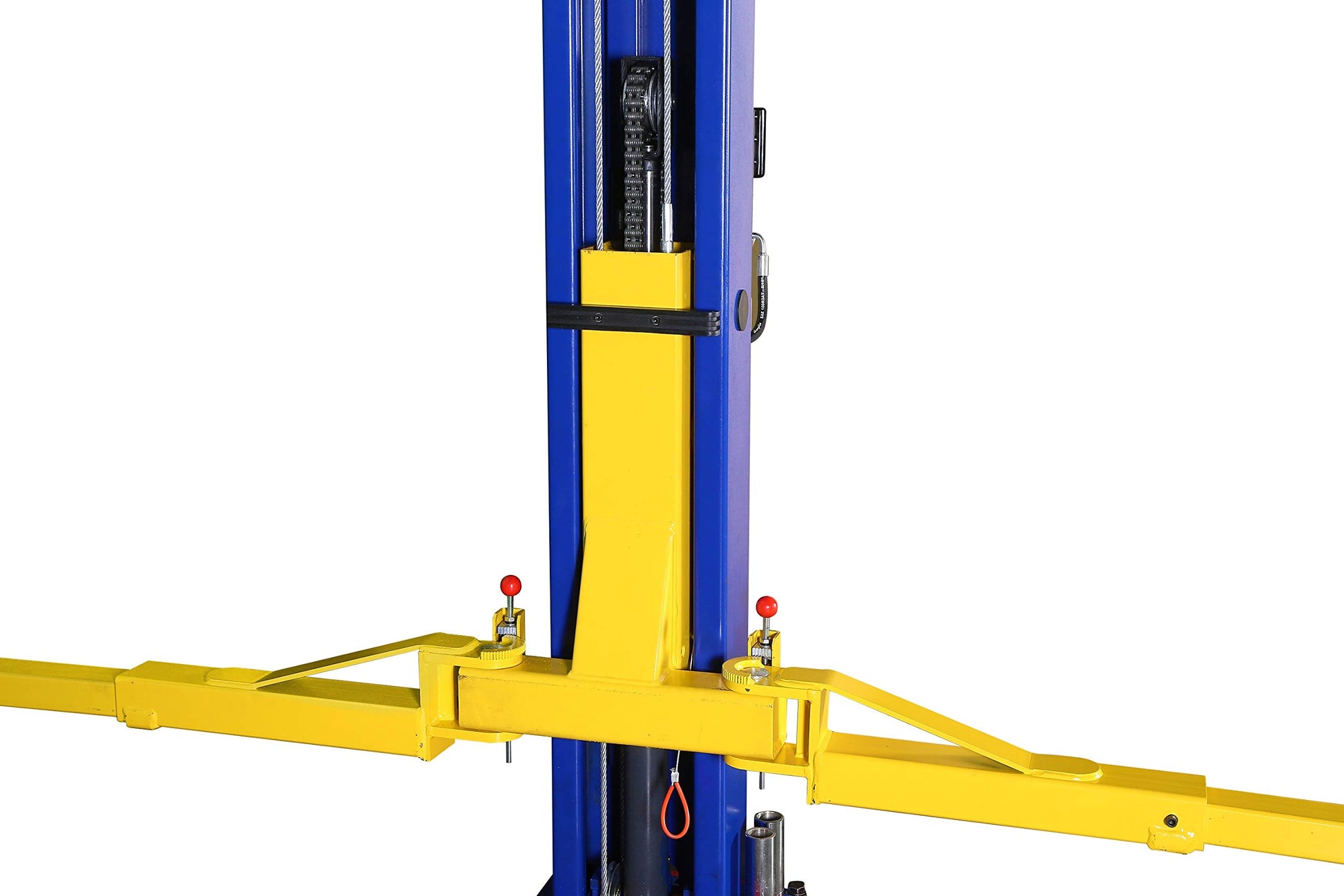

Details: Symmetrical Arm Assembly: Straight Front / Rear 2 Stage reach from 30 1/8" to 45 3/8" Equal length of front and rear arm design Drop-in type lifting pads and truck adapters included Double point safety lock release Automatic arm lock restraints Relief valve built in power pump to prevent overloading Door guards protection rubber Up-limit switch to protect cylinders working stroke used in safe length scope Heavy duty 3/10" diameter cable and 4 1/5" pulley that reduce high stress on synchronization process and increase cable life Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32" with Supporting Bracket. Stiffened base plate 5/8" thickness Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down Lifting operation by pressing "UP" button on motor Manual lowering operation by pressing lever Relief valve built in power pump to prevent overloading 2 sets of truck adapters (height extensions) included Lifting Capacity: 9,000 LB Overall Height: 113 5/8" Overall Width: 134 3/16" Lifting Height without Truck Adapters: 75" Lifting Height with Truck Adapters: 81" Minimum Height of Arm Top: 4" Carriage to Carriage Width (Drive-through clearance): 100" Column to Column Width: 109" Column Cross Section: 11"L x 7"W Floor Plate Size: 10 5/8"W x 1 7/8"H Driving Mode: Dual hydraulic cylinders, chain drive Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker) Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package) Time to full rise: 50 seconds Concrete Requirement: 4" at 3500psi reinforced with fiberglass or steel Anchor bolts/mounting hardware included Shipping Weight: 1,200 LB Shipping package size: 113"L x 22"W x 40"H

EAN: 0760488936368

Package Dimensions: 113.0 x 40.0 x 22.0 inches
