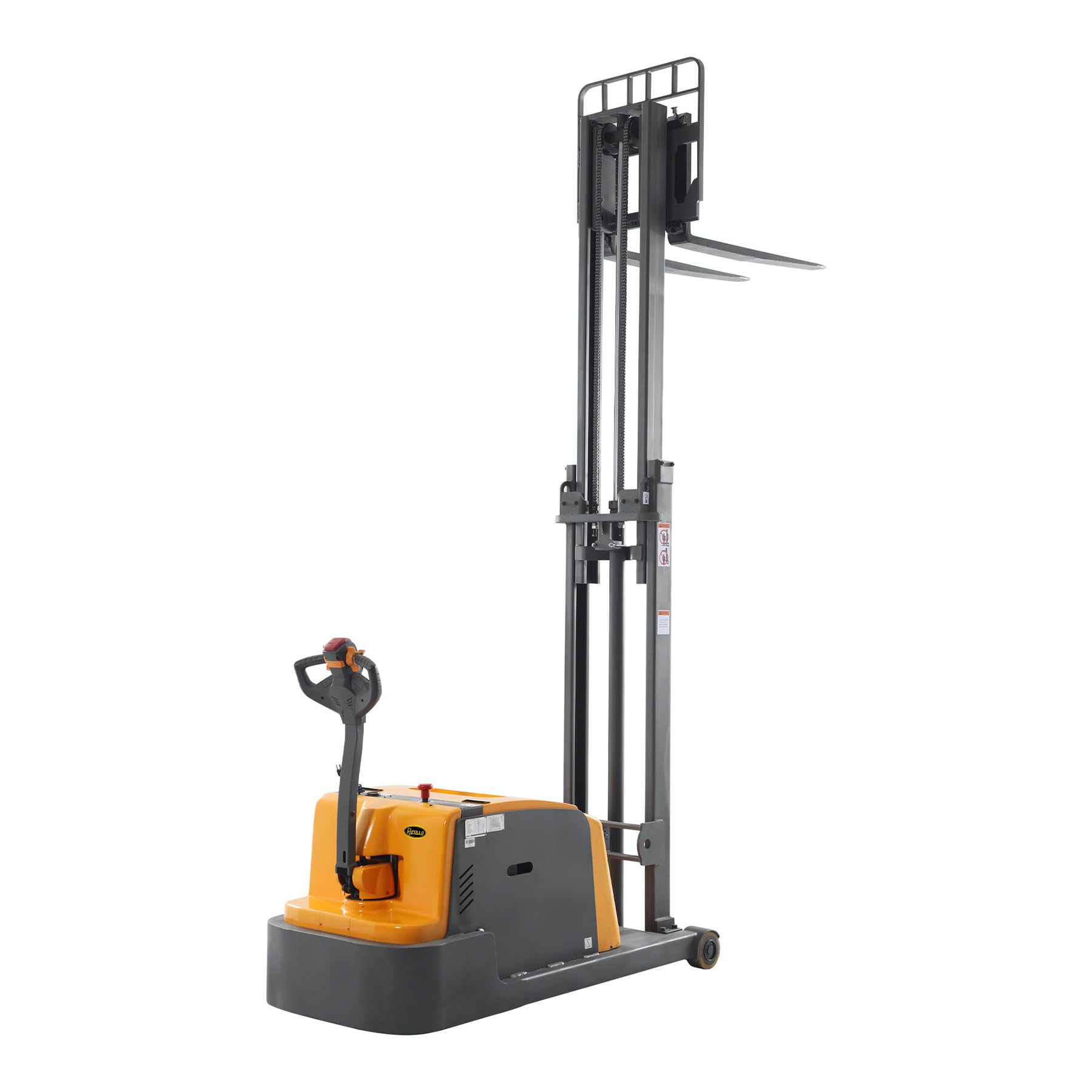

Apollo Full Electric Pallet Stacker, Counterbalanced Forklift, 3300 Lb. Capacity Material Lift, 118" Lifting Height Powered Pallet Lifter with Straddle Forks

Brand: APOLLO

Color: Yellow

Features:

• Capacity: 3300 lbs, Mast Lifting Height: 118", Mast Lowered Height: 81.3", Mast Raised Height: 146.1"
• Adjustable forks width range: 8.7"-25.4", Turn radius: 66.9", Gradeability (laden/unladen): 5%/10%
• Perfect for approaching racks and trucks, as there are no straddle legs to obstruct a close approach. Upright walking function, making it especially suitable for narrow aisles.
• The long handle structure makes truck steering light and flexible. Thoughtful mast design allows for wide viewing angles.

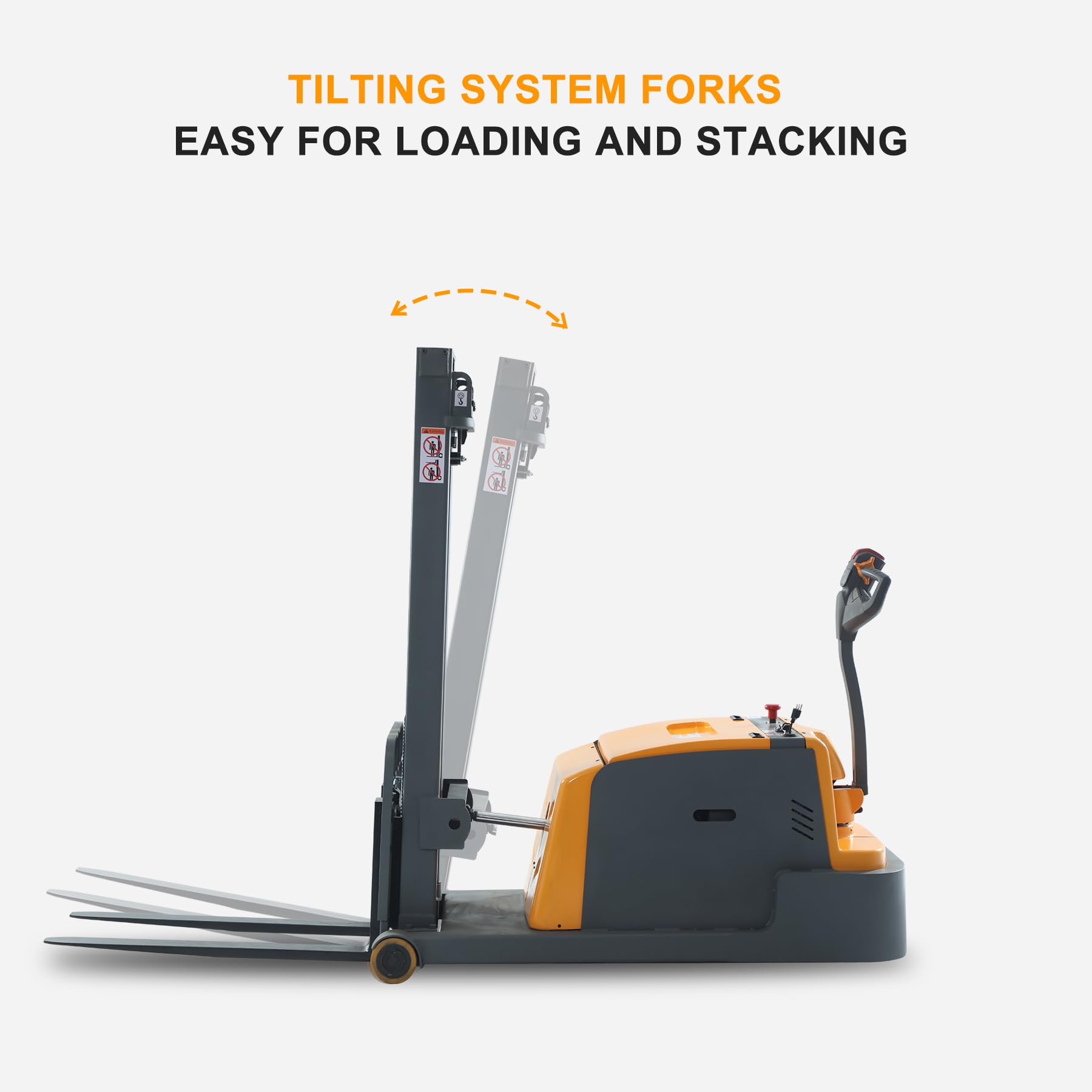

• The tilting fork system makes loading and stacking easier.

model number: A-3048

Part Number: A-3048

Details: Model A-3048
FEATRUES
Vertical drive wheels improve drive efficiency. Easy to install and maintain

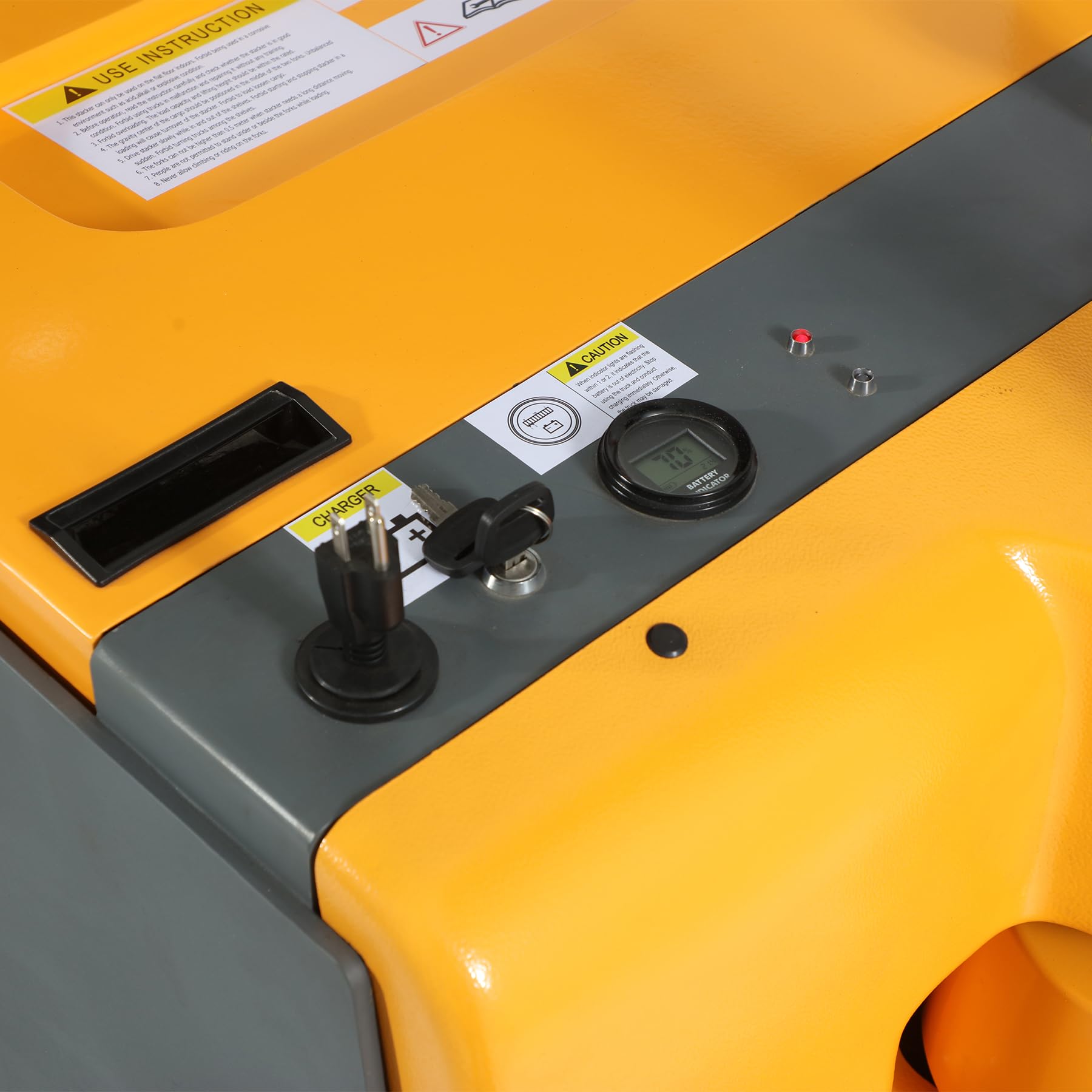

Ergonomic operation panel design reduces fatigue, improves operating efficiency by optimizing the button layout

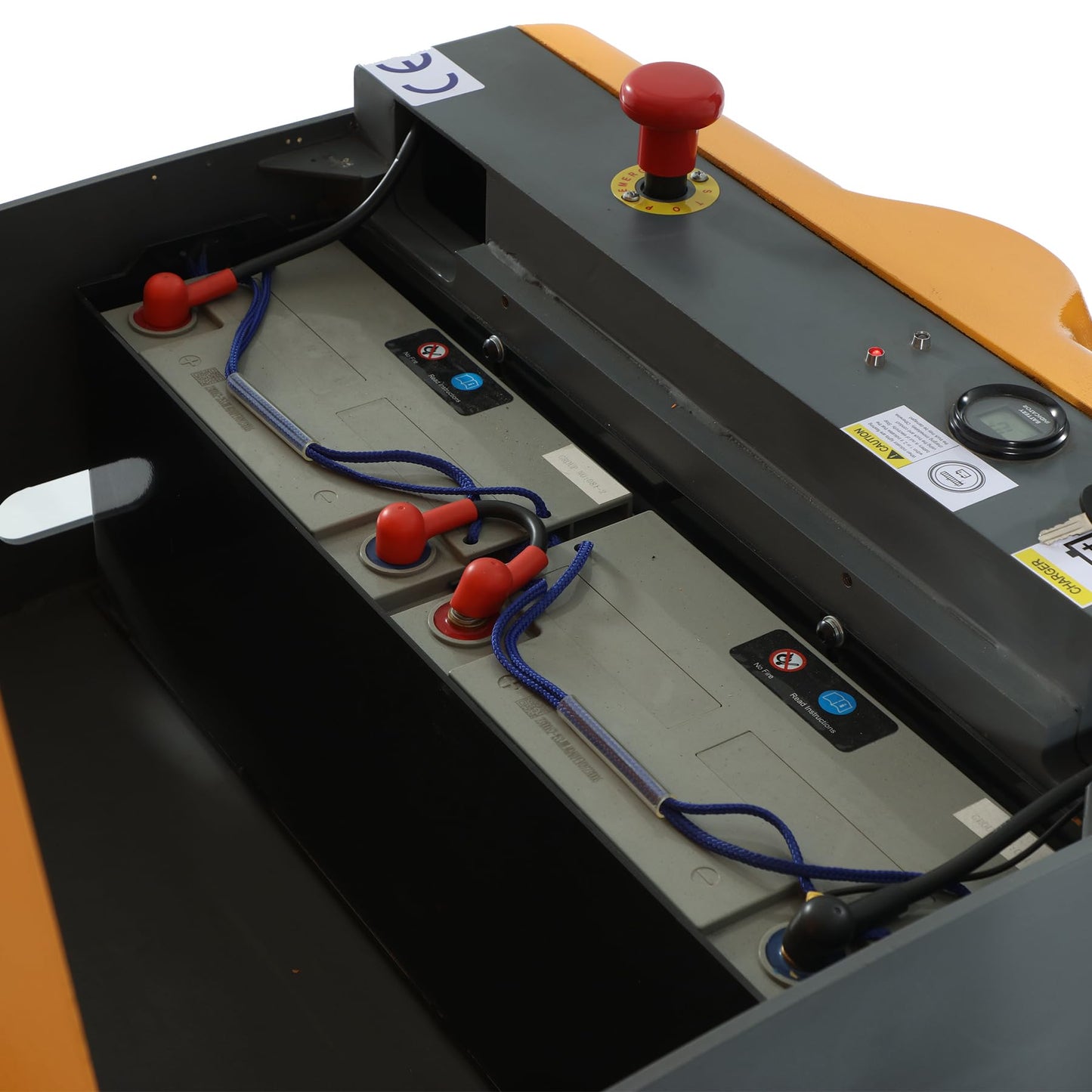

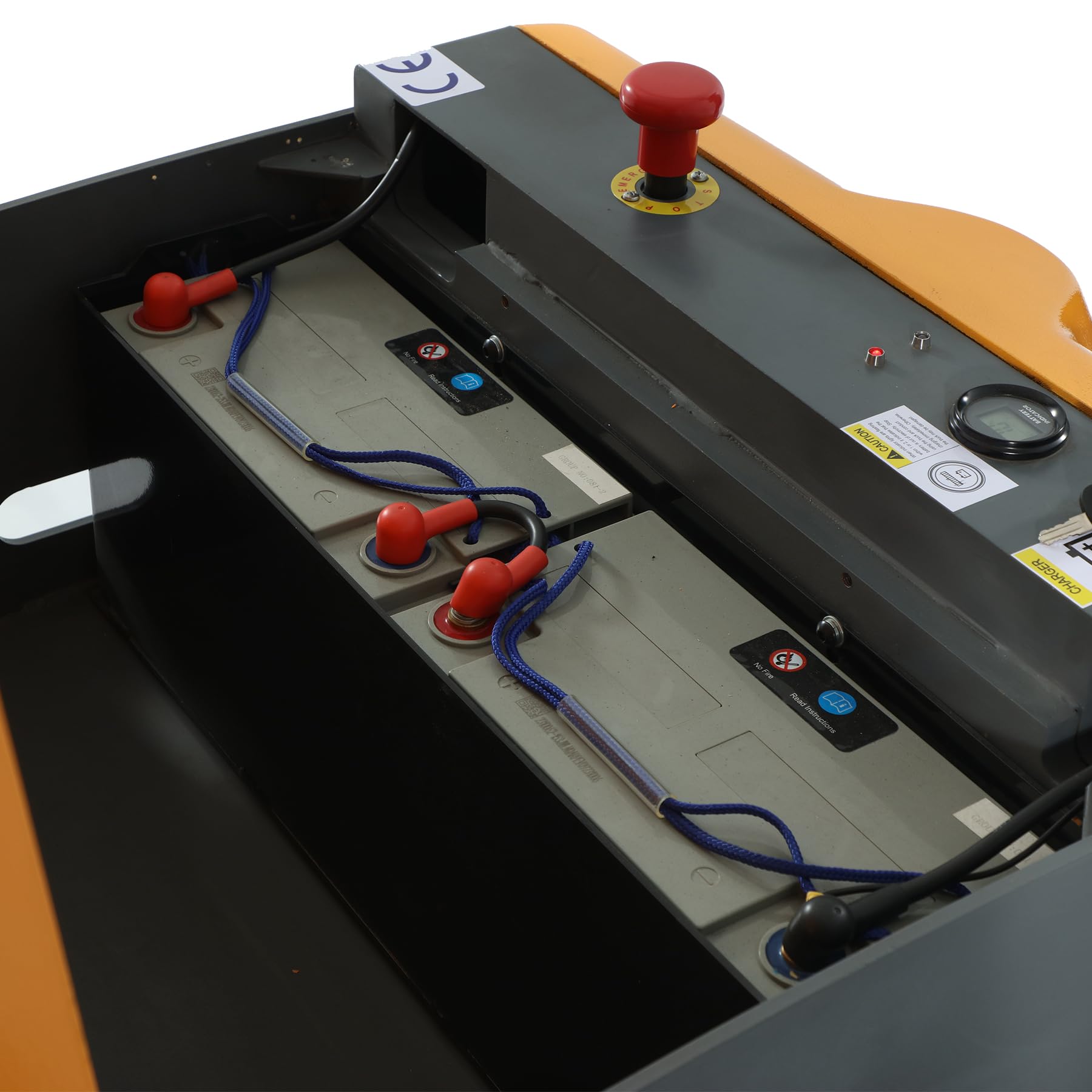

4-5 hours of service per charge: two 12-volt, 125 Ah rechargeable GEL batteries - Built-in 110V charger

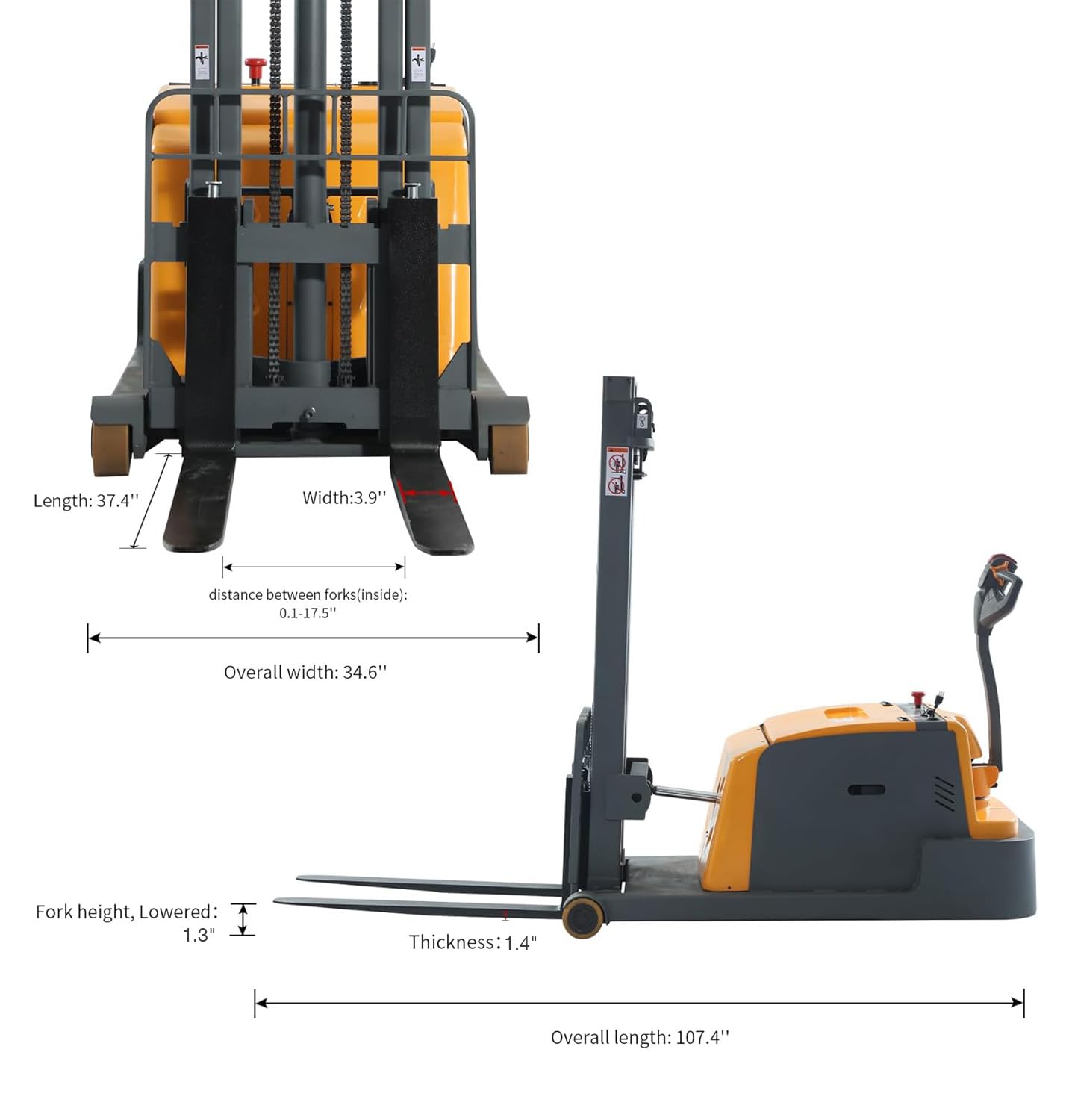

DIMENSIONS
Overall Length: 107.4"
Overall Width：34.6"
Recommended Aisle Width: 128'' for Pallet 1000x1200, 122'' for Pallet 800x1200
Turning Radius: 66.9"

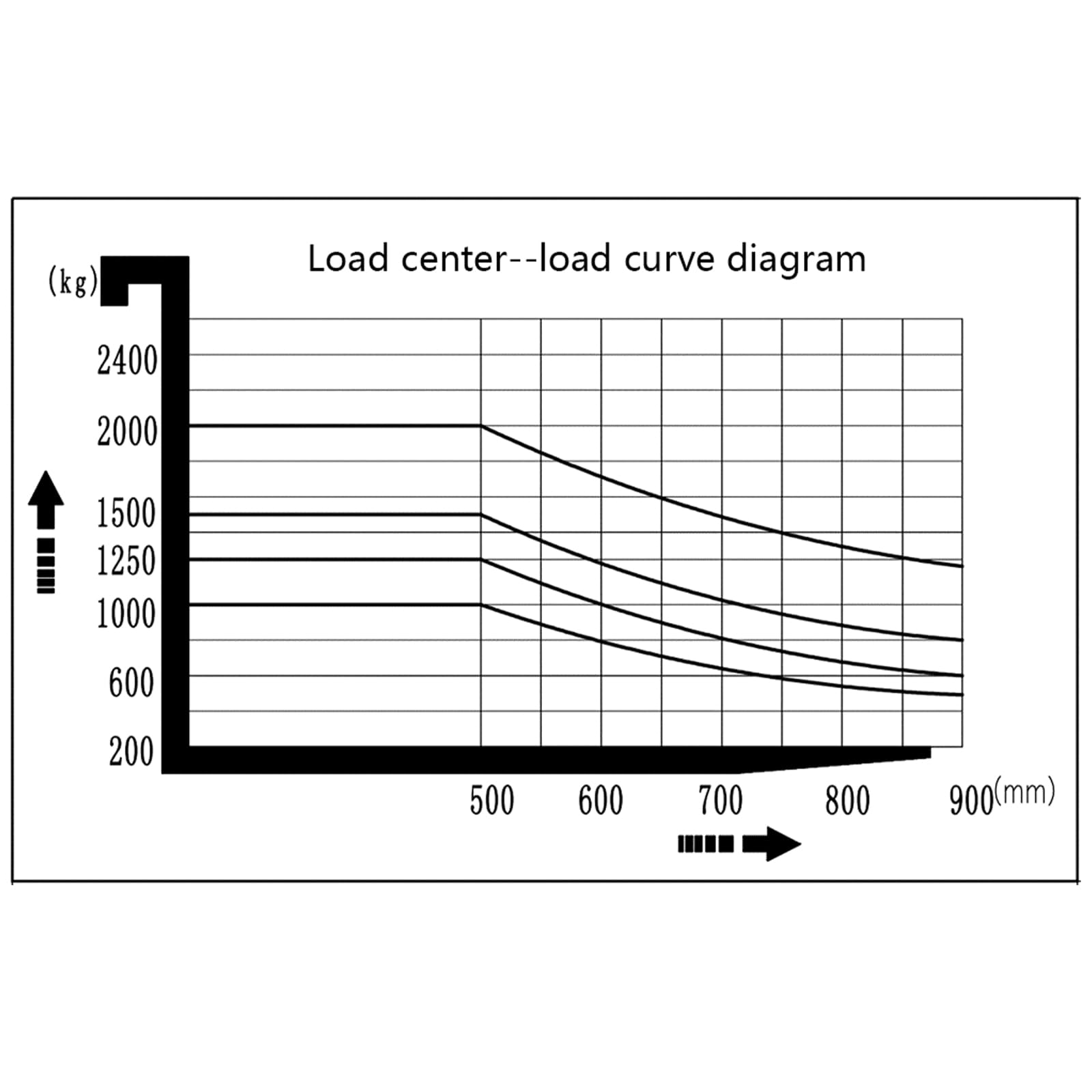

Load Center: 19.7"
Gradeability (laden/unladen): 5%/10%

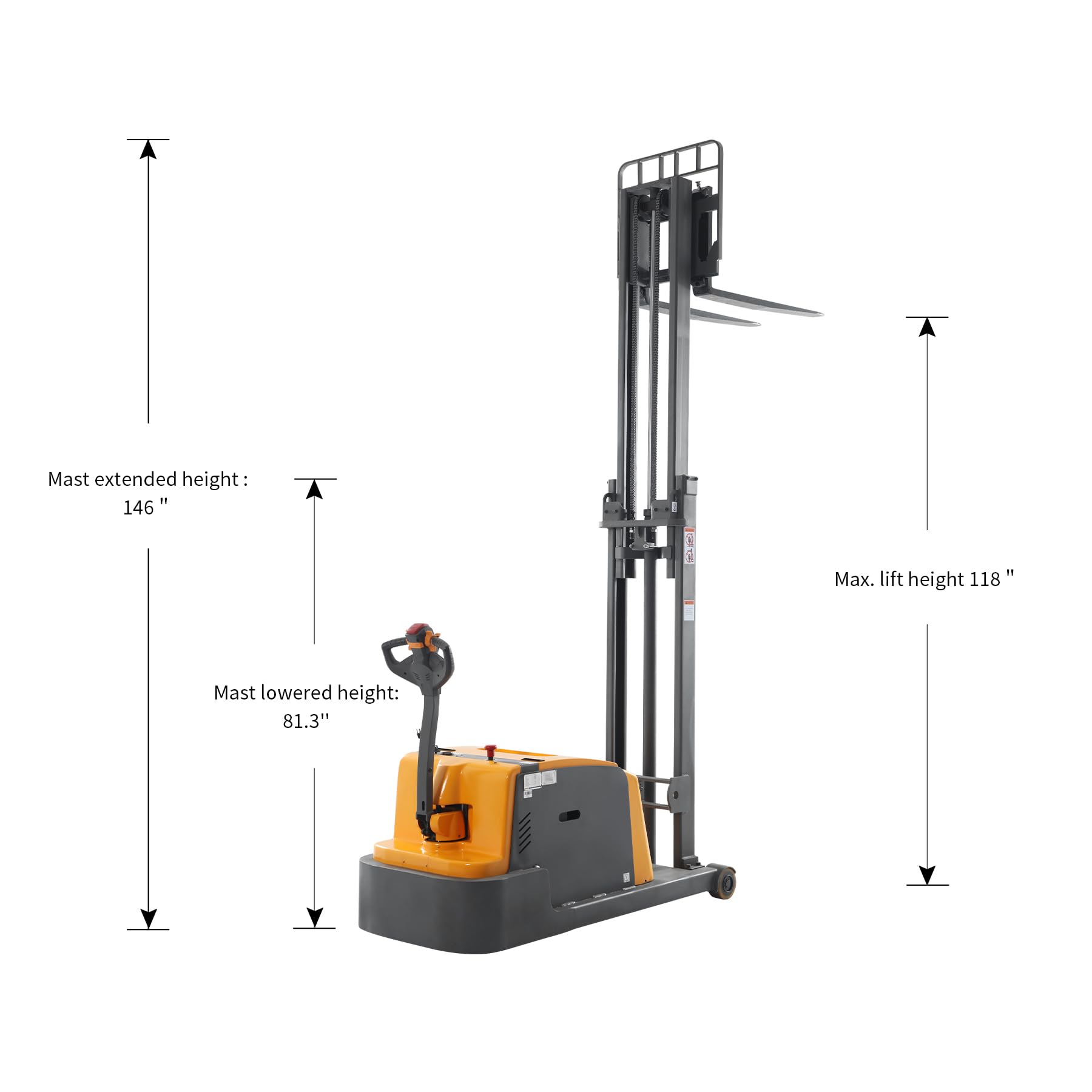

MAST
Mast Height Lowered: 81.3"
Mast Lifting Height: 118"
Mast Height Raised: 146.1"
Mast Tilt (forward/backward): 1°/3°
FORKS
Thickness: 1.4"
Width: 3.9"
Length: 37.4"
Fork Width Range: 8.7"-25.4"
SPEED
Lifting Speed (laden/unladen) : 3.1/4.7 inch/s
Lowering speed (laden/unladen) 4.7/3.9 inch/s

Package Dimensions: 86.0 x 59.0 x 34.0 inches
