AUTOKATO AM-120SD 12000 Lbs 2 Post Lift 4HP Single Point Lock Release Car Lift Auto Lift Two Post Lift (AM120SD)

Brand: AUTOKATO

Color: black

Features:

• Maximum lifting height: 70.87" (1800mm).
• Minimum lifting height: 4.25" (110mm).
• The car lift is designed to make your work easier and more convenient.

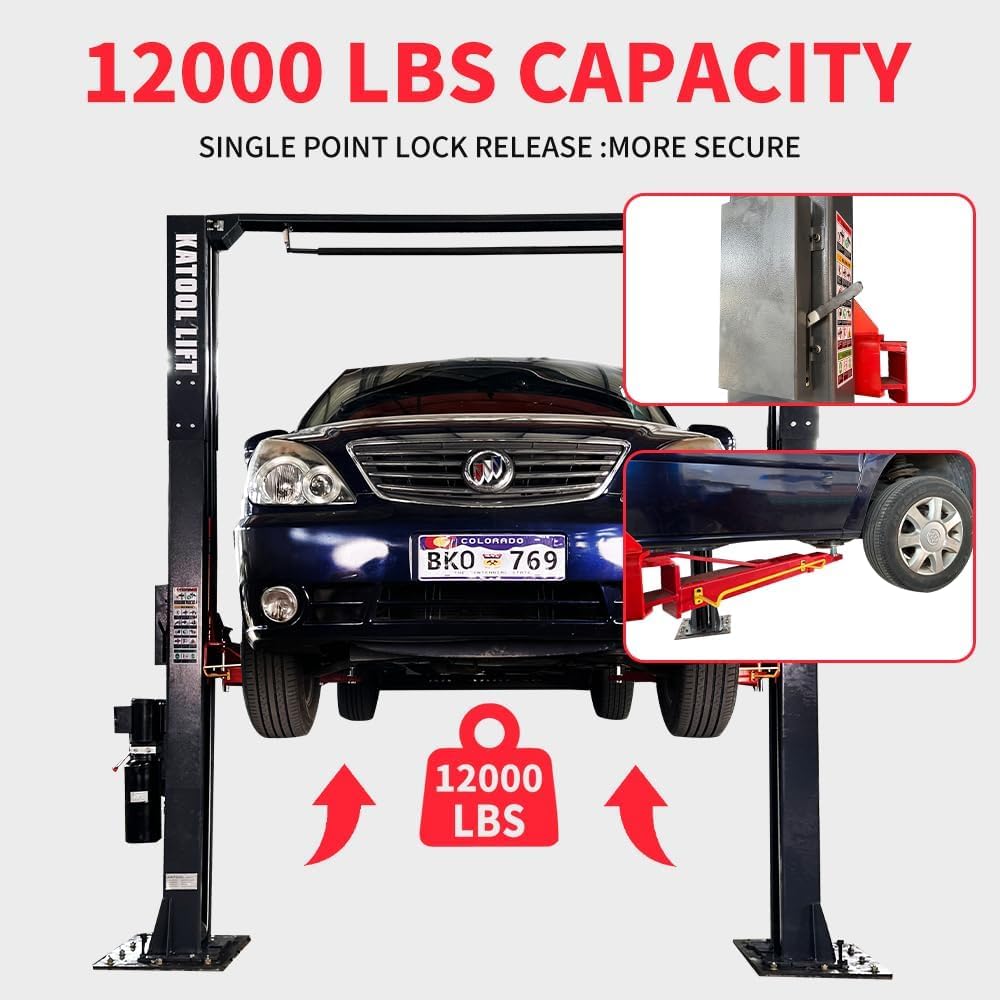

• Features a more secure single-point locking system and a 12,000 lbs capacity on a 2-post lift.
• Widely applicable in various settings such as factory workshops, automotive 4S stores, auto shows, and vehicle maintenance centers.

model number: AM120SD

Part Number: NO

Details: AUTOKATO KT-AM120SD Two-Post Car Lift – 12,000 lbs (5440kg) Capacity

Technical Specifications
Lifting Capacity: 12,000 lbs (5,440 kg)
Max Lifting Height: 70.87" (1,800 mm)
Min Height: 4.25" (110 mm)
Overall Height: 141.25" (3,587 mm)
Overall Width: 142.25" (3,614 mm)

Column Spacing
Outside: 128" (3,250 mm)
Inside: 110.25" (2,800 mm)
Drive-Thru Clearance: 94.5" (2,400 mm)

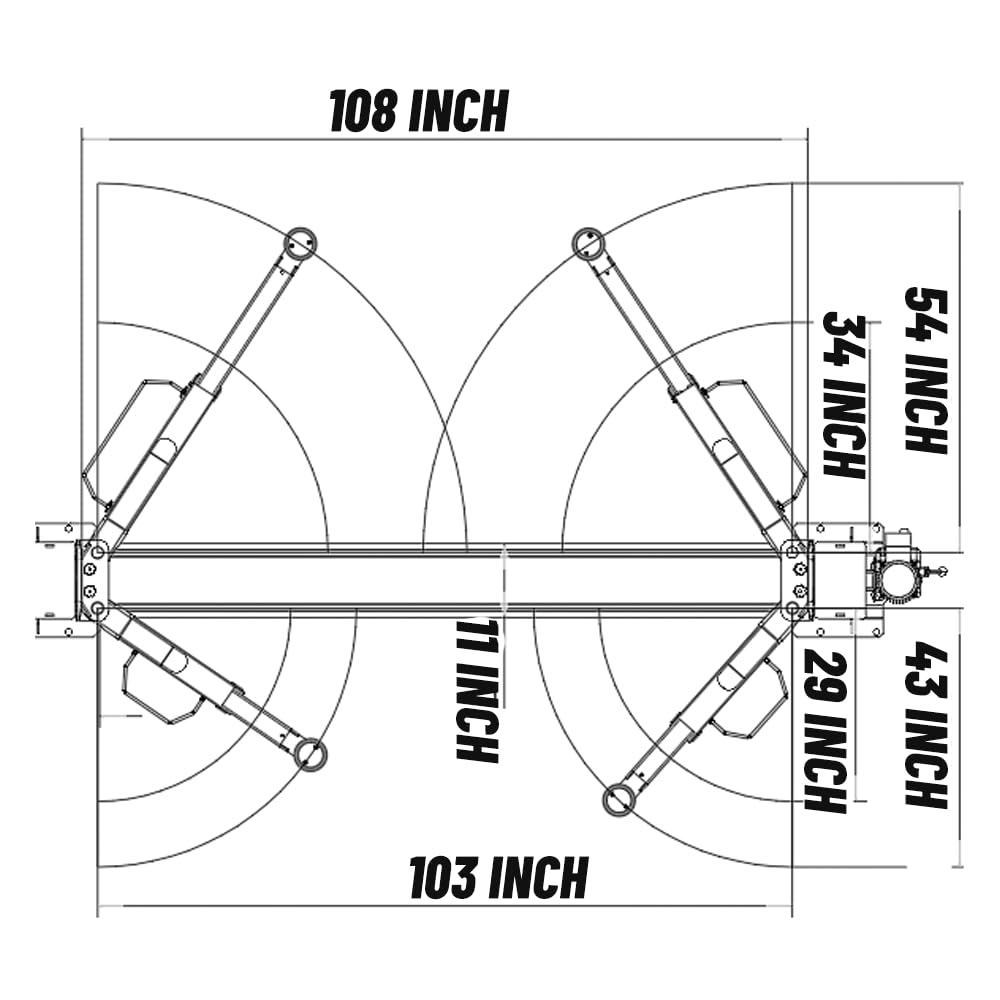

Arm Reach (Front/Rear):
Max: 50.5" (1,280 mm) – 2-stage adjustment
Min: 30.75" (780 mm) – 2-stage adjustment
Motor: 220VAC/60Hz/1PH, 2.2KW
Net Weight: 1,367 lbs (620 kg)

Safety & Durability
Rigorous Load Testing – Built to exceed 115% dynamic and 150% static load capacity standards.
Industrial-Grade Construction – Designed for professional workshops, garages, and heavy-duty use.

EAN: 0656551645797
