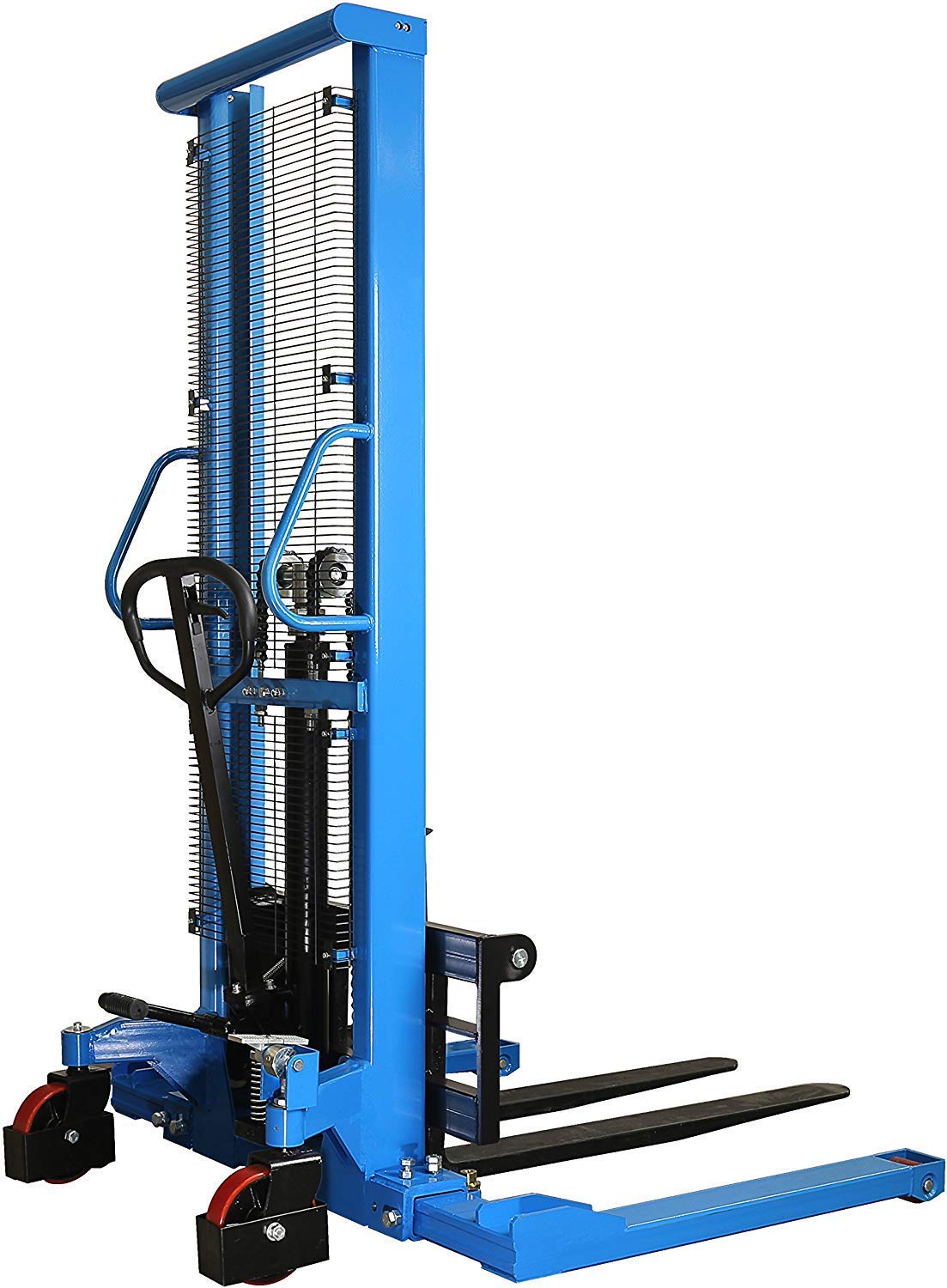

DoubleWin Manual Forklift Pallet Stacker with Straddle Legs, High Lift Straddle Stacker Pallet Lifter Truck with Adjustable Forks,2200lbs Capacity 63" MAX Lifting Height for Wharehouse and Industrial

Brand: DoubleWin

Color: Blue

Features:

• ✅ Minimum Fork Height: 1.4", Maximum Fork Height: 63", Quick lift from floor to max height in seconds
• ✅ Ergonomic handle enables easier lifting and lowering of truck
• ✅ Compact truck body, this manual forklift stacker is especially suitable for narrow aisles and small spaces
• ✅ High-strength C-type steel for double frame series which makes the pallet stacker more stable when lifting and lowering heavy items
• ✅ Advanced plating technology and processes can improve the corrosion resistance of the surface, we provide 1 year warranty for this straddle stacker

model number: H10J

Part Number: H10J Manual Forklifts & Pallet Stackers

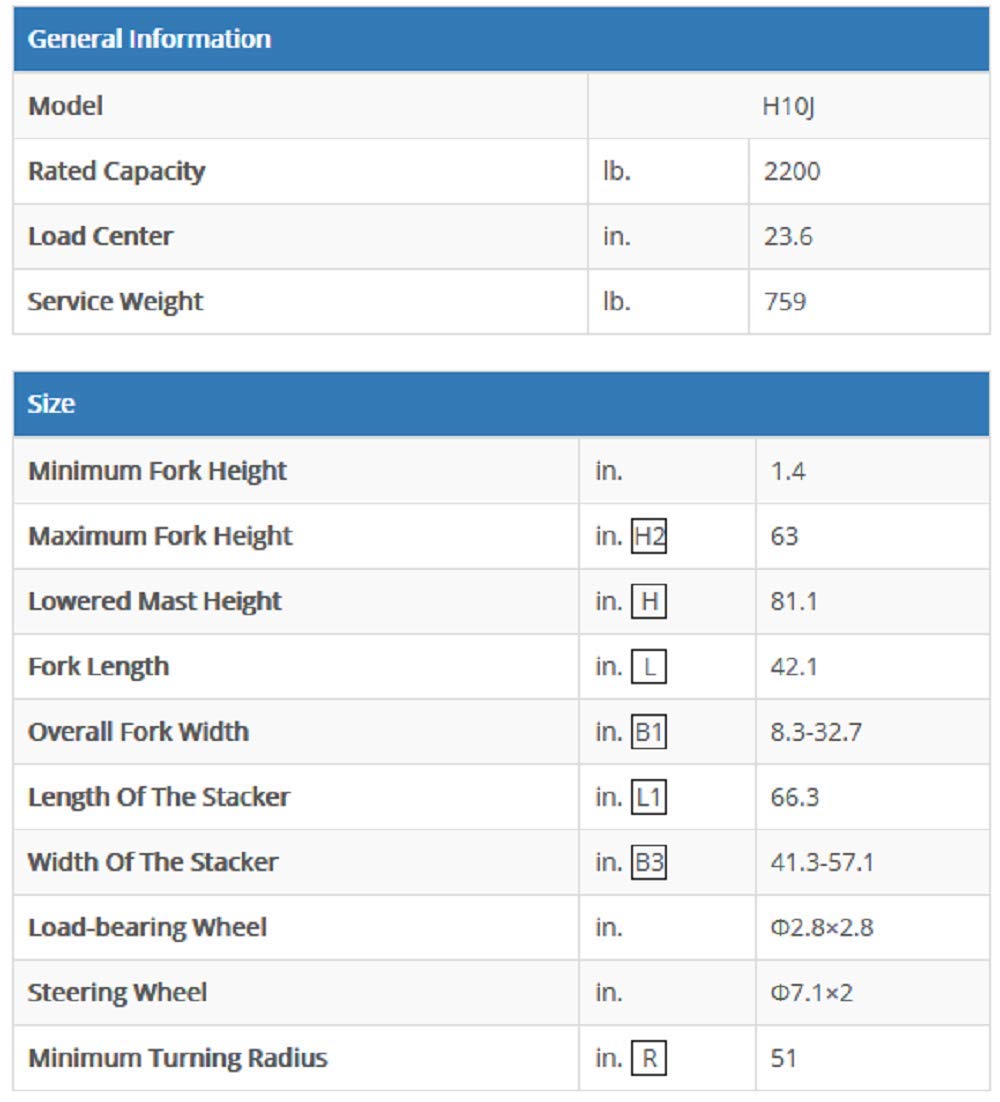

Details: Specifications
Load Capacity: 2200lb
Load Center: 23.6in
Service Weight: 759lb

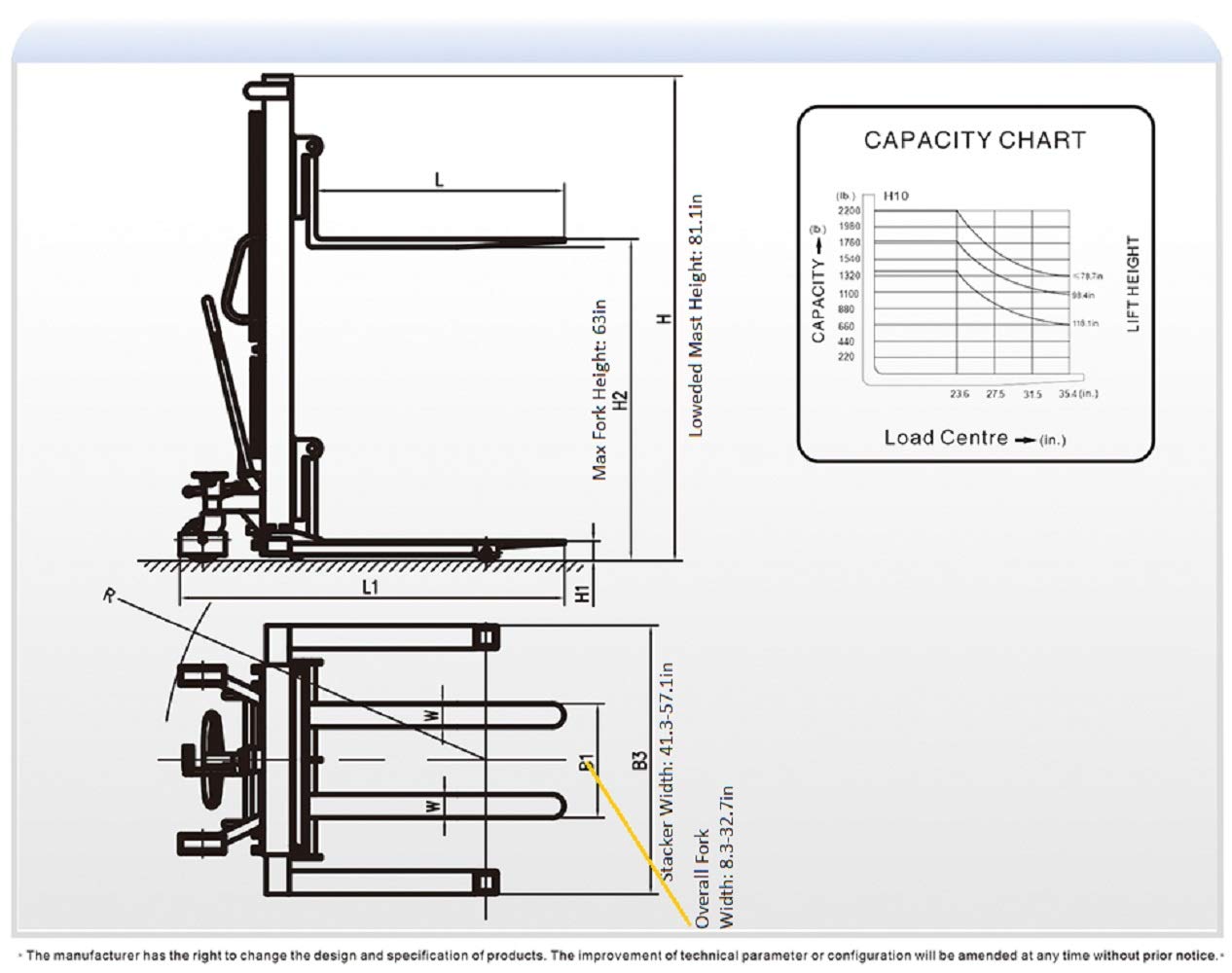

Size of Pallet Lift Stacker
Minimum Fork Height: 1.4in
Maximum Fork Height: 63in
Lowered Mast Height: 81.1in
Fork Length: 42.1in
Overall Fork Width: 8.3-32.7in
Length of Straddle Stacker: 66.3in
Inner Width of Leg: 33-49in
Outer Width of Leg: 41-57in
Load-bearing Wheel: Φ2.8×2.8in
Steering Wheel: Φ7.1×2in
Minimum Turning Radius: 51in

Wide Application
Used for stacking, loading or unloading palletized goods
Compact forklift truck body is uniquely suited for narrow aisles and small spaces

Stable & Reliable
Seal rings conforming to German standards ensure superior performance

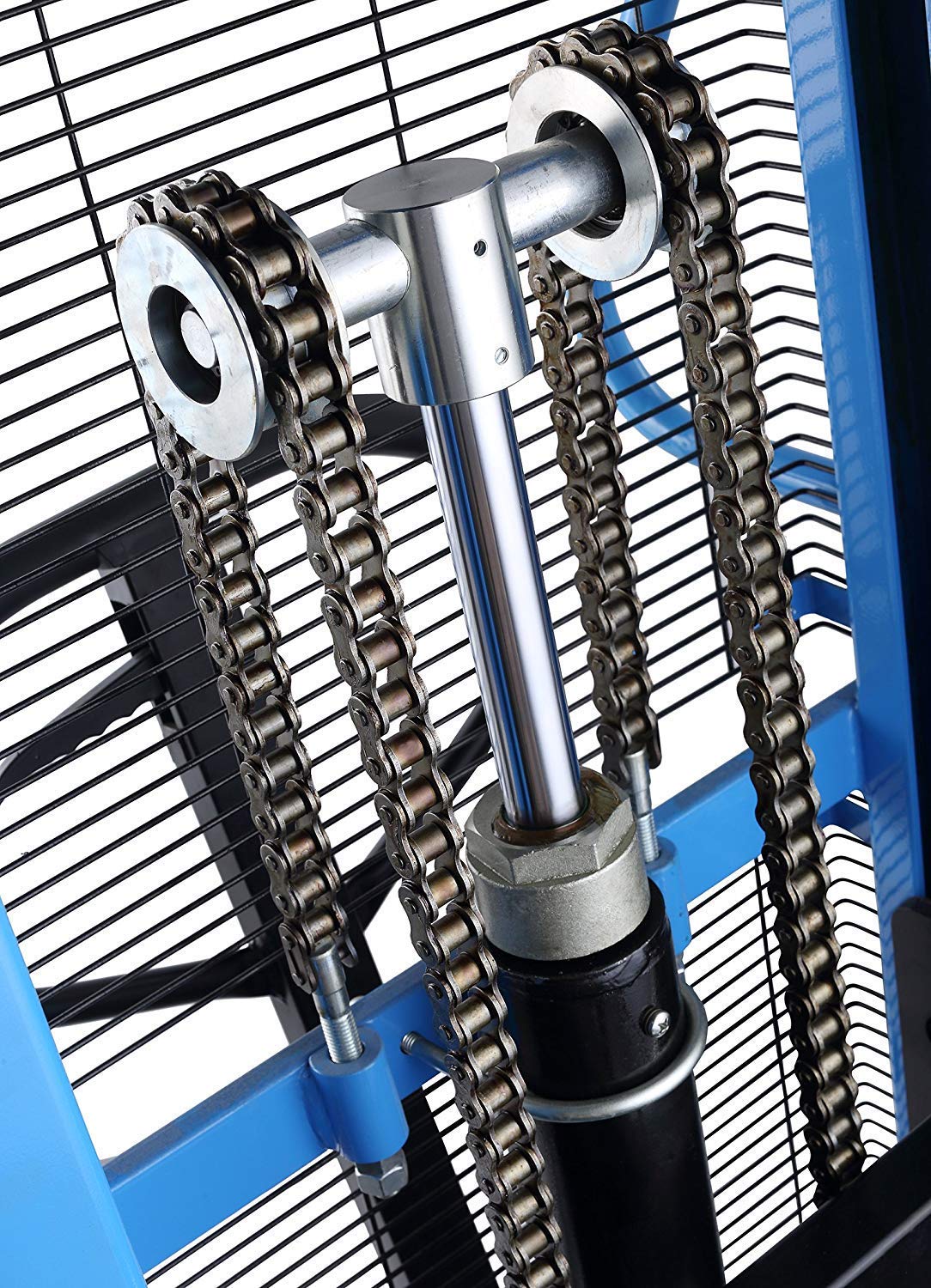

The cylinders use high precision drawn tubes which prevents the seal rings from damage and leakage

Safety & Comfort

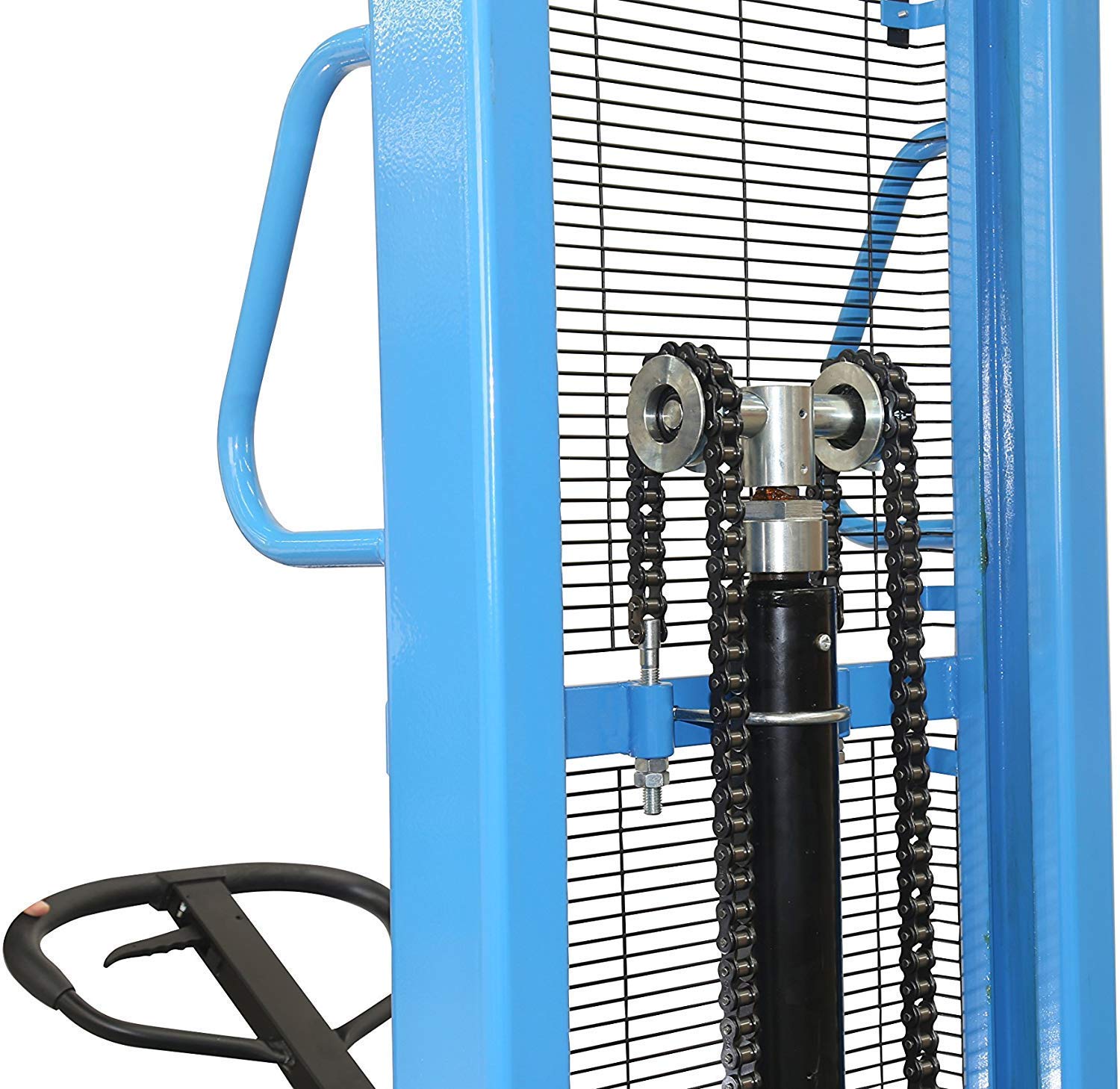

Equipped with a reinforced safety grid(grids and mounting screws are integrated)

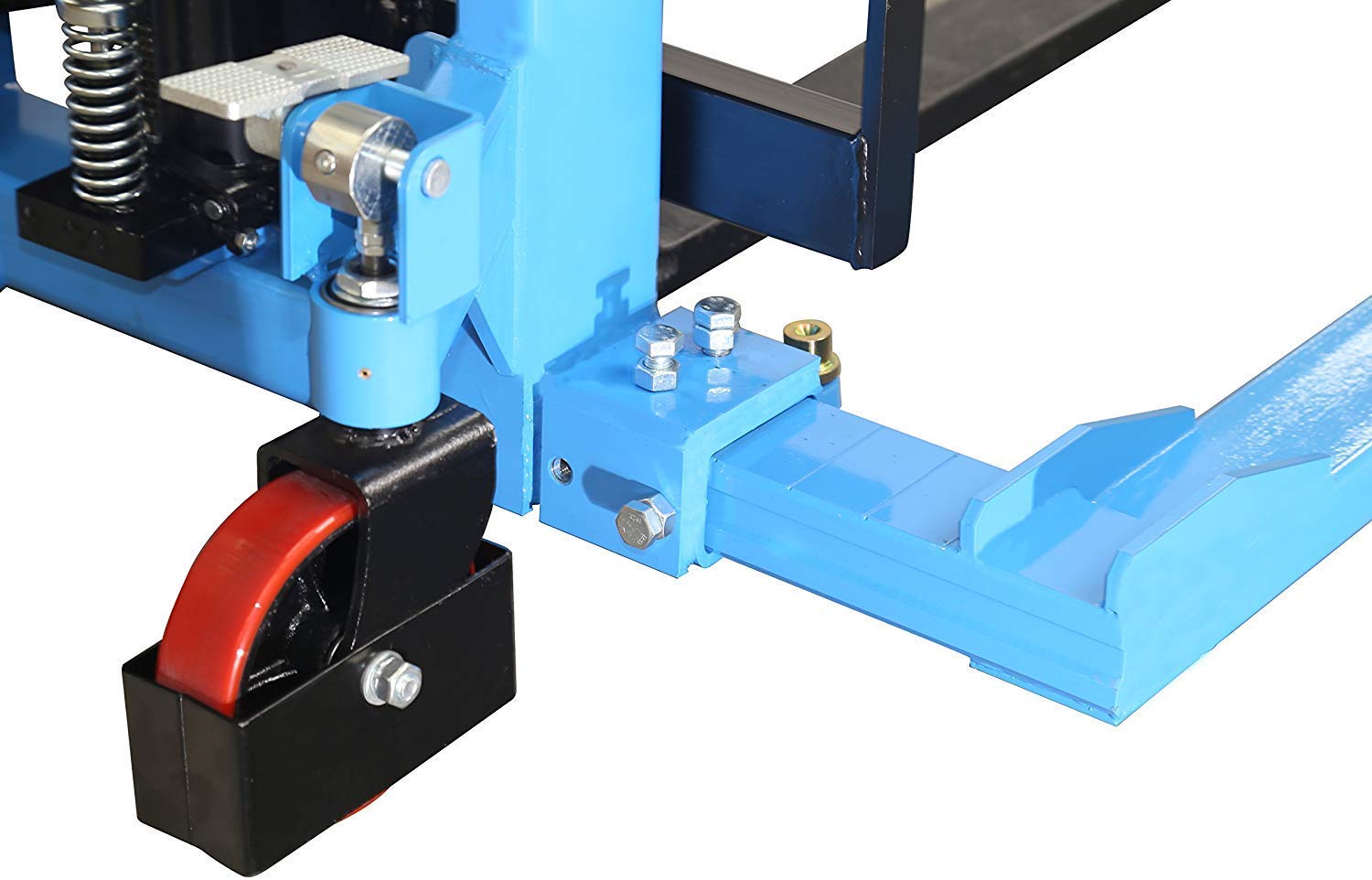

Press resistant caster bracket protects the operator from injuries
Ergonomic handle enables easier lifting and lowering of truck, foot pedal option for lifting
Wheel assemblies with brakes for easy operation

EAN: 6902210147398
