DoubleWin Semi-Electric Straddle Stacker Powered High Lift Pallet Stacker Forklift Truck with Adjustable Fork, 3300 lbs Capacity, 118" MAX Lifting Height, 42" Length X 8.3"-32.7" Adjustable Width Fork

Brand: DoubleWin

Color: Blue

Features:

• Minimum fork height: 1.4", Maximum fork height: 181", go from floor to the max height in 5 seconds

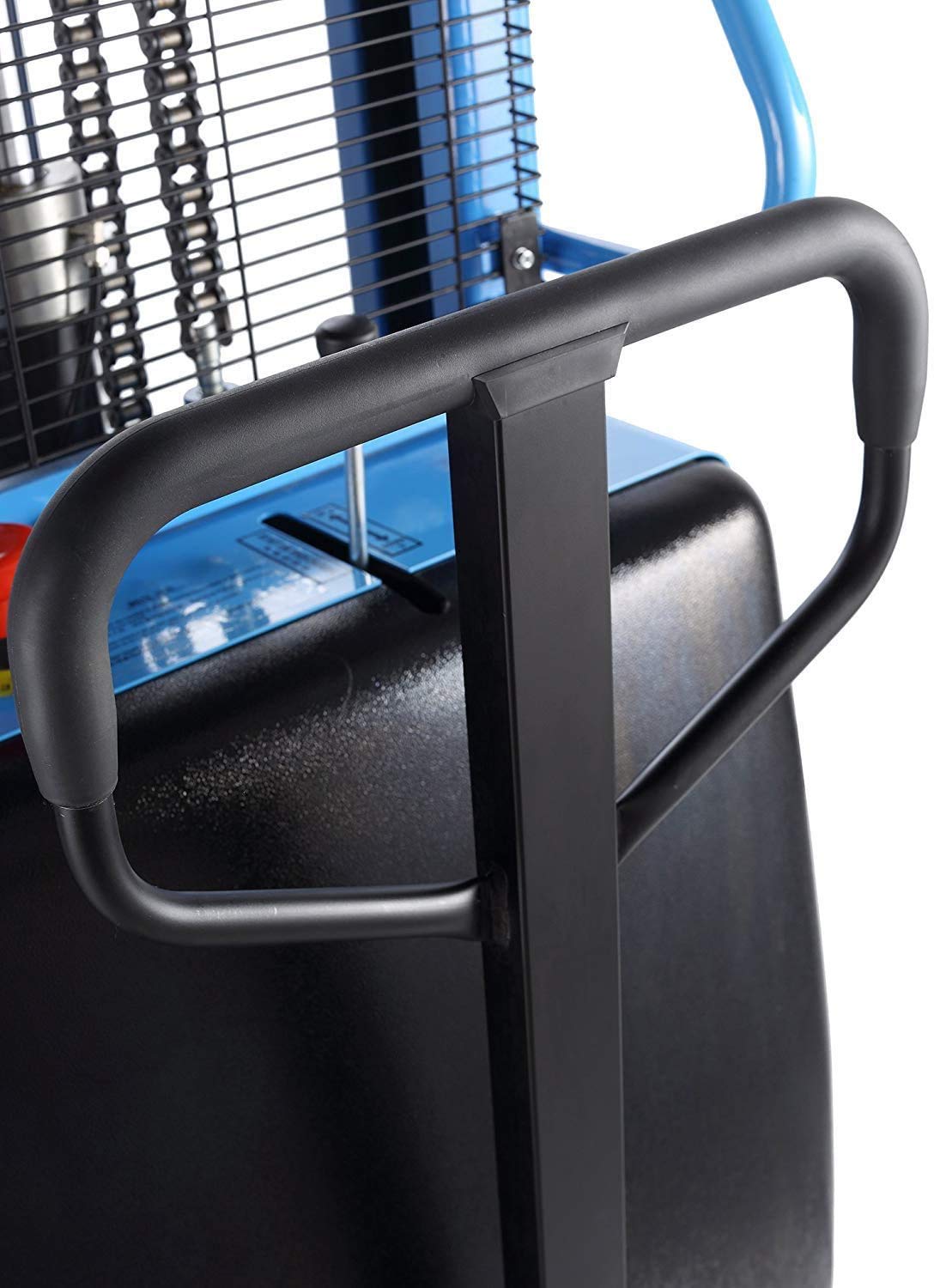

• Ergonomic handle to provide optimum safety and comfort
• Compact truck body, this straddle stacker is especially suitable for narrow aisles and small spaces
• C type steel frame especially for double frame series will be more stable when lifting and lower
• Warm Note: If you have any issues, please contact us directly and we will reply to you within 24 hours

model number: S15J-04-30-AAA-001

Part Number: S15J-04-30-AAA

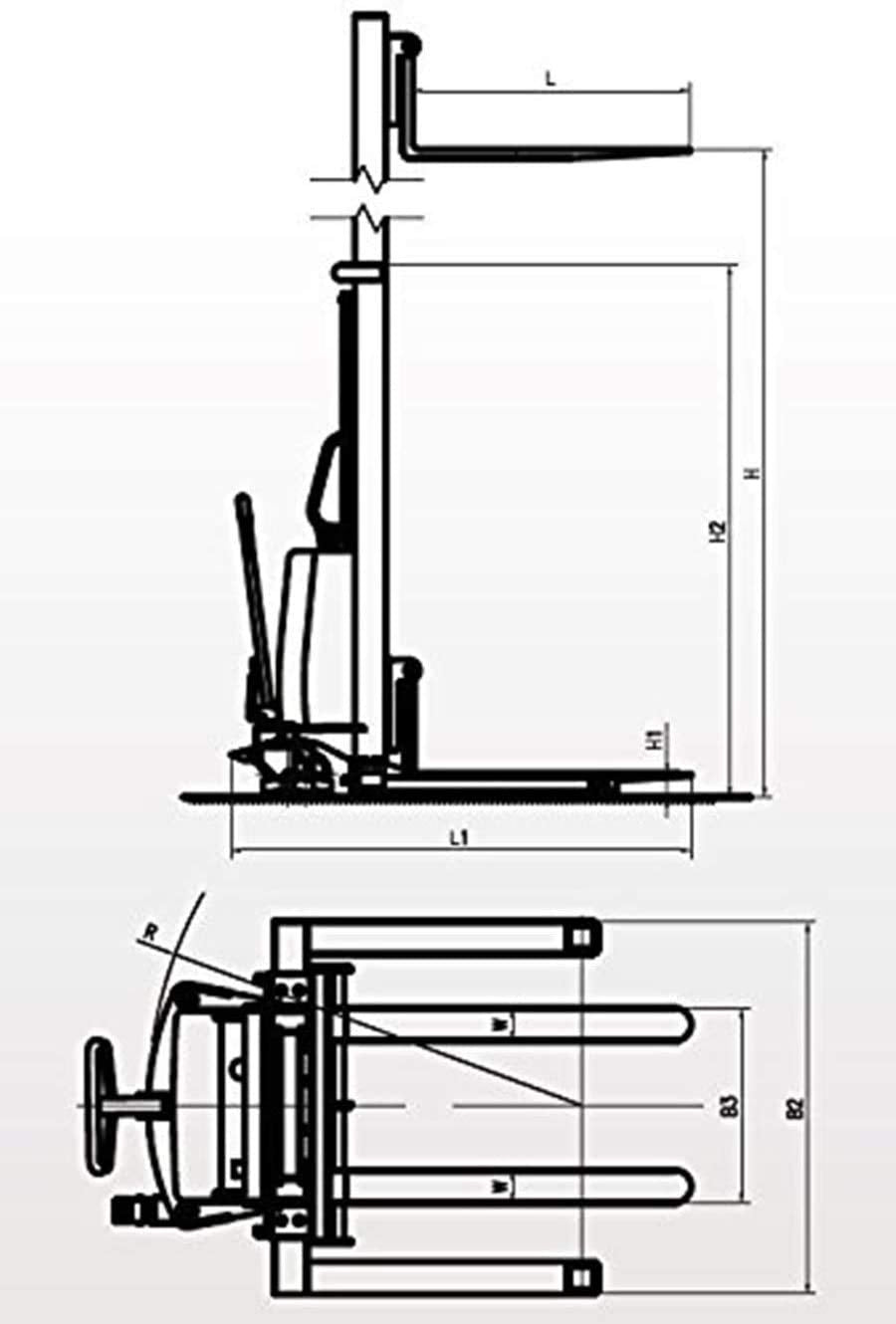

Details: General Information
Model: S15J
Rated Capacity: 3300Ib.
Load Center: 23.6in.
Service Weight: 990Ib.
Minimum Fork Height: 1.4in.
Maximum Fork Height: 118.1in.
Lowered Mast Height: 81.1in.
Fork Length: 45.3in.
Overall Fork Width: 8.3-32.7in.
Length Of The Stacker: 69.6in.
Width Of The Stacker: 41.3-57.1in.
Minimum Turning Radius: 52.6in.
Battery: 12/120V/Ah

Wide Applicability
Used for loading goods onto or unloading goods from pallets and stacking goods
Compact truck body, especially suitable for narrow aisles and small spaces
Straddle and forged forks available

Stable and Reliable
Efficient and energy-saving power unit
Overload protection
Throttle valve with pressure compensation function enables stable and reliable lowering
Frame constructed of high-strength C type steel, especially for double frame series which will be more stable when lifting and lowering

Safe and Comfort

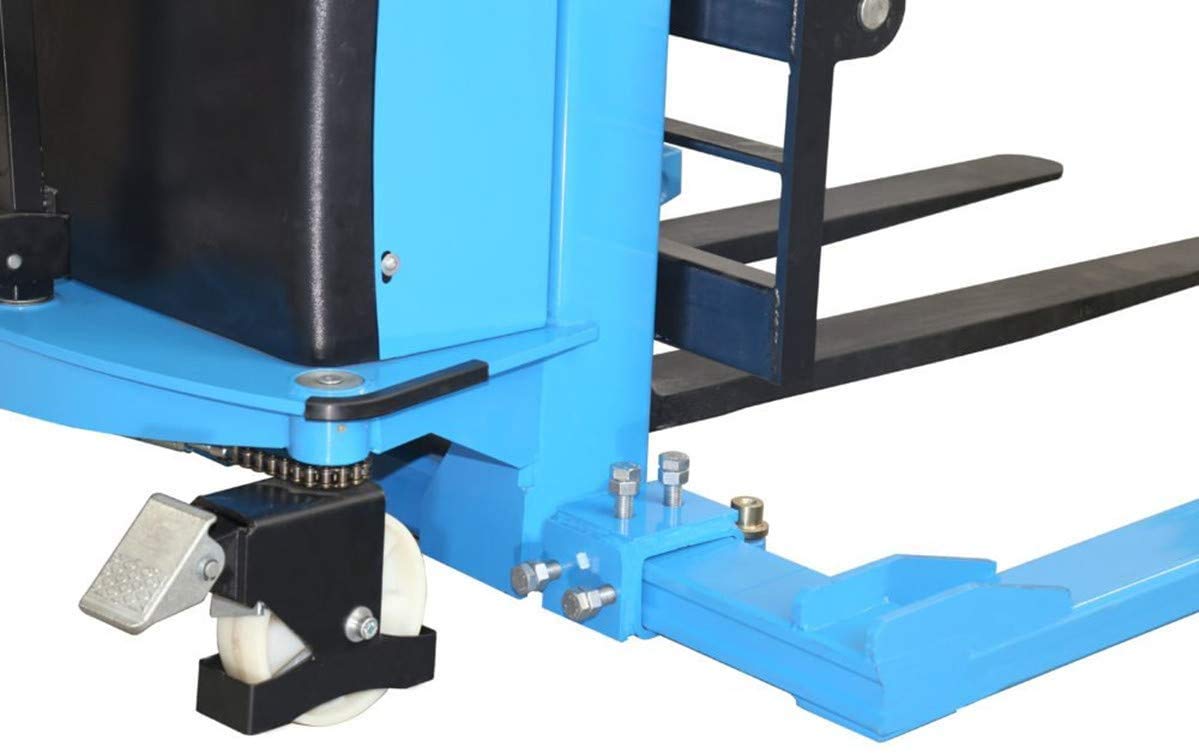

Anti-pressure caster frame, intimate protection handle ergonomically designed to ensure maximum safety and comfort with a mechanical assist steering, steering more easily
Mechanically assisted steering system for easy travel

About SEMI-ELECTRIC straddle stacker
Power assist for up-and-downs, the movement is manual

EAN: 6902210917199
