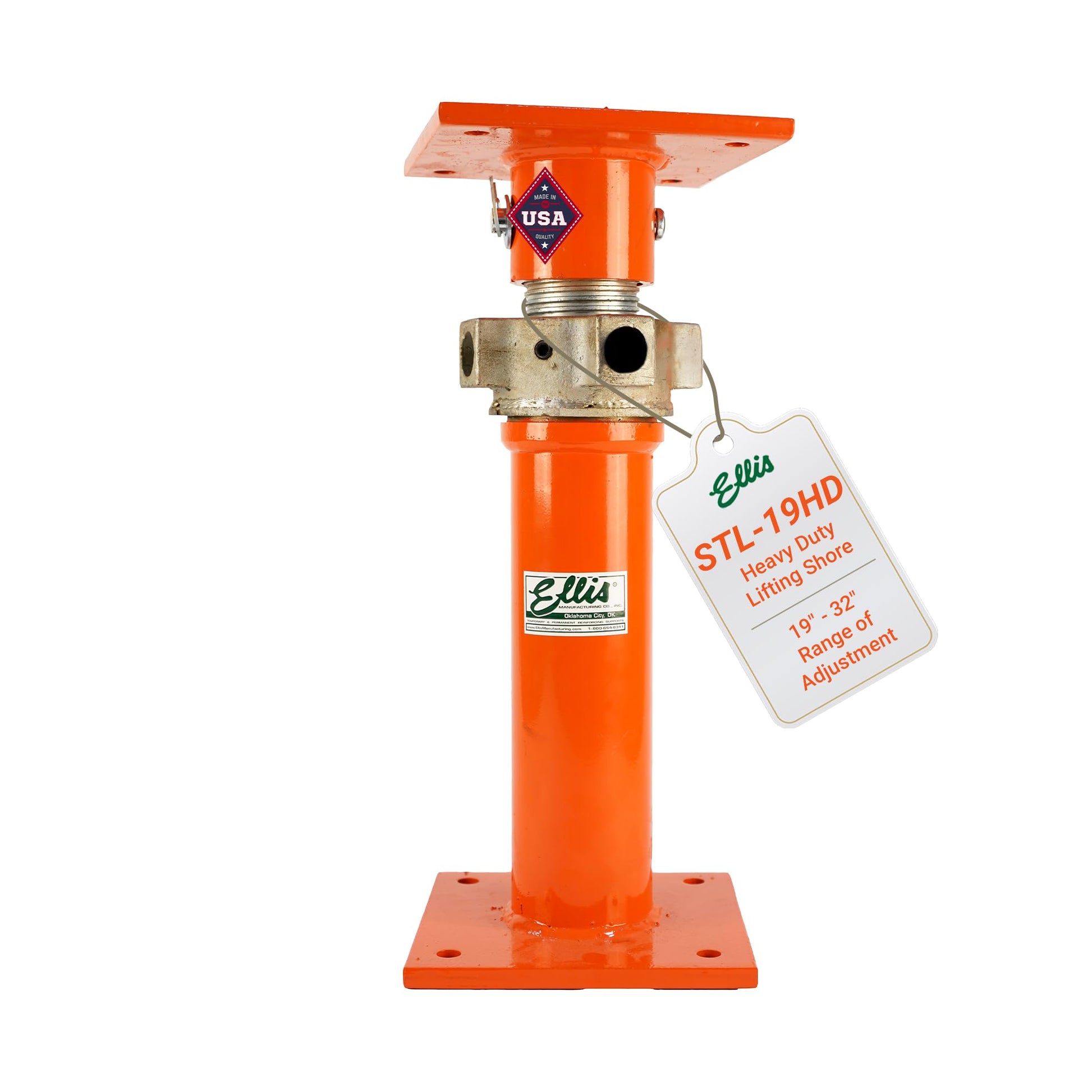

ELLIS Heavy-Duty Adjustable Steel Shore – Structural Support for Floor Leveling, Beams, and Concrete Reinforcement – 48,000 lb Safe Load Capacity – 19"-32" Adjustment

Brand: ELLIS

Color: Orange

Features:

• HEAVY-DUTY LIFTING SHORE – This steel lifting shore provides temporary or permanent structural support for foundations, beams, and heavy load applications. Designed for residential and commercial projects, it offers adjustable height and acts as a shoring post to reinforce walls, floors, and concrete slabs.

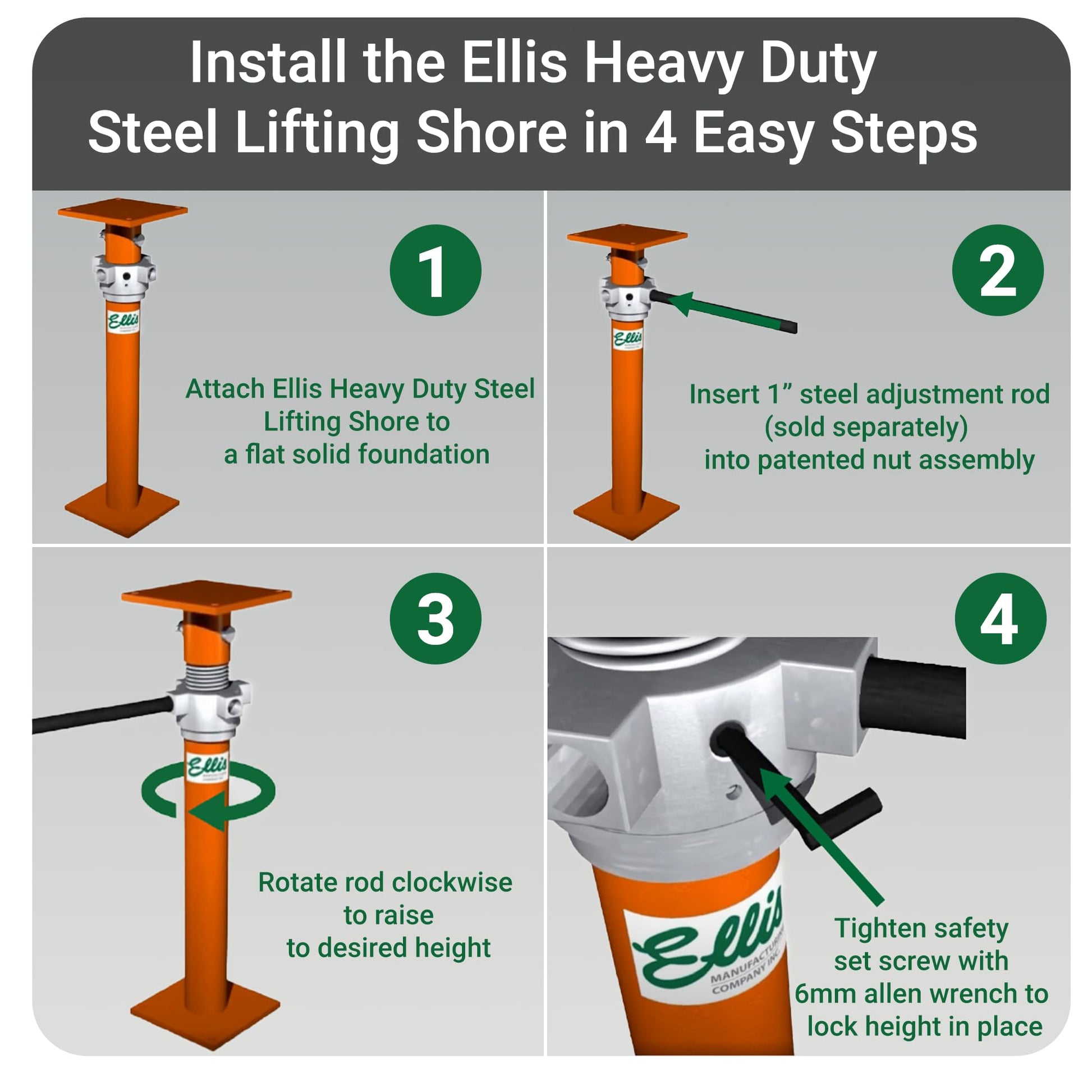

• ADJUSTABLE & EASY TO USE – Simply position the lifting shore and use a 1" steel adjustment rod (sold separately) to set the desired height. The adjustment nut and Acme screw mechanism allow for precise height control, while the lock-set screw ensures a secure and stable fit for long-term or temporary structural reinforcement.

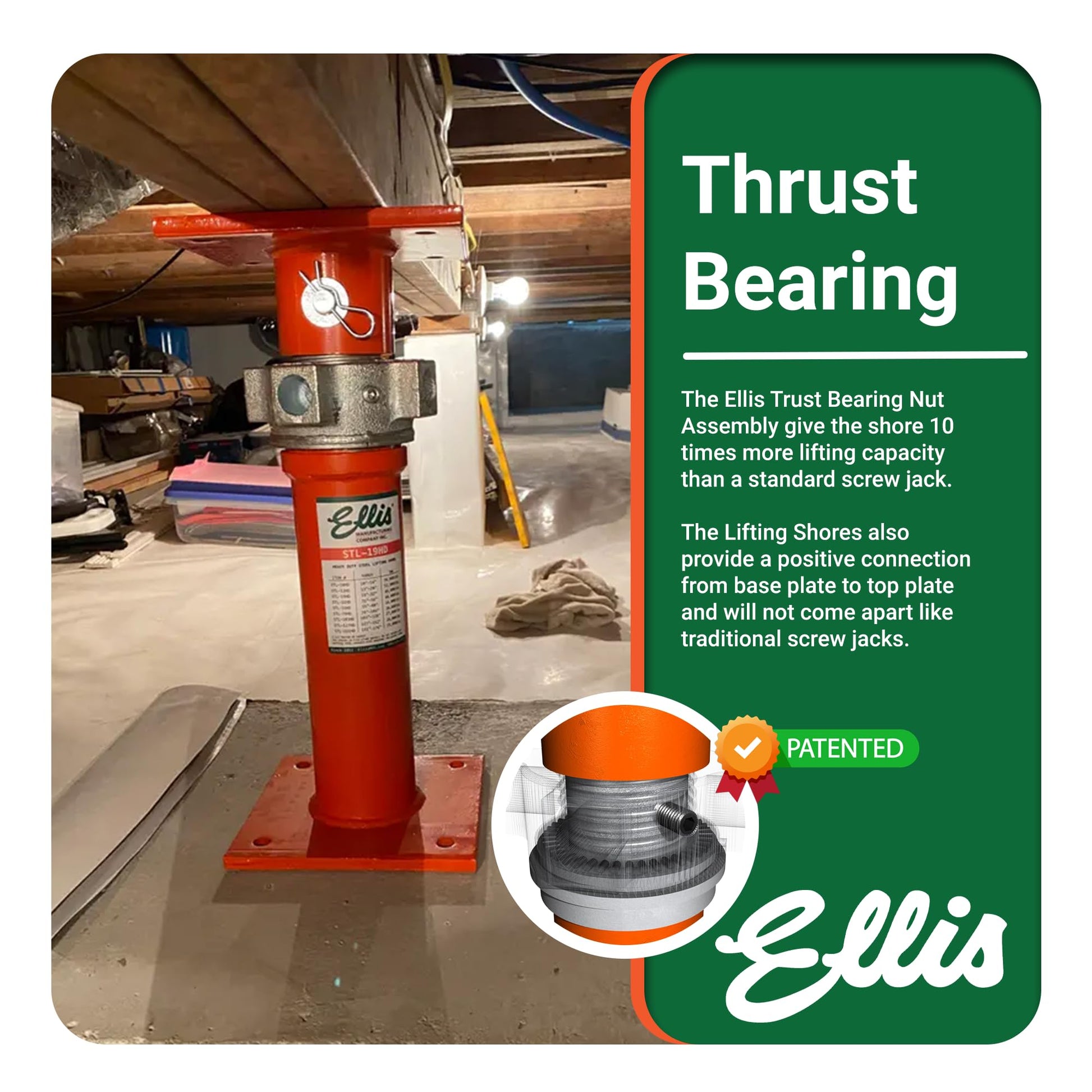

• SECURE & DURABLE CONSTRUCTION – Made from high-strength steel, this adjustable support post features a patented design that minimizes friction under load, enhancing its jacking capability. With a reinforced top plate and secure locking system, it provides stability for beams, concrete, and framing support.

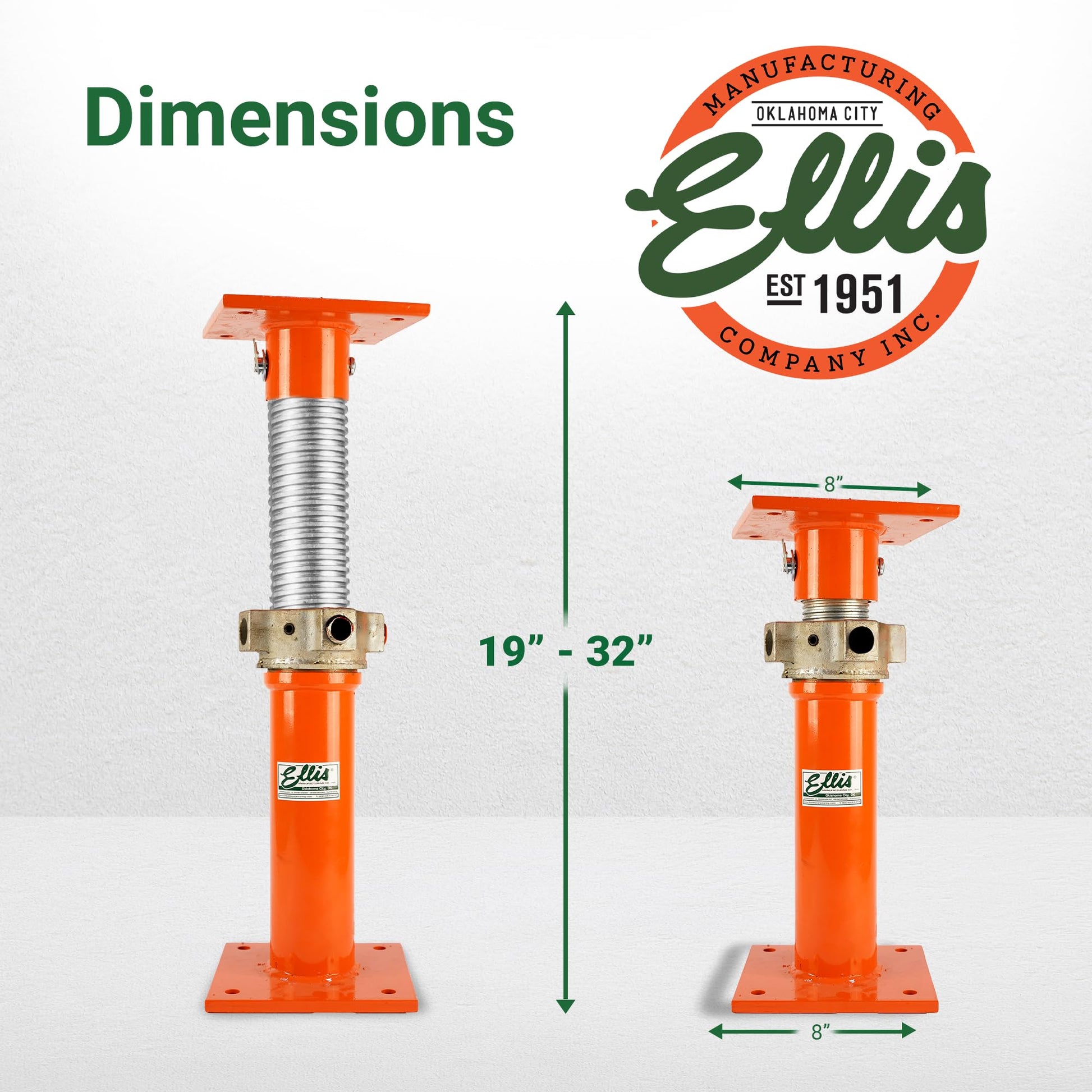

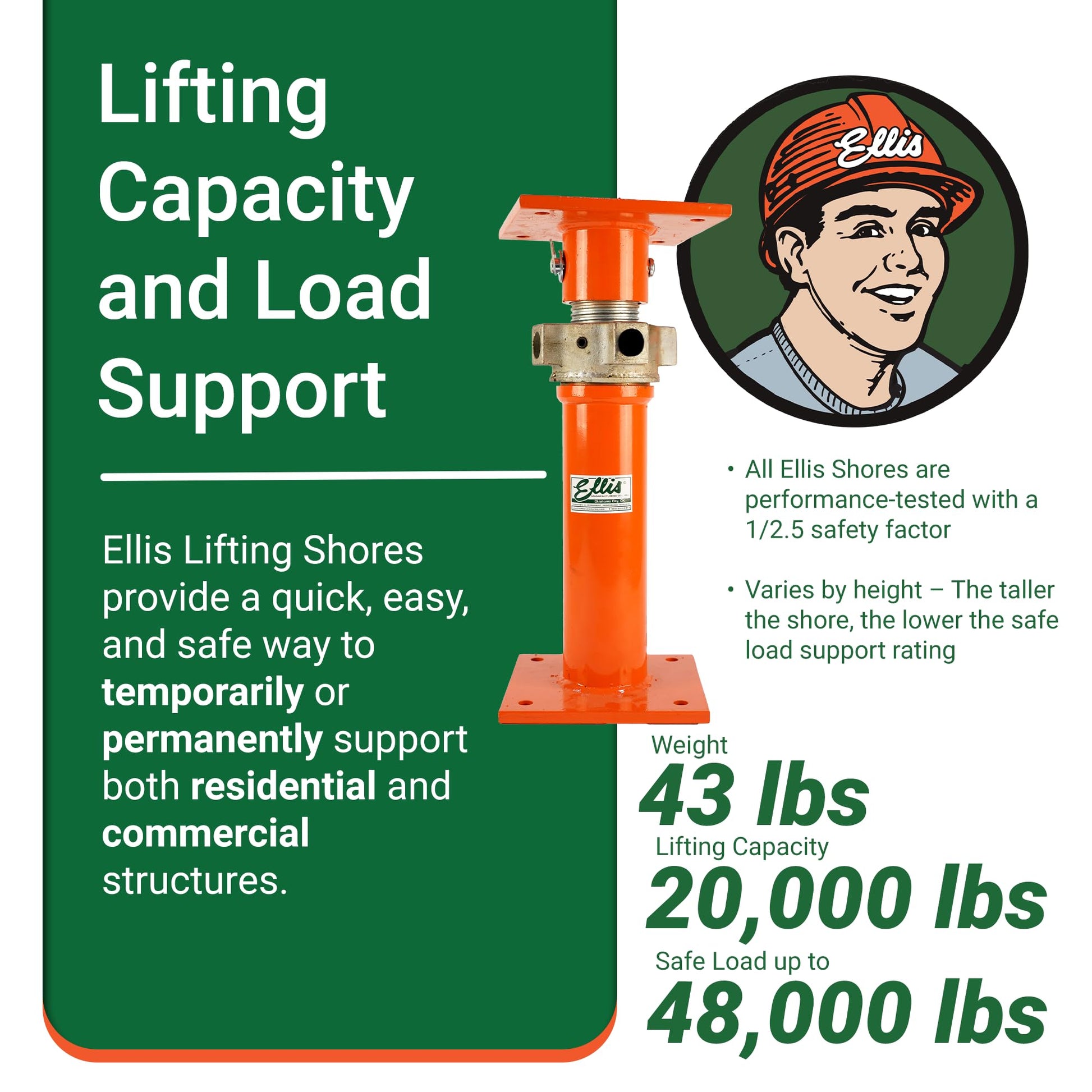

• SPECIFICATIONS & MATERIALS – Adjustable Range: 19"-32", Safe Load Capacity: 48,000 lbs, Weight: 43 lbs. Includes an 8"x8"x1/2" top plate with pre-drilled mounting holes, a 2.875" Acme screw, and a 6" wide adjustment nut for precise leveling and secure support in construction projects.
• EXPERIENCE & TRUST SINCE 1951 – Ellis Manufacturing Company has been a leader in shoring equipment and structural support solutions for over 70 years. Our commitment to quality materials and craftsmanship ensures that each lifting shore is built for durability, safety, and long-lasting performance in residential and commercial settings.

model number: STL-19HD

Part Number: STL-19HD
