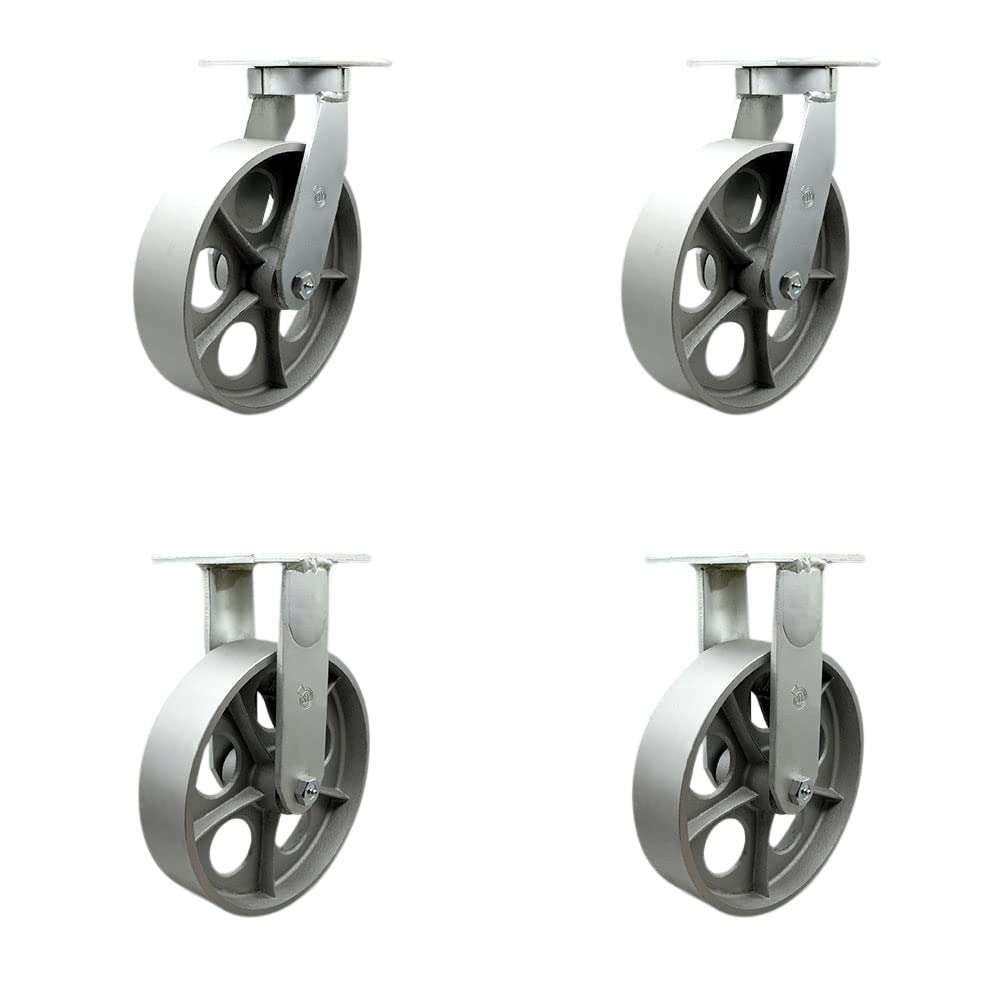

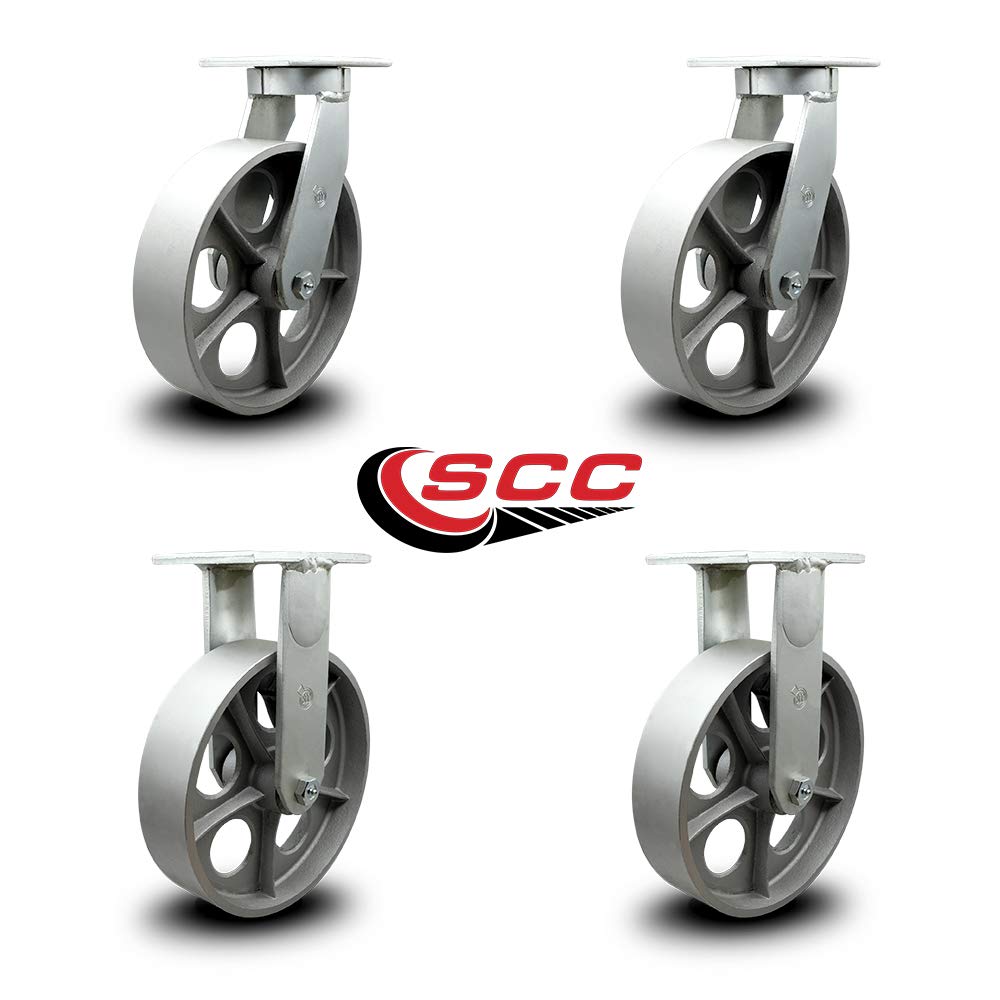

Extra Heavy Duty Kingpinless 10” x 3” Semi Steel Cast Iron Swivel Caster Set for Cranes, Gantries, Hoists, and Winches-2 Swivel and 2 Rigid Casters-2,500 lbs Per Caster-Set of 4 - Service Caster Brand

Brand: Service Caster

Color: 2 Swivel - 2 Rigid

Features:

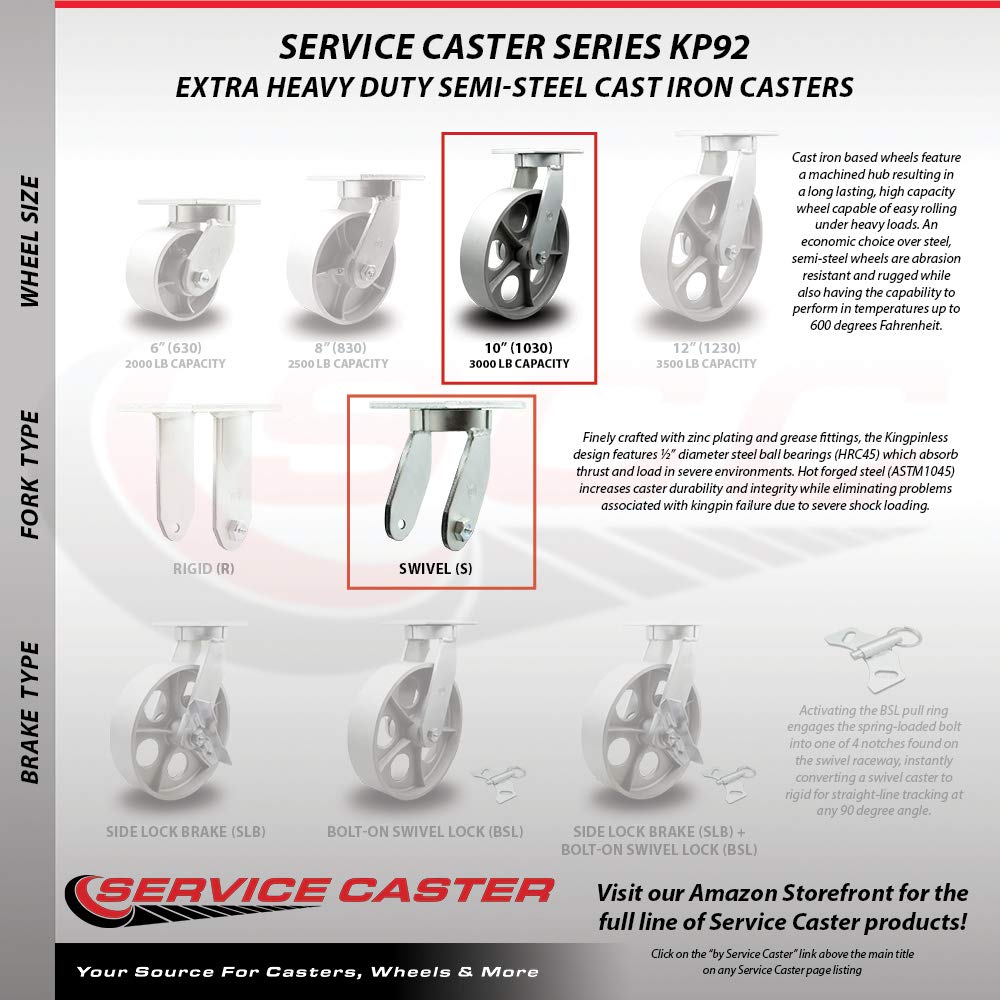

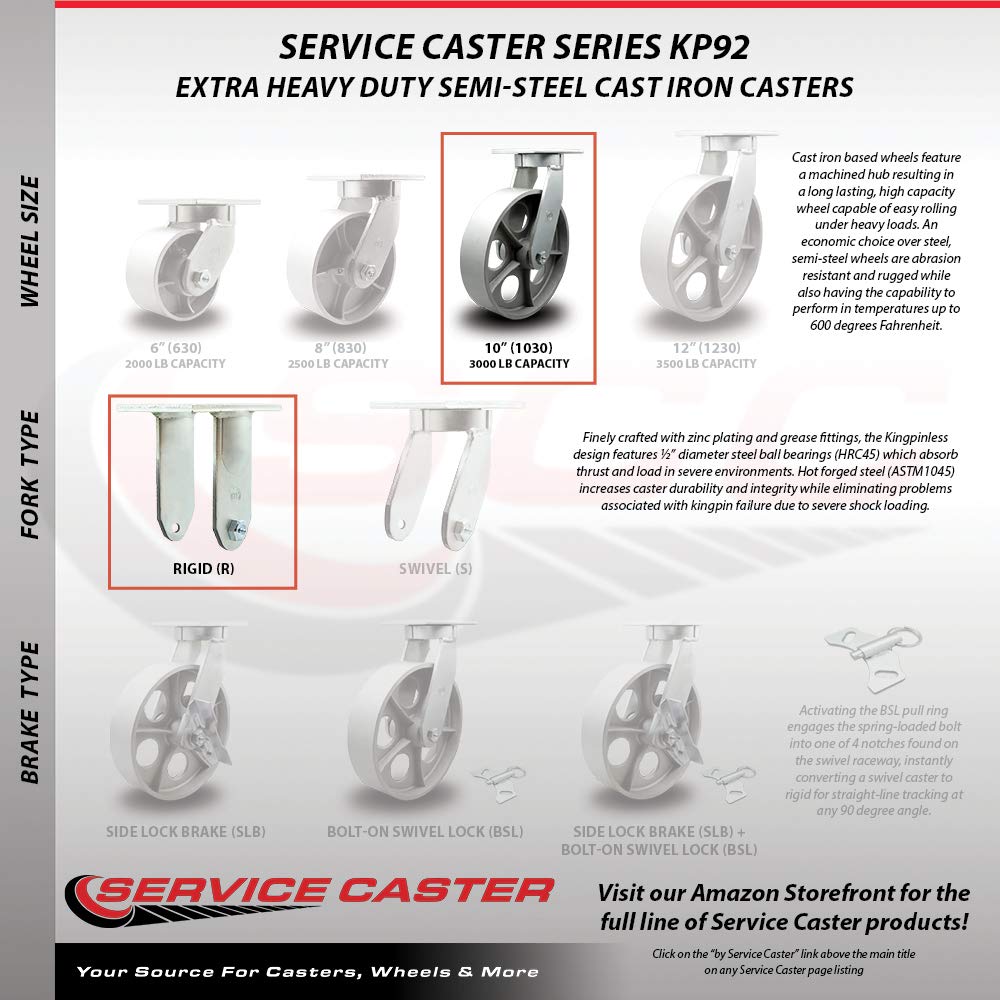

• The Kingpinless Series 92 semi-steel cast iron casters come in these wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height). Machine hubbed, providing a long lasting, high capacity wheel capable of easy rolling under heavy loads. Less expensive than steel, semi-steel is abrasion resistant, rugged and performs in temperatures up to 600 degrees Fahrenheit.
• Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.

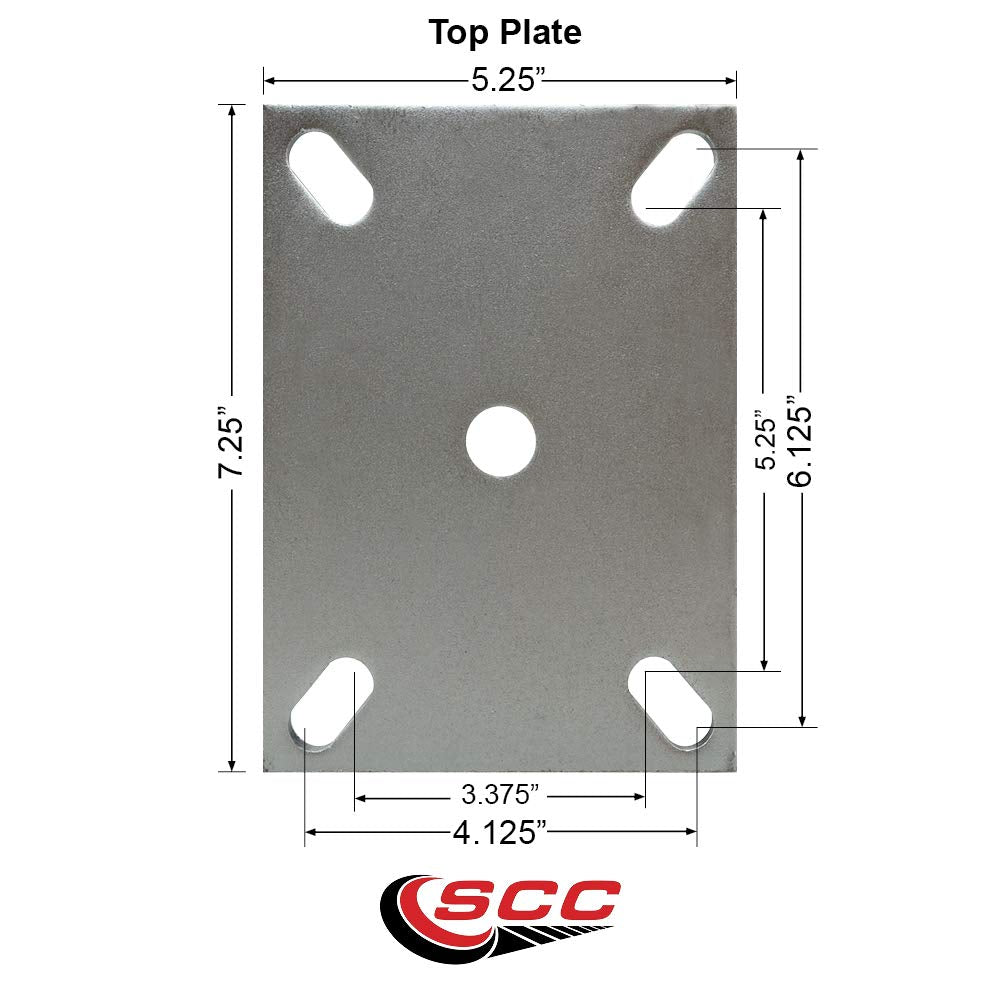

• Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
• Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

model number: Series #92

Part Number: CRAN-SCC-KP92S1030-SSR-2-R-2

EAN: 0734005226225
