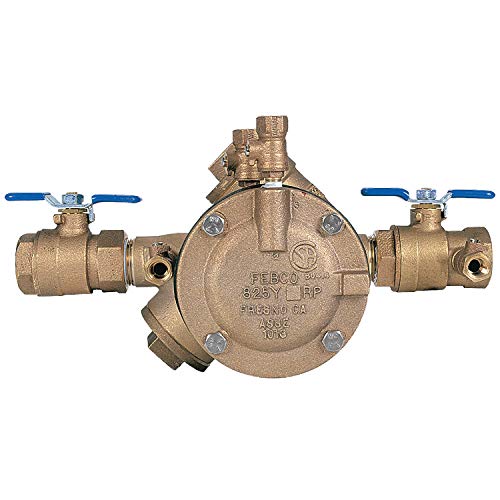

Febco 825EBV Reduced Pressure Zone Assembly, Quarter Turn Shutoff, 1 Inch

Brand: Febco

Color: 1 Inch

Features:

• Bronze body construction ensures durability and long life
• Provides the ultimate mechanical protection of potable water against cross-connection contamination hazards
• The internal parts are serviceable in line from the top of the unit for easy maintenance
• The seat rings are replaceable for longer valve life; low head loss for optimum performance
• Meets all specifications of AWWA, ASSE

Binding: Tools & Home Improvement

model number: 825EBV

Part Number: 825EBV

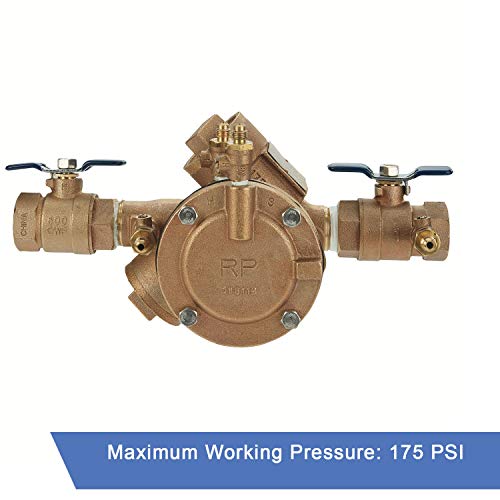

Details: The Febco 825EBV 1" Reduced Pressure Zone Assembly is a Y pattern reduced pressure zone assembly designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve.

EAN: 0643925001815

Package Dimensions: 14.1 x 8.6 x 7.4 inches
