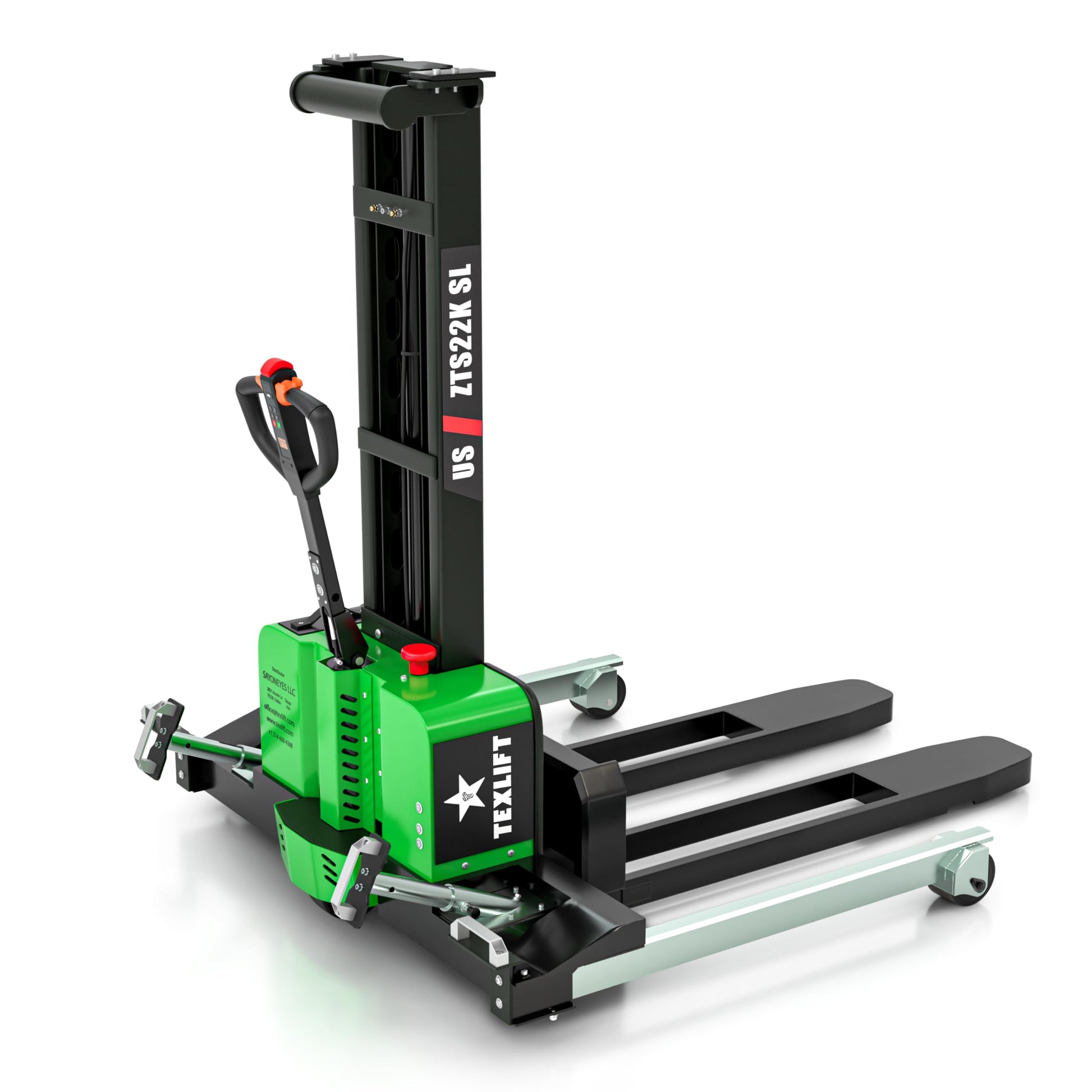

Full Electric Self-Loading Pallet Stacker - 2200 Lbs Capacity Walkie Forklift with 51 Inch Lift Height, Lifting Truck Cargo with Fixed Straddle Legs and Adjustable 46 Inch Forks - (US-ZTS22K-SL)

Brand: TEXLIFT

Color: Green & Black

Features:

• 💪 [Powerful 2200 lbs Load Capacity] Engineered for reliable lifting and precise load control, this self-loading electric pallet stacker handles heavy-duty warehouse materials with stability and smooth operation.
• 📏 [51 Inch Maximum Lift Height] Provides efficient vertical handling for pallets and goods in compact storage areas, ensuring excellent visibility and control during stacking or unloading.
• 🔧 [Adjustable 46 Inch Forks] Built to fit various pallet sizes, the sturdy 2.7-inch thick forks (25-inch outer width) ensure compatibility with standard warehouse materials.
• 🚧 [Compact Maneuverability with 63 Inch Turning Radius] The short wheelbase design allows effortless movement in narrow aisles and tight warehouse corners, enhancing productivity.
• ⚡ [48V DC Dual-Motor System] High-performance 0.75 kW drive motor and 1.2 kW lift motor deliver steady, quiet, and energy-efficient power for long working hours.
• 🛡️ [Durable & Safe Construction] Equipped with precision drive controls, balanced weight distribution (880 lbs total), and rugged polyurethane wheels for smooth, low-vibration handling on warehouse floors.

model number: US-ZTS22K SL

Part Number: US-ZTS22K SL

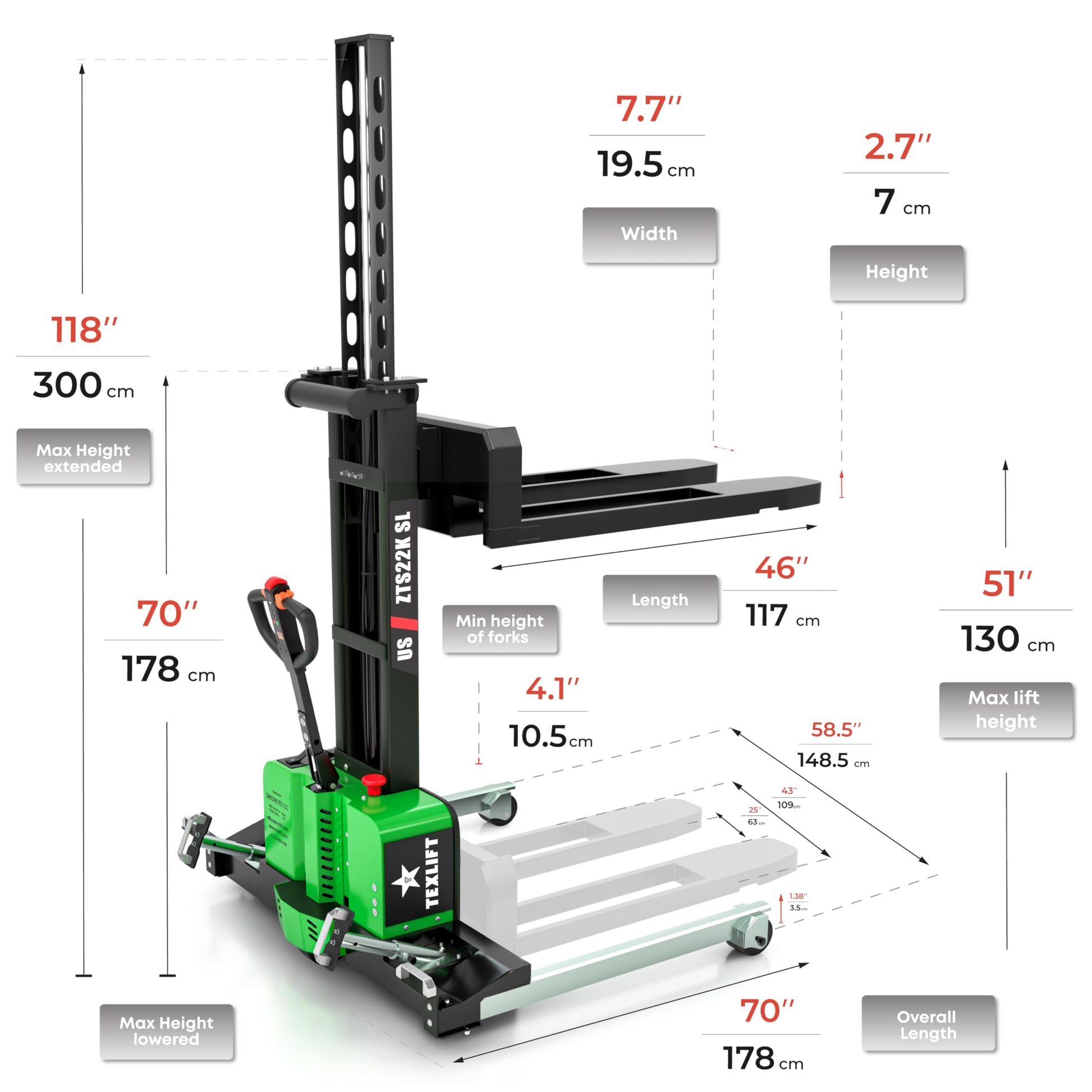

Details: 🔧Technical Specifications

Model: US-ZTS22K SL
Maximum Load Capacity: 2200 lbs
Load Center Distance: 16 inches
Net Weight (with Battery): 880 lbs
Maximum Lifting Height: 51 inches
Lifting Speed (Without Load): 2.5 in/s
Lifting Speed (With Load): 1.4 in/s
Lowering Speed (Without Load): 2.5 in/s
Lowering Speed (With Load): 3.0 in/s
Overall Frame Length: 70 inches
Overall Frame Width: 58 inches
Mast Lowered Height: 70 inches
Maximum Height (Mast Lifted with Backrest): 118 inches
Wheelbase: 43 inches
Fork Length: 46 inches
Fork Outside Width: 25 inches
Fork Inside Width: 9 inches
Fork Thickness: 2.7 inches
Minimum Ground Height: 4 inches
Minimum Turning Radius: 63 inches
Theoretical Aisle Width (Right-Angle Stacking, 1200x1000 Pallet): 79 inches
Front Wheel Size: 5.91 × 3.15 inches
Drive Motor Type: DC Motor
Drive Motor Power: 0.75 kW
Hoist Motor Type: DC Motor
Hoist Motor Power: 1.2 kW
Voltage: 48V DC
Battery Capacity: 21Ah
Drive Type: Full Electric (Battery Powered)
Operation Type: Walkie
Noise Level: <70 dB
Construction: Heavy-Duty Steel Frame
Wheel Material: Polyurethane (Non-Marking)
Brake System: Electromagnetic Brake

EAN: 0810166853347

Package Dimensions: 70.0 x 64.0 x 35.0 inches
