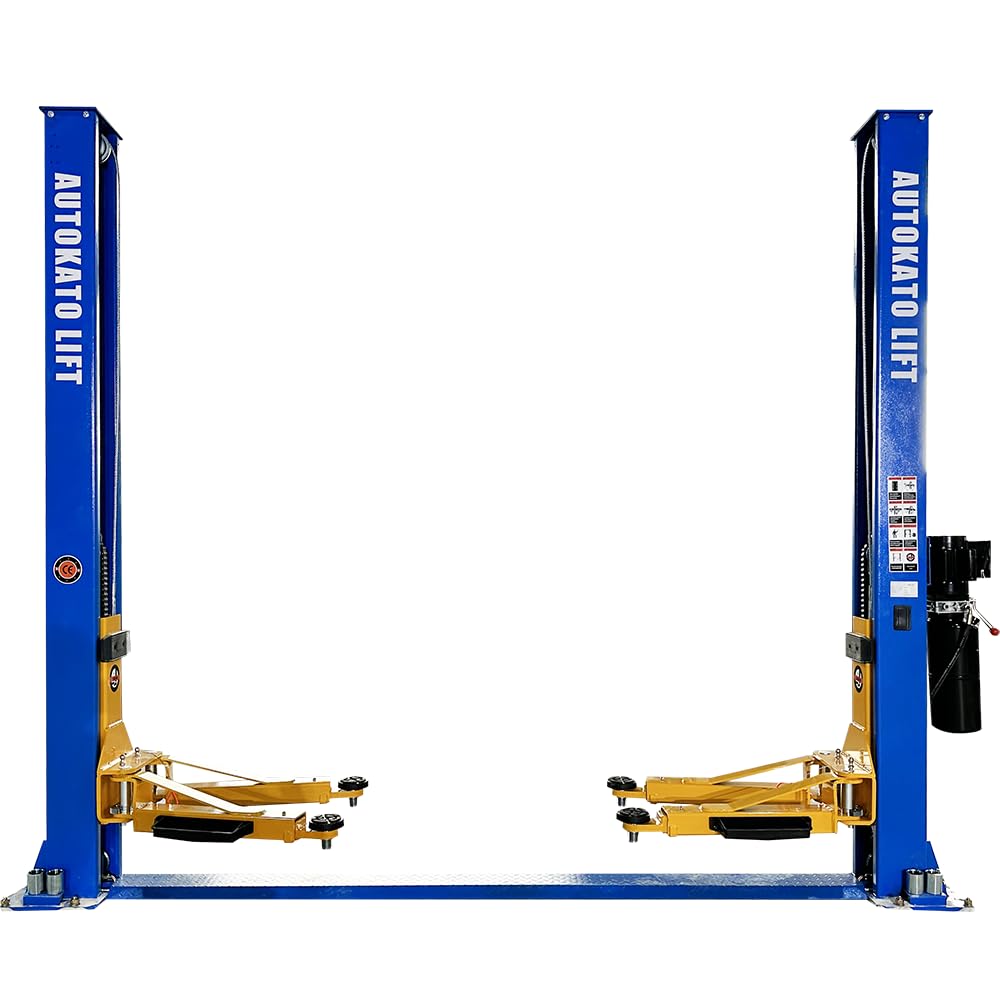

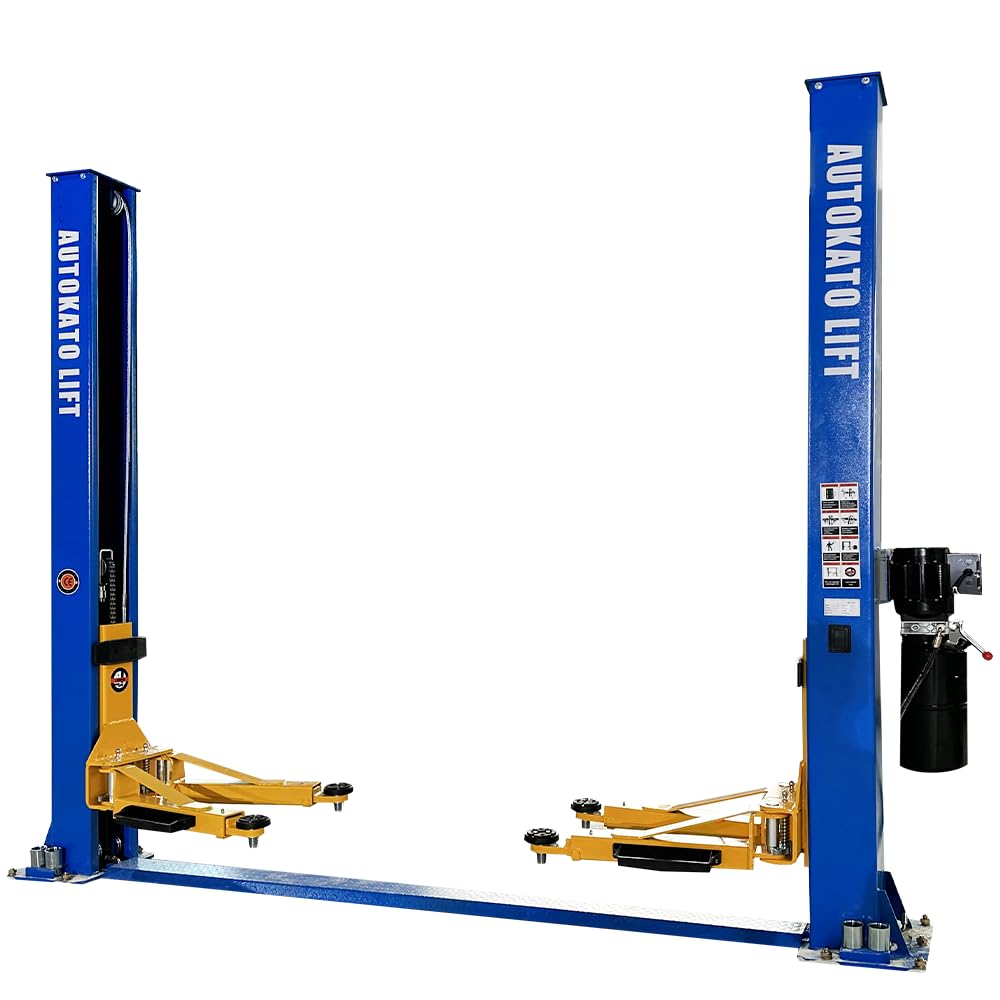

KATOOL AK-H115Z 3.0HP Two Post Lift Car Lift Truck Hoist with 11000Lbs lifting Capacity

Brand: KATOOL

Features:

• CE Approved and Certified.
• Manual safety release from two side.

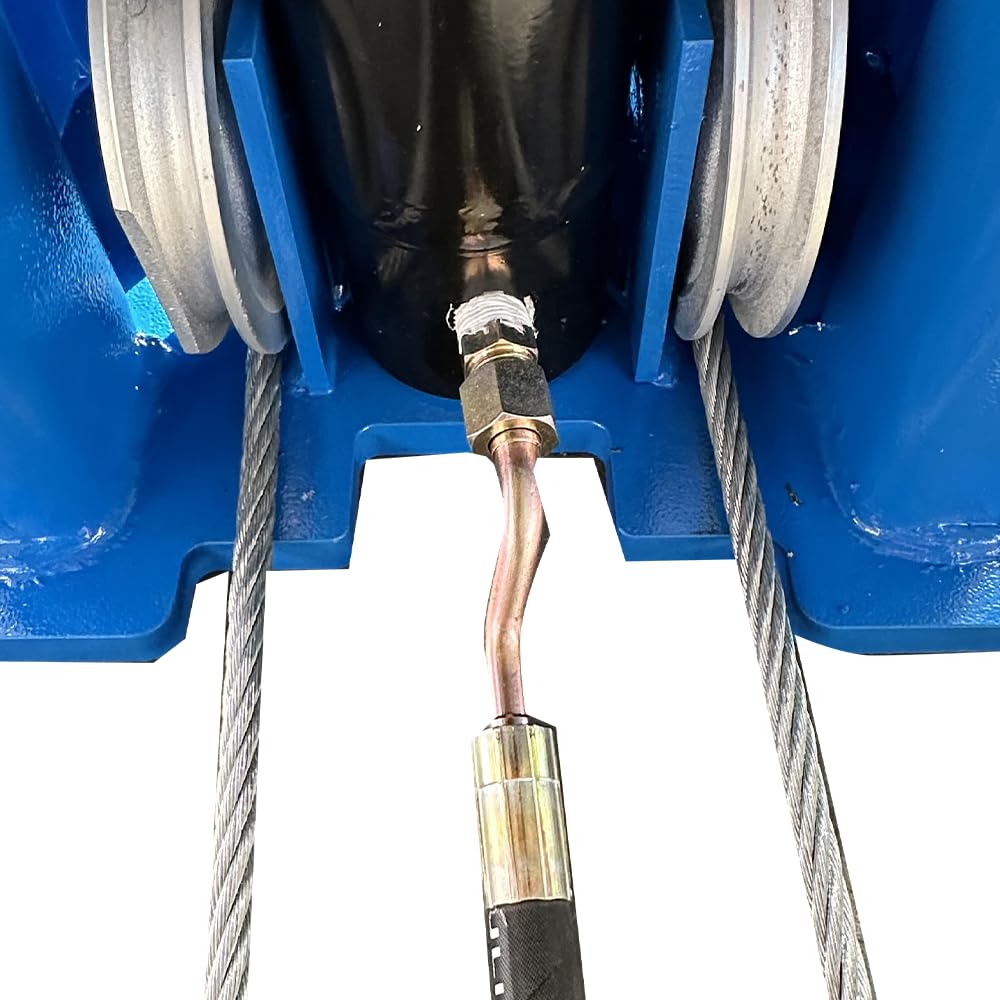

• Dual Hydraulic Chain-Drive Cylinders.
• Robber pad door opening protection.
• Top level hydraulic system with 220V/60HZ/1PH/3.0HP

model number: AK-H105

Part Number: H105-01

Details: 2 Post Lift AK-H115Z

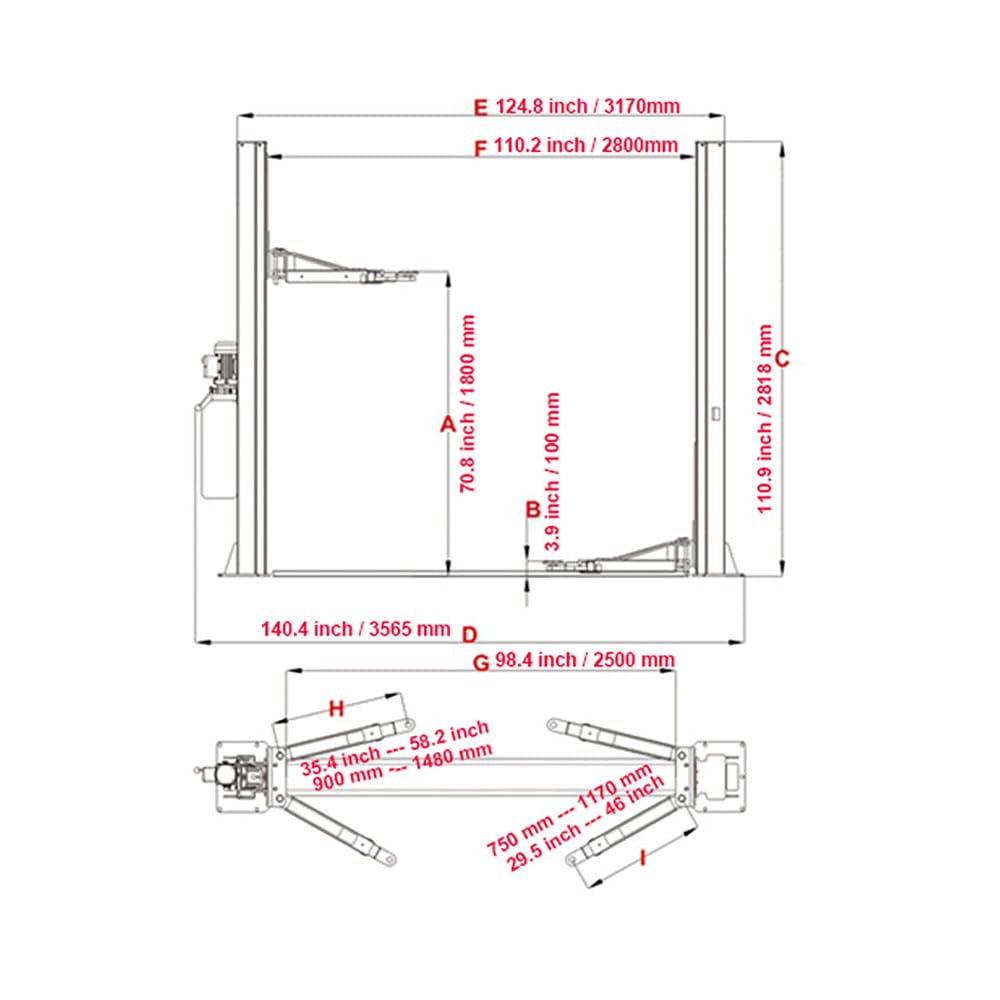

Lifting Capacity: 11000lbs.(4500KG)
Max. Lifting Height: 70.8"/1800mm
Min. Height: 4.3"/100mm
Height Overall: 110.9"/2818mm
Width Overall: 134.6"/3420mm
Inside Column: 110.2"/2800mm
Dirve-Thru Clearance: 98.4"/2500mm
Front Arm Reach(Min): 29.5"/750mm(2 stages)
Front Arm Reach (Max): 49.2"/1250mm(2 stages)
Rear Arm Reach(Min): 29.5"/750mm(2 stages)
Rear Arm Reach(Max): 49.2"/1250mm(2 stages)
Motor: 220VAC/60HZ/1PH/3KW
Net Weight: 615KG
11000lbs lifting capacity

CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.
Manual safety release from two side.
Base plate design. Dual Hydraulic Chain. Drive Cylinders
Robber pad door opening protection.
Screw-on pad and extension support adaptor sets +100mm
Top level hydraulic system with 220V/60HZ/1PH

EAN: 0635393630222
