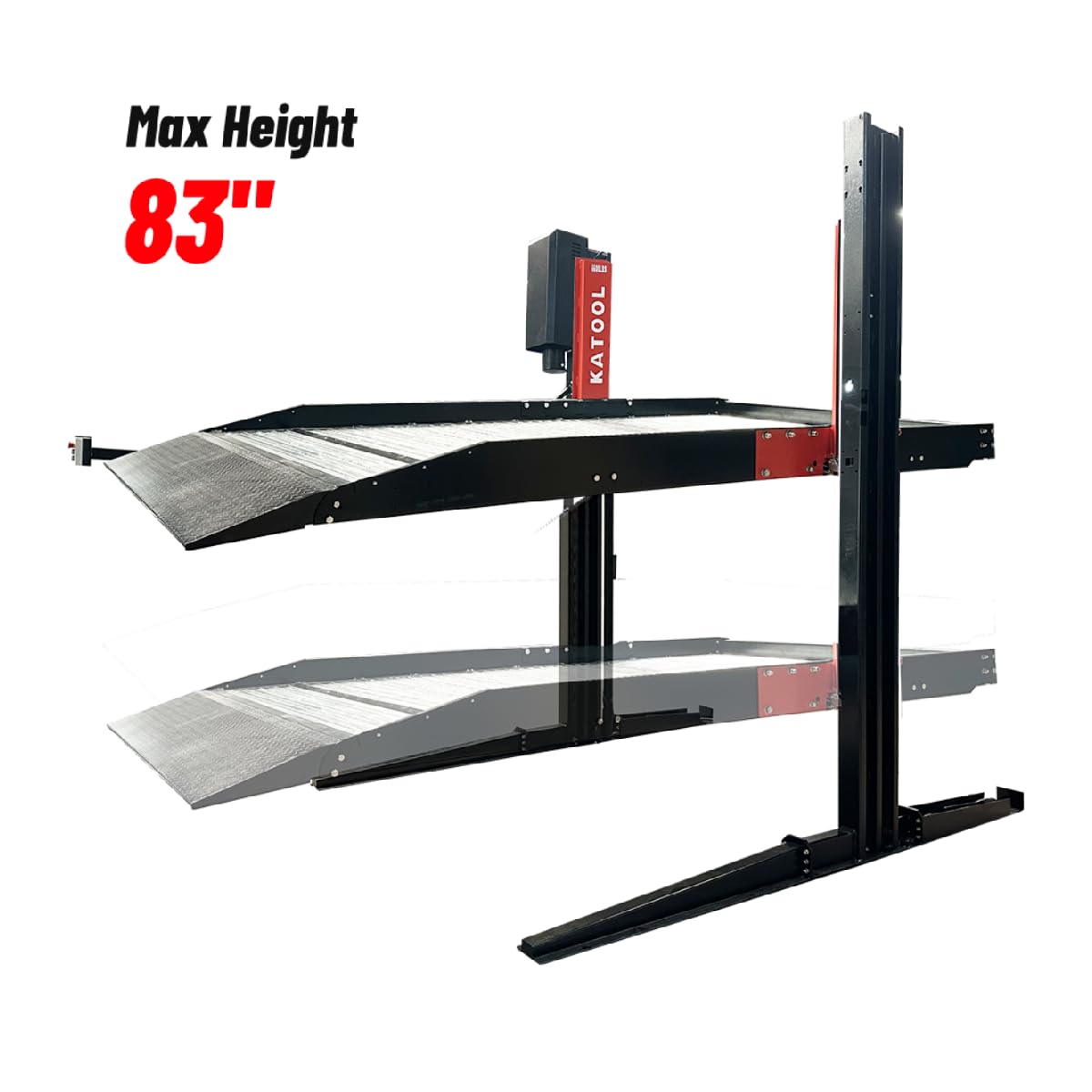

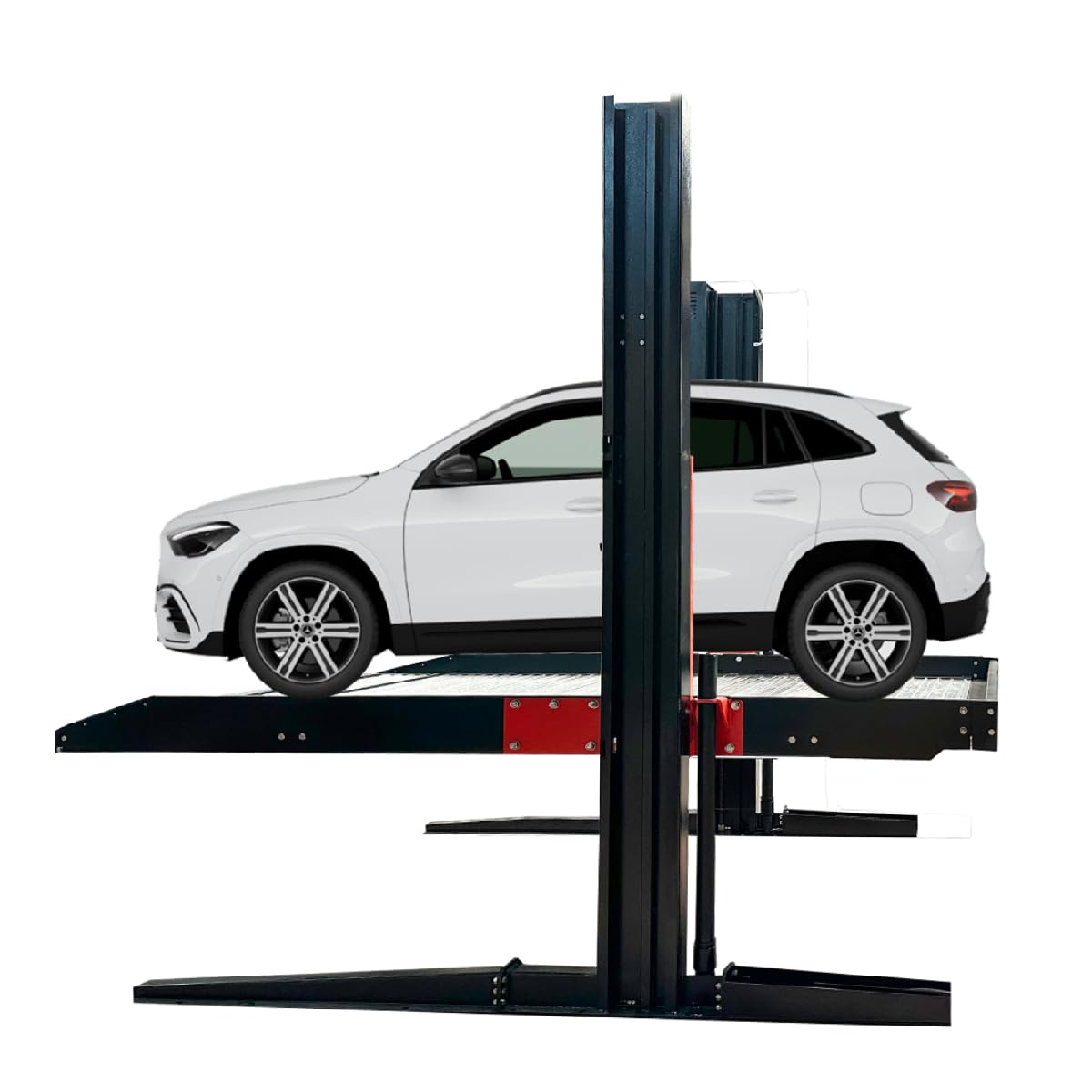

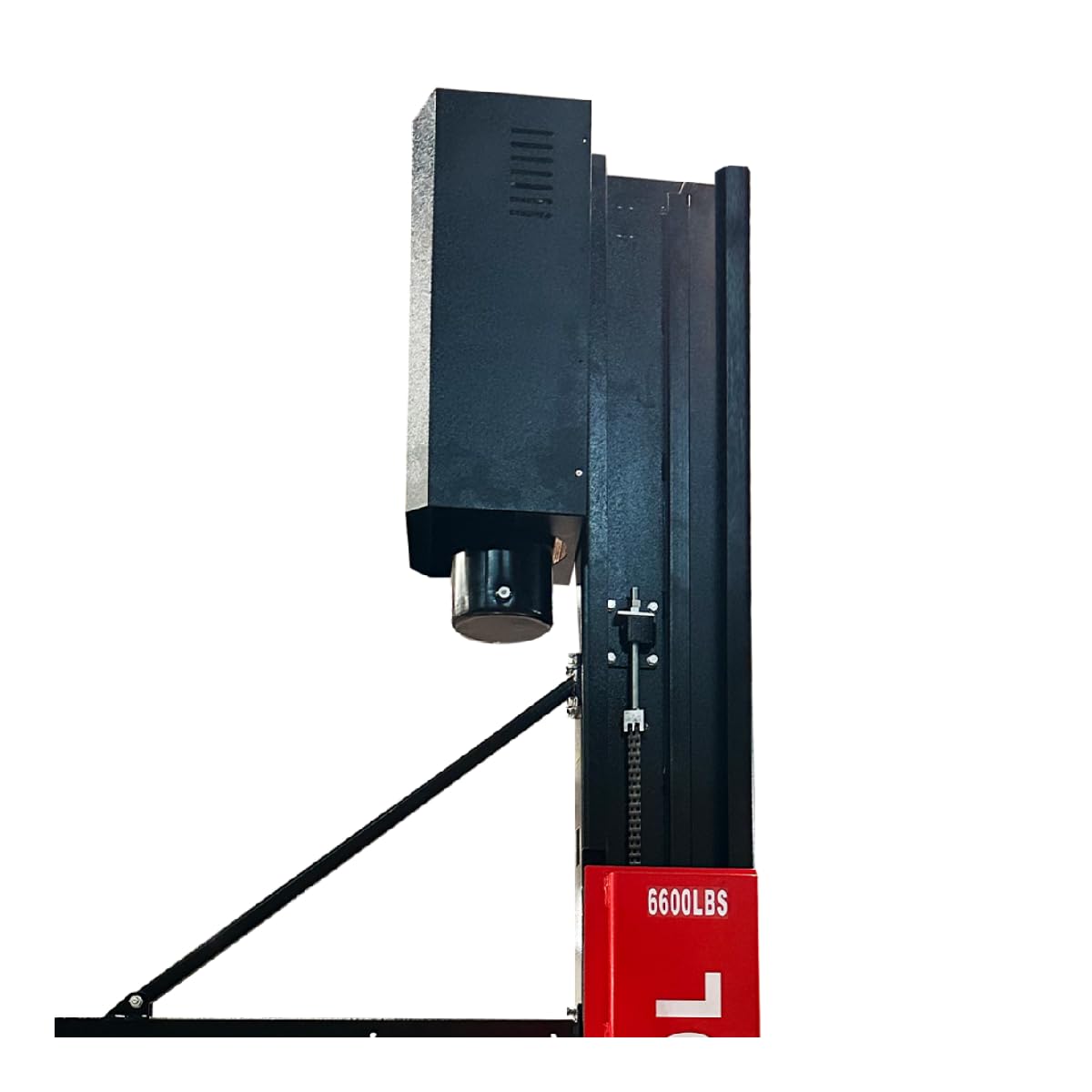

KATRAX KT-P2700 6600lbs (3000kg) 83 Inch Double Deck 2 Post Auto Lift Smart Parking Lift System Two Post Car Lift

Brand: KATRAX

Features:

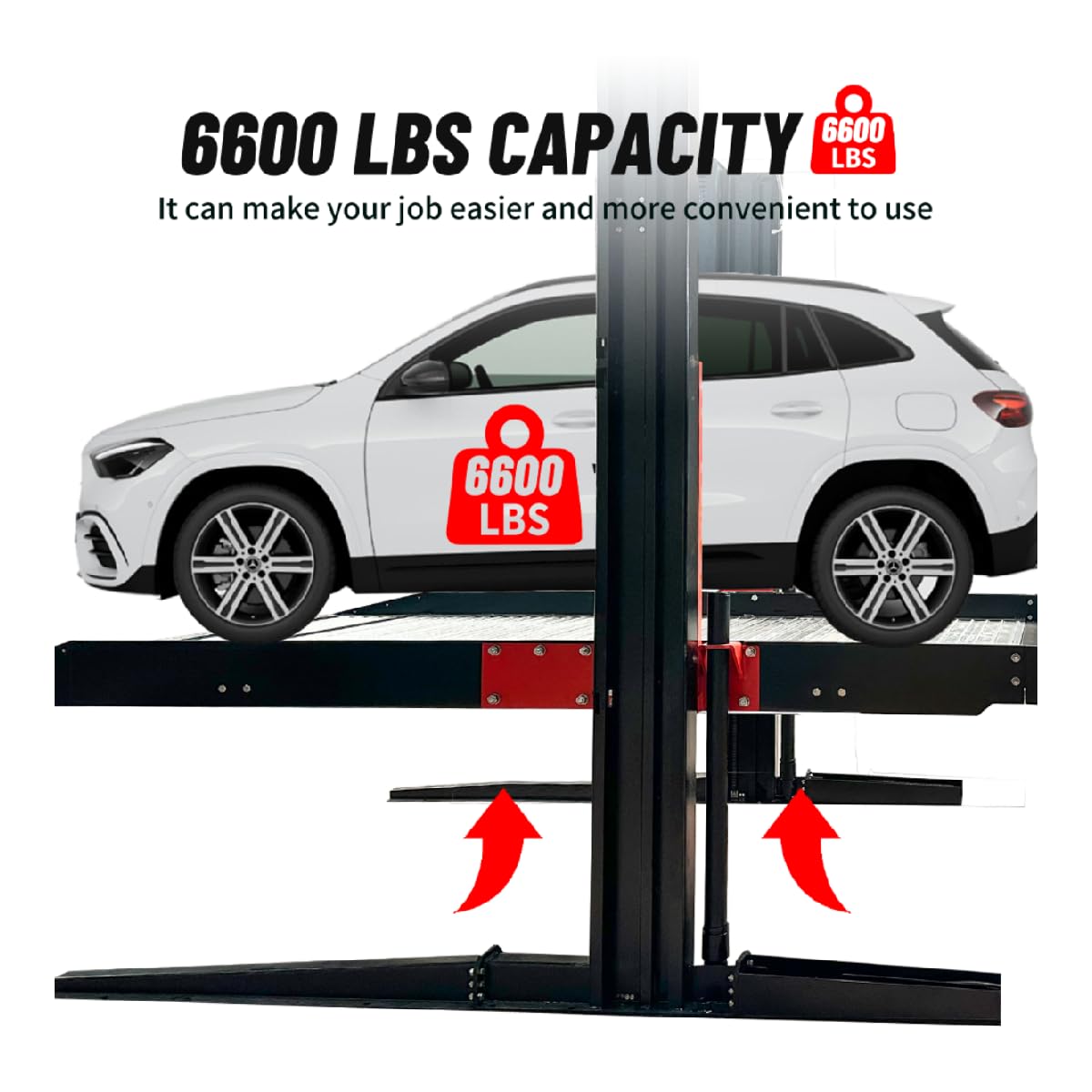

• Heavy-Duty Capacity: 6600lbs (3000kg) load rating.
• Space-Saving Design: 83" double-deck platform with shared post construction.
• Smart Parking Solution: Our most popular mechanical lift system.
• Quick Installation: Simplified assembly process.

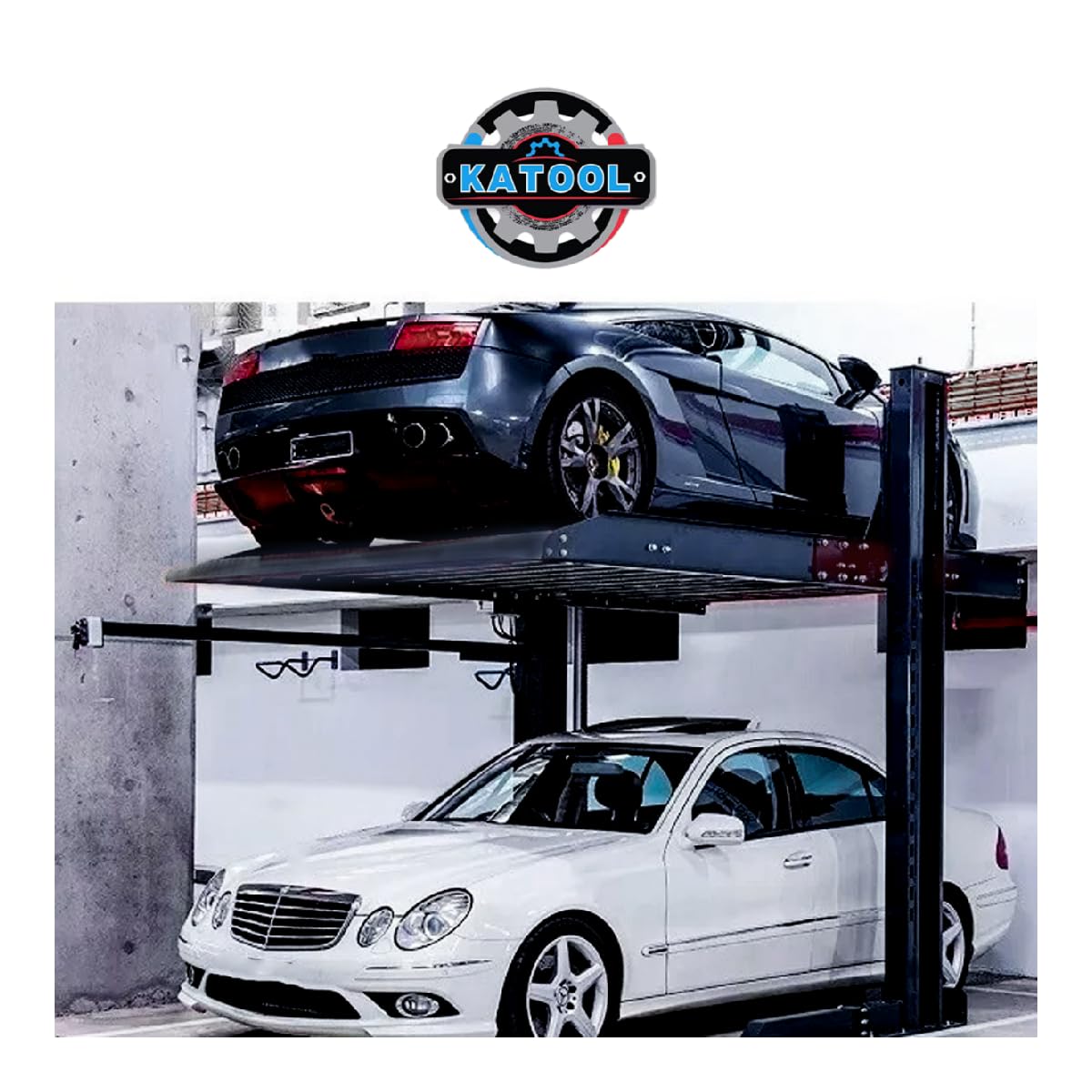

• Versatile Applications: Ideal for permanent parking or vehicle storage facilities.

model number: KT-P2700

Part Number: NO

Details: TECHNICAL SPECIFICATIONS
Load Capacity: 6,600 lbs/3,000 kg
Working Pressure: 200 kg/cm² (min)
Height Range: 100-2,100 mm
Stroke Length: 2,100 mm
Operation Times:
Lifting: 60-80 seconds
Lowering: 40-60 seconds
Power Supply: 220V/110V, 50Hz/60Hz
Total Weight: 1,160 kg (gross)

Car Parking Lift Features
Dimensions & Capacity
Lifting height: 217 cm
Clearance height: 205 cm
Platform size: 418 cm (L) x 220 cm (W)
Total width: 265.7 cm
Load capacity: 2,700 kg

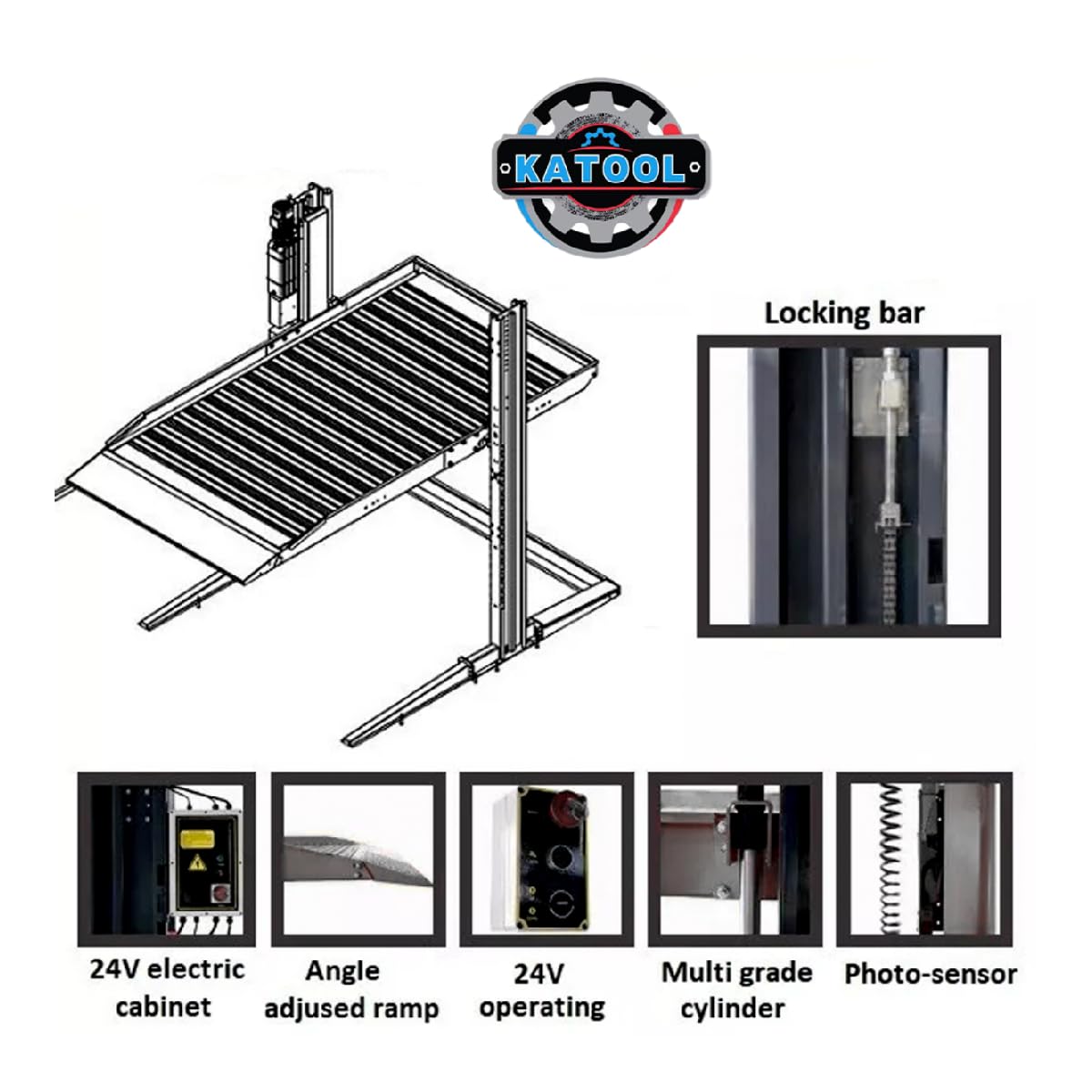

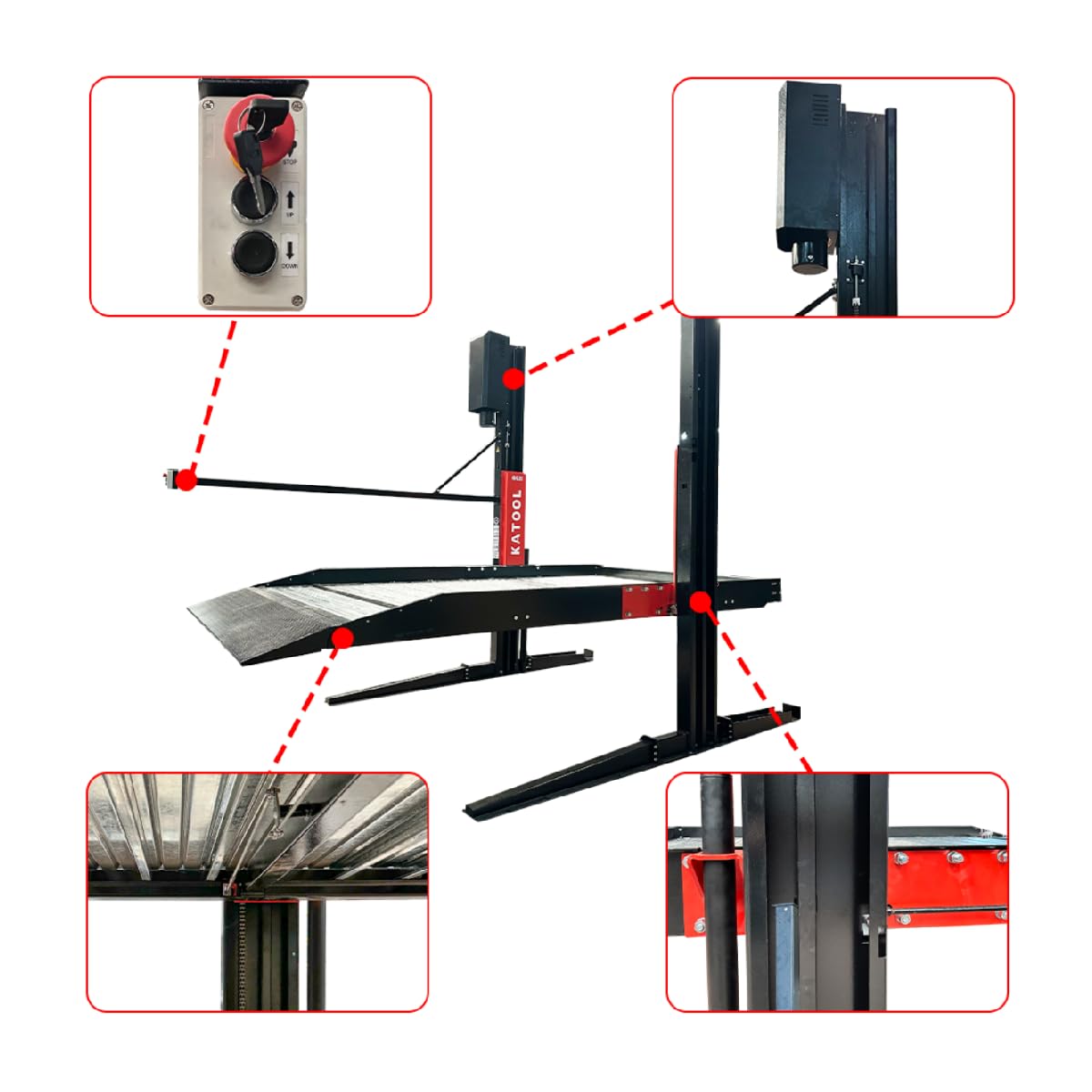

Operation & Safety
Fully automatic system
24V safety voltage

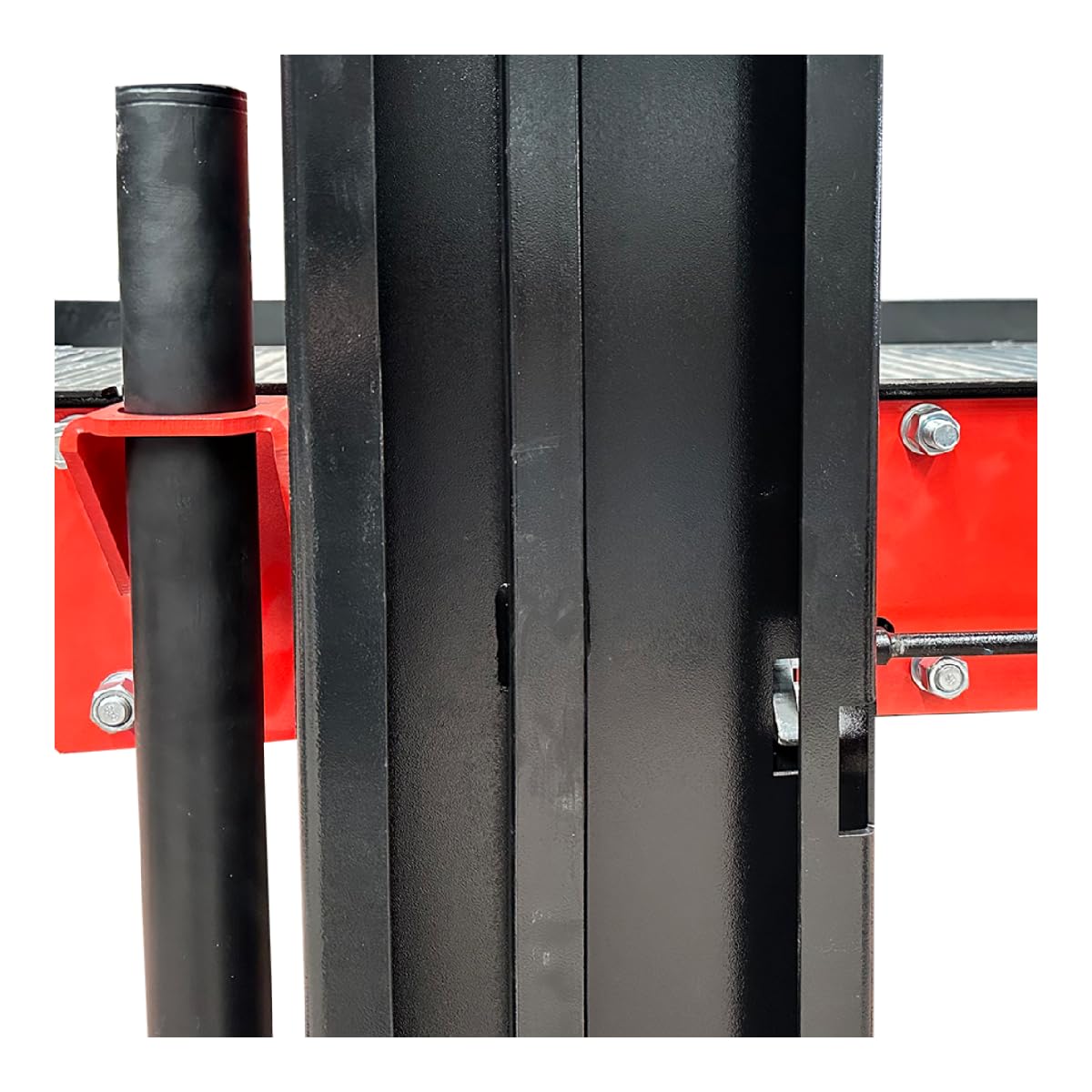

Electromagnetic locking (no air pressure needed)
Infrared sensors
Dual hydraulic cylinders
Roll-off protection
Audio+visual descent warning

Construction
Galvanized steel platform (fully enclosed)
2-column design + 1 lifting platform
Color: RAL7016 (grey) + RAL2004 (orange)
Drive power: 2.2kW (230V/1Ph, C16A fuse)

Additional Information
Net weight: 1,150 kg
Package size: 380 x 80 x 115 cm
Shipping weight: 1,200 kg
Hydraulic oil: not included

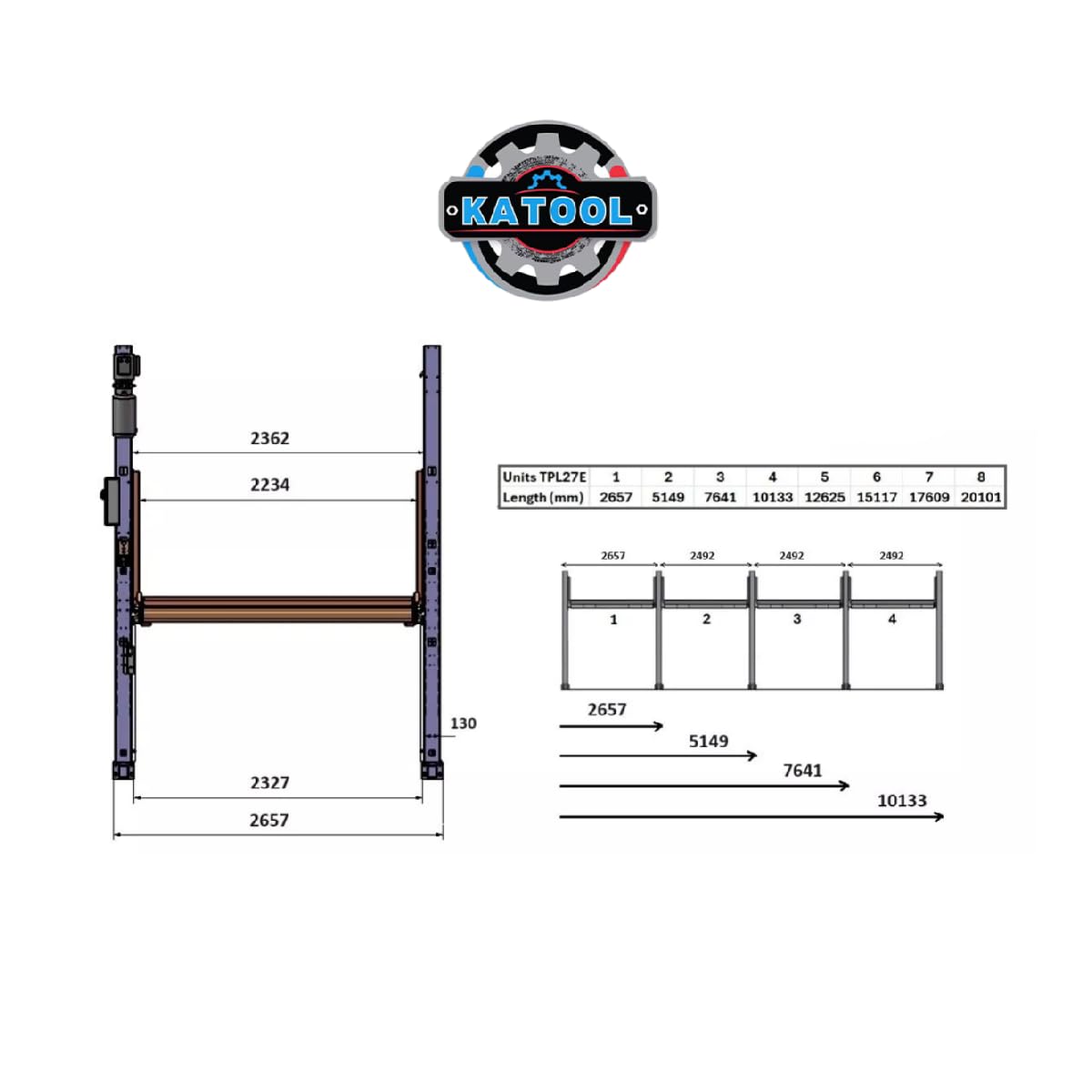

Expandable: Multiple units can be connected

EAN: 0698825208819
