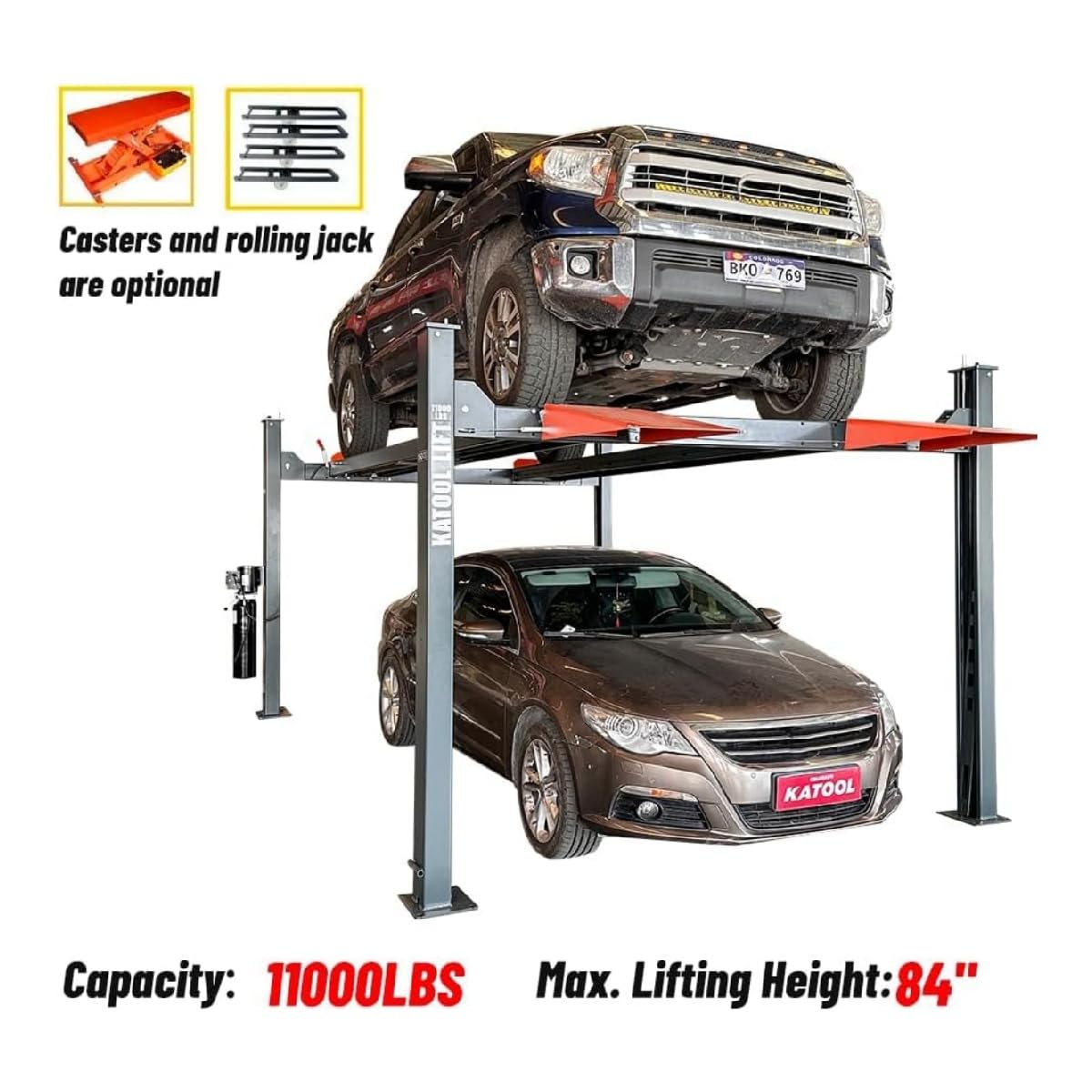

KT-4H110 Four Post Lift 11,000 Lbs Load Bearing 84.5 Inch Lifting Height Vehicle Lift, 3.0HP 110V 4 Post Lift Parking Lift (Forklift Unloading Required)

Brand: KATRAX

Color: black

Features:

• 11,000-pound ultra-high load-bearing capacity: Designed for full-size SUVs, pickups and luxury cars, meeting the needs of commercial parking centers and private garages.
• Quadruple mechanical safety lock system: Each column is equipped with a primary and secondary double lock, providing the industry's top security protection, and has passed strict CE certification.

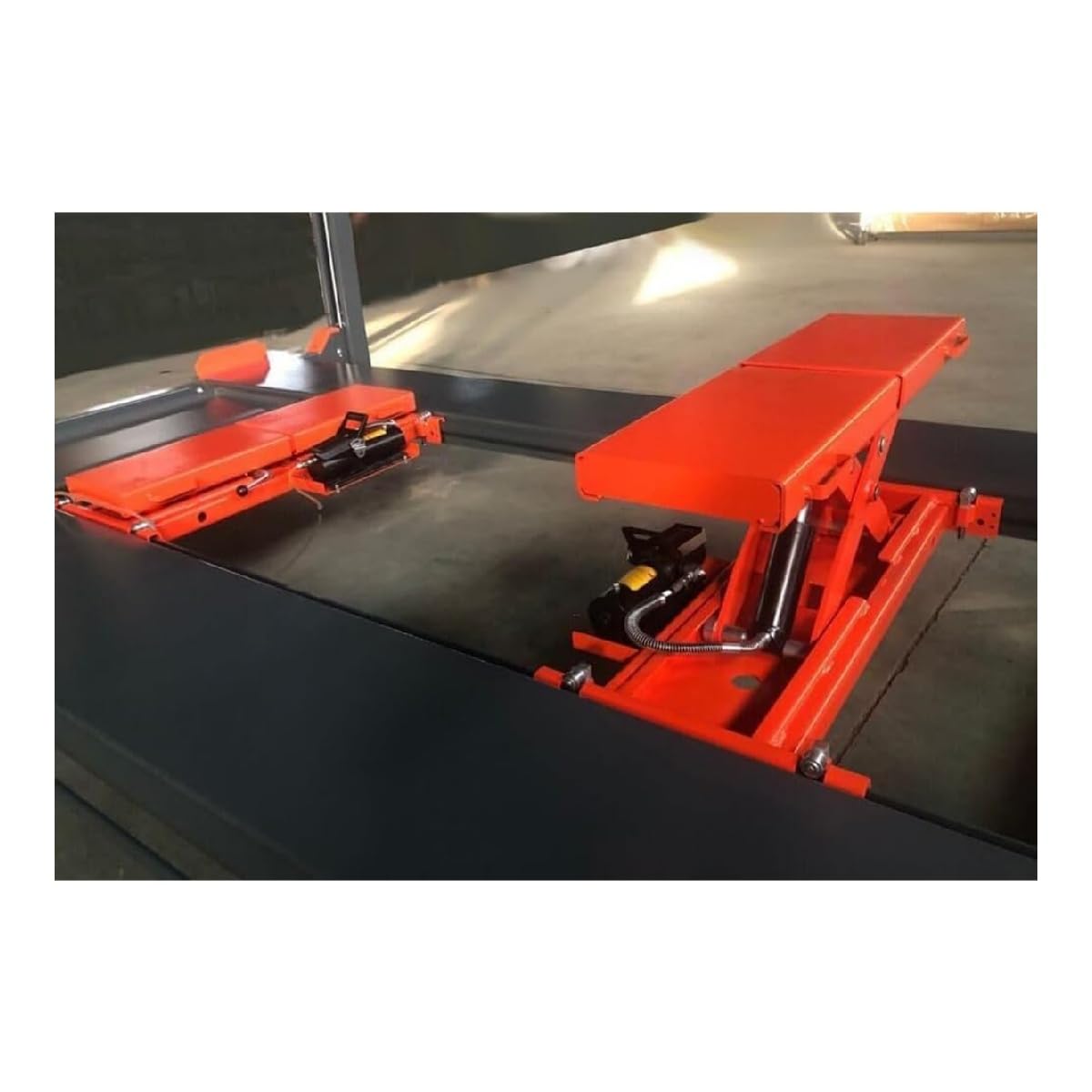

• Flexible mobile options: Optional caster kits can be used to move the equipment, and optional sliding jacks are also available.
• Efficient hydraulic system: Lifting speed is only 83 seconds (up)/40 seconds (down), supporting 110V or 220V power supply (optional).

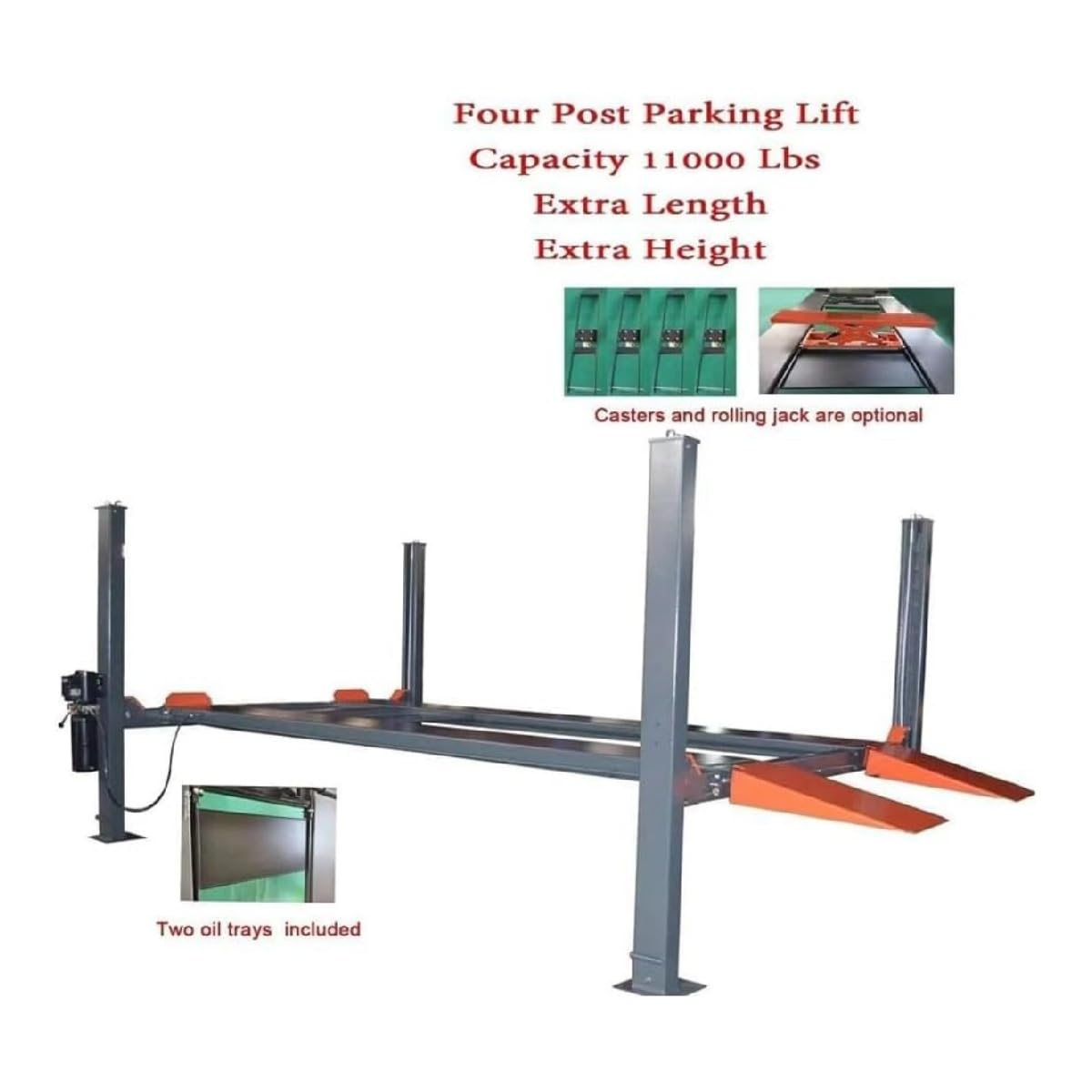

• A full set of professional accessories: 2 oil spill trays + 1 jack tray are standard, and the anti-slip coating platform ensures safe operation.

model number: KT-4H110

Part Number: NO

Details: KT-4H110 Automotive Lift Specifications:
Rated load: 11000lbs
Lifting height: 84.25 (inch)
Lifting time: 83s (up)/40s (down)
Platform height: 6.2"/157mm
Motor configuration: 110V/220V optional
Overall dimensions: 5835mm (length) × 3200mm (width) × 2410mm (height)
Working area: 2865mm (inner width) × 4835mm (platform length)
Column design: reinforced steel structure, wall thickness 8mm

Innovative features
Fall protection: hydraulic + mechanical double insurance
Platform safety: anti-slip coating + adjustable safety ladder

Revolutionary quadruple safety lock system
Each column is equipped with independent main lock and auxiliary lock, using military-grade 42CrMo alloy steel lock tongue.

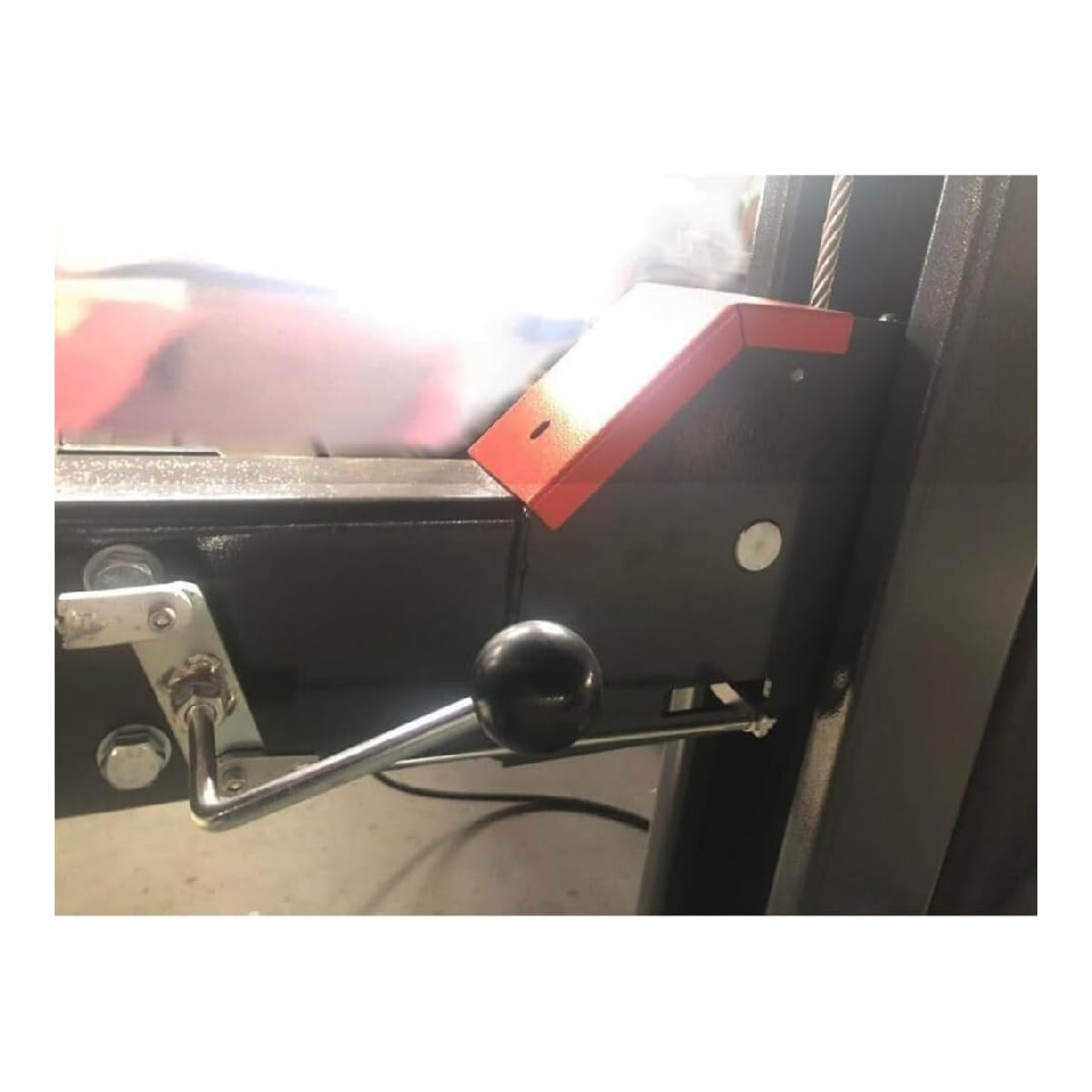

Automatic lock/manual release dual mode, passed 200,000 fatigue tests.

Multi-functional mobile solution
Optional heavy-duty caster kit (1500lbs/piece)
Patented quick disassembly design (installation completed in 5 minutes)
With brake function, absolutely stable after positioning

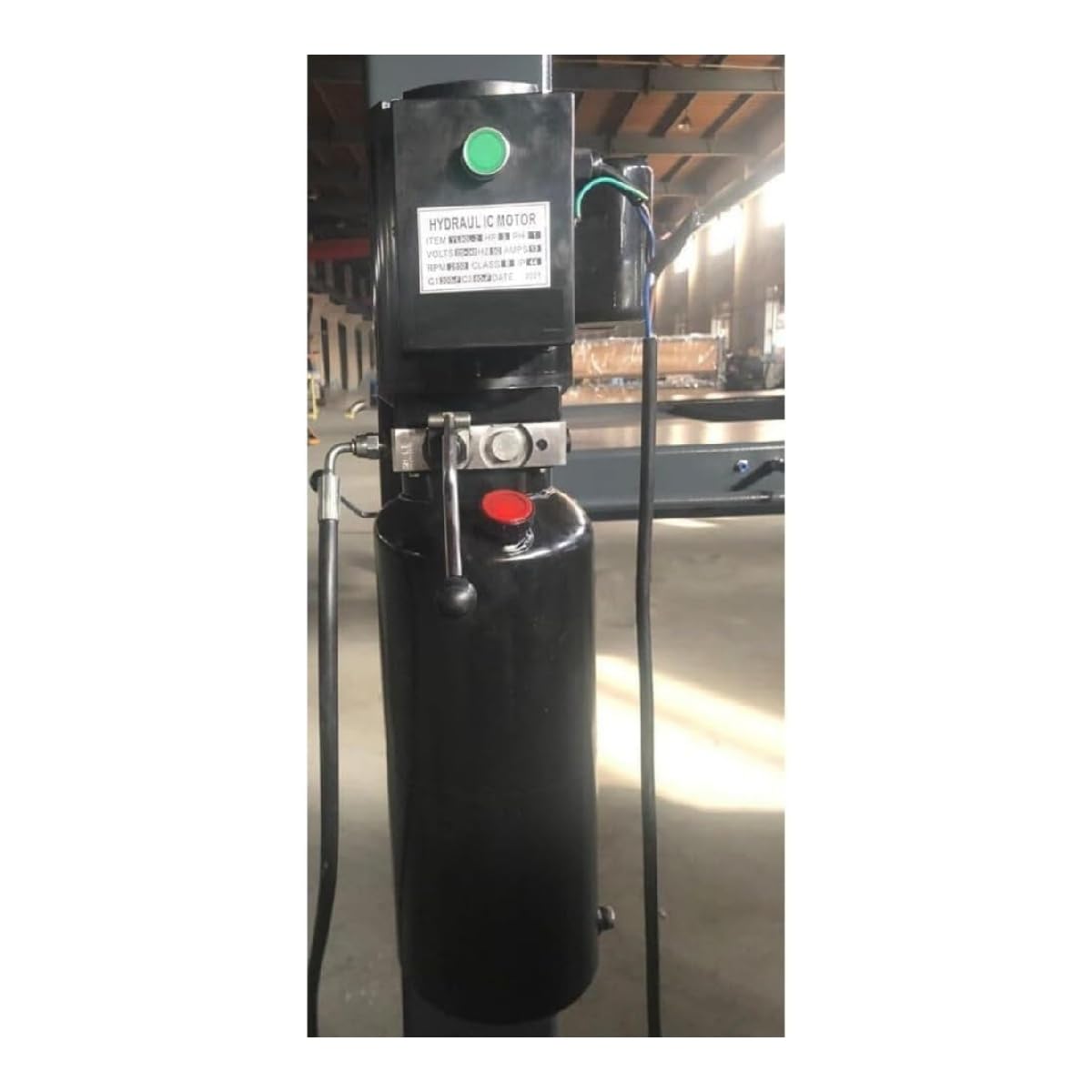

Professional hydraulic system
Intelligent temperature control protection device
Low noise design (≤68dB)

Why Choose Us?
More professional: commercial-grade four-column design, stable load distribution, especially suitable for long-term parking and precision maintenance operations.

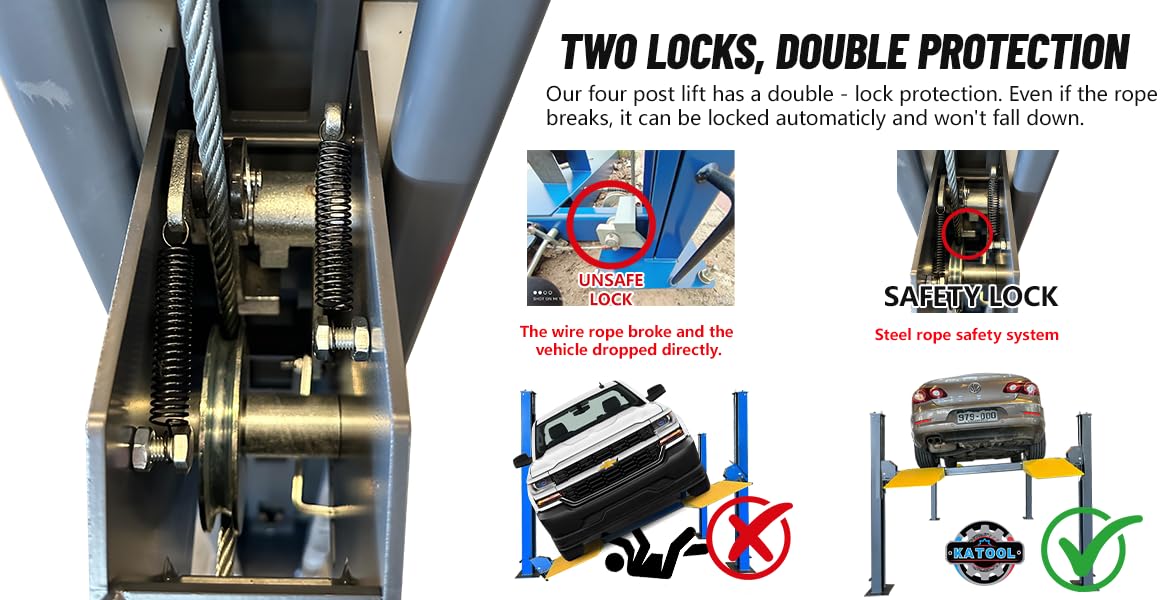

More secure:Even in extreme situations where the lifting rope breaks, it can immediately and automatically lock to ensure that the platform does not suddenly drop.
More flexible: optional mobile solution, casters are used when moving, and fixed by 4 support legs during operation.
More efficient: 83 seconds fast lifting and can also be used for electric vehicle battery replacement, 2140mm height provides sufficient space for battery removal.
KT-4H110 auto lift redefines the standard of professional four-post lifts, and its innovative quadruple mechanical safety lock system provides unprecedented safety for high-standard auto repair operations.Unlike ordinary two-post lifts, the 84.25" maximum lifting height and double lock of this equipment creates ample chassis safe working space, and the optional mobile kit allows fixed four-post lifts to have flexible reposition capabilities for the first time.

Shipping & Unloading:
Buyer responsible for unloading: Requires a forklift or tractor for delivery.
If unable to unload, we can arrange terminal pickup. Inspect immediately! If damaged, take photos, contact us.

EAN: 0684163256193
