Manual Hydraulic Pallet Stacker with 440 Lb Capacity and 35.5 Inch Lift Height for Warehouse Loading

Brand: callmego

Color: Red + Metal

Features:

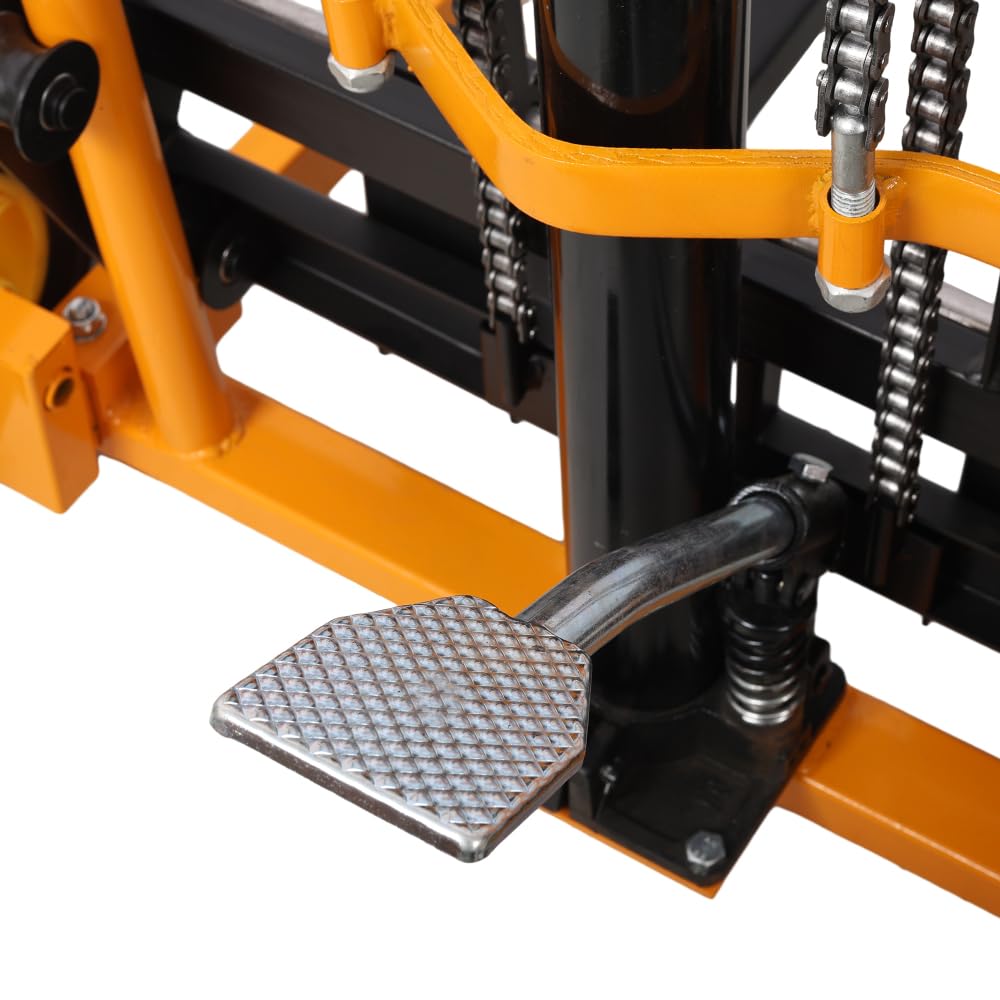

• HYDRAULIC LIFT SYSTEM: Features a sealed manual hydraulic pump rated for 440 lbs load capacity and 35.5 inch maximum lift height, enabling safe vertical stacking without external power — ideal for indoor warehouse and loading dock use.
• ADJUSTABLE FORKS WITH FIXED LEGS: Forks slide laterally to fit standard 40x48 inch and 48x48 inch pallets; rigid steel base legs prevent tipping during lift — provides stability on level concrete floors.
• FOUR-WHEEL MOBILITY: Equipped with four 4-inch polyurethane wheels (two fixed rear, two front swivel with locking brakes) for precise maneuvering in tight aisles and secure parking on inclines up to 2 percent.
• COMPACT STORAGE DESIGN: Low-profile 7.9 inch lowered height allows access under low-clearance racks and nesting beside other equipment — saves floor space in crowded storage areas.
• INDUSTRIAL STEEL CONSTRUCTION: Fully welded carbon steel frame with powder-coated yellow finish resists chipping and abrasion; designed for daily use in commercial environments with routine visual inspection and light maintenance.

model number: G592W465P331930

Part Number: G592W465P331930

Details: This manual hydraulic pallet stacker is engineered for reliable material handling in warehouses, distribution centers, and small-scale logistics operations. Built with a robust steel frame and precision hydraulic system, it delivers consistent performance without electricity or compressed air.

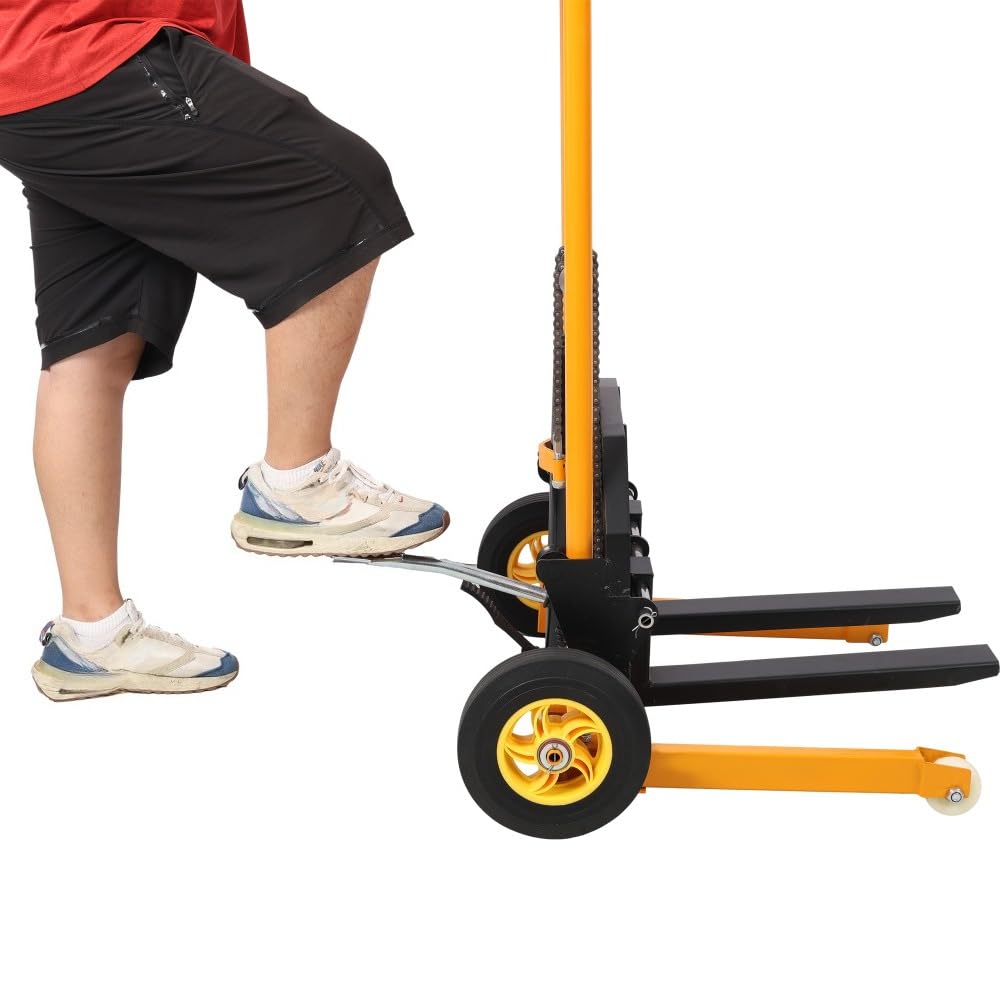

Key Specifications: Load capacity: 440 lbs (200 kg) Maximum lift height: 35.5 inches (90 cm) Fork length: 27.6 inches (70 cm) Fork width: 21.7 inches (55 cm) Overall height (lowered): 7.9 inches (20 cm) Wheel configuration: 4 pcs polyurethane wheels (2 fixed, 2 swivel with brakes) Base legs: Fixed steel legs for stability during lifting Fork adjustment: Manual lateral adjustment to accommodate standard pallet sizes Compared to basic pallet trucks, this unit adds vertical stacking capability while maintaining compact footprint and floor-level entry. The hydraulic pump requires minimal effort for smooth, controlled lifting and lowering. All structural welds meet industrial-grade fabrication standards. For maintenance, wipe down metal surfaces with a dry cloth after use; lubricate pivot points every 3 months under regular operation.
Use this stacker for loading/unloading shipping containers, staging goods on mezzanine shelves, or moving inventory between ground and raised platforms. Not intended for personnel lifting or outdoor use on uneven terrain.

EAN: 6976333373910

Package Dimensions: 82.0 x 71.0 x 52.0 inches
