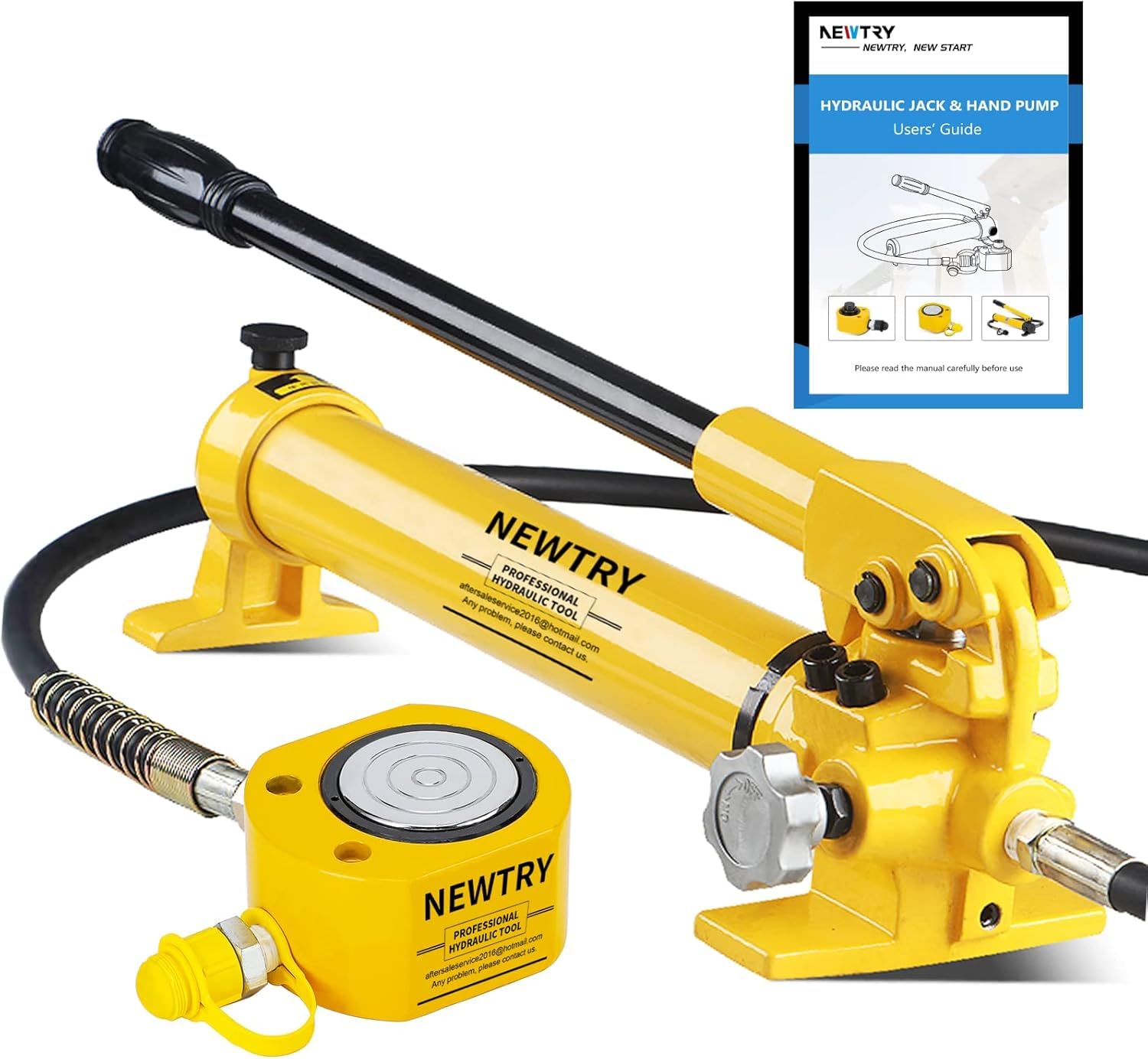

NEWTRY 100 ton Hydraulic Ram Jack + CP-700 Hydraulic Hand Pump Low Profile Porta Power Kit Single Section Mini Jack 0.78’’ Stroke Industrial Hydraulic Cylinder

Brand: NEWTRY

Color: Yellow

Features:

• ▷Jack Parameters---Tonnage: 100T | Stroke: 0.78inch/20mm | Self height: 3.54inches/90mm | Outer diameter: 5.31inch/135mm | Internal diameter: 4inch/100mm | Weight: 37.6lbs/17.1kg | Used with Pump: CP-700.

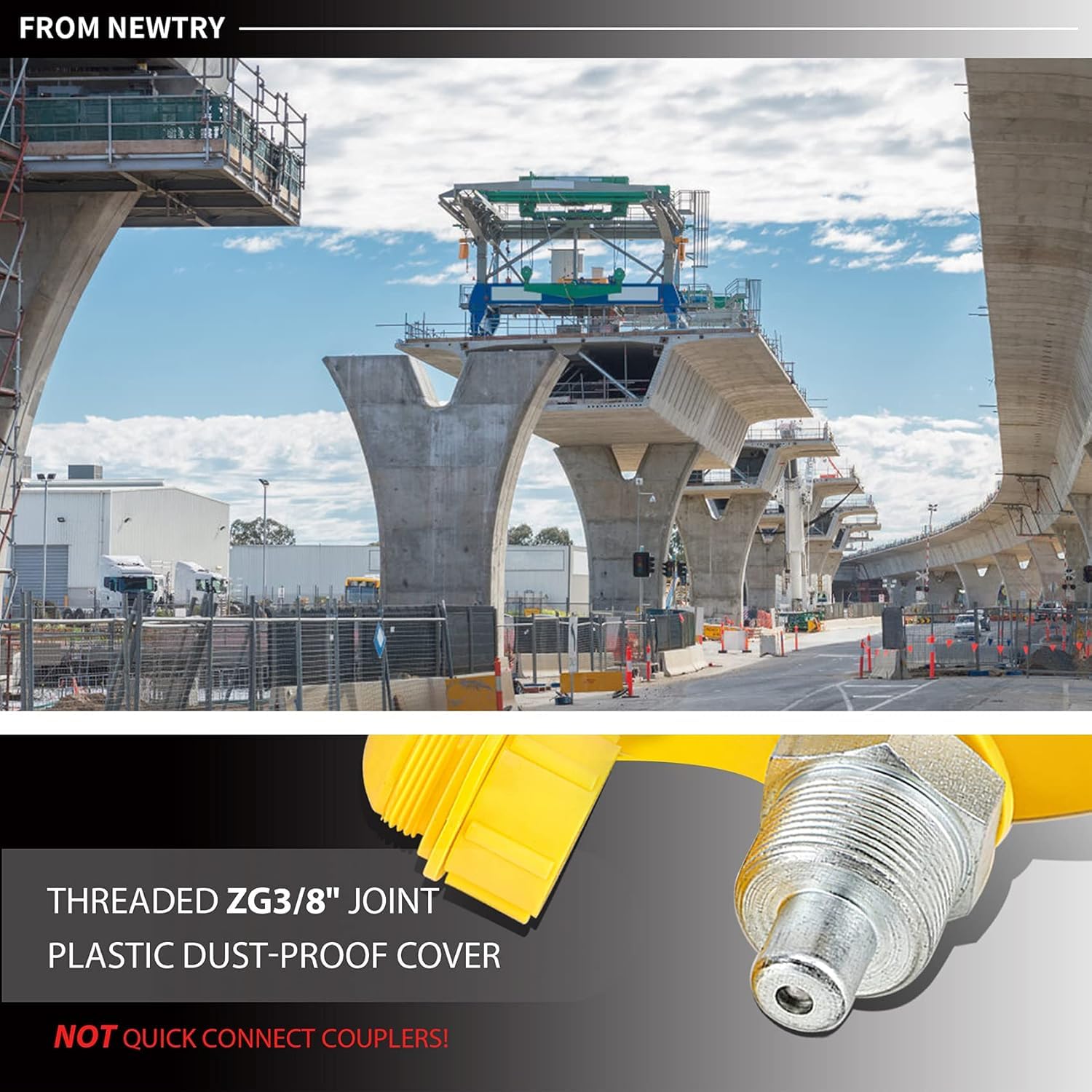

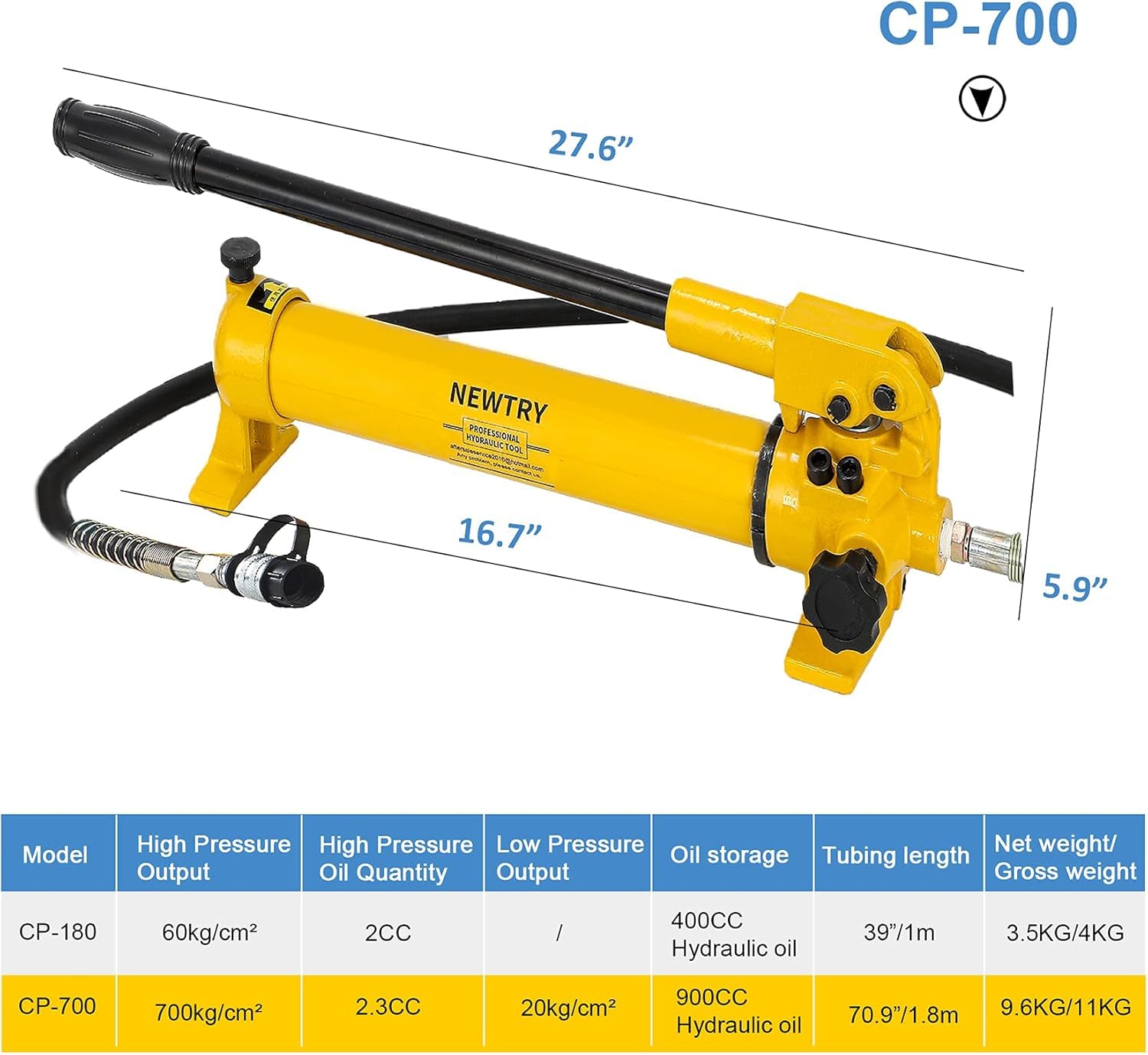

• ▷CP700 Pump Parameters---Oil capacity: 900cc | High pressure output: 700kg/cm2 | Low pressure output: 20kg/cm2 | Length: 70.9”/180cm | Weight: 9.6lbs/11kg | Oil pipe coupling with: 3/8'' connector. The cp - 700 hydraulic pump contains a relatively large amount of oil. This allows it to quickly lift the split - type hydraulic jack.
• ▷Smooth Lacquered Surface and Dust-Resistant Cover---The hydraulic ram cylinder features a smooth lacquered surface that not only gives it a sleek appearance but also provides good rust - resistance. Constructed from heavy - duty metal, this hydraulic cylinder jack is built to last. Additionally, it comes with a dust - resistant cover, ensuring that internal components remain clean and in optimal working condition for an extended period.

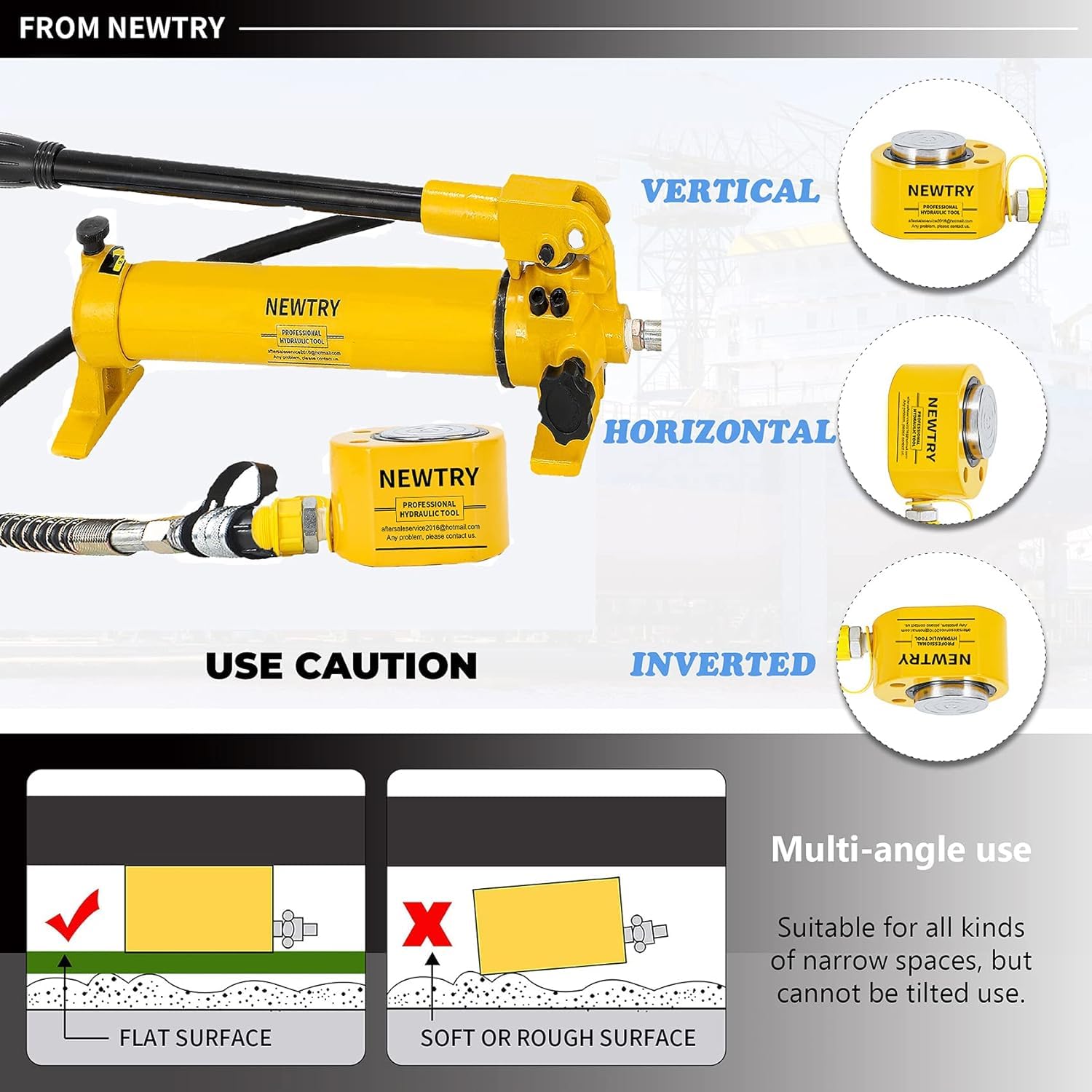

• ▷Compact Design with Strong Functionality---This hydraulic porta power ram features a compact size, making it suitable for use in tight spaces. It has a notable working capacity, providing both portability and flexibility during operation. With its small size, it can generate a substantial lifting force. This makes it a practical tool for various applications where space is limited yet reliable performance is required.
• ▷Effortless Operation & Automatic Retraction---The jack offers easy operation. Once the pressure is released, the piston retracts automatically, removing the need for external force. This makes it a time - saving and convenient choice for tasks. Its ultra - short stroke ensures smooth lifting. Whether for DIY projects or professional work, you can lift objects precisely, free from jerky movements.

Part Number: YX488

EAN: 5353857842848
