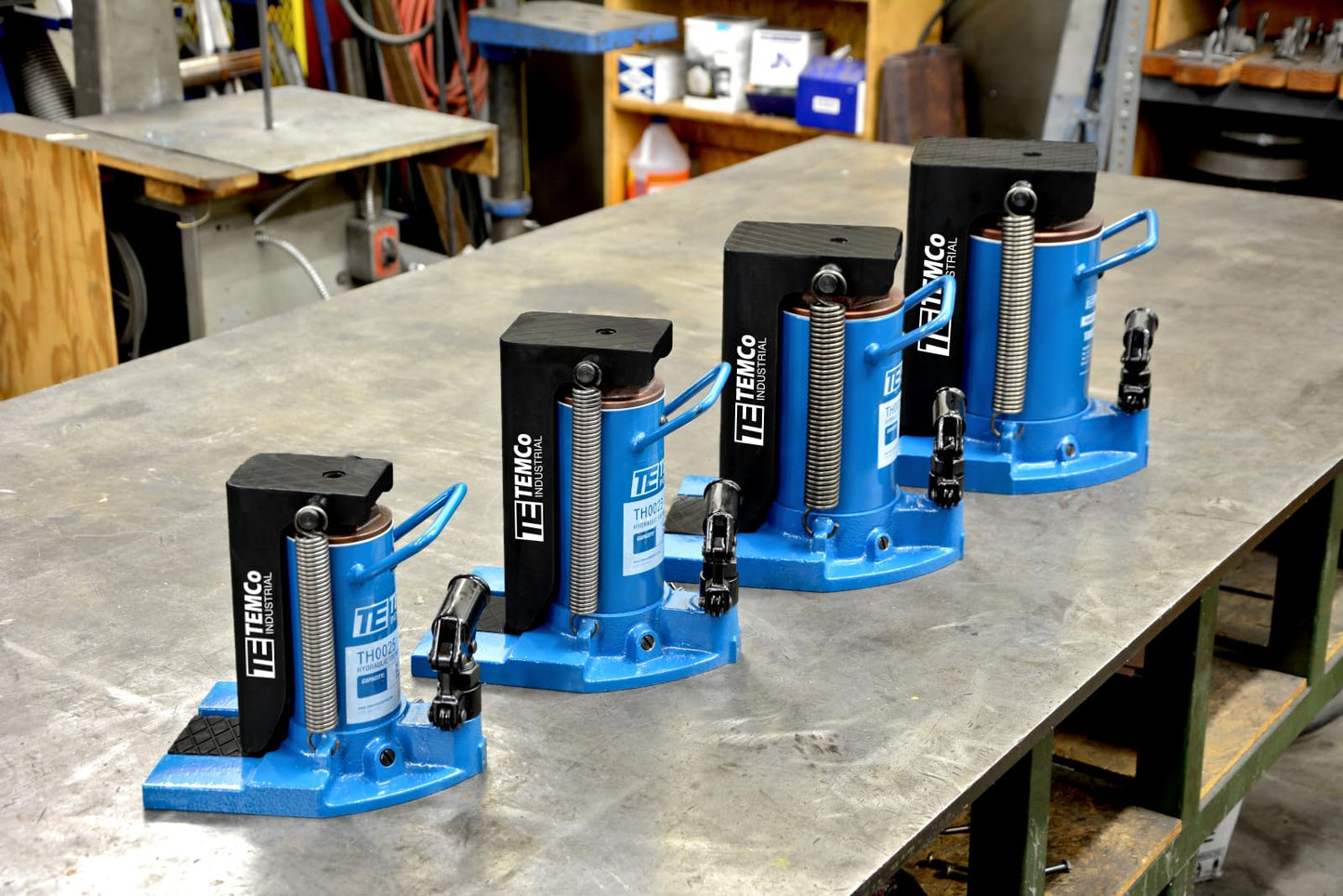

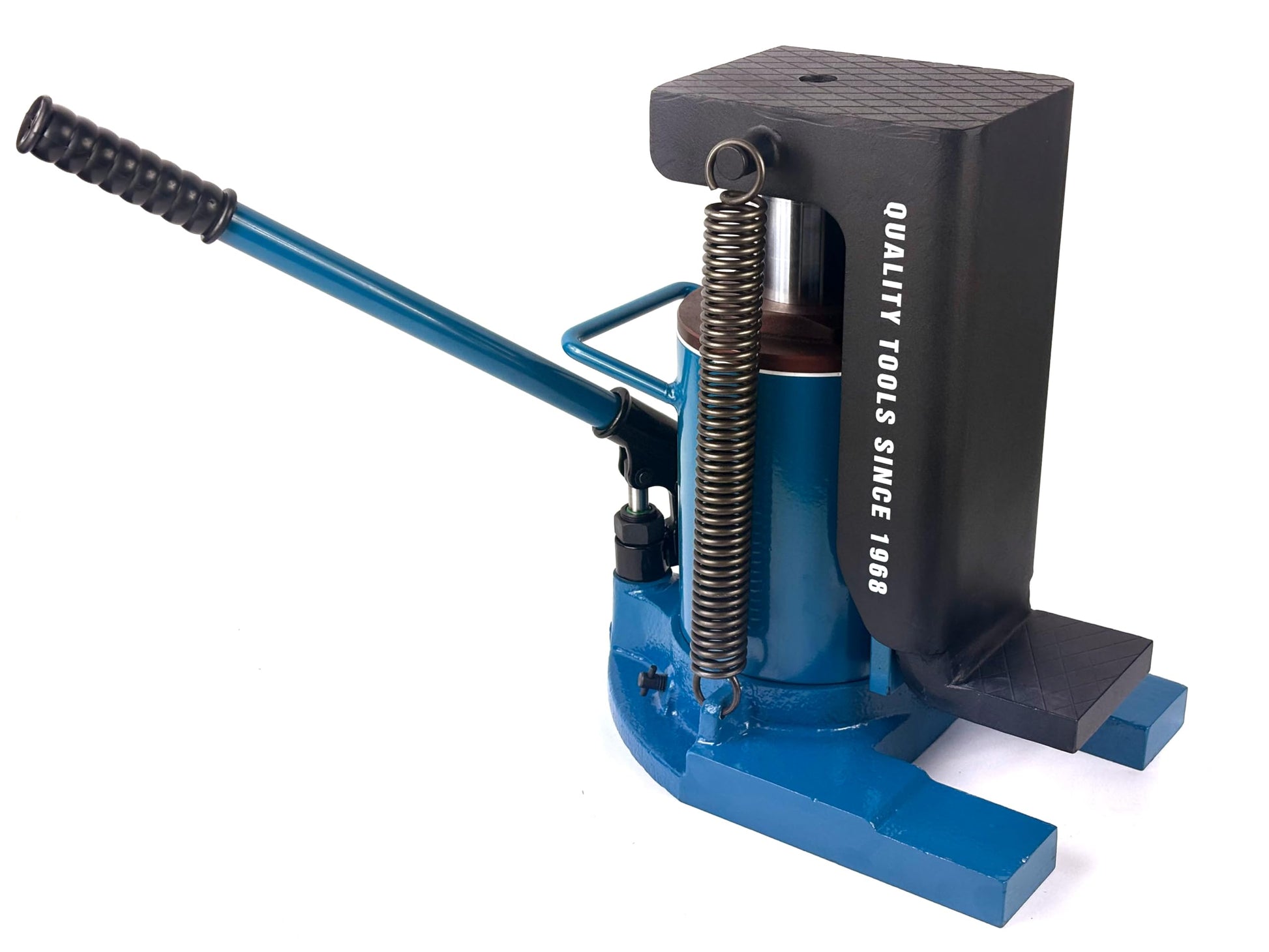

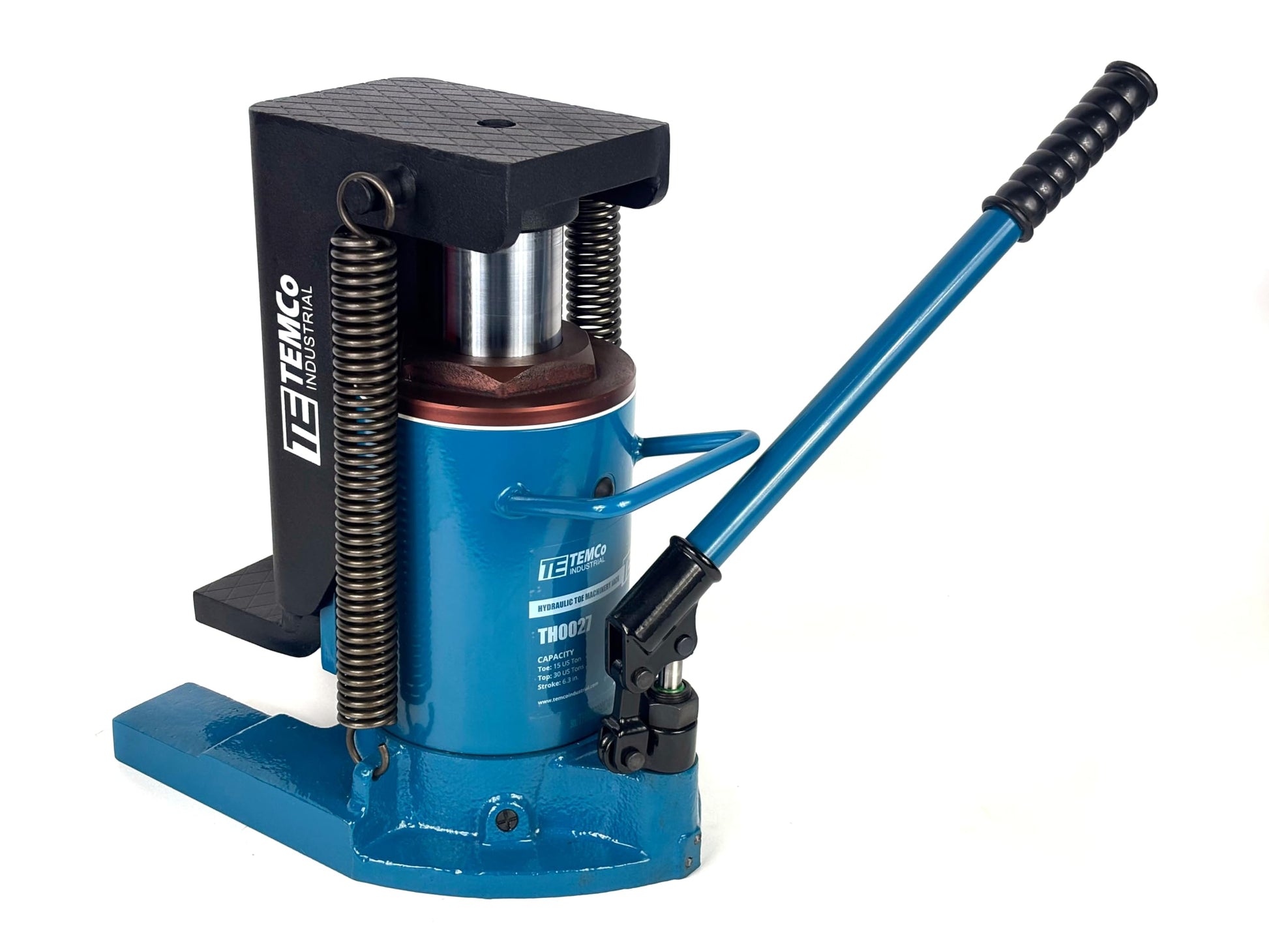

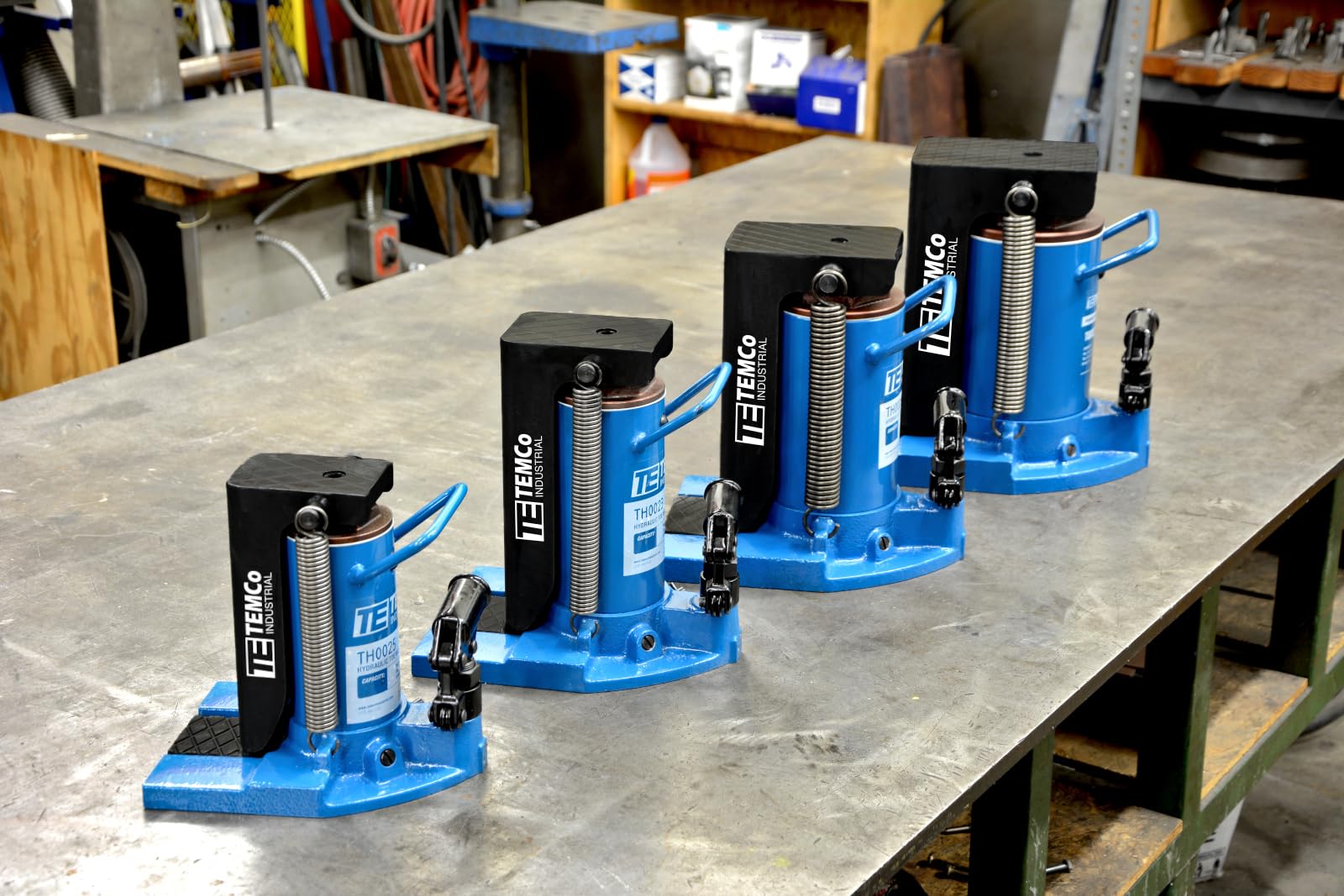

TEMCo Hydraulic Container/Machine Toe Jack (15 Ton - 30 Ton) Lift Capacity TH0027

Brand: TEMCo Industrial

Color: Blue, black

Features:

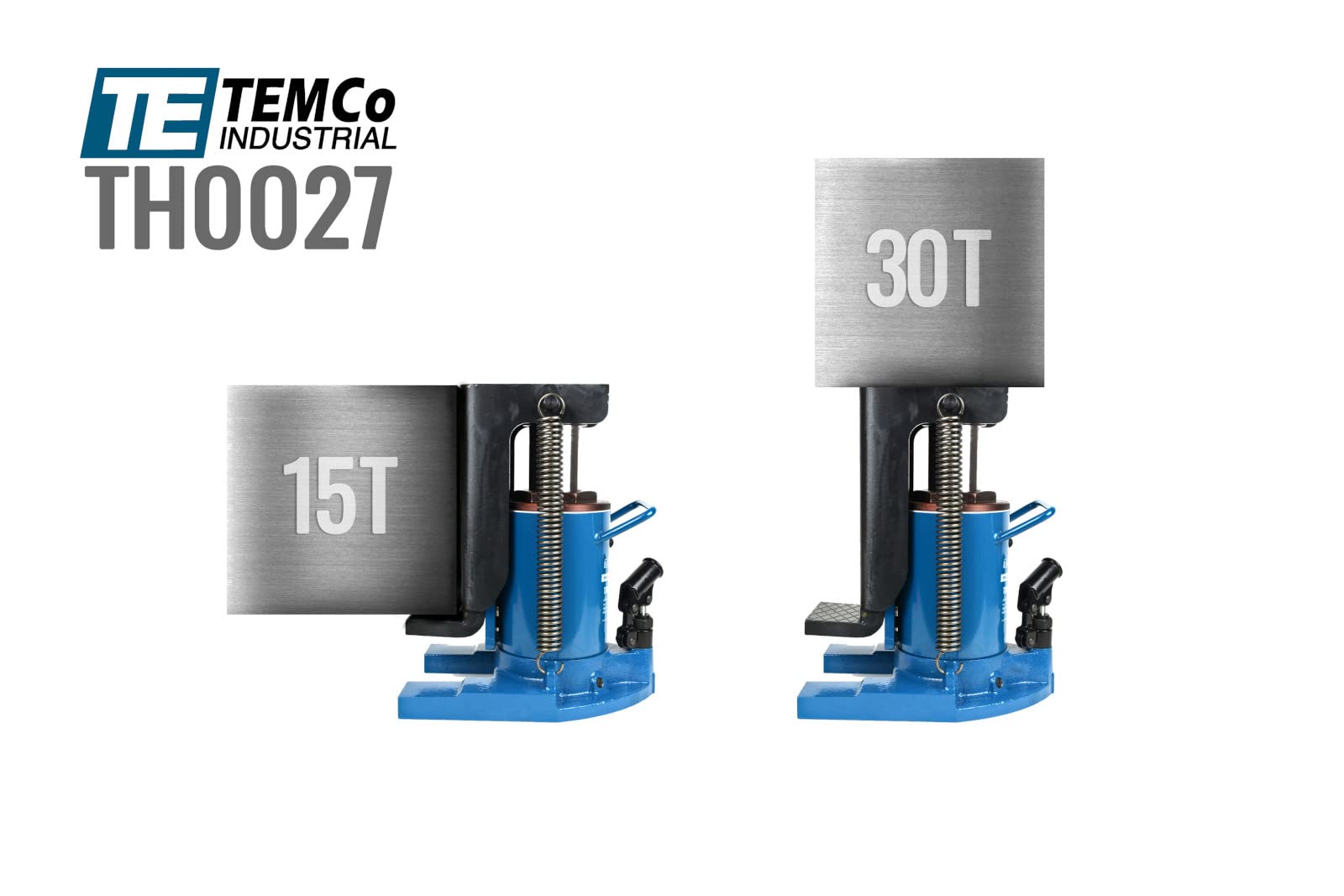

• 15 US TON Lift Capacity from the Toe, 30 Ton Lift Capacity at from the Top of the jack.

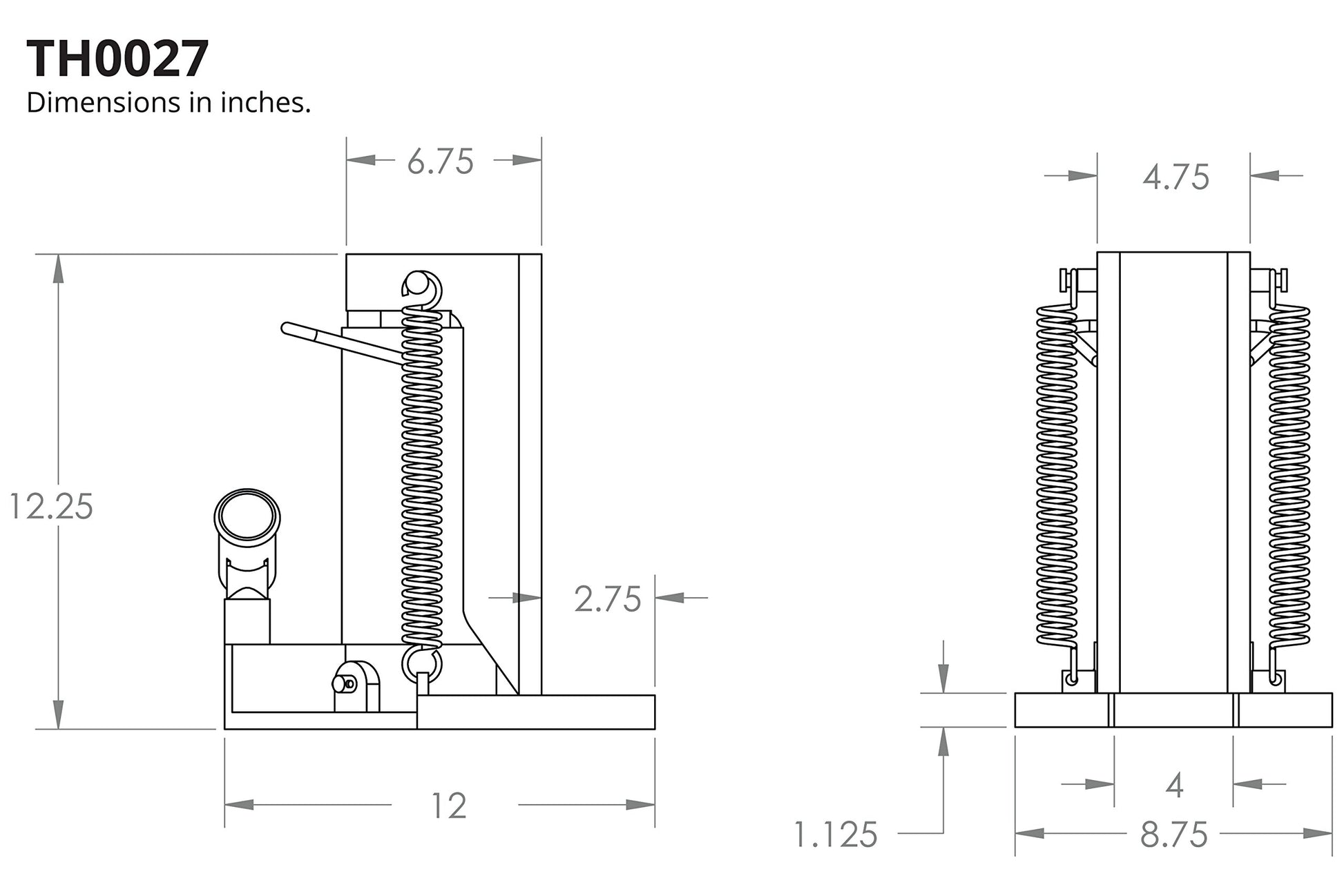

• Lowest Minimum Jacking Clearance 1.125 Inches.
• Machined Cylinder Housing improves the quality of the jack - Compare to traditional stamped sheet metal cylinder housing.
• Over Travel Protection eliminates damage to internals from over-extension of piston.
• Hard Chrome Ram resists corrosion and maximizes seal wear life.

model number: TH0027

Part Number: TH0027

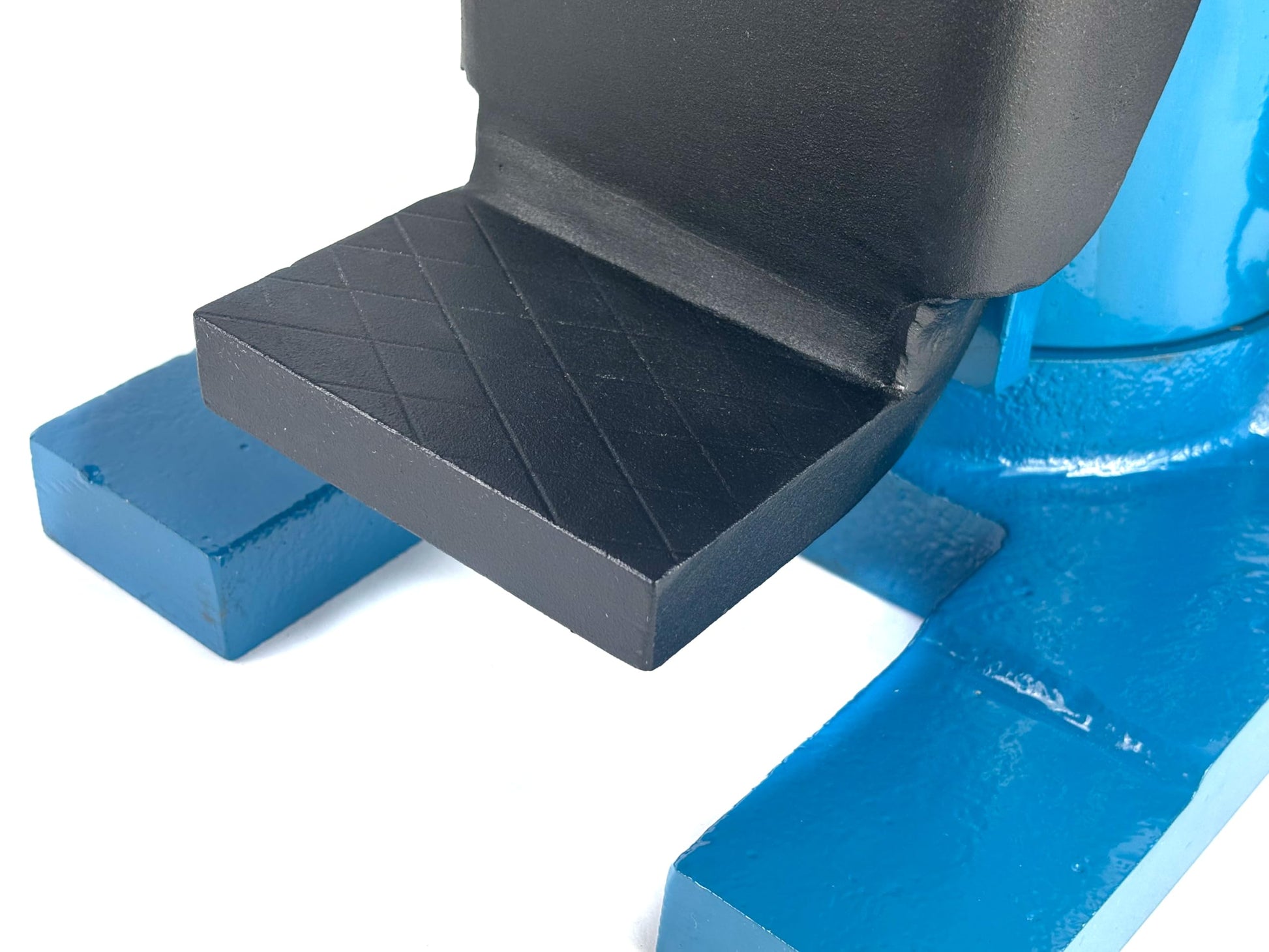

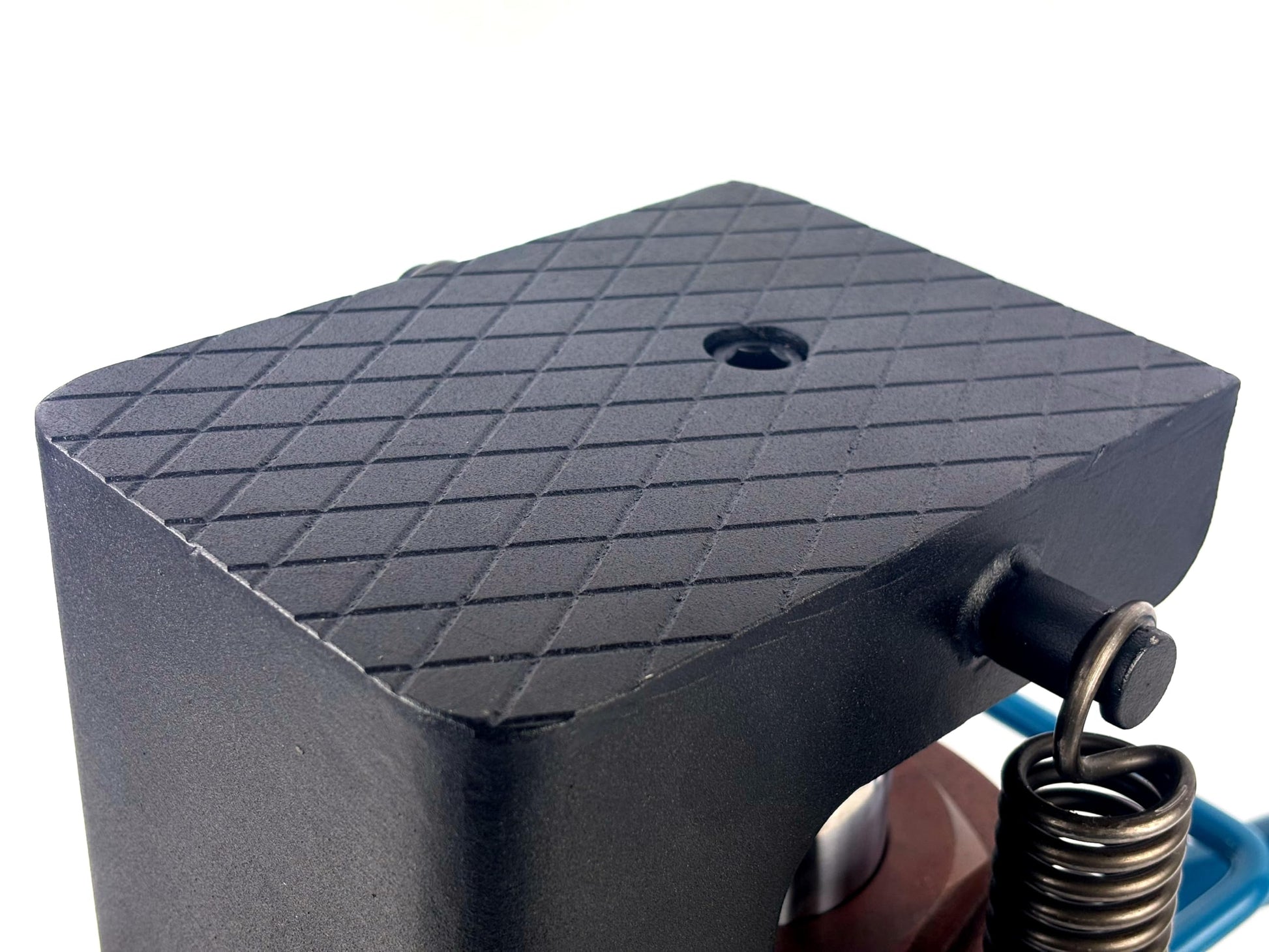

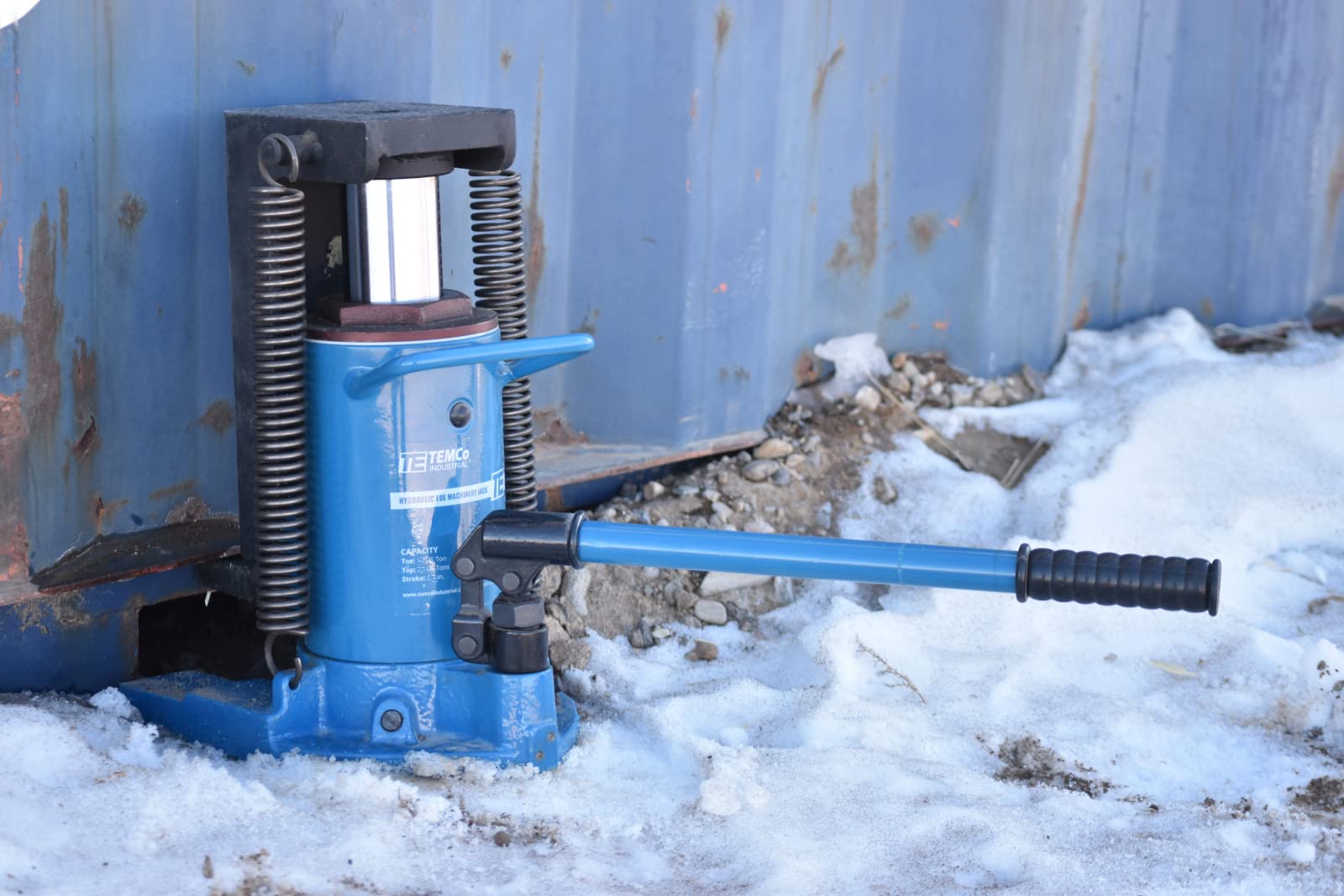

Details: Compact design for field use on construction sites and maintenance jobs. Quick, effortless and simple to operate. Dual Jack Pad Saddle - 2 Jacking Positions allow more lifting clearance options. Lowest Minimum Jacking Clearance at Only 1.125 Inch. Spring return aids in rapid returns to floor. Proprietary Heat-treated Process designed specificly for application demands. High Grade Imported Ram Packing Seals used to match caliber of machining tolerances. Special Polymer Dust Wiper Protects Ram Packing in the dirtiest of environments. 15" Rubber Grip Jacking Handle fits in the tightest of spaces while minimizing jacking effort. Baked Powder TUFF-COAT finish maximizes assembly corrosion resistance. Applications: Heavy Machinery Rigging and Moving, Oil Rigging, Transformer Lifting, Lifting, pushing, spreading, bending, pressing or straightening

EAN: 0799491873582

Package Dimensions: 20.0 x 16.5 x 16.0 inches
