Tory Carrier Full Electric Pallet Stacker, Pallet Forklift, 3300 lbs Capacity, 118" Height Material Lifts, Straddle Legs & Forks Lift, Upgraded Maintenance-Free Gel Battery for Narrow Spaces(Red)

Brand: T TORY CARRIER

Color: Red

Features:

• Adjustable straddle leg width 45.9 - 61.6 inches. Minimum turning radius of 53 inches. Aisle width 87.8 inches. Small and compact, it can operate in narrow working conditions. Please note: the item is designed for flat surfaces, do not use it on uneven grounds with potholes or steep slopes.
• High Safety: The pallet lift cylinder includes a safety explosion-proof valve that prevents free-fall of the load, even if the hydraulic hose ruptures, ensuring operator safety. Equipped with warning lights, buzzer, beeps during operation.

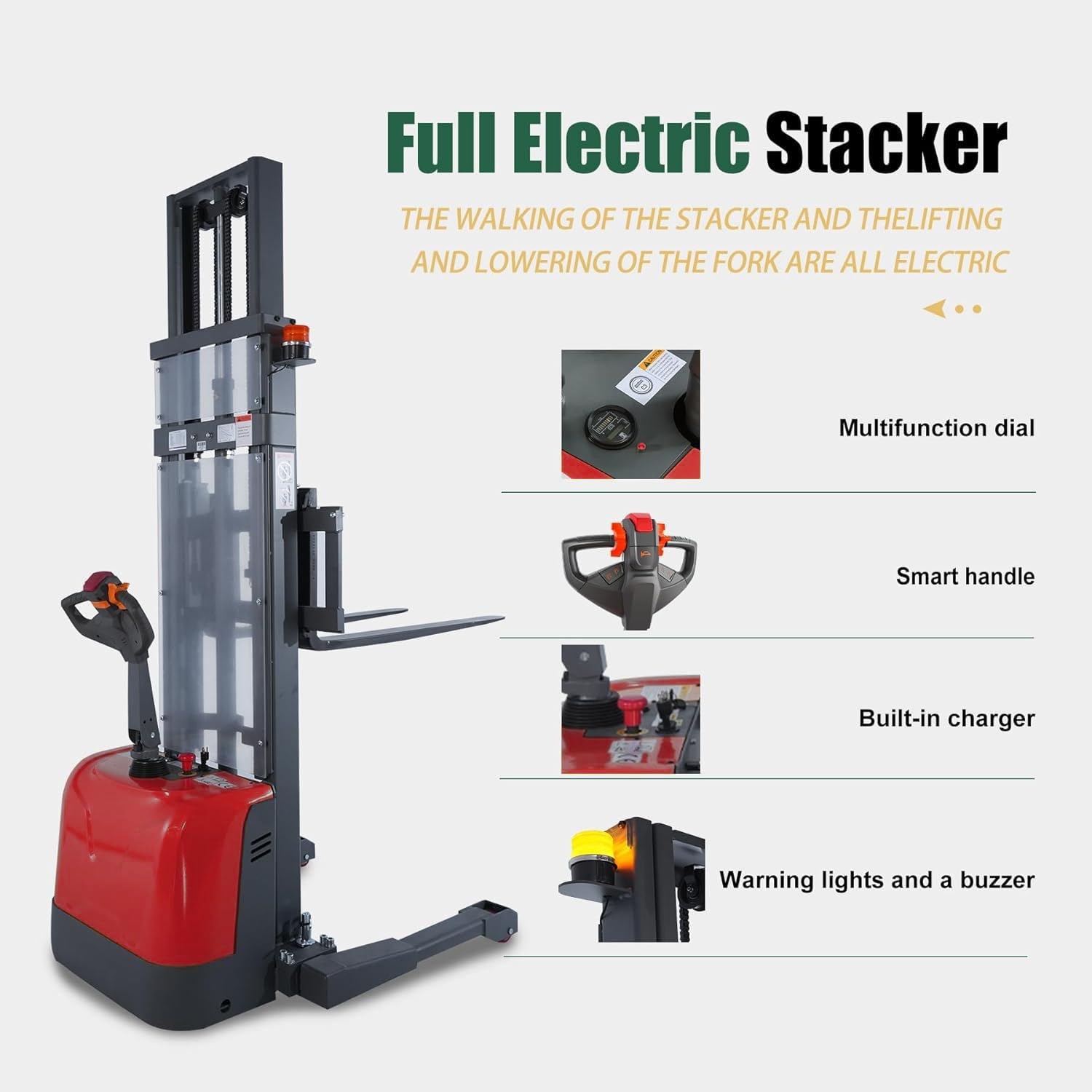

• Multi-function Handle: Forward and backward movement and elevation are all controlled by handles. Extras include emergency brake and reverse buttons, creep speed button and upright walking function. Long handle structure makes it steering light and flexible.
• Stability & Anti-slip:three-point structure, centrally mounted drive wheel, enhancing stability and preventing drive wheel slippage.
• Steady Moving: the hydraulic station and battery are designed lower, making the gravity of the pallet lift lower, less rocking when driving.
• Equipment Protection: Overhead drive wheel design, the motor is higher off the ground to prevent water, dust and oil from entering. The interior wiring harness includes multiple fuses to protect various electrical components.
• Wide Range of Applications： Ideal for cargo handling, stacking, and order-picking tasks. Perfect for replacing manual stackers.
• The straddle legs and forks of the stacker truck are uninstalled for safe transit and needs to be assembled by yourself upon receipt.

model number: CTD15R-EN-118BH2427

Part Number: CTD15R-EN-118BH2427

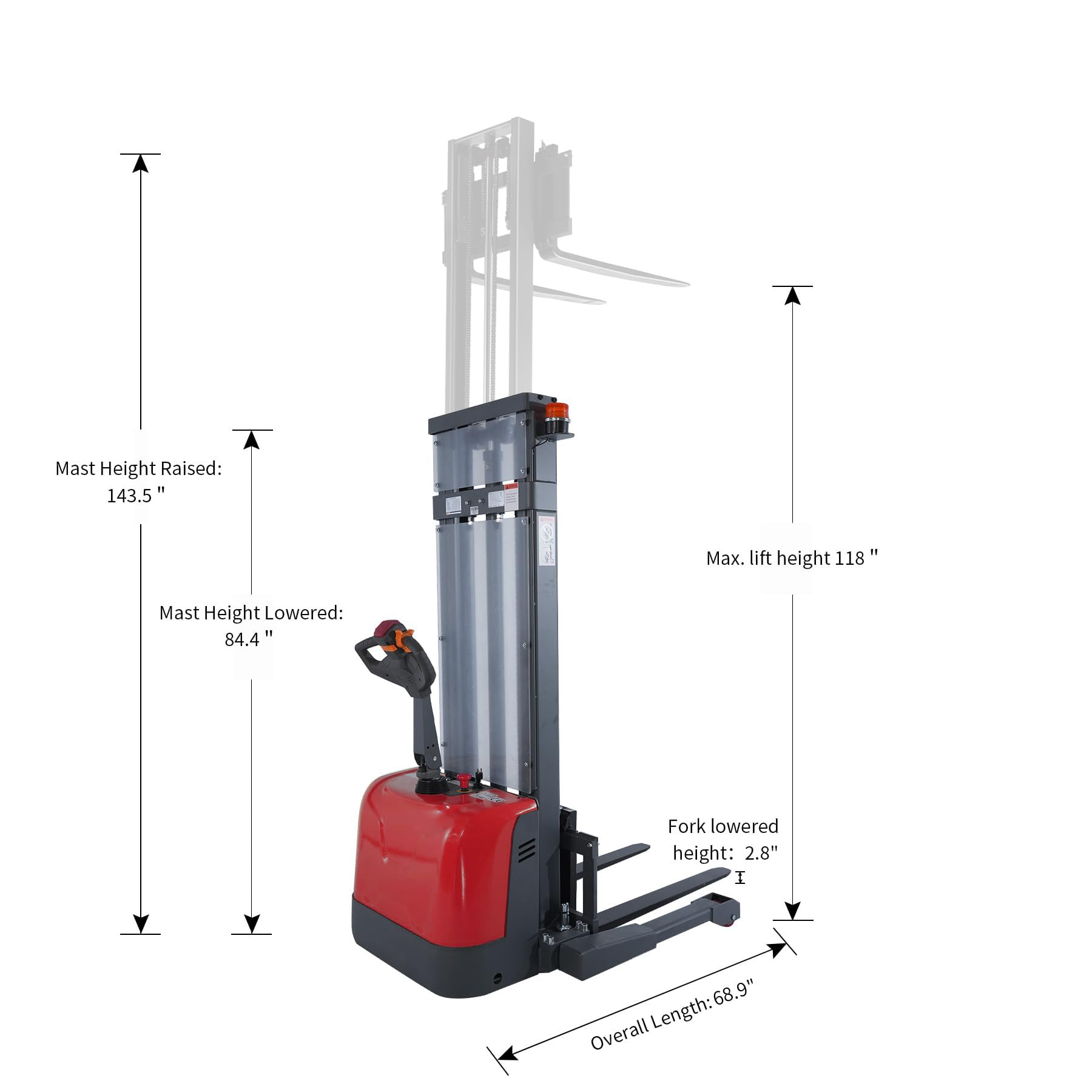

Details: DIMENSIONS
Overall Length: 68.9""

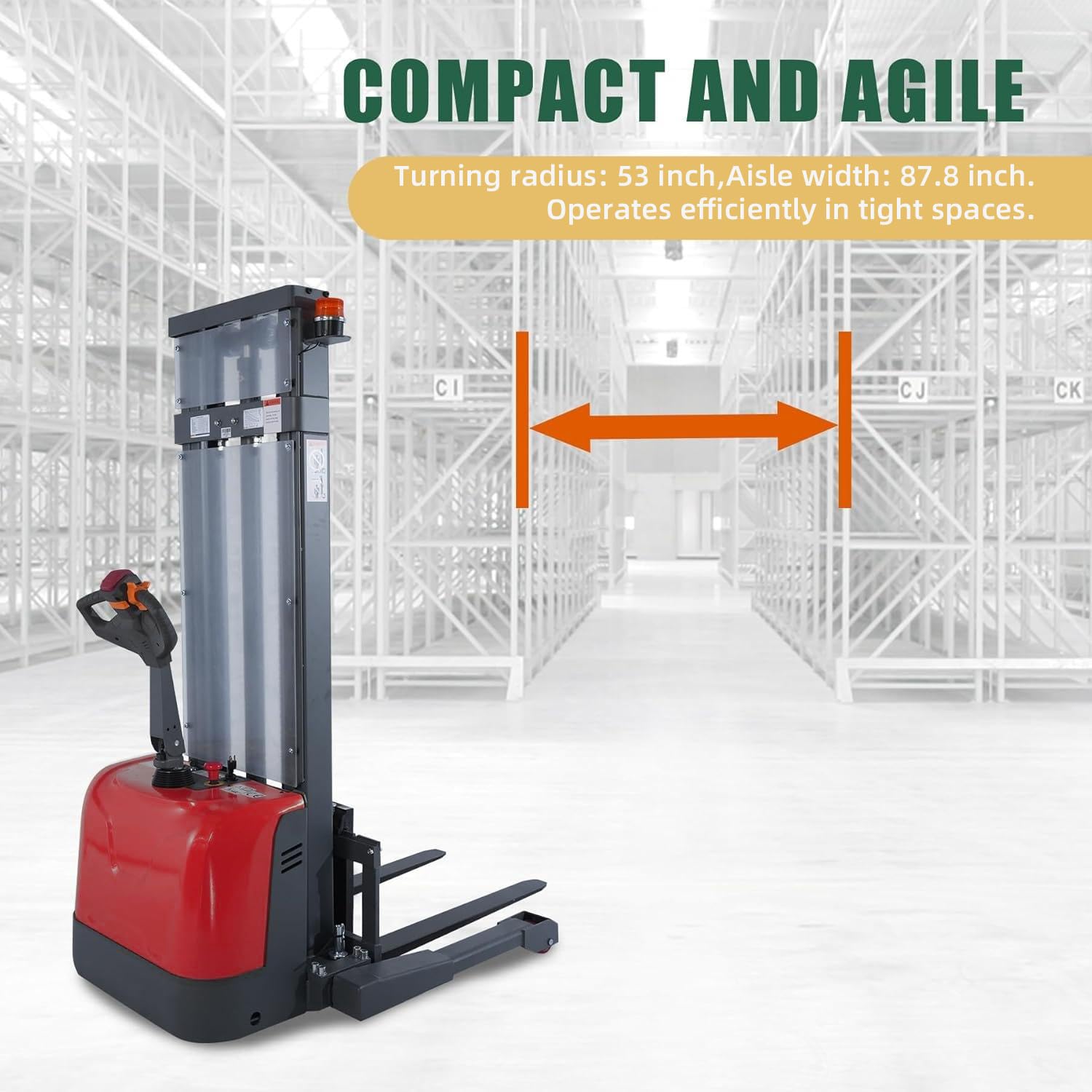

Recommended Aisle Width: 87.8""
Turning Radius: 53""
Max. Lifting Height: 118""
Mast Height Lowered: 84.4''
Mast Height Raised: 143.5""
Load Center: 23.6""

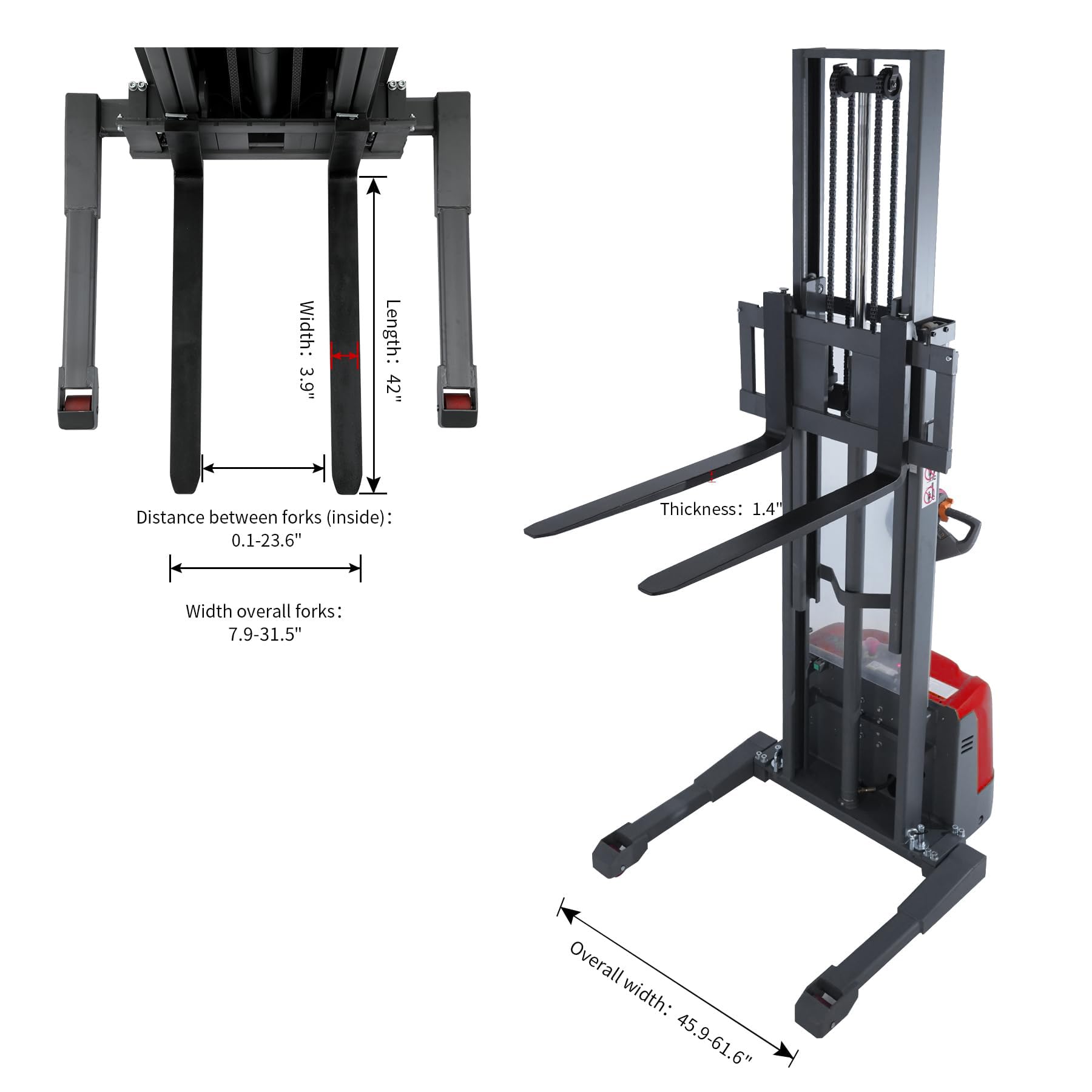

FORKS
Fork height, Lowered: 2.8""
Adjustable Forks: 7.9""-31.5""
Thickness: 1.4""
Width: 3.9""
Length: 42""
Height: 2.8""

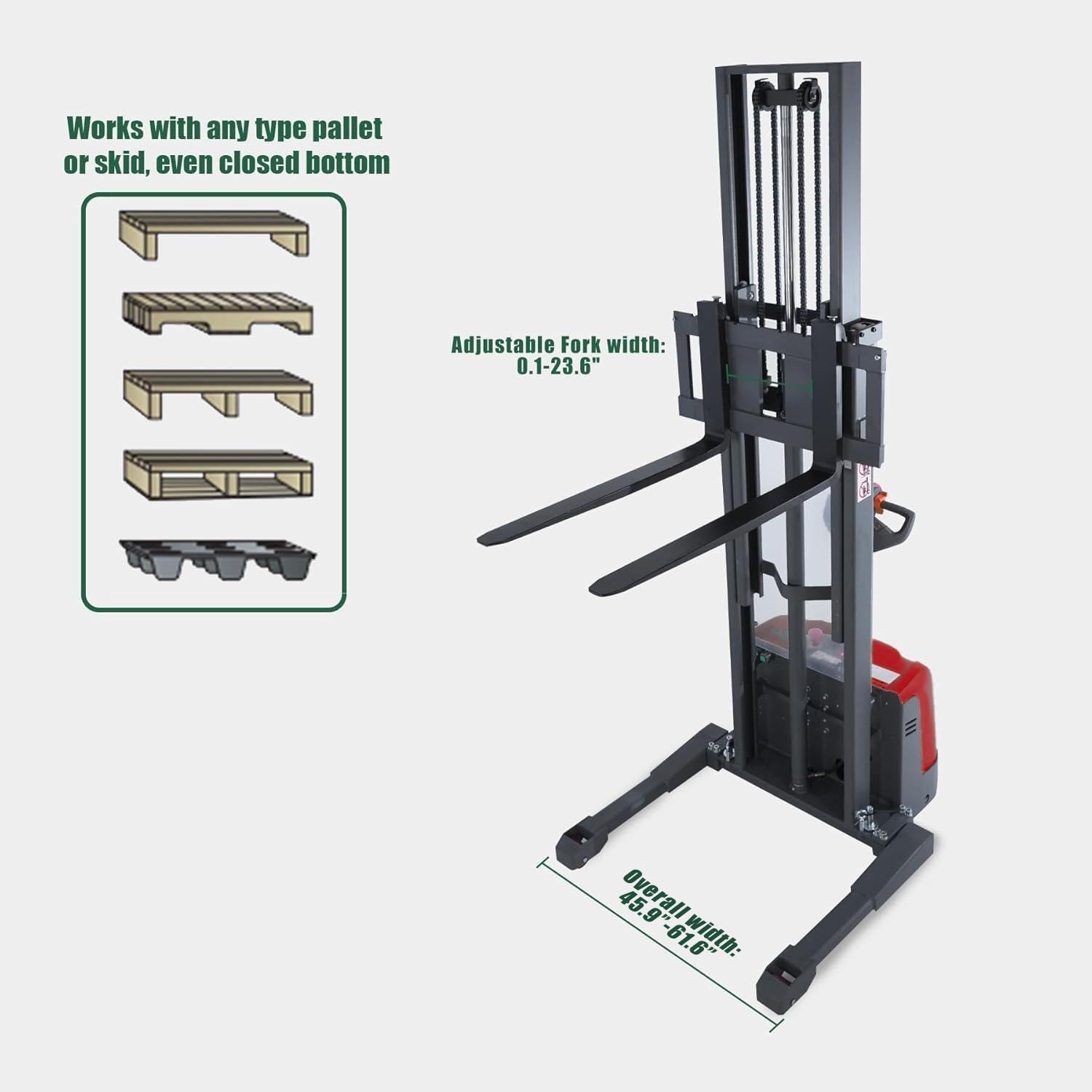

Adjustable range: 45.9"" - 61.6""
FEATURES
Smooth rolling polyurethane wheels; 180° steering arc.
High component integration for easy maintenance and repairs.
24V Built-in Charger.
6 hours of service per charge: 24V, 100 Ah rechargeable GEL batteries.

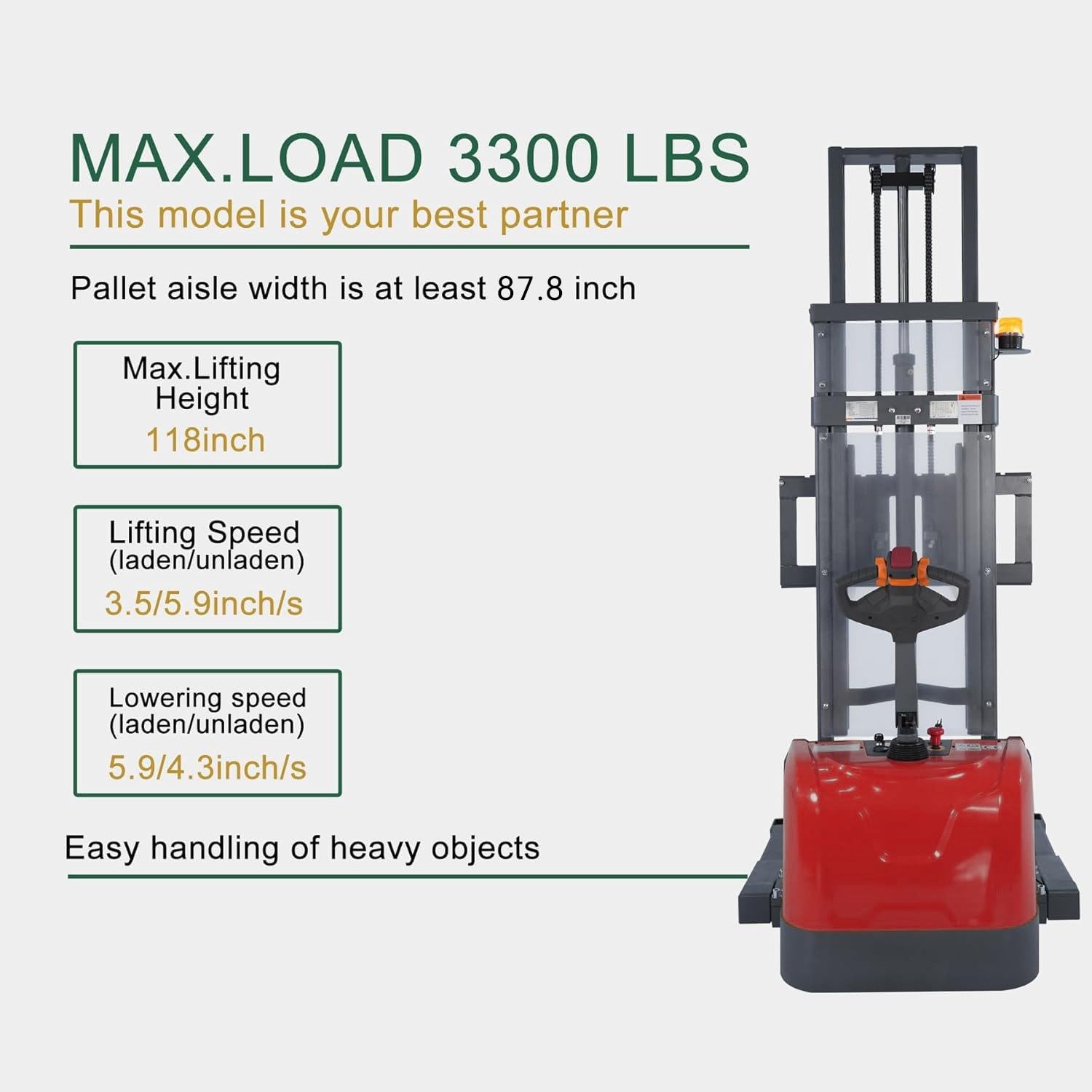

SPEED
Travel Speed (laden/unladen): 2.8/3.1mph
Lifting speed(laden/unladen) : 3.5/5.9inch/s
Lowering speed(laden/unladen) : 5.9/4.3inch/s

Package Dimensions: 88.0 x 44.0 x 34.0 inches
