Vestil LM-EBT-6-24 Steel Economy Telescoping Lift Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity Blue and Yellow

Brand: Vestil

Color: Blue

Features:

• Telescoping boom forklift attachment with 6,000 lb. maximum load capacity for lifting items
• Welded structural steel with blue powder coat finish for strength, durability, and resistance to corrosion
• Two fork pockets with useable space that measures 2-1/4" x 7-1/4" and 24" centers for accommodating the tines of a forklift (sold separately)
• Snap hook, swivel hook, 10 hook points, and an adjustable locking screw for accommodating loads of different shapes and sizes
• Comes with 36" security chain and orange 48" strap for securing boom attachment to forklift

Release Date: 12-03-2017

model number: LM-EBT-6-24

Part Number: LM-EBT-6-24

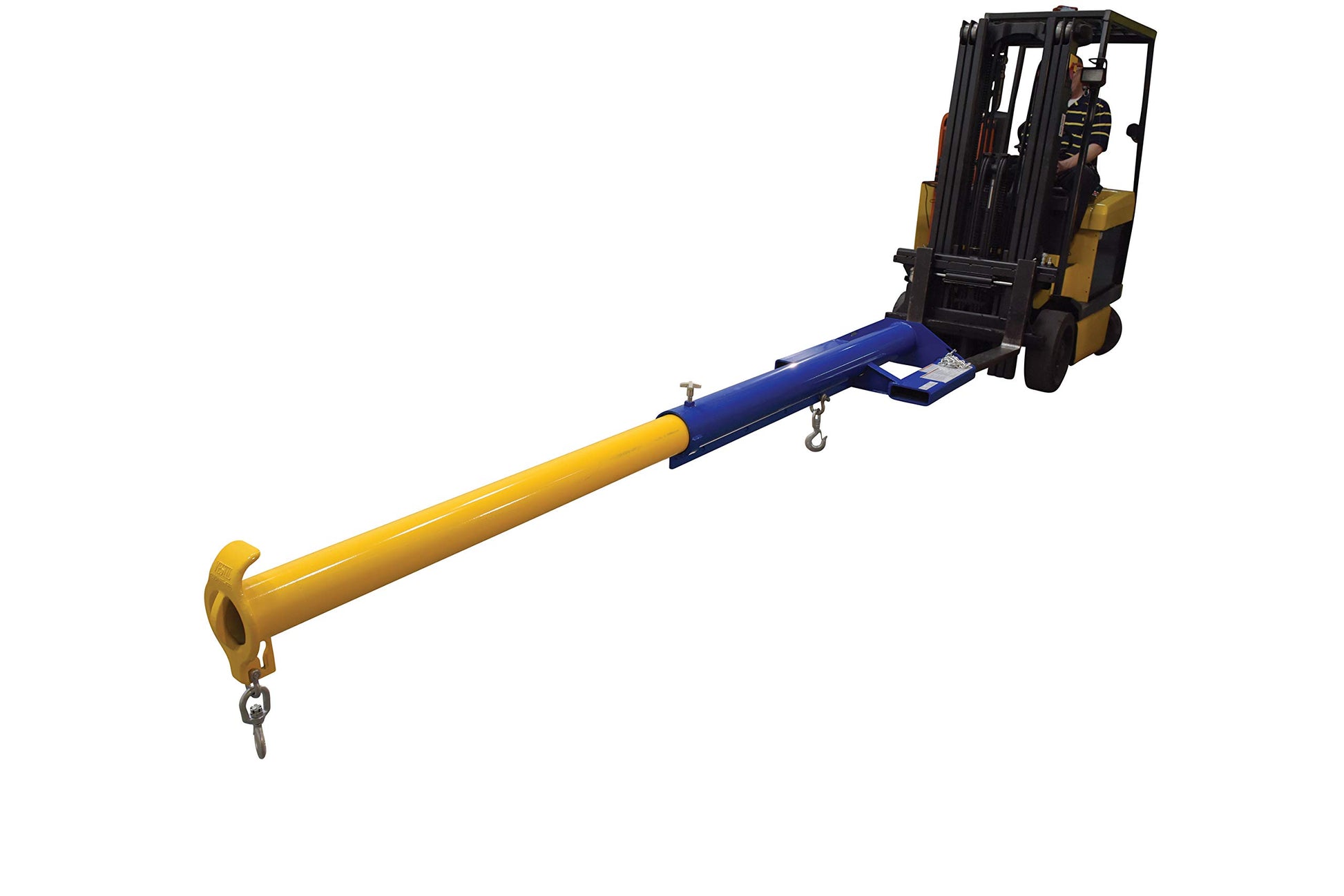

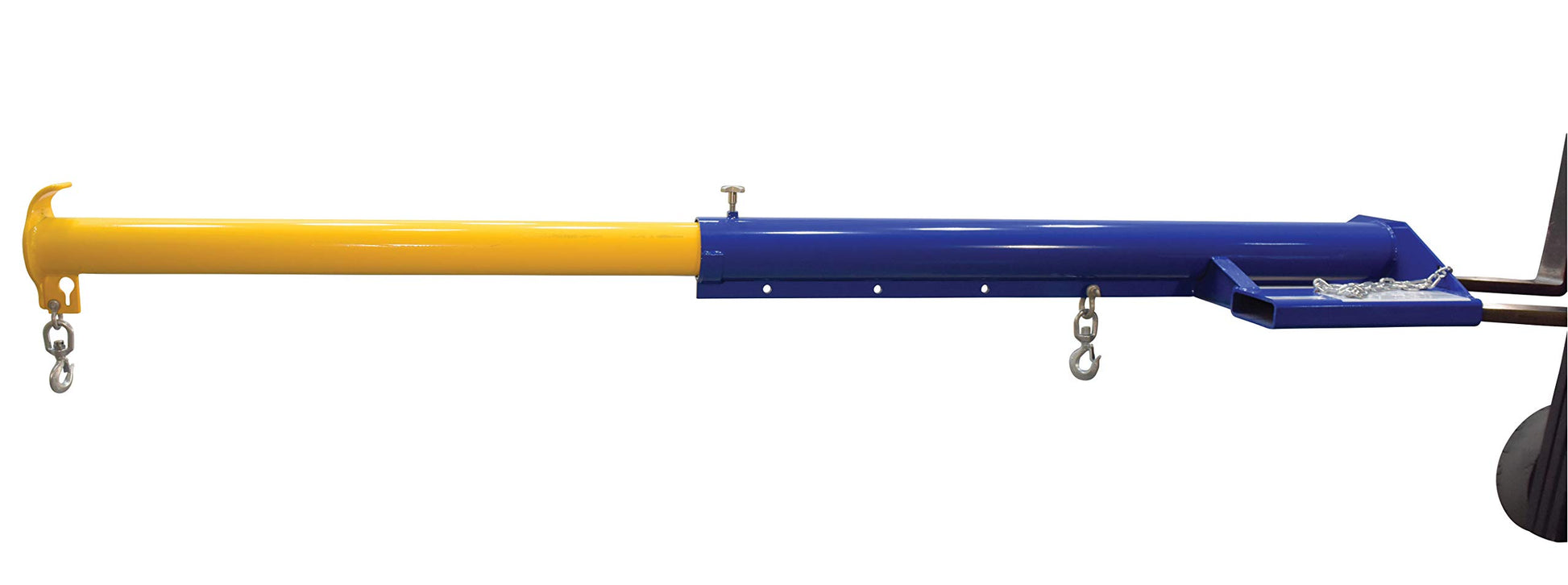

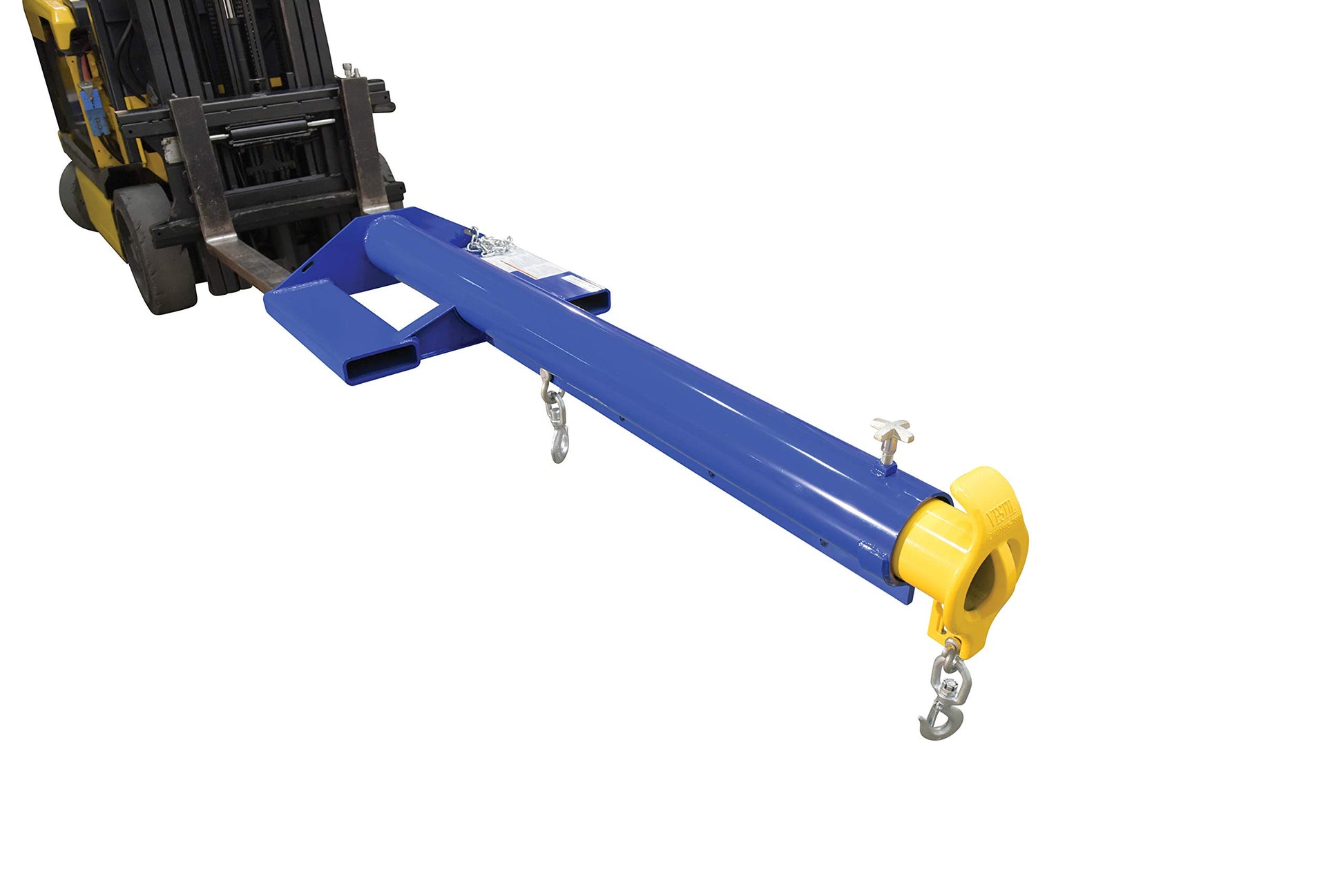

Details: This Vestil LM-EBT-6-24 steel telescoping boom forklift attachment has a 6,000 lb. maximum load capacity, blue powder coat finish, two fork pockets with 24" centers, a snap hook and swivel hook, 10 hook points when fully extended. It is suitable for lifting items when attached to a forklift (sold separately). This boom is made of welded structural steel with a powder coat finish for strength, durability, and resistance to corrosion. The minimum hook point is on this boom attachment is 36" and has a 6,000 lb. load capacity. The maximum hook point is 144" and has a 1,800 lb. load capacity. The fork pockets on this boom have one usable space each that measures 2-1/4" x 7-1/4" (H x W), and centers that are 24" apart to accommodate the tines of a forklift. Overall LxWxH (in.) 32 x 86.25 x 13, Overall Extended Length (in.) 153-3/4(H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right.) The snap hook, swivel hook, hook points, and adjustable locking screw on this boom help accommodate loads of different shape and sizes. It comes with a 36" security chain and an orange 48" strap for securing the boom attachment to the forklift. This telescoping boom has a length of 152-7/8" when fully extended and 84-7/8" when retracted. It is 13" high and 32" wide.
Vestil manufactures materials handling equipment, including hoists and trolleys, jib and gantry cranes, loading dock equipment, and storage solutions. The company, founded in 1968, is headquartered in Angola, IN. What's in the Box? Lift boom frame Chain 3/16" x 36" Attachment strap, orange, 48" Snap hook, 5/16 Knob Anchor Shackle Swivel Hook, 3 ton

EAN: 0691215027373

Package Dimensions: 85.0 x 31.5 x 8.5 inches
