Vestil LM-EBT-8-24 Steel Economy Telescoping Lift Boom 24 In Fork Pocket Center 8,000 Lb. Capacity Blue and Yellow

Brand: Vestil

Color: Blue (Base Frame)/Yellow (Extension)

Features:

• Blue telescoping boom with 151-1/2" extended length for converting forklift into overhead lifting crane
• Steel for strength and durability

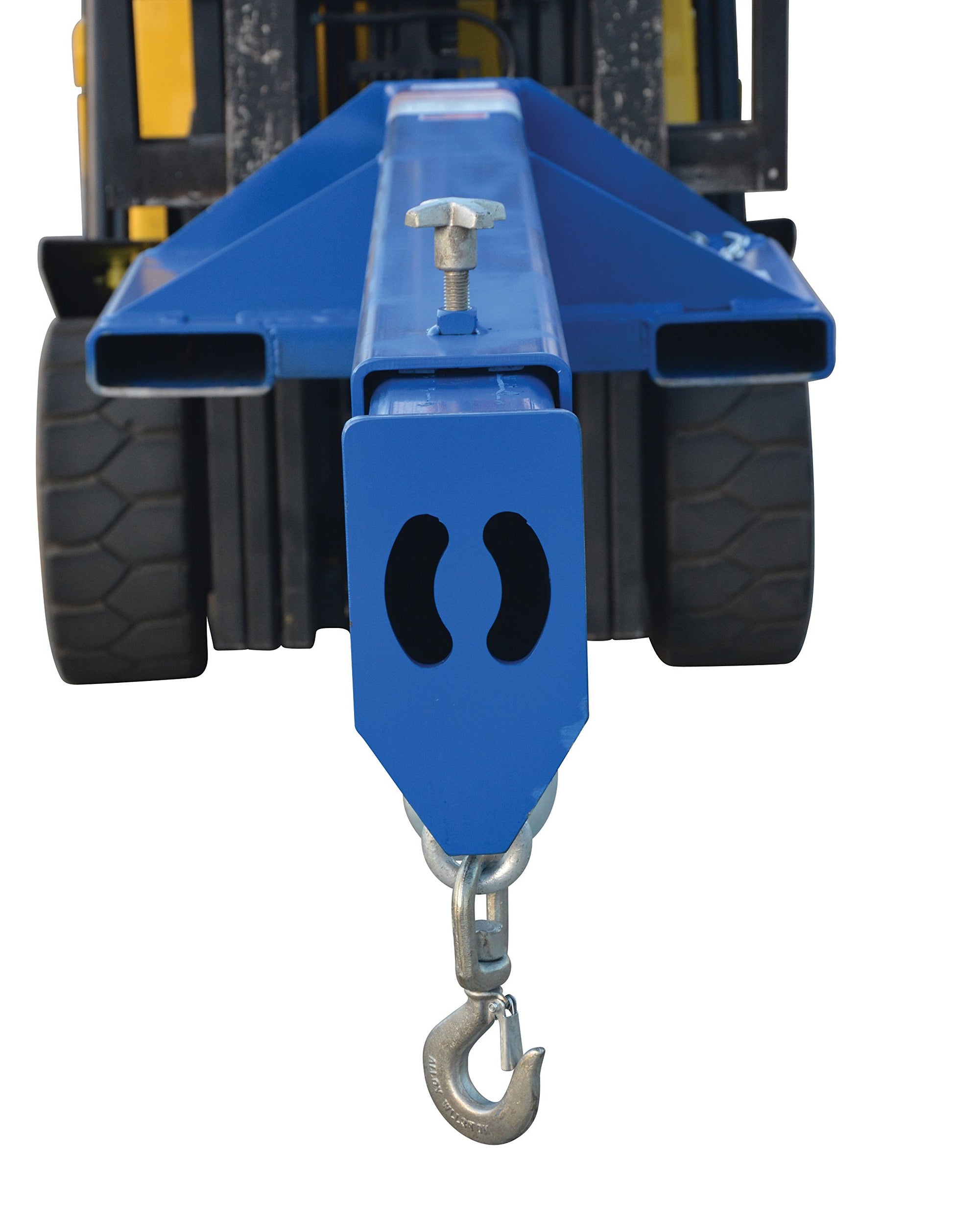

• Fork pockets with safety chain for attaching and securing boom to fork trucks
• Two lifting hooks for attaching load
• 8,000-lb. capacity

model number: LM-EBT-8-24

Part Number: LM-EBT-8-24

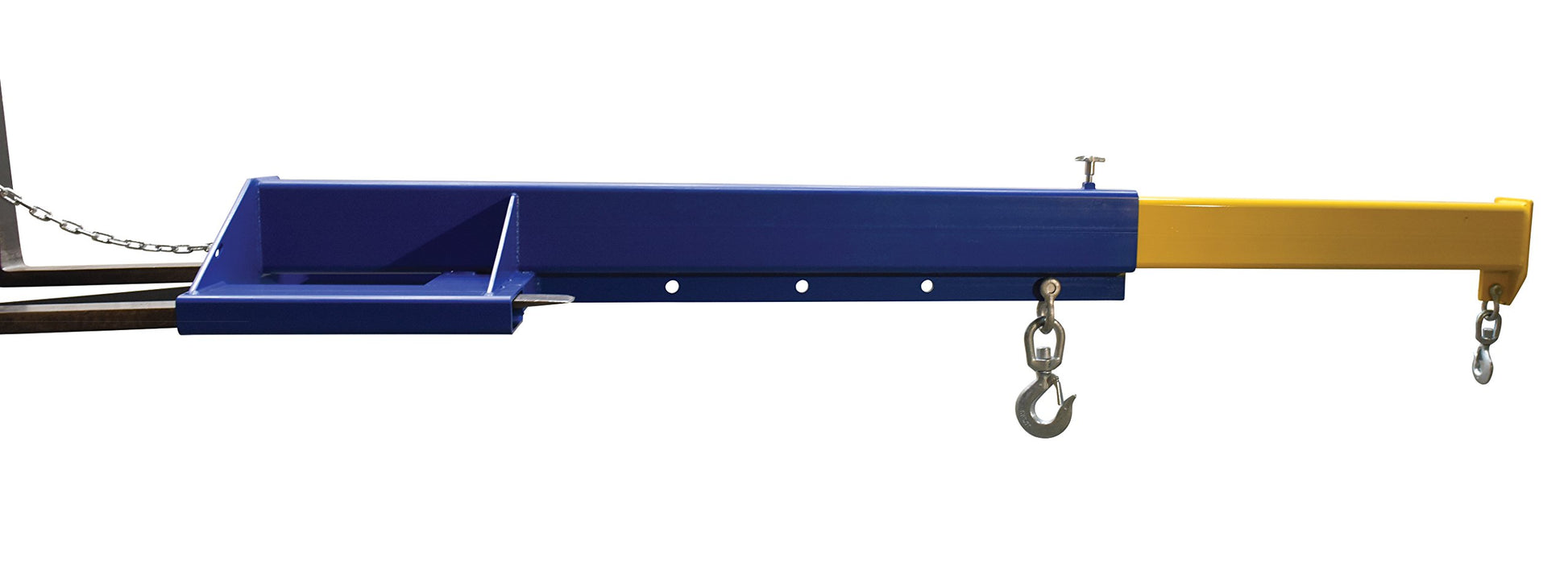

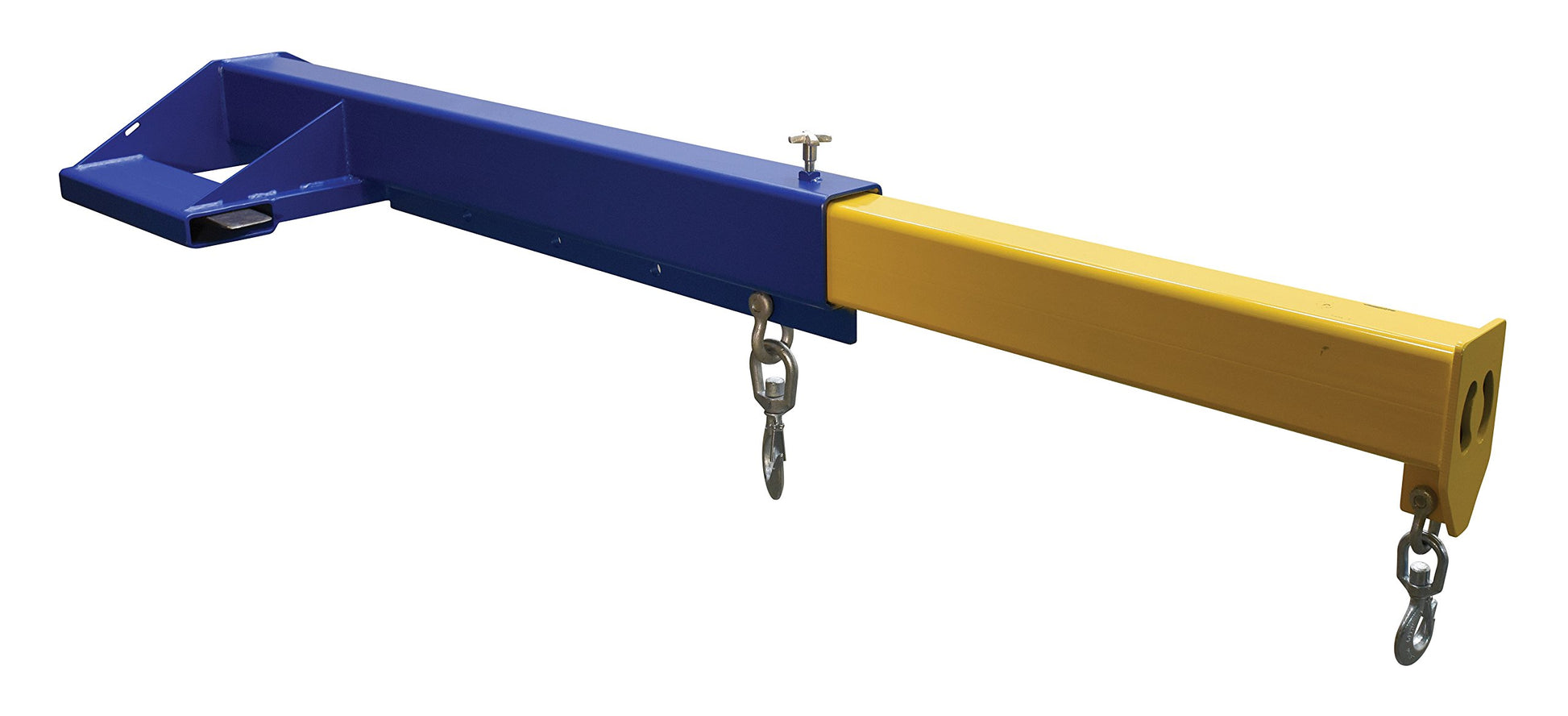

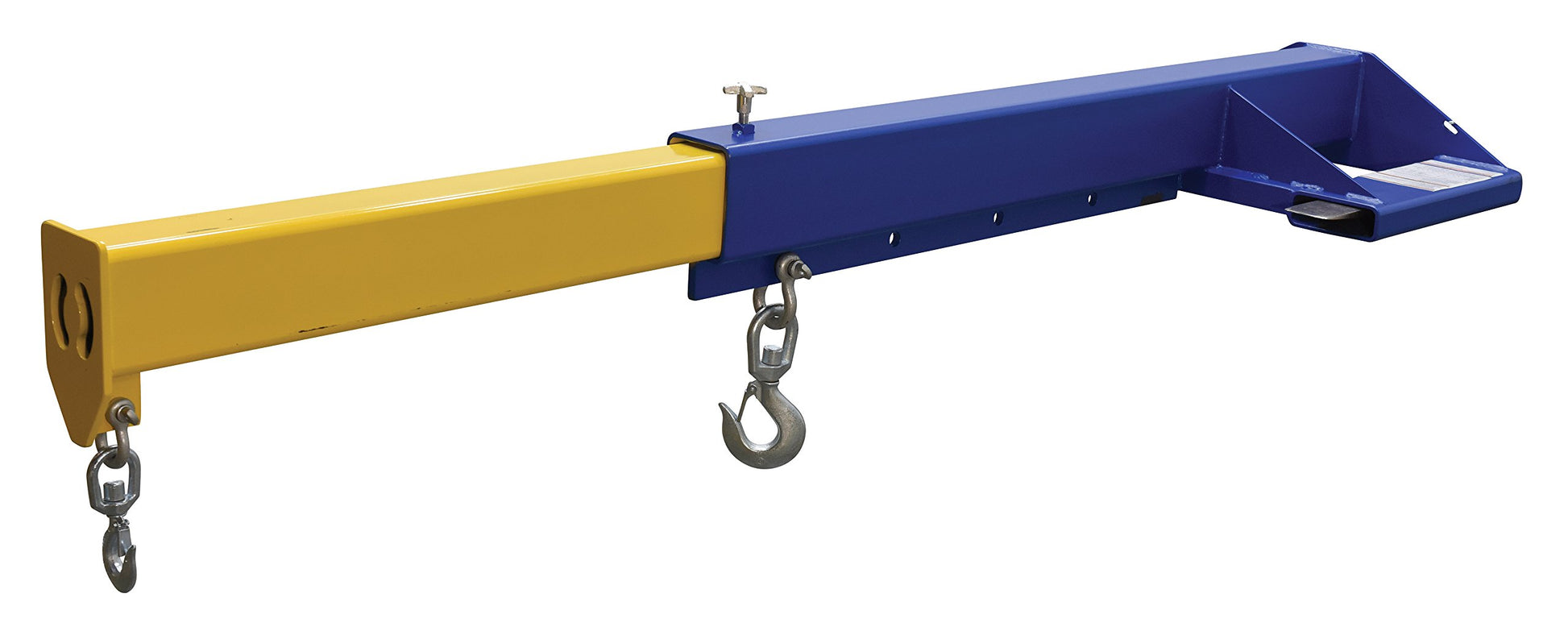

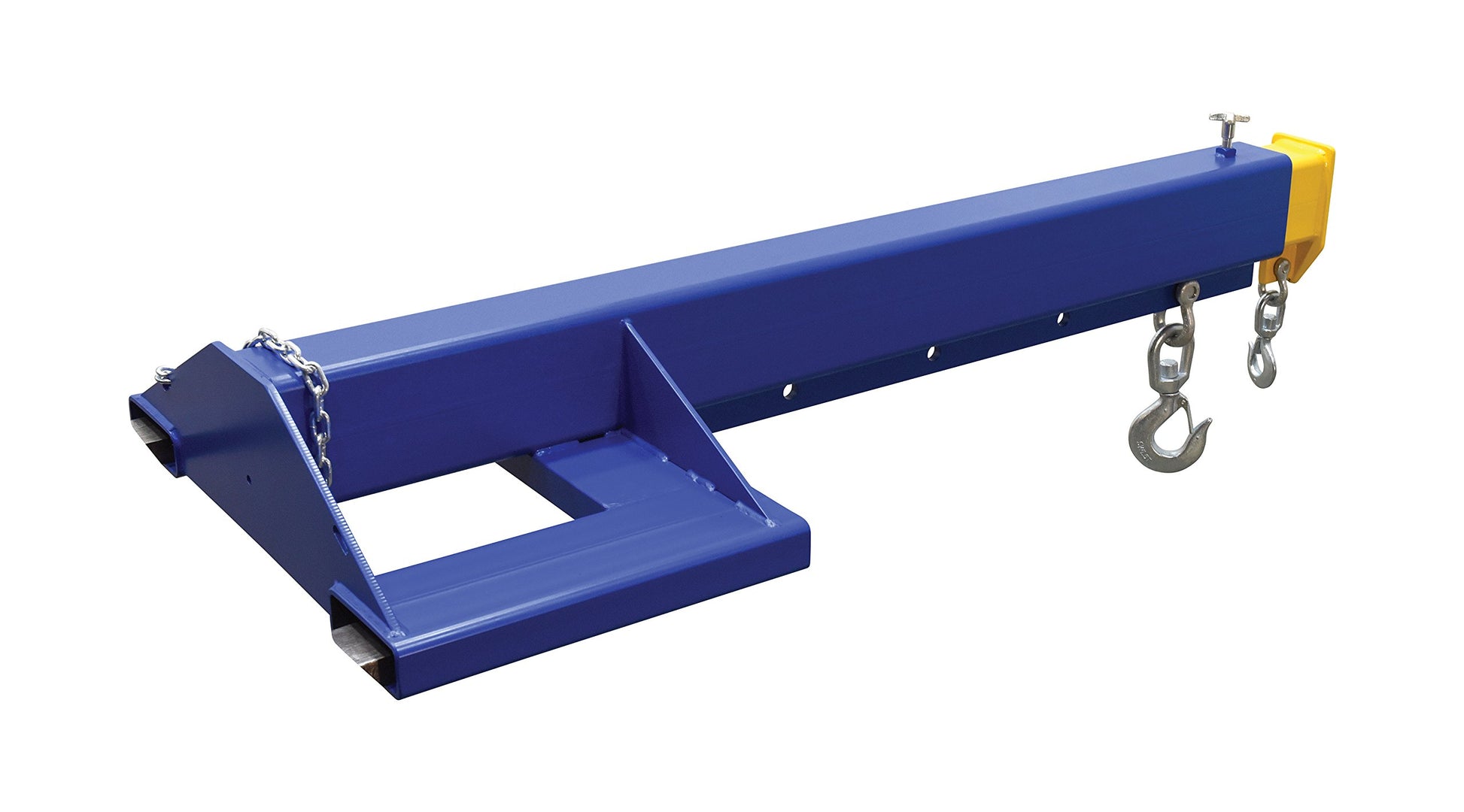

Details: This Vestil LM-EBT-8-24 blue Lift Master telescoping boom has a 151-1/2" extended length and converts a forklift into an overhead lifting crane. It is made of steel for strength and durability, with robotically welded construction that meets American Welding Society (AWS) specifications. It has two fork pockets and a 36" safety chain for attaching and securing the boom to the fork trucks. The fork pockets have 2-1/4 x 7-1/4" (H x W) inside dimensions. The boom has a maximum hook point of 144" and comes with an infinitely adjustable locking screw and two lifting hooks for attaching a load. The back hook is adjustable. This telescoping boom measures 11-1/2 x 32 x 83-1/2 inches (H x W x L) when retracted and has an 8,000-lb. capacity. Overall LxWxH (in.) 32 x 84.875 x 11.5, Overall Extended Length (in.) 149-3/8 (*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; L is length, the horizontal distance from front to back.)
Vestil manufactures materials handling equipment, including hoists and trolleys, jib and gantry cranes, loading dock equipment, and storage solutions. The company, founded in 1968, is headquartered in Angola, IN.

EAN: 0691215027403

Package Dimensions: 86.0 x 36.0 x 15.0 inches
