Vestil LMS-EBT-46-8 Steel Shorty Telescoping Lift Boom 24 in. Fork Pocket Center 8,000 Lb. Capacity Blue

Brand: Vestil

Color: Blue (Base Frame)/Yellow (Extension)

Features:

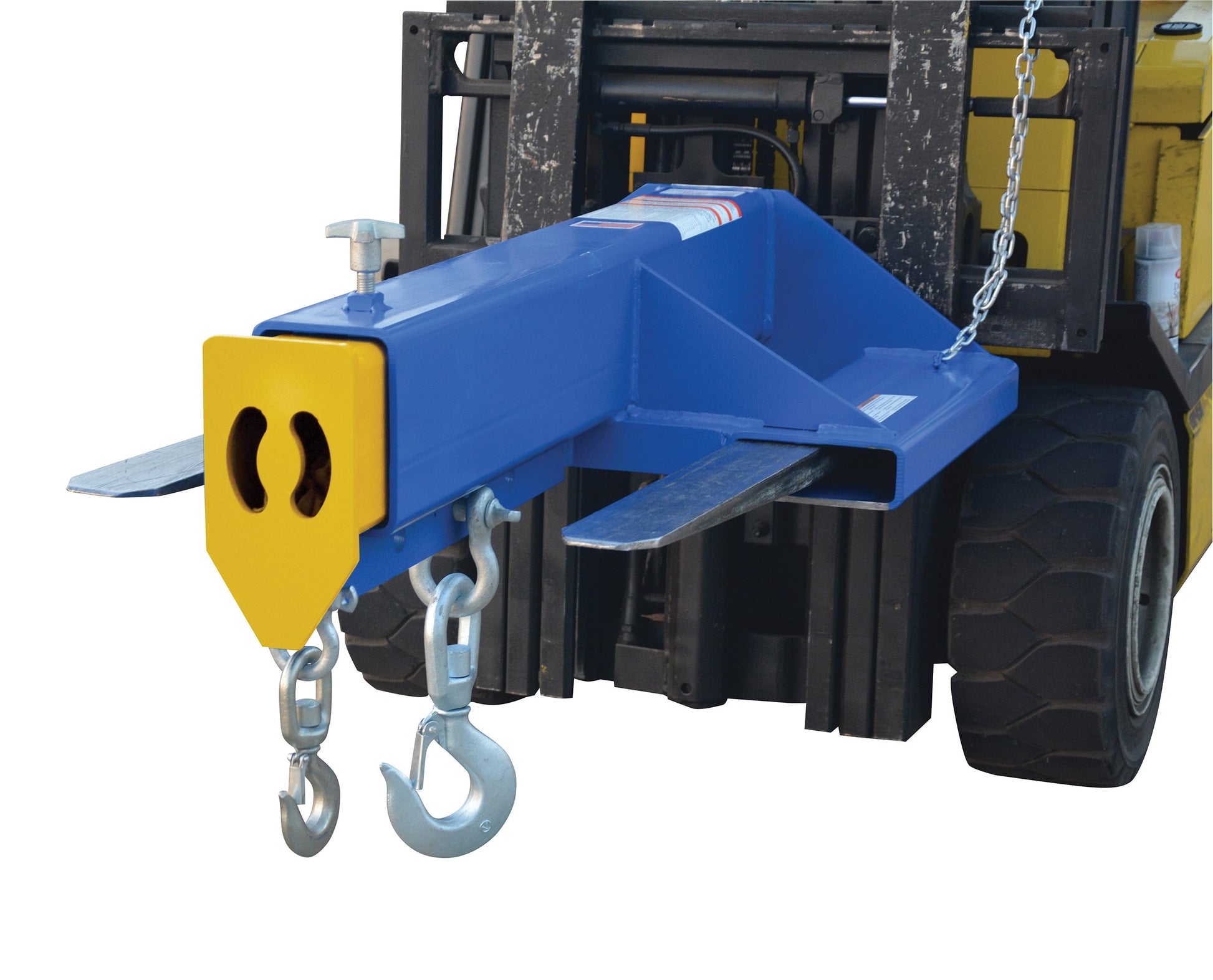

• Unique design converts fork trucks into overhead lifting cranes
• Fork pockets with safety strap attach & secure boom to fork truck
• Robotically welded construction provides precision and durability
• Operations & capacity sticker provide user instructions and safety
• Single-Hook Capacity at 31" (lbs. ) 8000, Single-Hook Capacity at 37" (lbs. ) 7600, Single-Hook Capacity at 43" (lbs. ) 7200, Single-Hook Capacity at 52" (lbs. ) 6610, Single-Hook Capacity at 64" (lbs. ) 5825, Single-Hook Capacity at 76-1/2" (lbs. ) 5010, Single-Hook Capacity at 89" (lbs. ) 4200

model number: LMS-EBT-46-8

Part Number: LMS-EBT-46-8

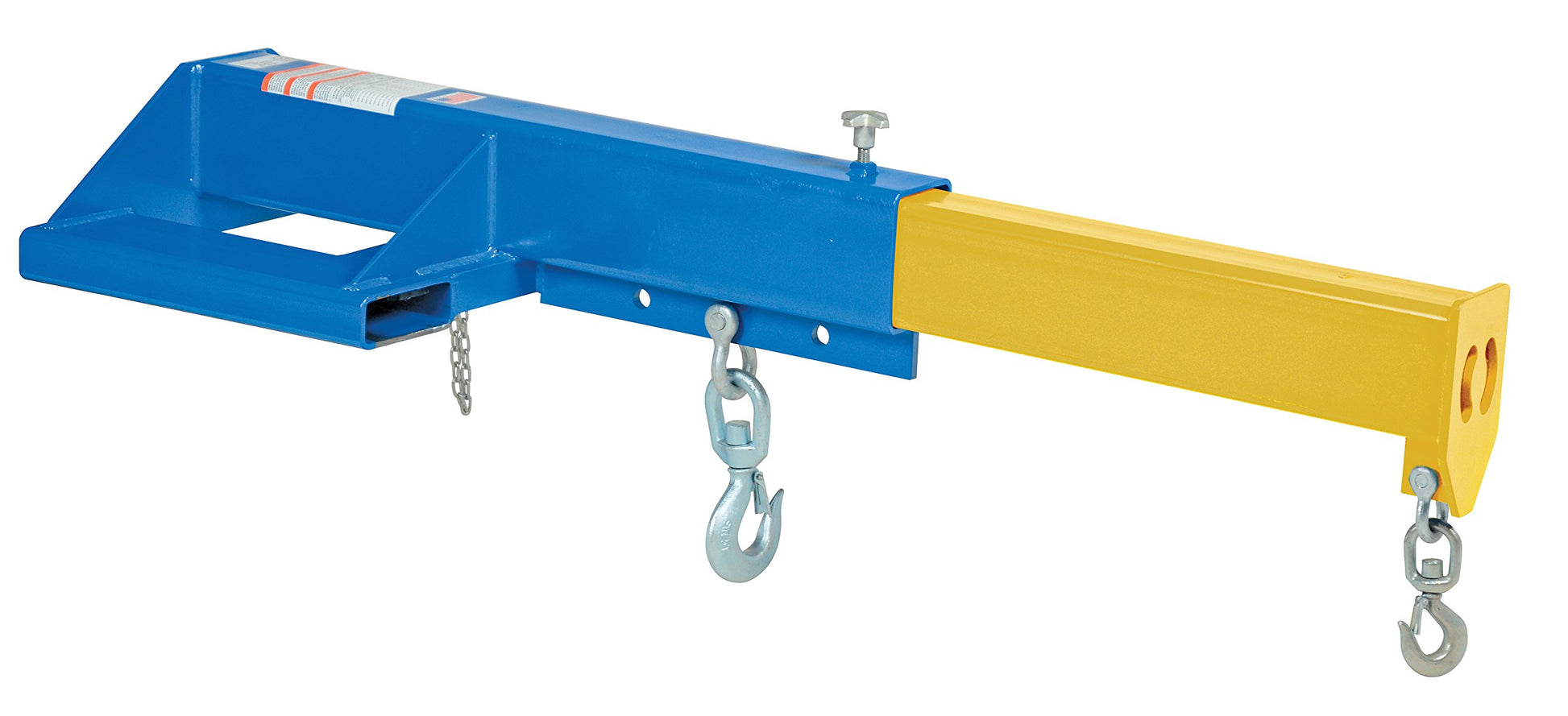

Details: Vestil's LMS-EBT-46-8 Shorty Lift Master Boom length is ideal for tight areas. Includes built-in fork pockets and safety restraint. Overall LxWxH (in.) 32 x 53.875 x 11.5, Extended Length (in.) 90-7/8, Minimum Hook Point (in.) 31, Maximum Hook Point (in.) 88-7/8, Single-Hook Capacity at 88-7/8" (lbs.) 4000.

EAN: 0691215057769

Package Dimensions: 56.0 x 32.0 x 15.0 inches
