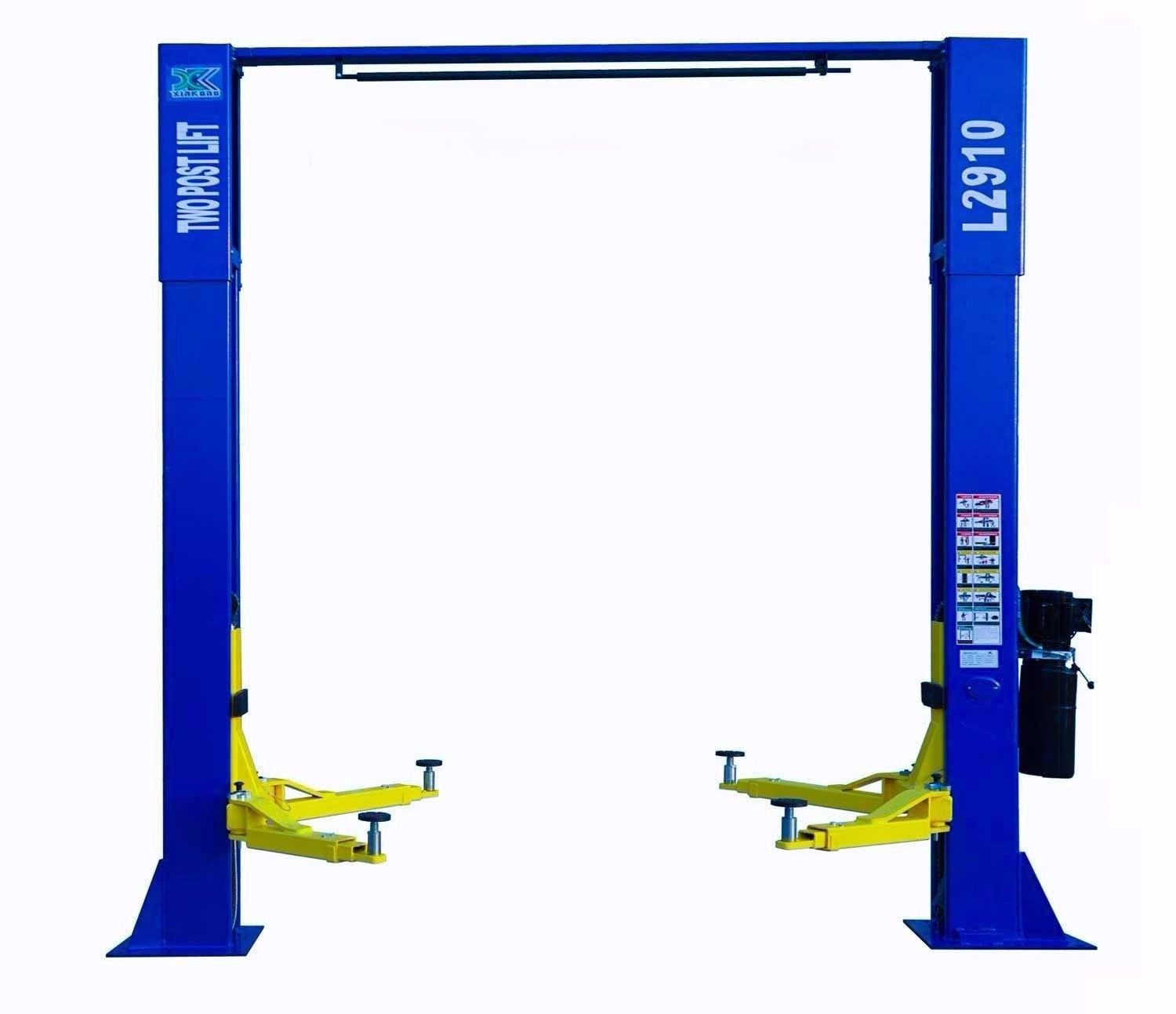

XK-9,000 LB Over Head L 2910 220V 2 Post Lift Car Auto Truck Hoist with 12 Month Parts Replacement

Brand: XK

Color: L2910-220V Blue

Features:

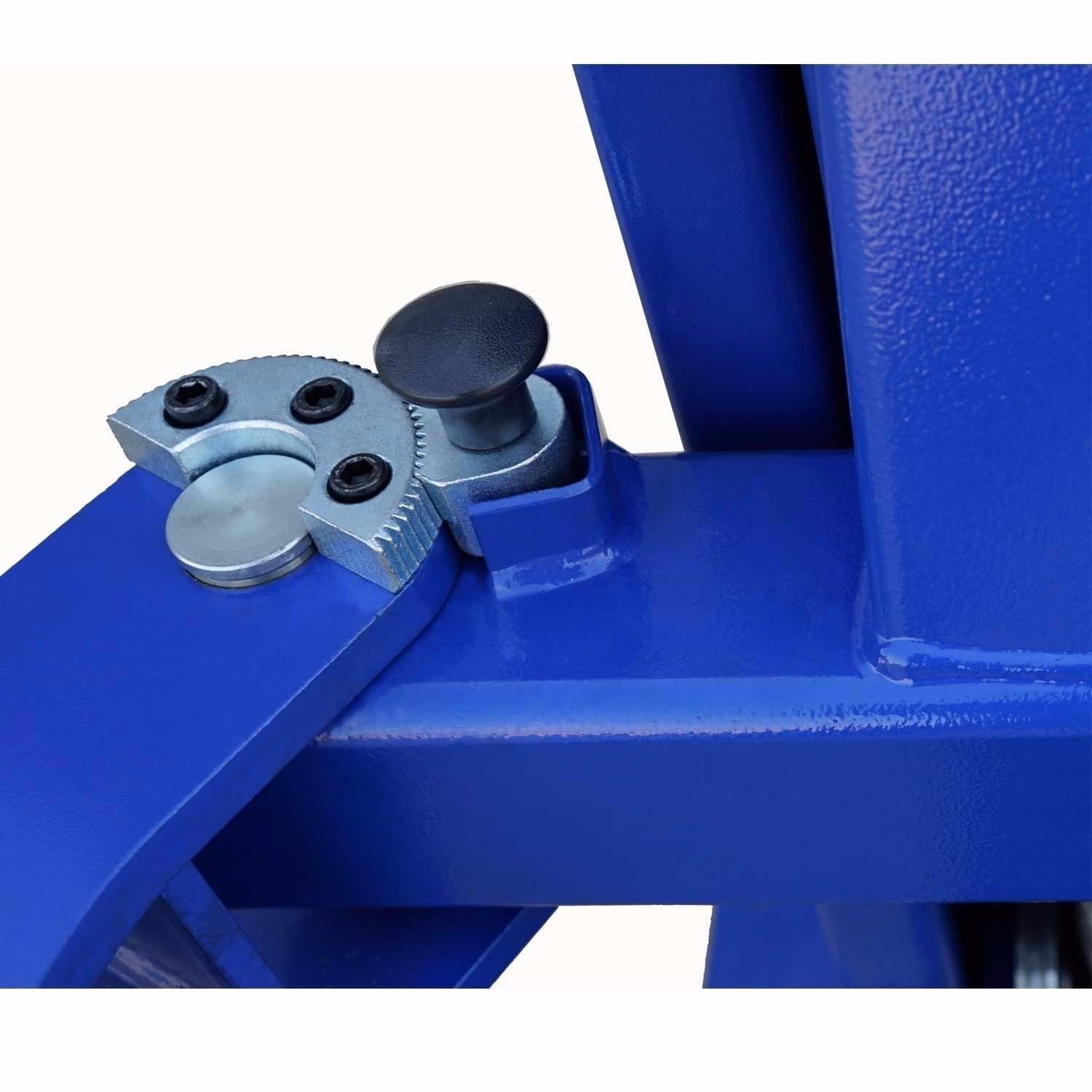

• Auto car lift L2910 features 220 V 9,000 lbs capacity 220 V 50HZ 1PH 3HP motor double point safety lock release automatic arm lock restraints relief valve built in power pump to prevent overloading

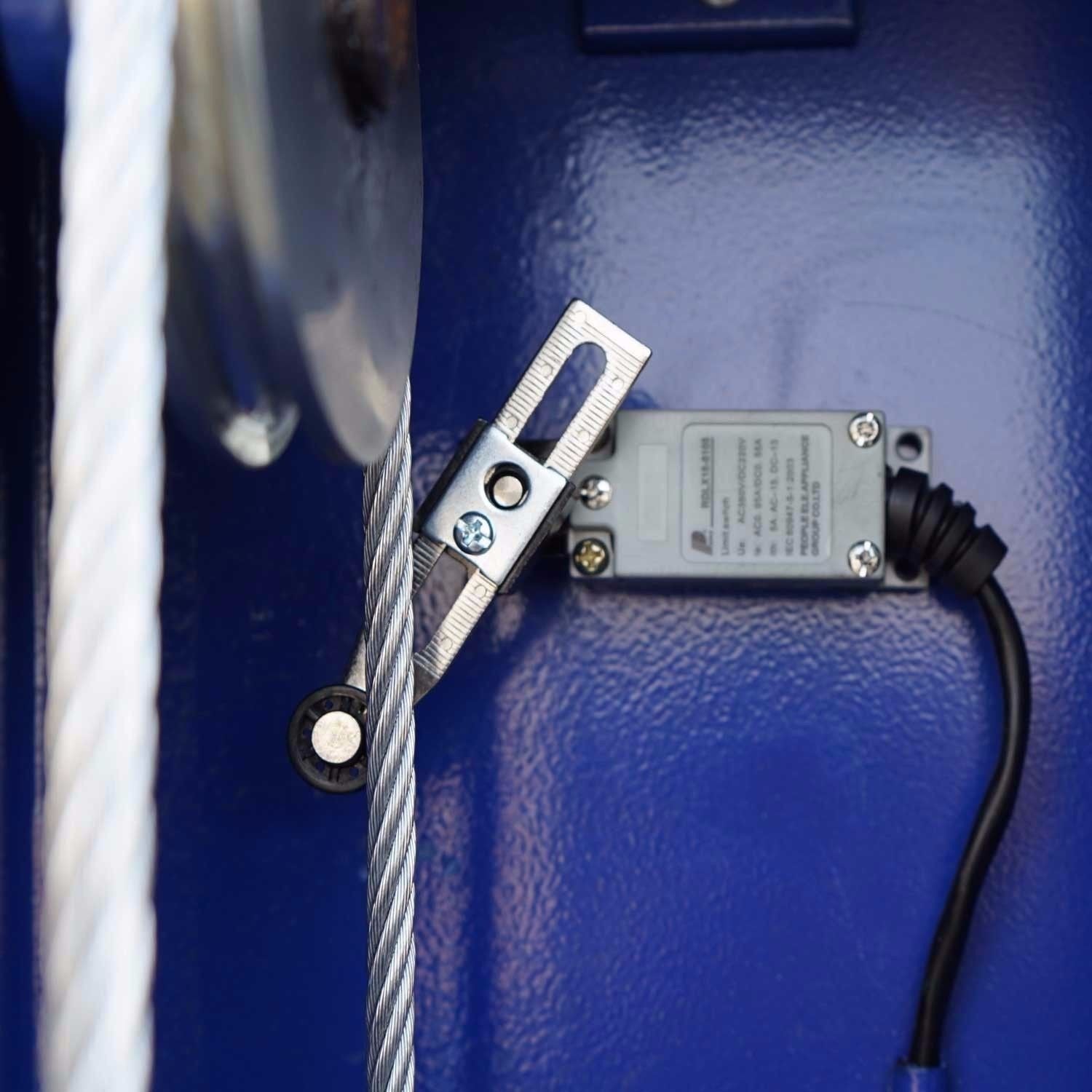

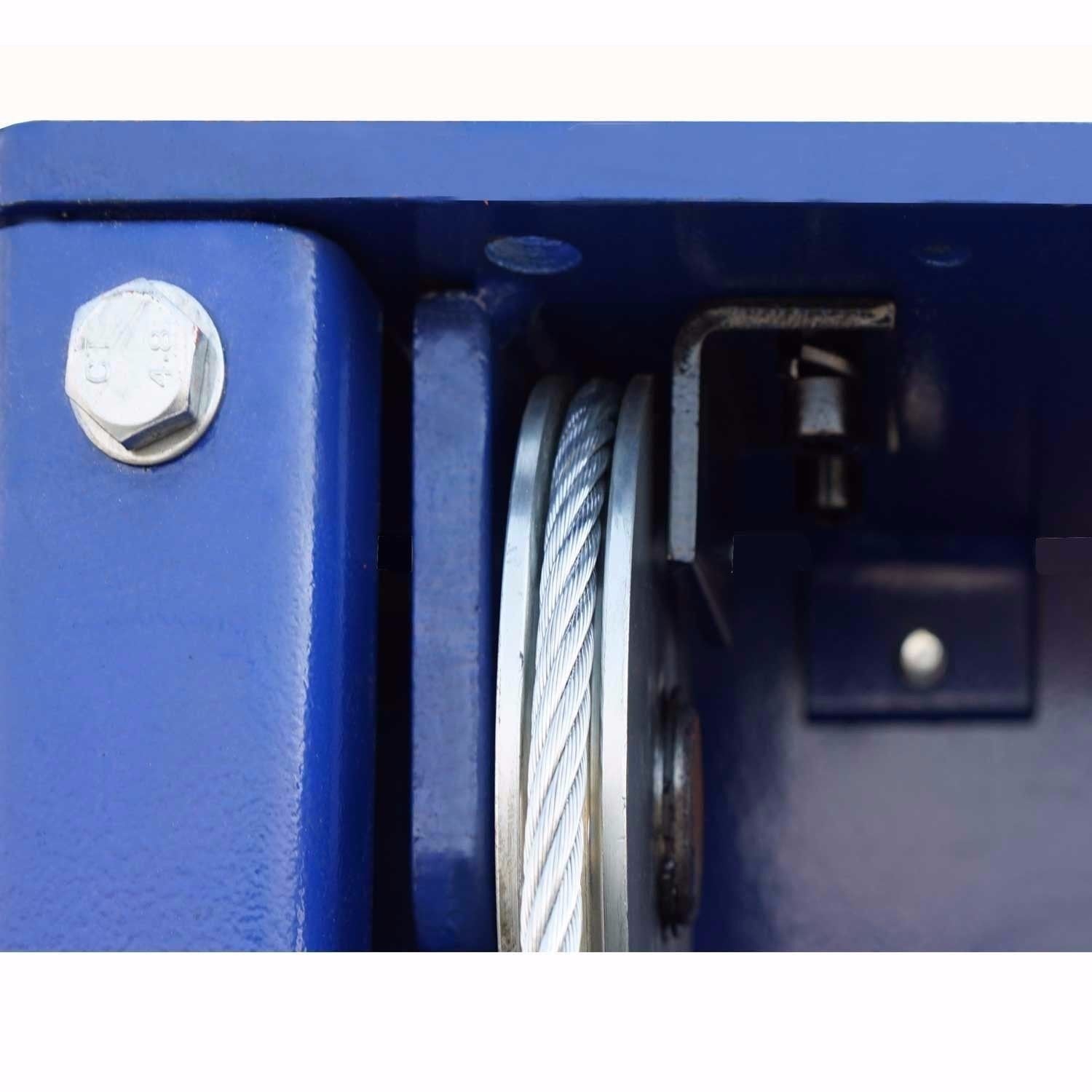

• Door guards protection rubber up limit switch to protect cylinders working stroke used in safe length scope heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life stiffened base plate 15/32" thickness ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down anchor bolts mounting hardware included

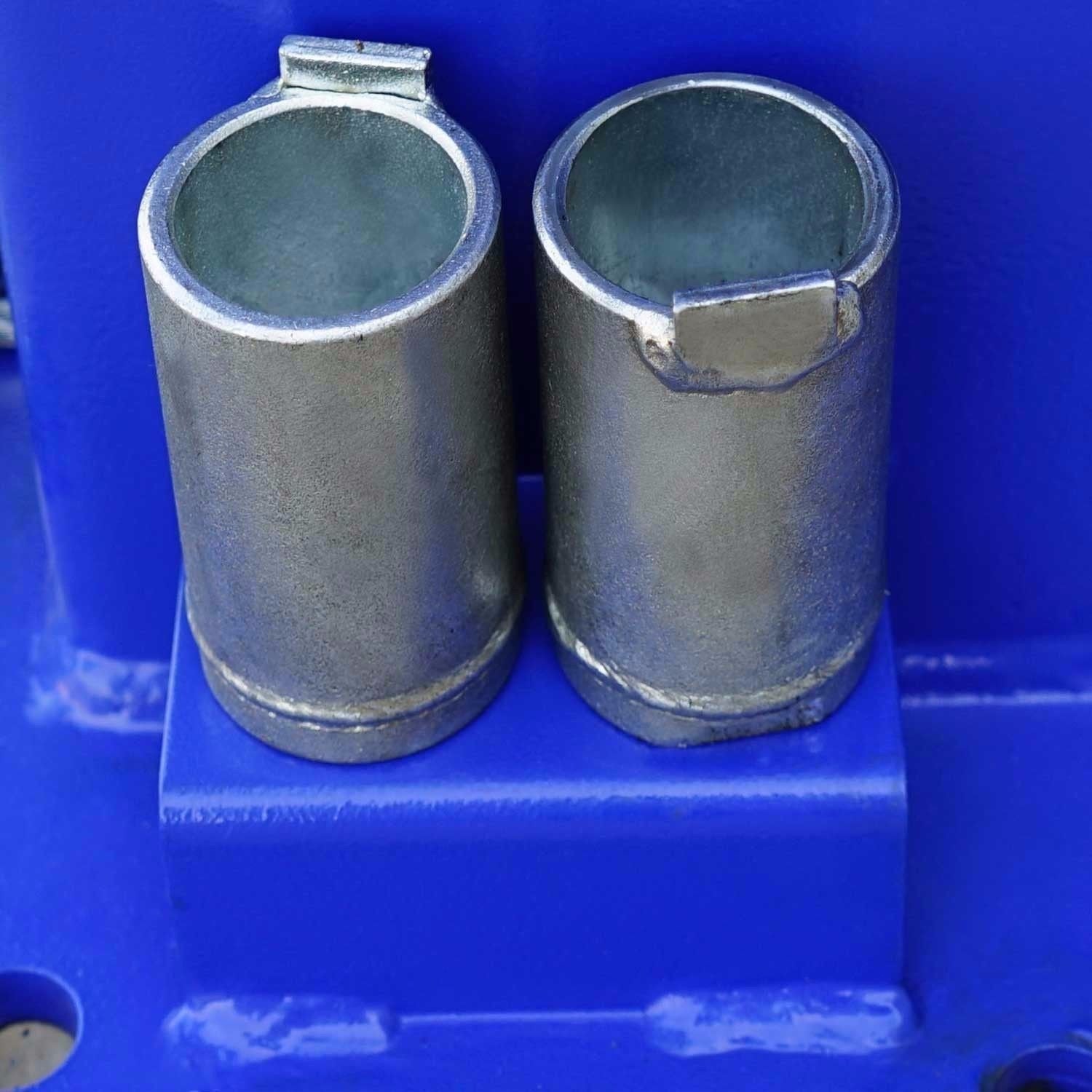

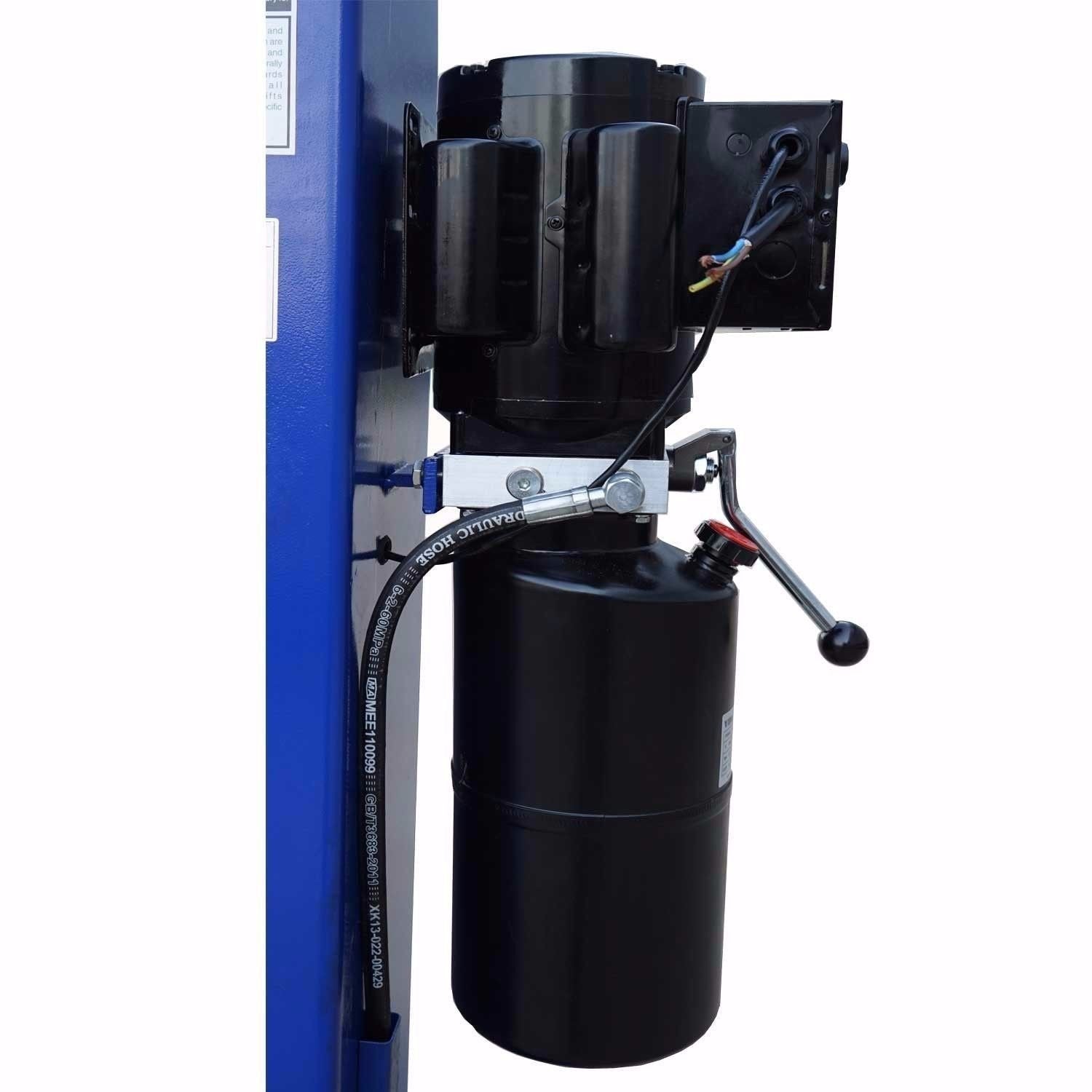

• Control system lifting operation by pressing "up" button on motor manual lowering operation by pressing lever relief valve built in power pump to prevent overloading1sets truck adapters included lifting capacity 9,000 lbs

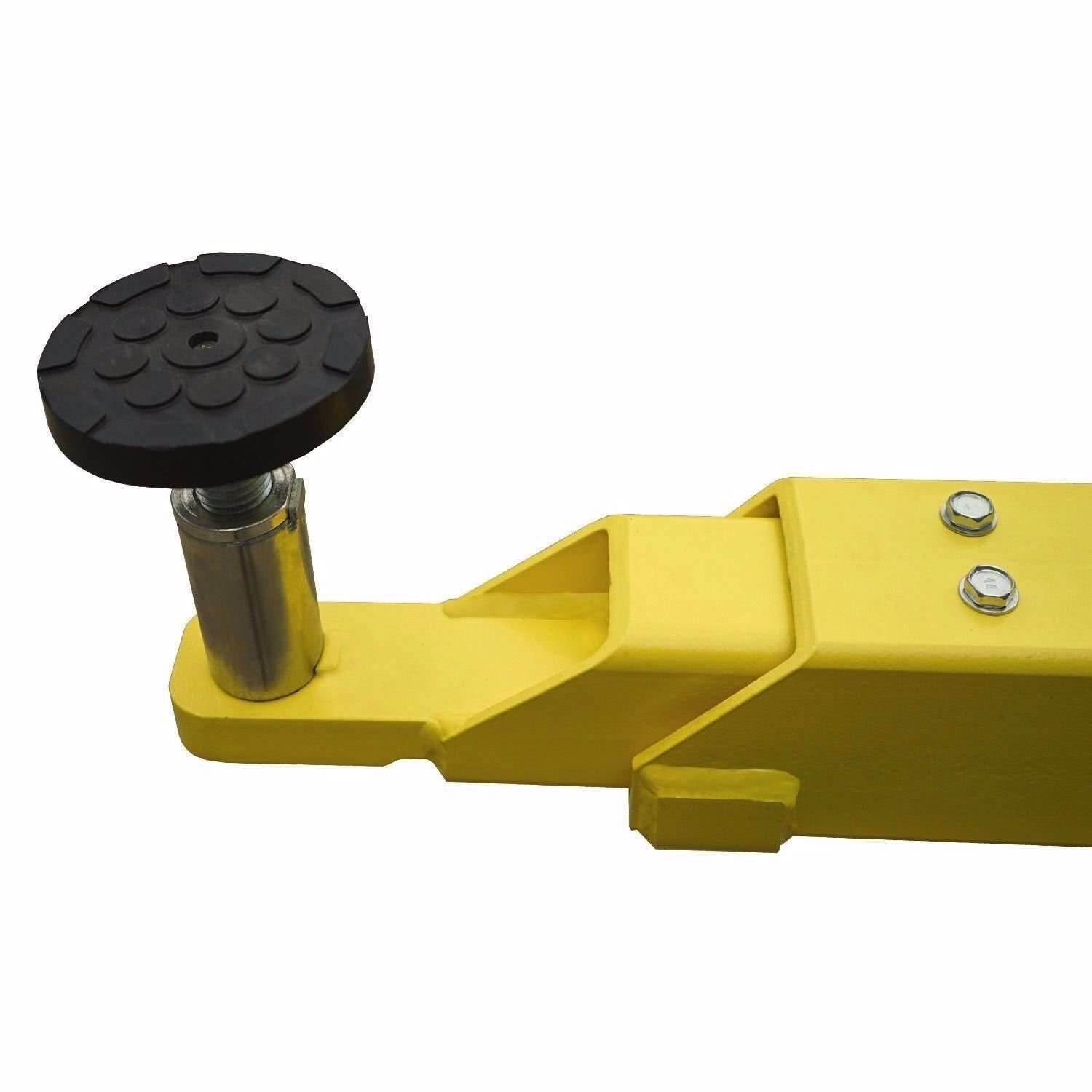

• The overall Height 143-5/32" the overall width 133-1/4" column width 10.59" base width 18.89"column thickness of steel 11/64" carriage thickness of steel 3/16" arms hickness of steel 15/64" front arm 29.92"~ 47.24" rear Arm 29.92"~ 47.24" min pad height: 3-7/8" lift height max: 70.86" drive-thru width clearance: 100" equipment required for unloading
• Customer must have forklift or tractor to unload the freight. package weights total 1400 LBS. If customer does not have either tool to unload, we can provide terminal pckup service
• Relief valve built in power pump to prevent overloading recommend at least 30A-40A breaker Fuel type AW30
• Minimum Circuit Breaker Current: 30A, Hydraulic oil grade: AW32; AW46

model number: L2910

Part Number: 20160120

Details: Auto Car Lift L2910 2 post lift car auto truck hoist 12 months parts replacement on Amazon.

EAN: 0723284415499

Package Dimensions: 110.0 x 36.0 x 30.0 inches
