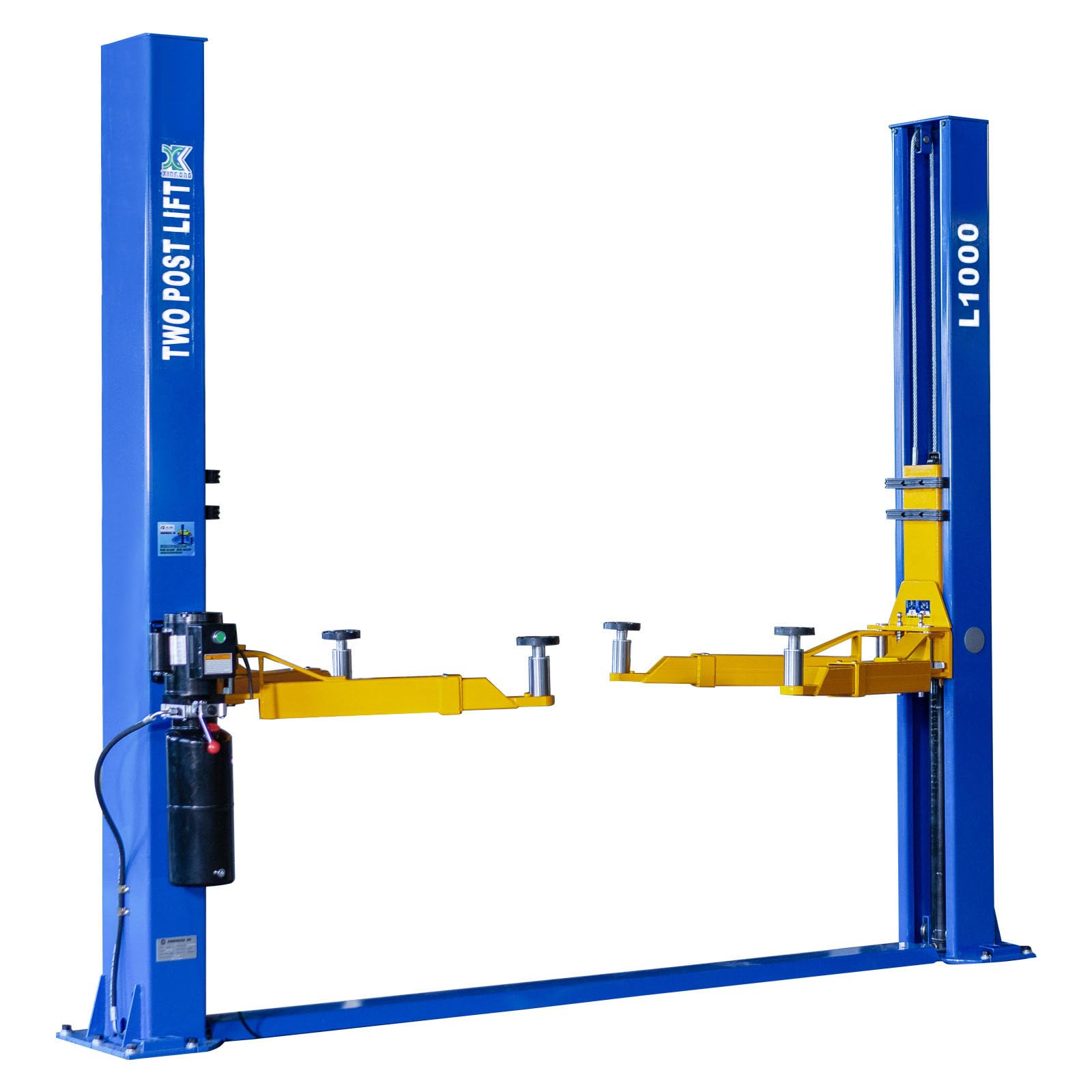

XK-L1000 110V 10,000 LB 2 Post Lift Car Auto Truck Hoist 110V with 12 Month Parts Replacement

Brand: XK

Color: L1000-110V

Features:

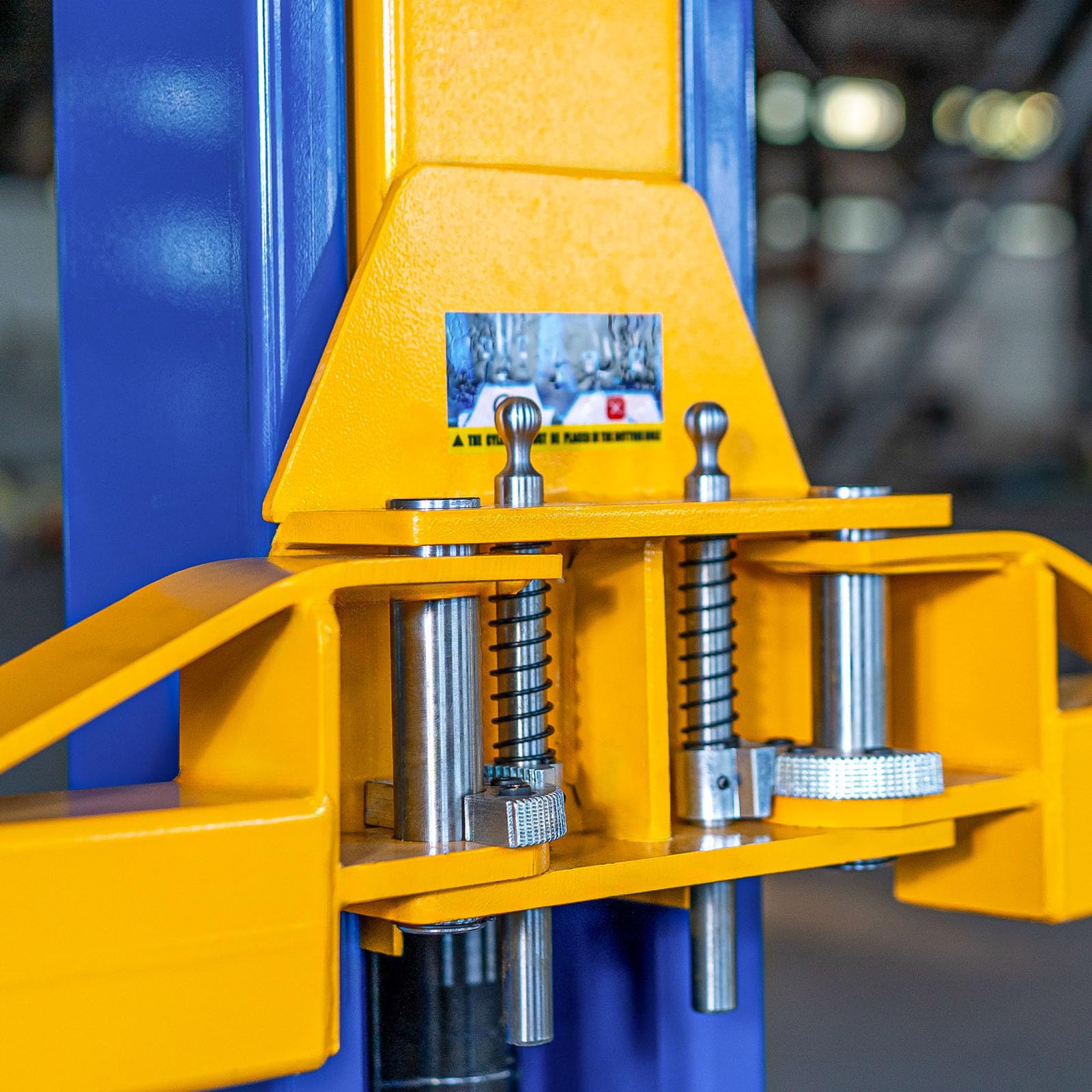

• Auto car lift L1000 features 110V 50HZ 1PH 3HP motor safety mechanism double point safety lock release automatic arm lock restraints relief valve built in power pump to prevent overloading recommend at least 30A breaker Hydraulic Oil: 3-5 gallons AW32/AW46

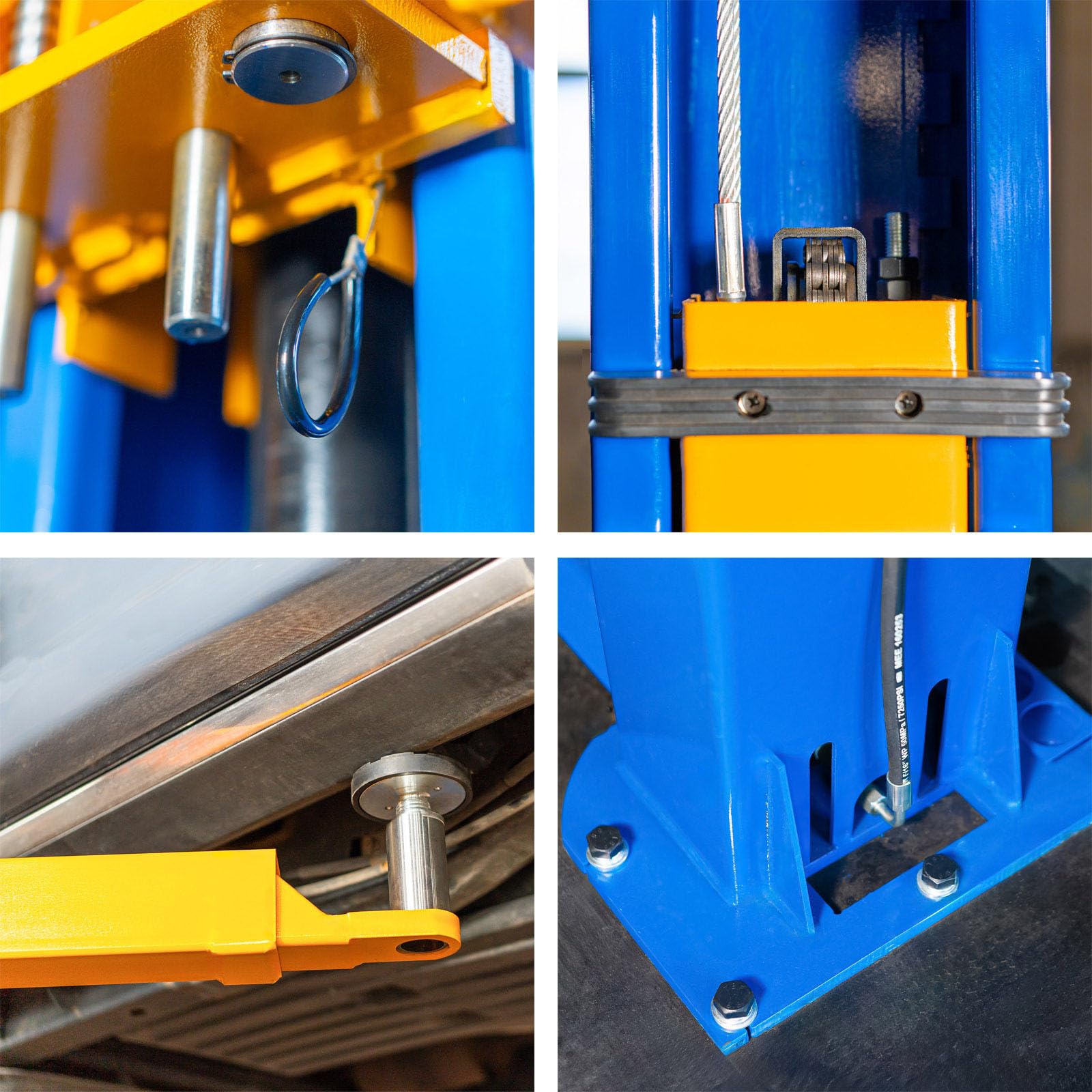

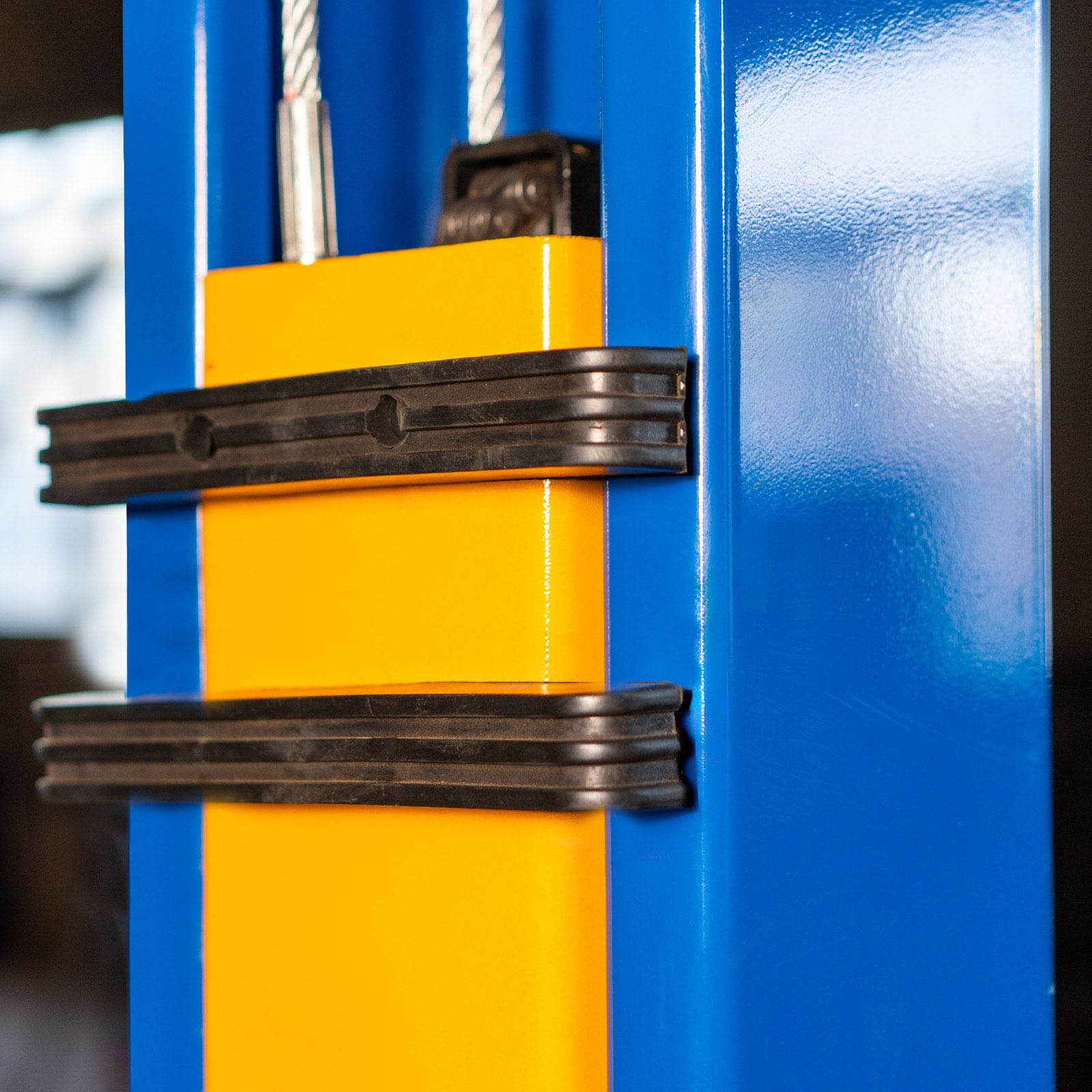

• Door guards protection rubber up-limit switch to protect cylinders working stroke used in safe length scope heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life

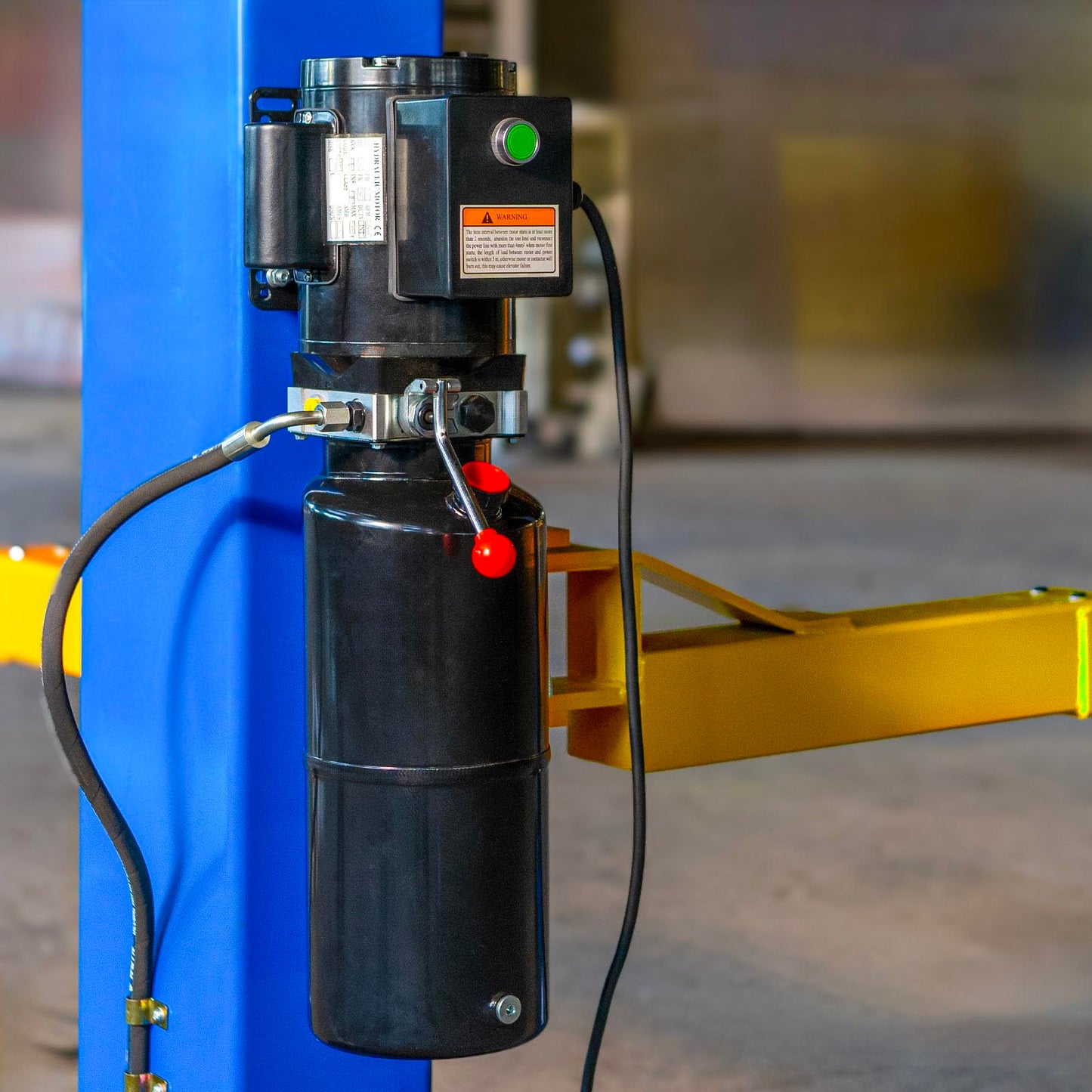

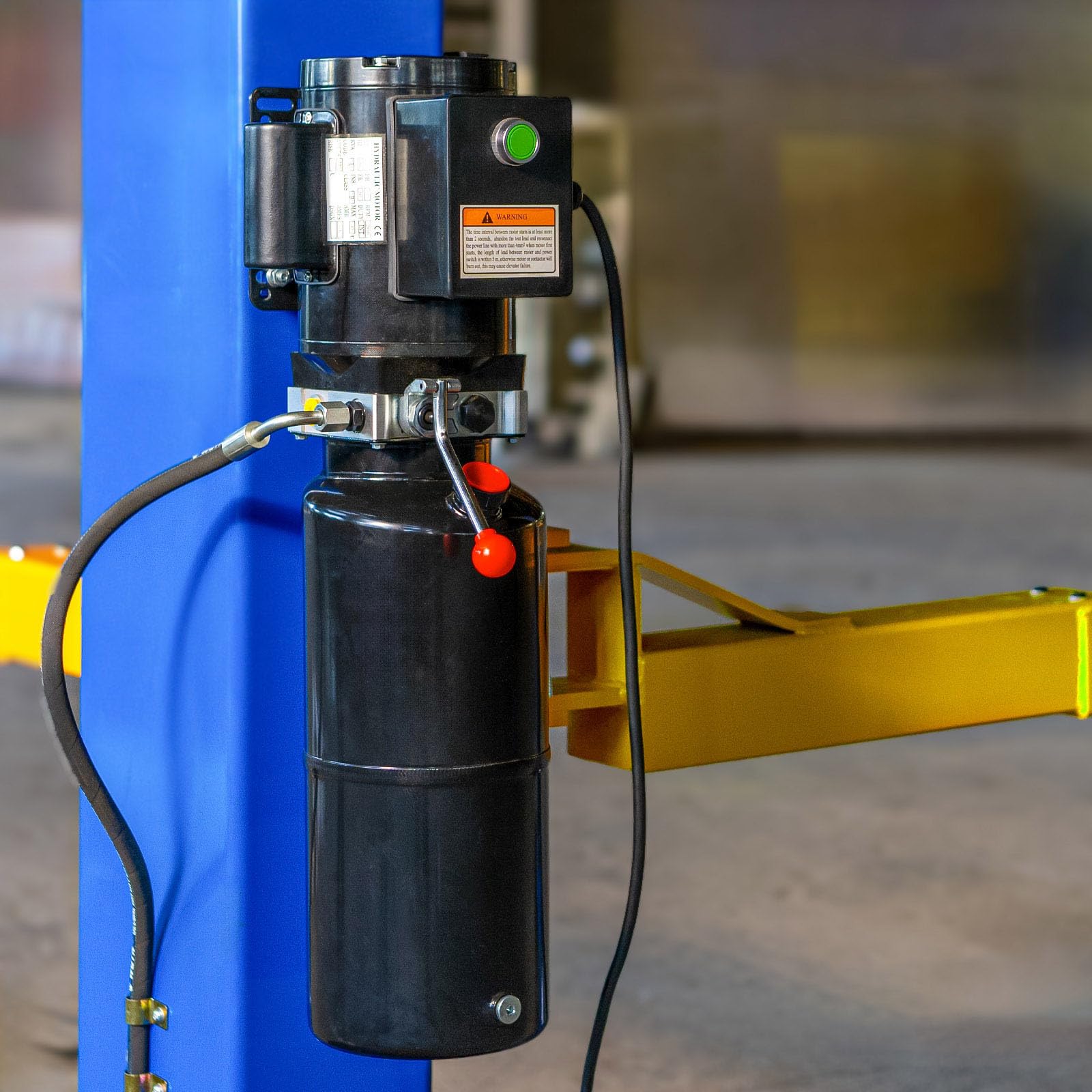

• Stiffened base plate 15/32" thickness ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down anchor bolts mounting hardware included control System lifting operation by pressing "UP" button on motor

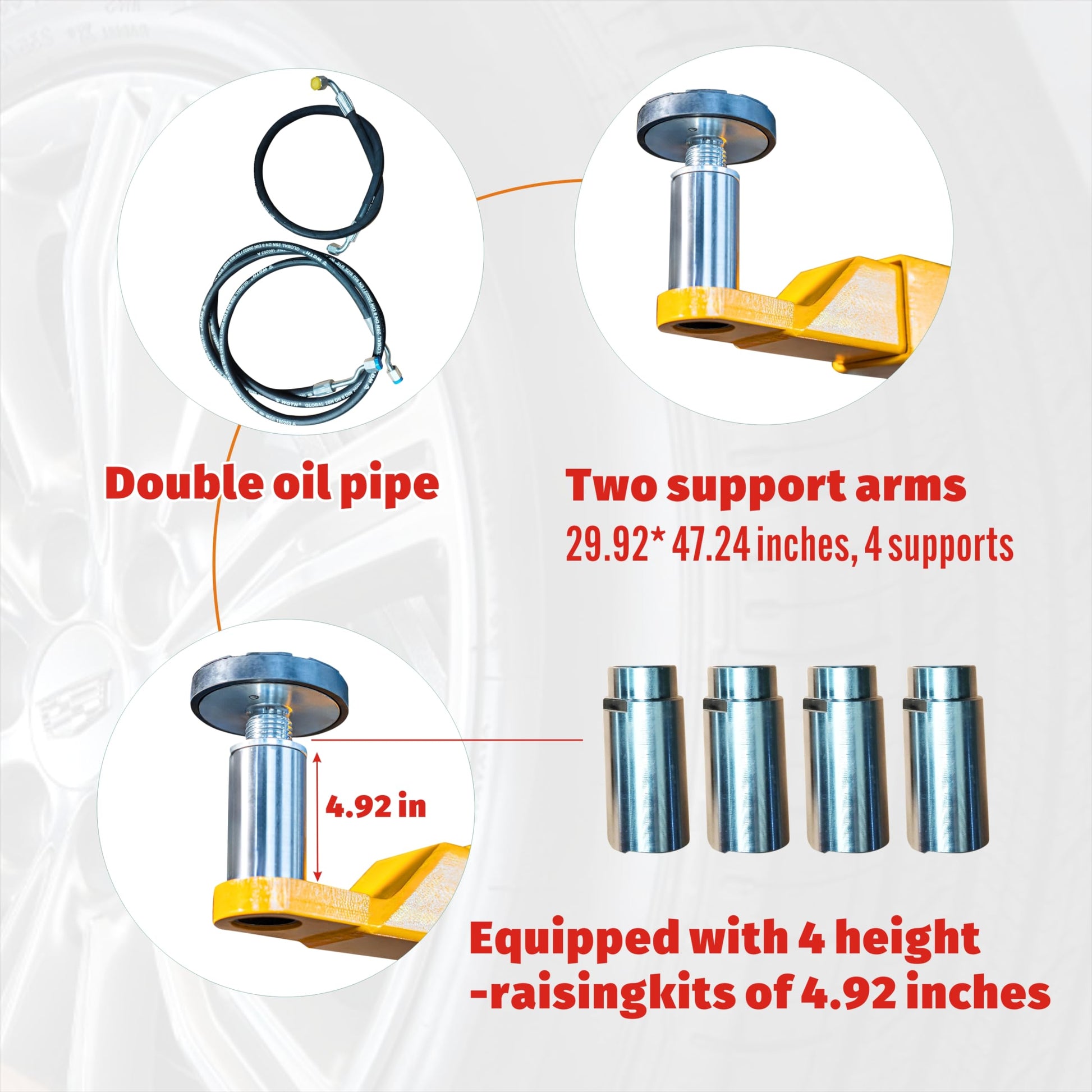

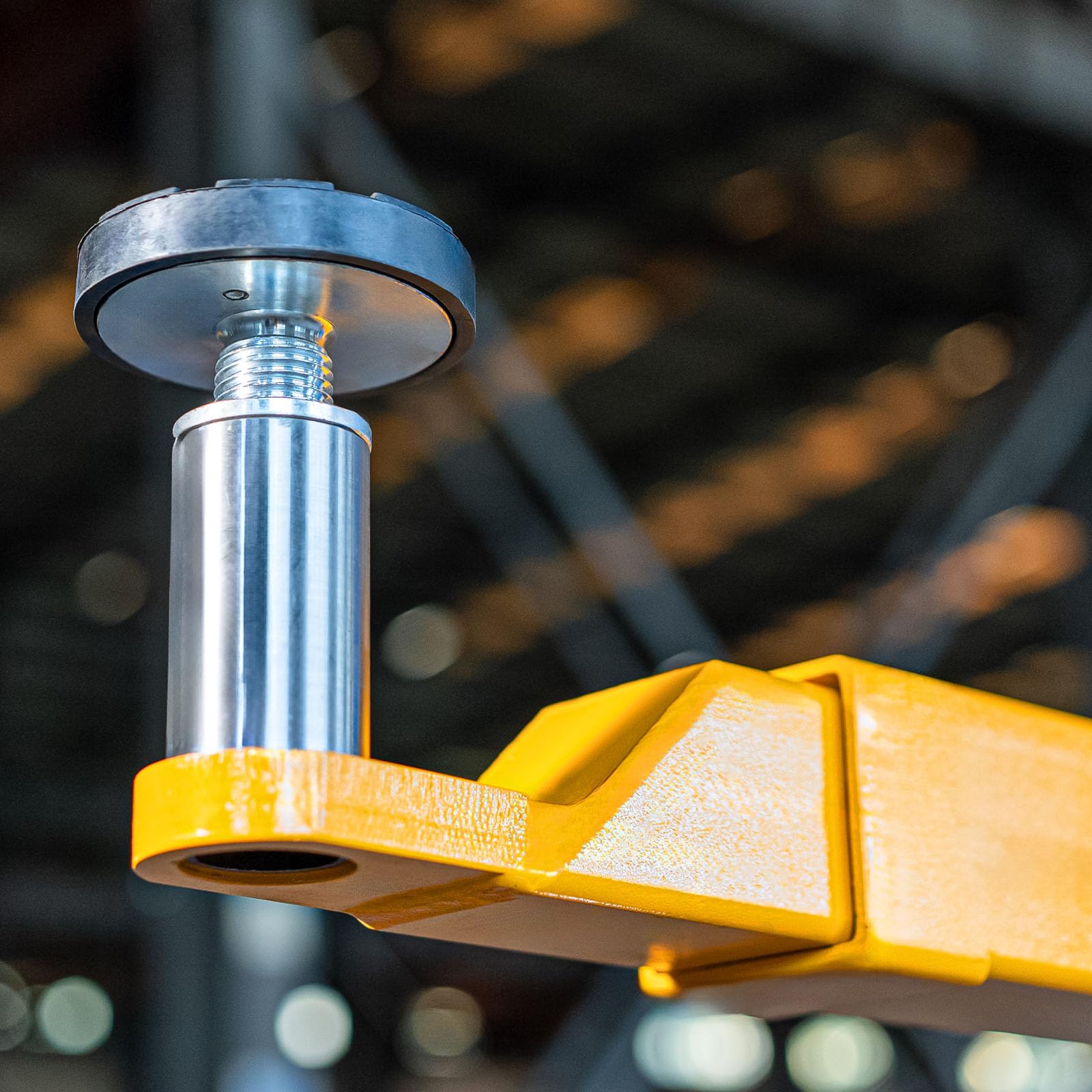

• Manual lowering operation by pressing lever relief valve built in power pump to prevent overloading 1 sets adjustable pads included lifting capacity 10,000 lbs; column thickness of steel 11/64" carriage thickness of steel 3/16" arms thickness of steel 15/64" front Arm 26-1/4"～40-1/8" rear Arm 33-1/4"～52-3/8"
• Equipment required for unloading forklift or fork on tractor is required from customer for unloading the product,nearest Terminal Pickup can be requested if customer does not have the ability to unload
• Minimum Circuit Breaker Current: 40A, Hydraulic oil grade: AW32; AW46

Part Number: XKUSAINC560635

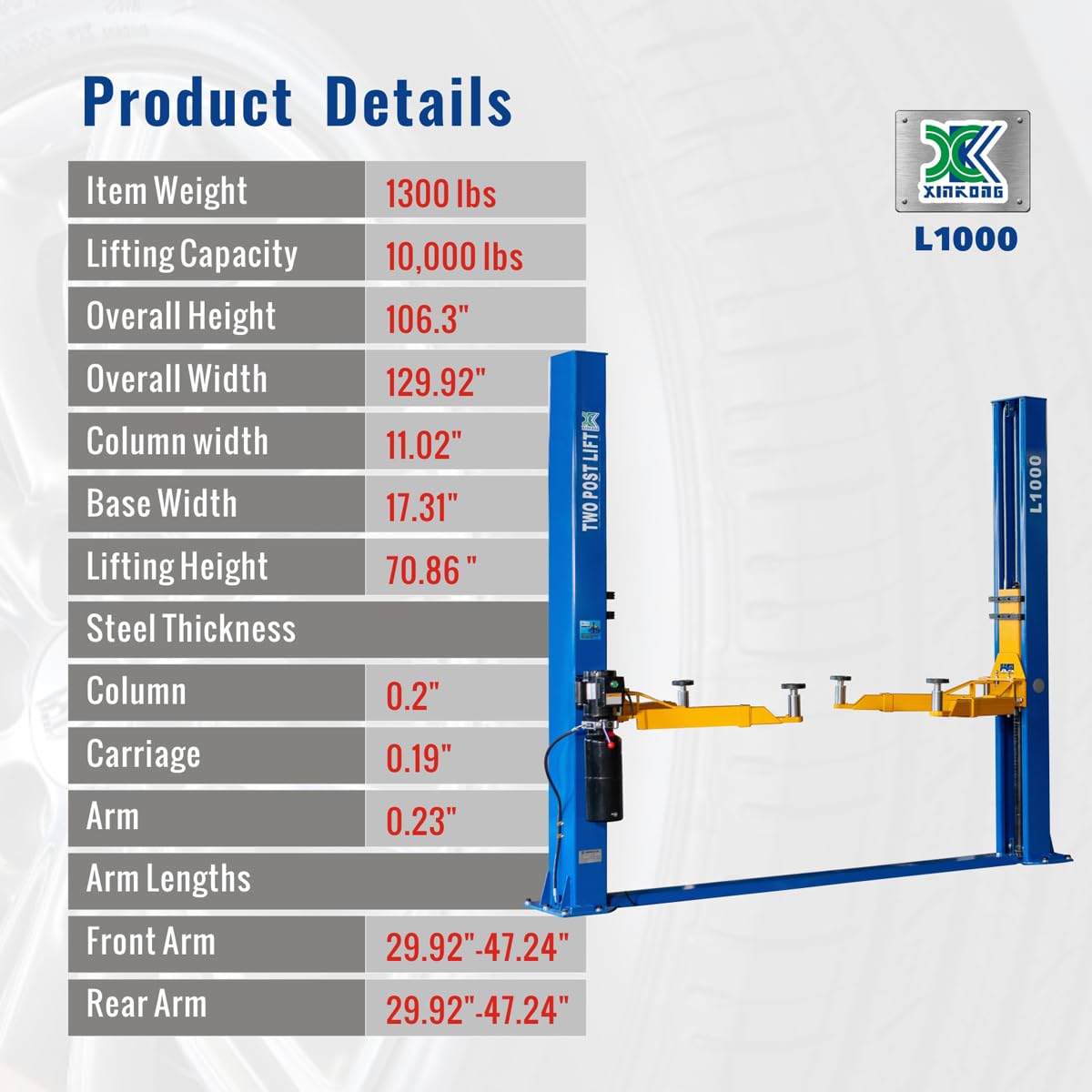

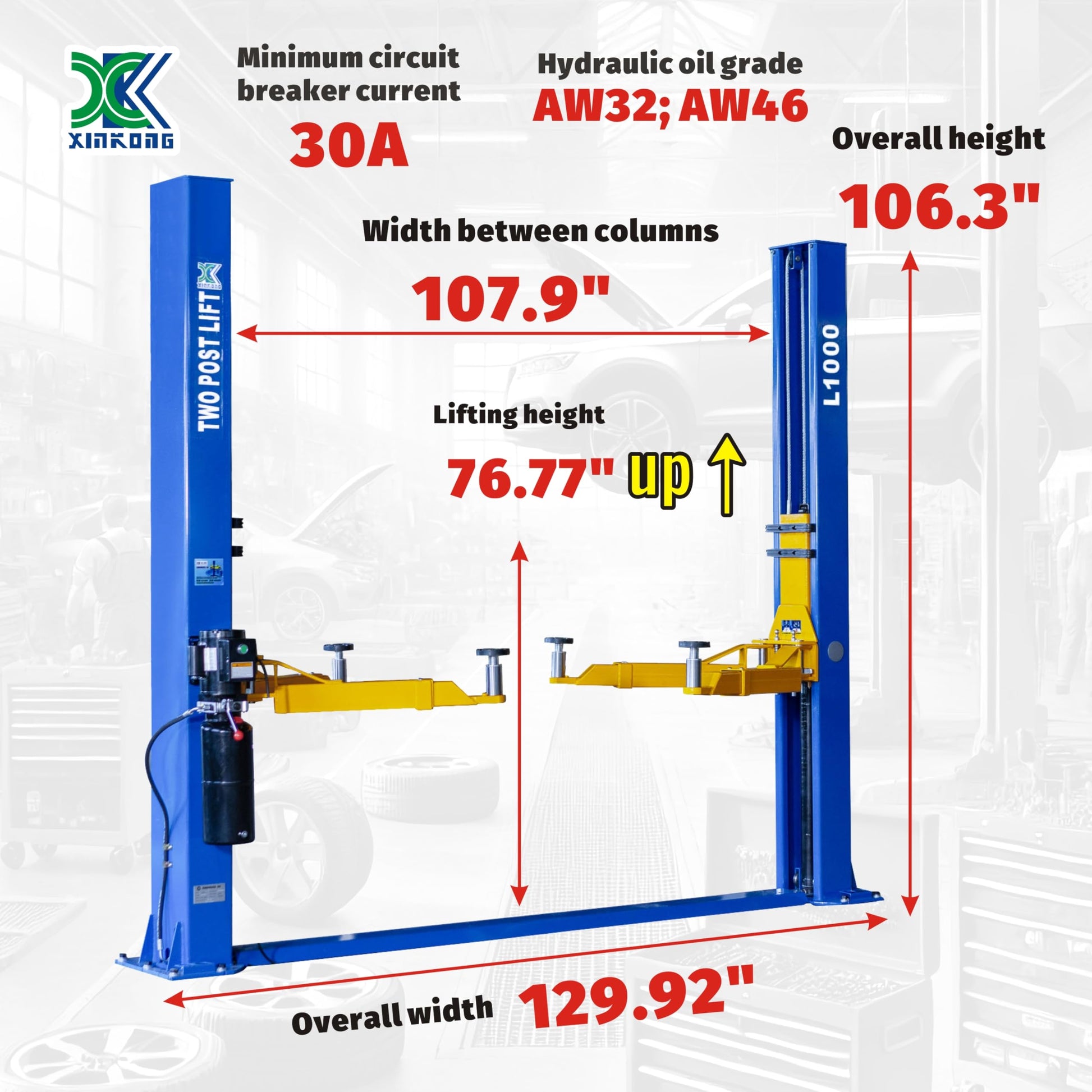

Details: Product Parameter Model: XK-L1000 Lifting capacity: 10000 Pounds Lifting height: 70.9 inches,1800mm Lifting time: 45-55s Overall height: 106.3 inches,2700mm Overall width: 129.92 inches,3300mm Drive through width: 107.9 inches,2740mm Width between columns: 122 inches,3100mm Net weight: 1068 Pounds; 485 Kgs

EAN: 0723284421667
