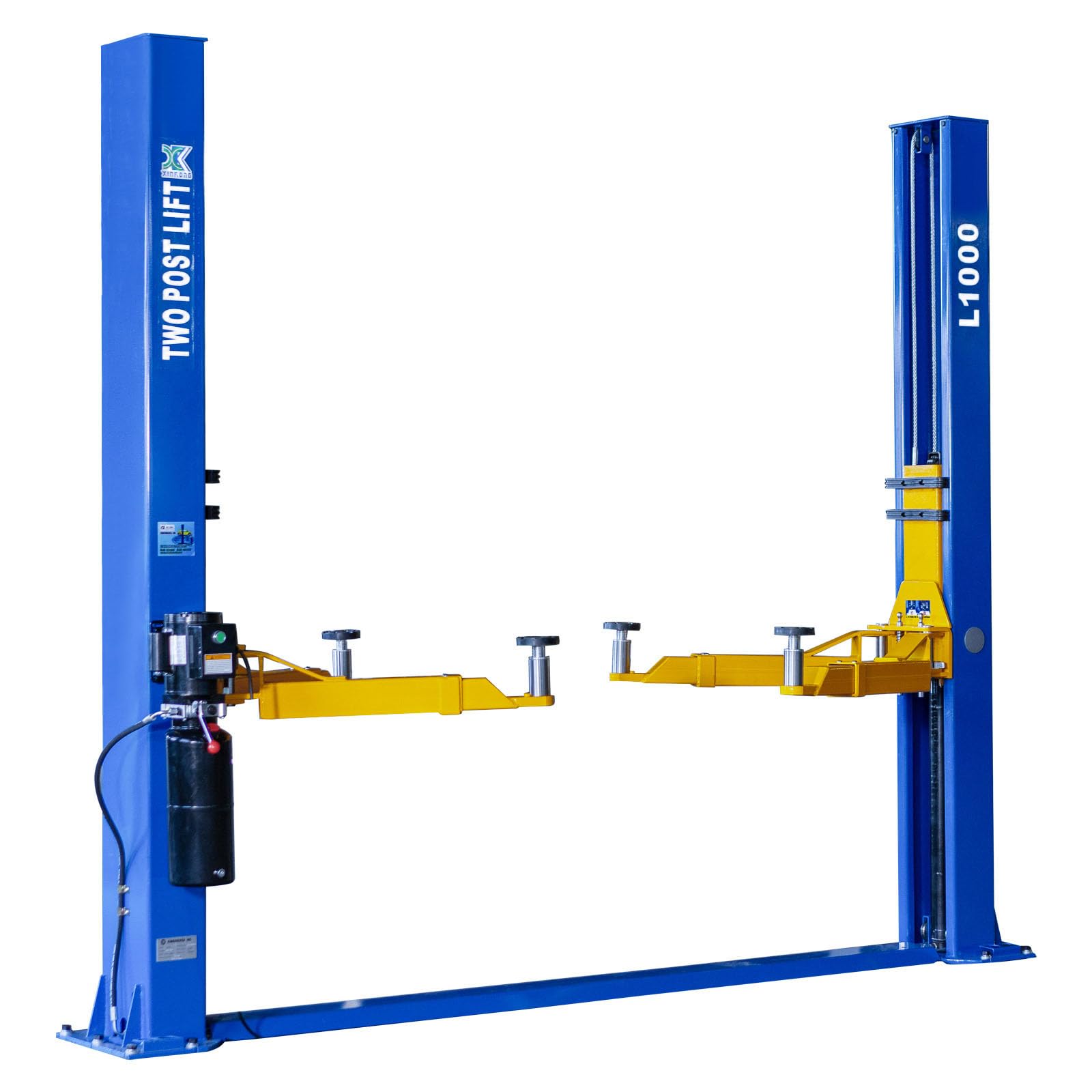

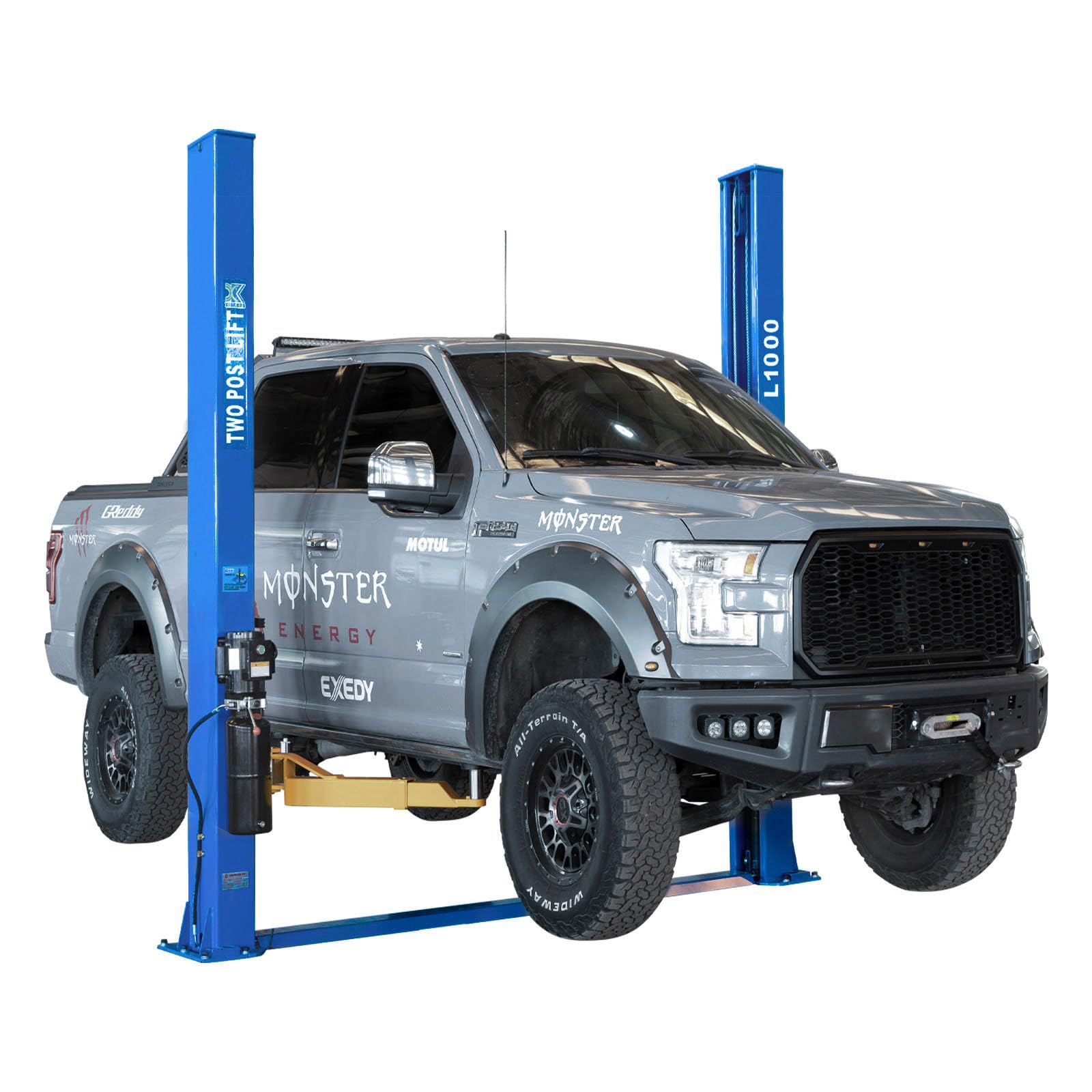

XK-L1000 Auto Truck Hoist 110V Vehicle Lift 10,000 Lbs 2 Post Car Lift 12 Months Parts Replacement

Brand: XK

Color: XK L1000-110V

Features:

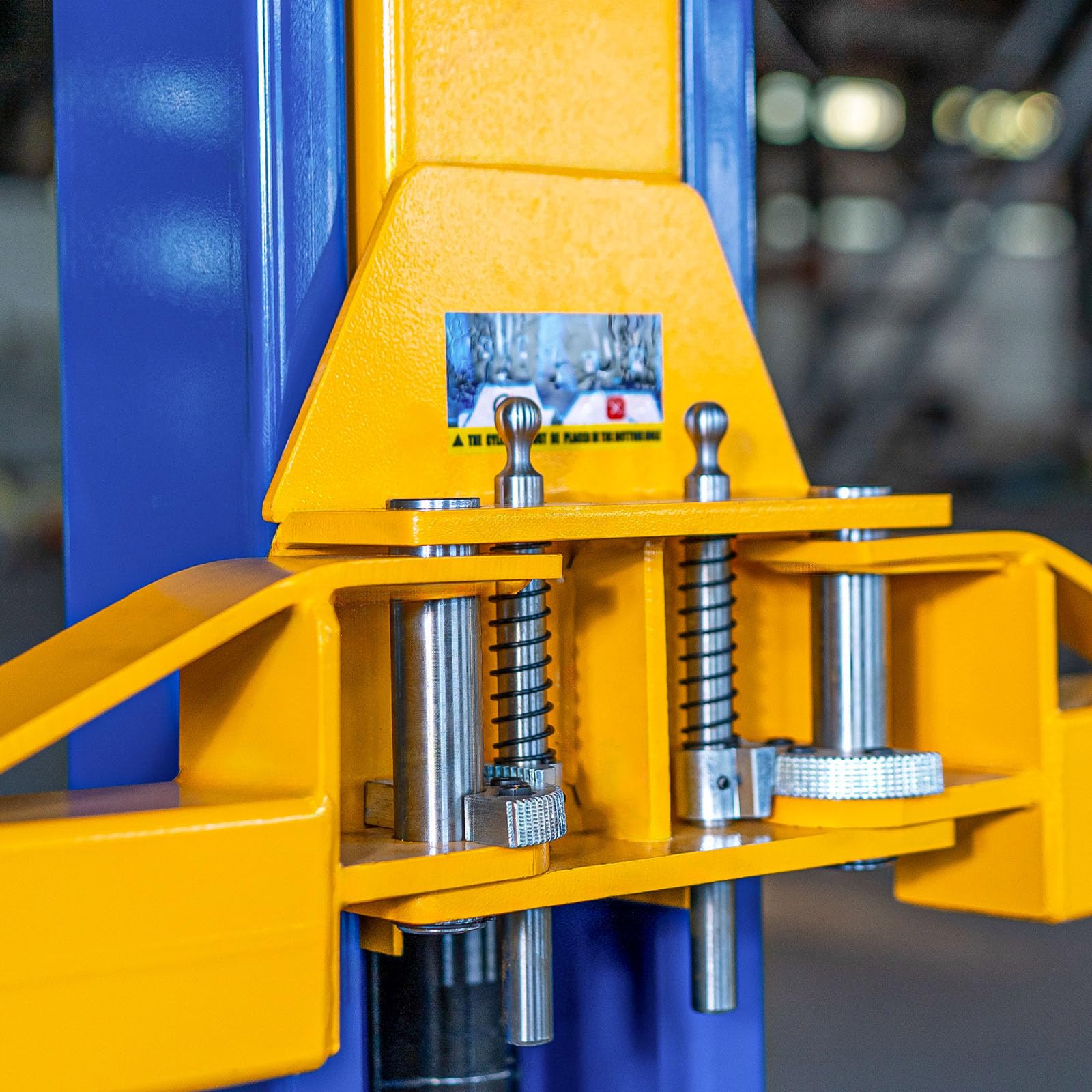

• Safety mechanism: double point safety lock release automatic arm lock restraints relief valve built in power pump to prevent overloading door guards protection rubber up-limit switch to protect cylinders working stroke used in safe length scope

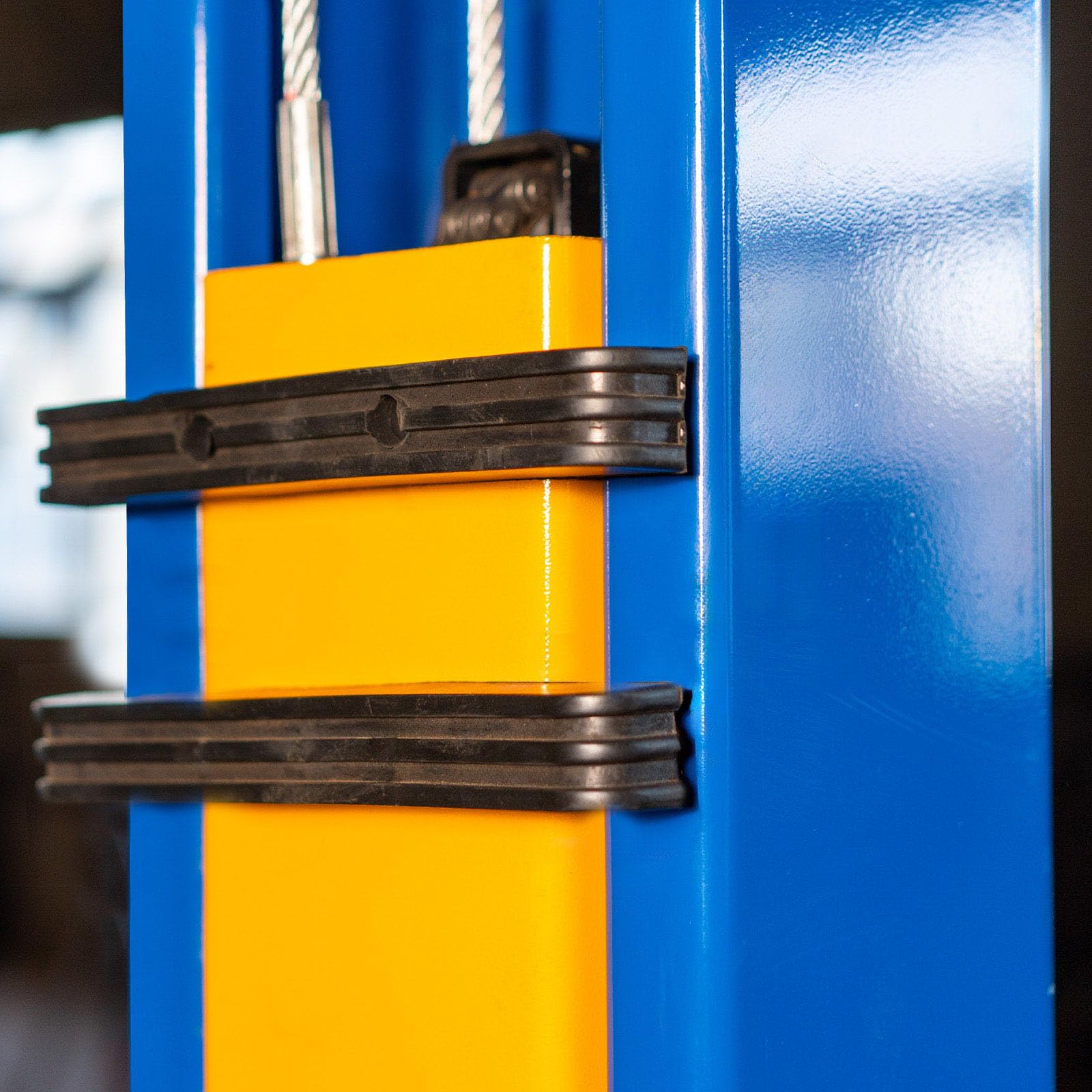

• Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life stiffened base plate 5/8" thickness ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down anchor bolts/mounting hardware included

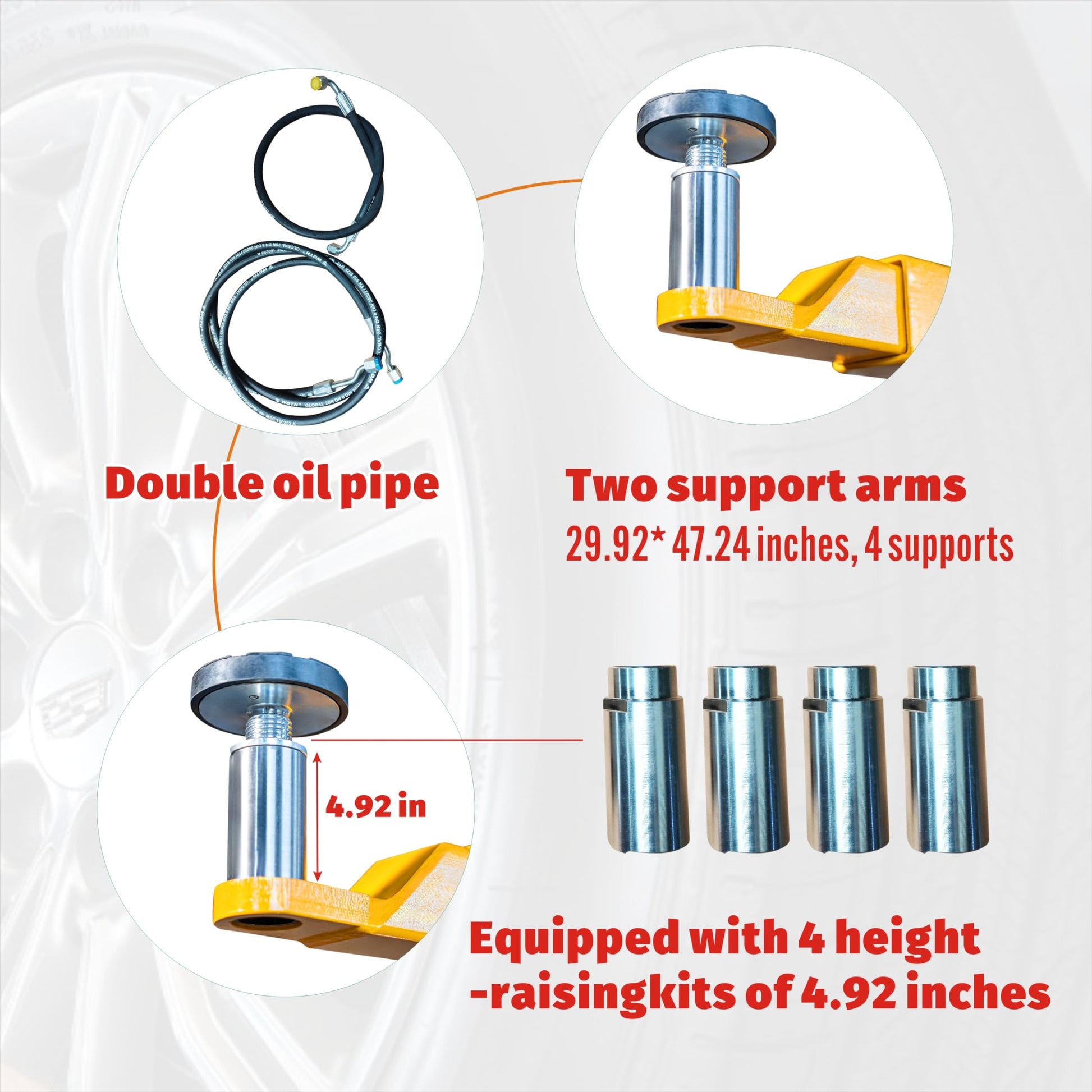

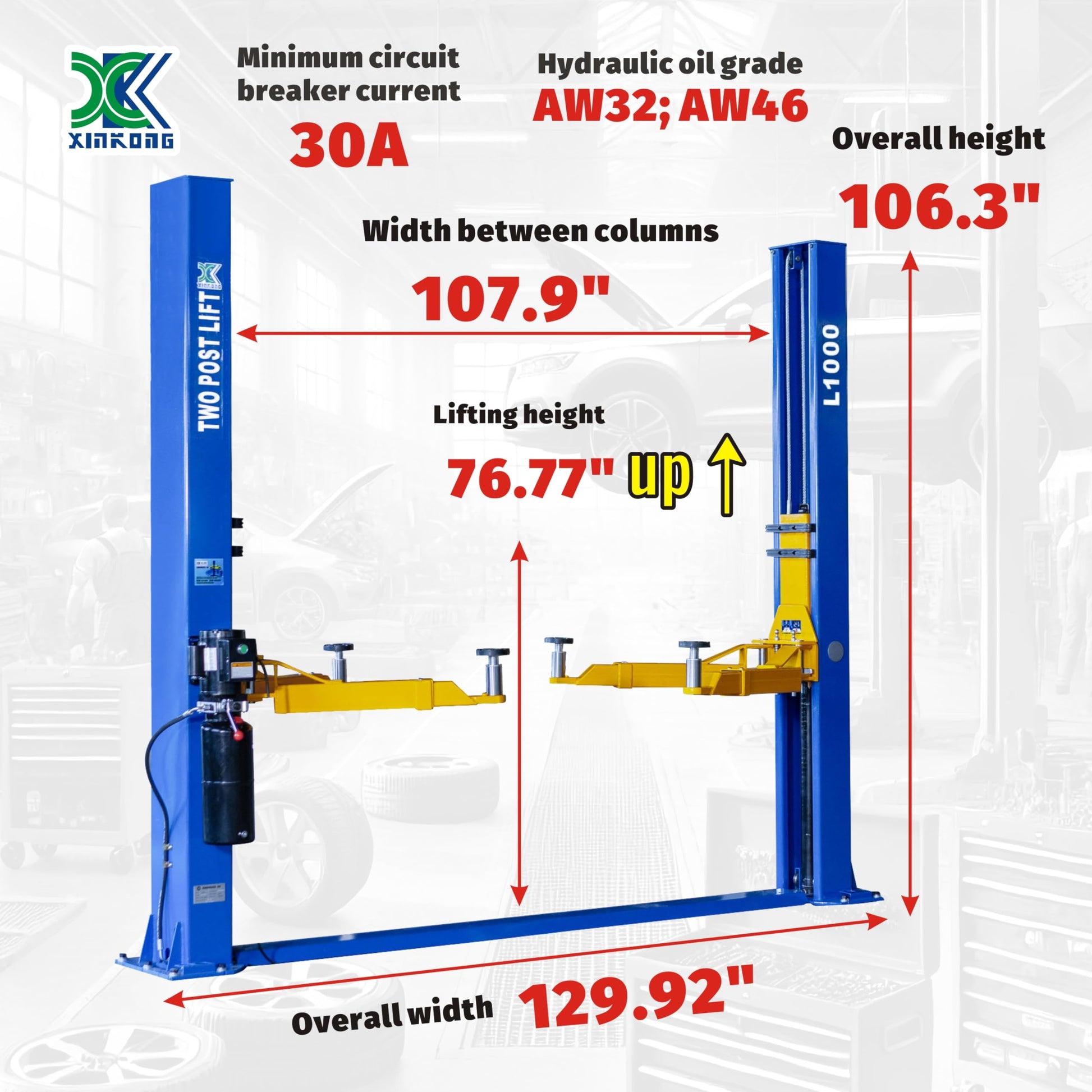

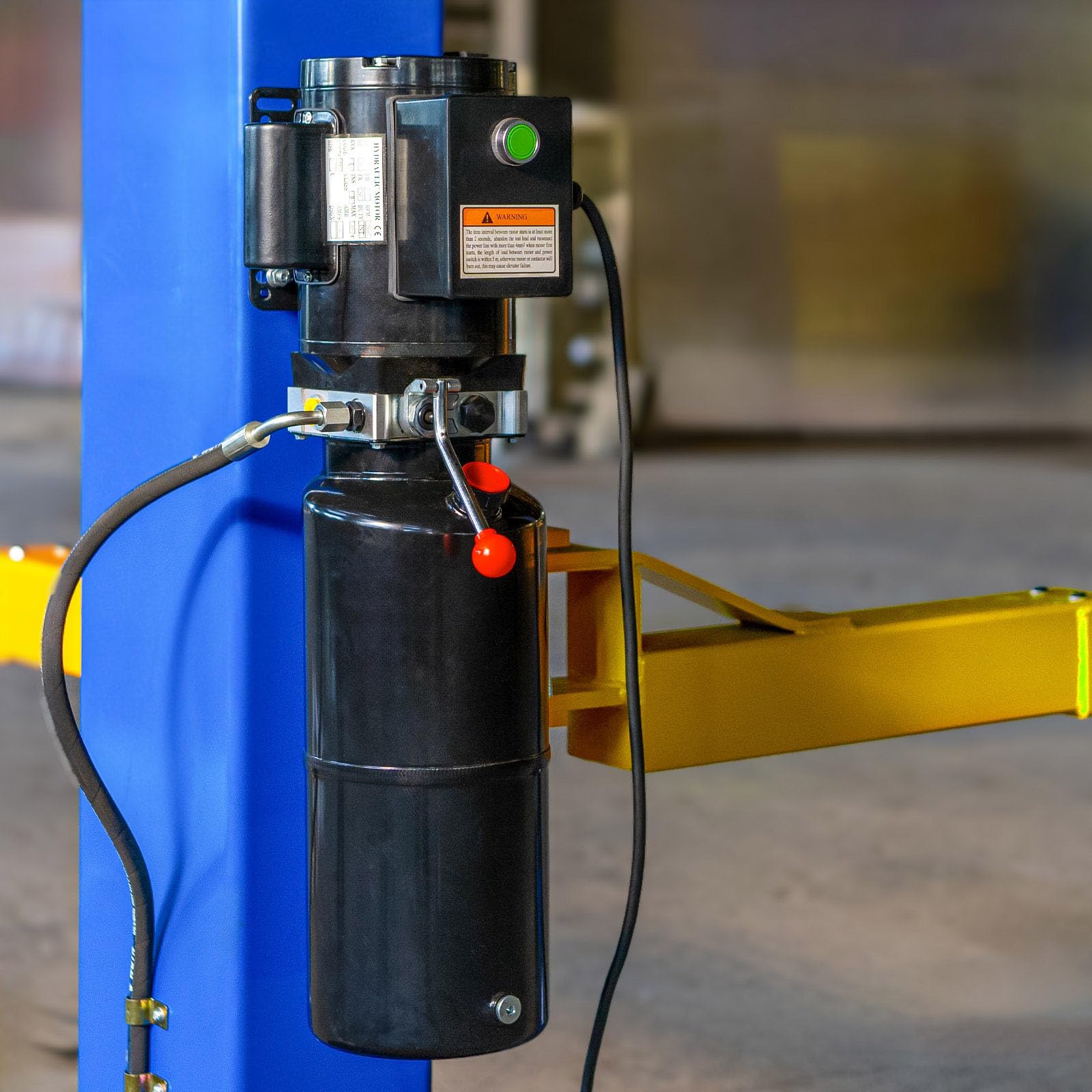

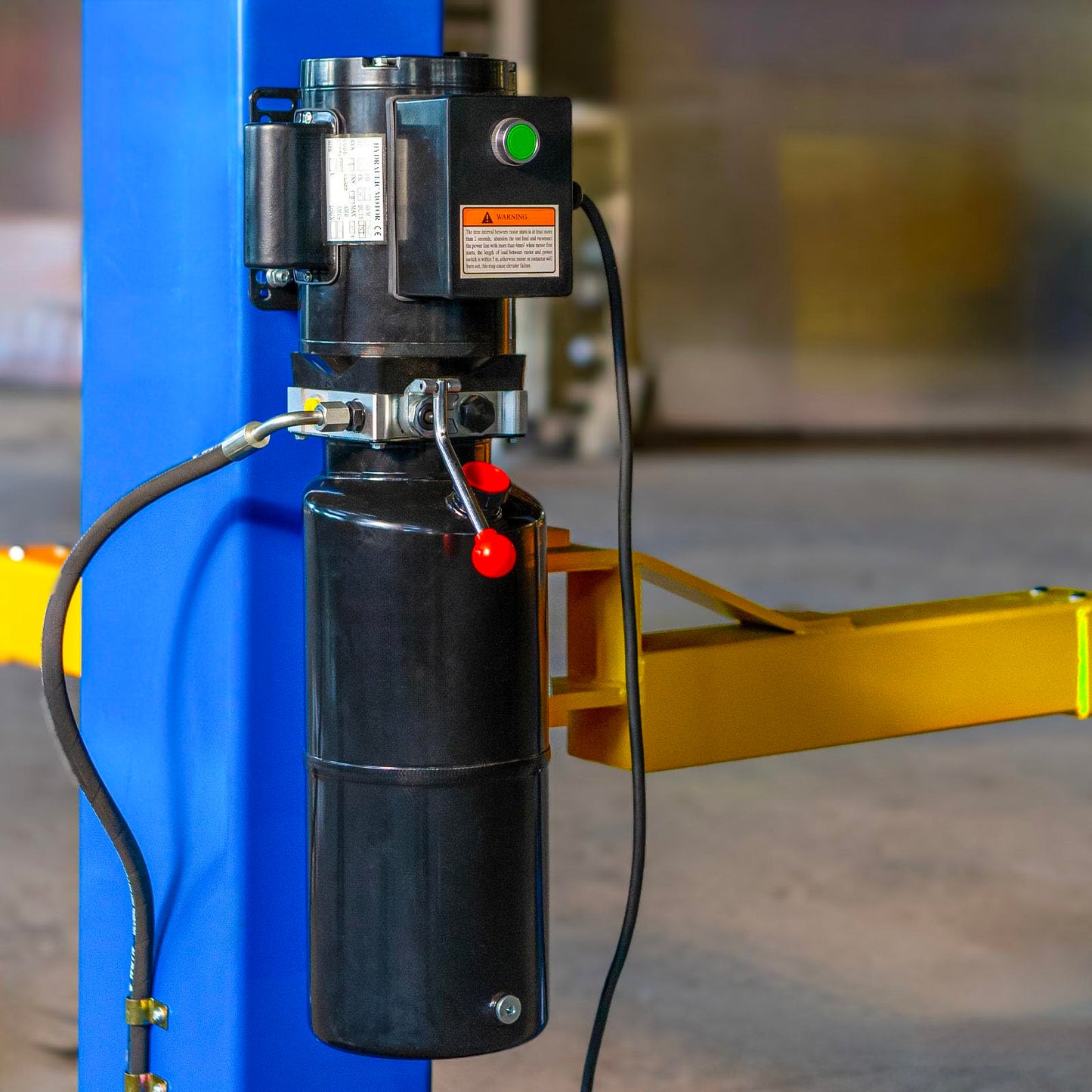

• Control System: lifting operation by pressing "UP" button on motor manual lowering operation by pressing lever relief valve built in power pump to prevent overloading1 sets truck adapters included;Lifting capacity:10,000 lbs The overall height 106.3" the overall width 133-1/4"cColumn width 10.62"
• Base width 18.89" column thickness of steel 3/16" carriage thickness of steel 15/64";arms thickness of steel 15/64" front arm 27"～41-3/8" rear Arm 33-1/4"～52-3/8" min pad height: 3-7/8";lift height max: 78-7/8" drive-thru width clearance: 100"Time to full rise: 20-60 sec shipping weight: 1311 lbs
• Equipment required for unloading: Forklift or Tractor is required from customer for unloading the product. Nearest terminal pickup can be requested if customer does not have the ability to unload
• Minimum Circuit Breaker Current: 40A, Hydraulic oil grade: AW32; AW46

model number: XK-L1000 Truck Hoist 110V

Part Number: XK-L1000 Truck Hoist 220V

EAN: 0753791217118
