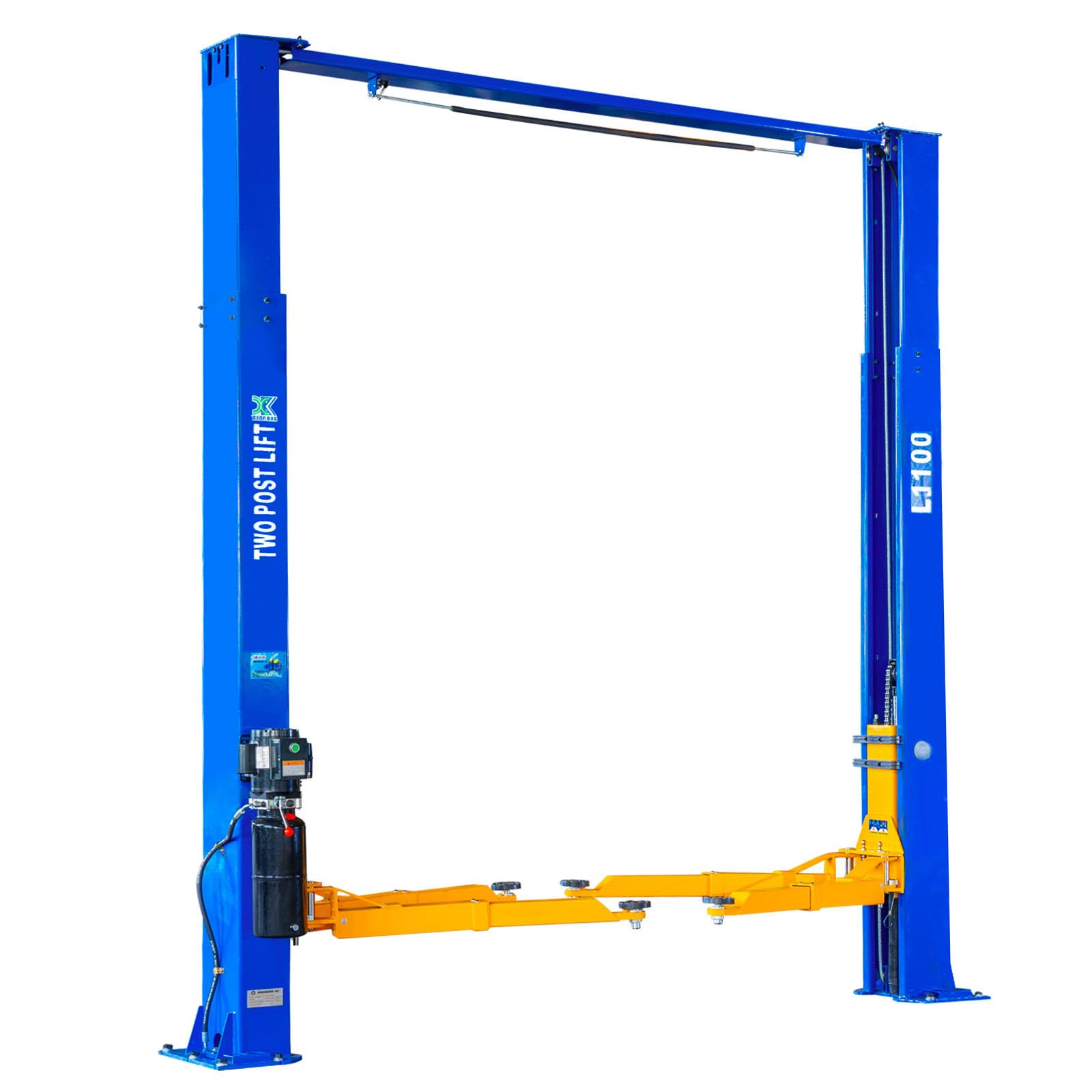

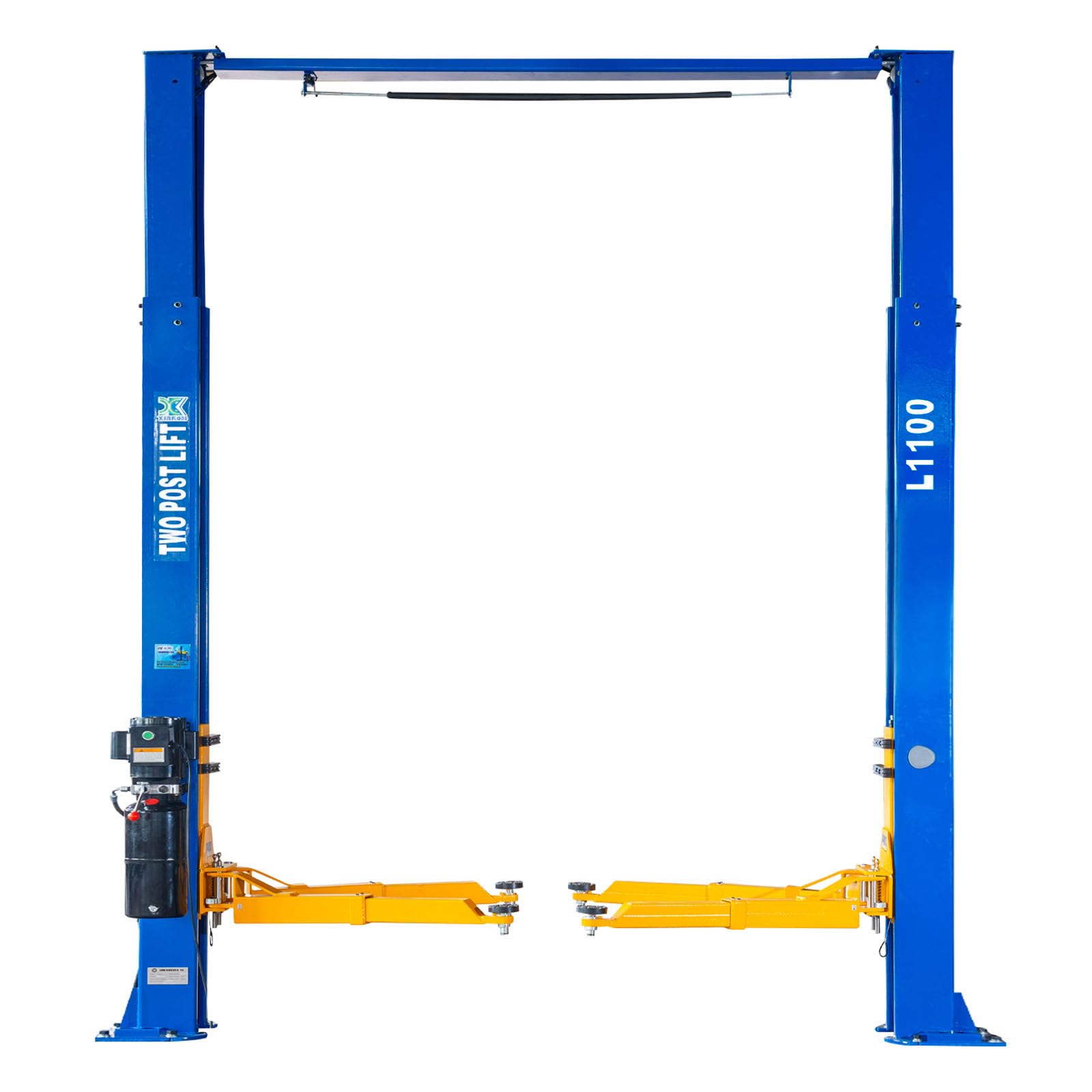

XK L1100 110V Car Lift 10,000lbs Capacity 110V with 2 Post Auto Truck Hoist

Brand: XK

Features:

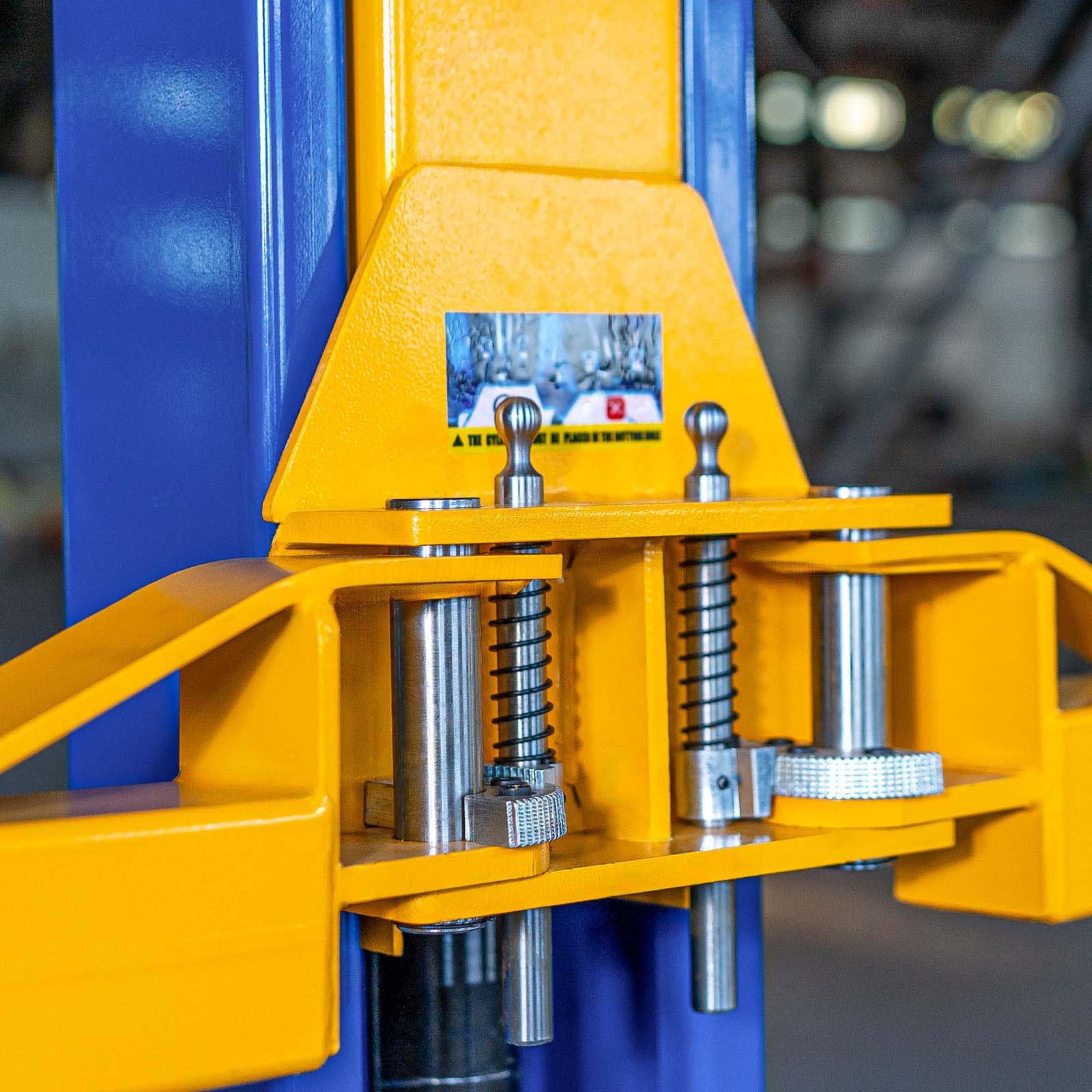

• Stiffened base plate 35/64" thickness ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down control system lifting operation by pressing "UP" button on motor manual lowering operation by pressing lever

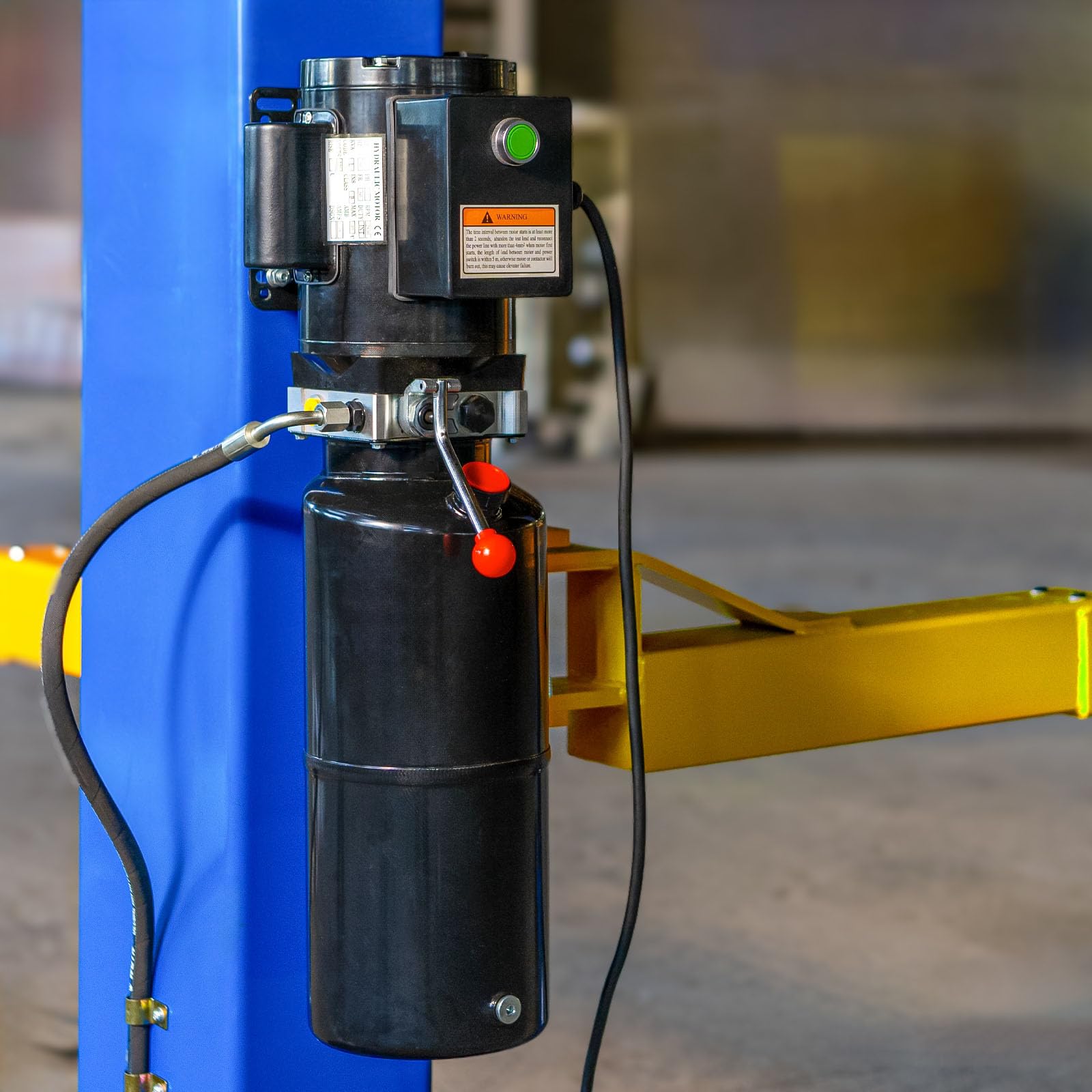

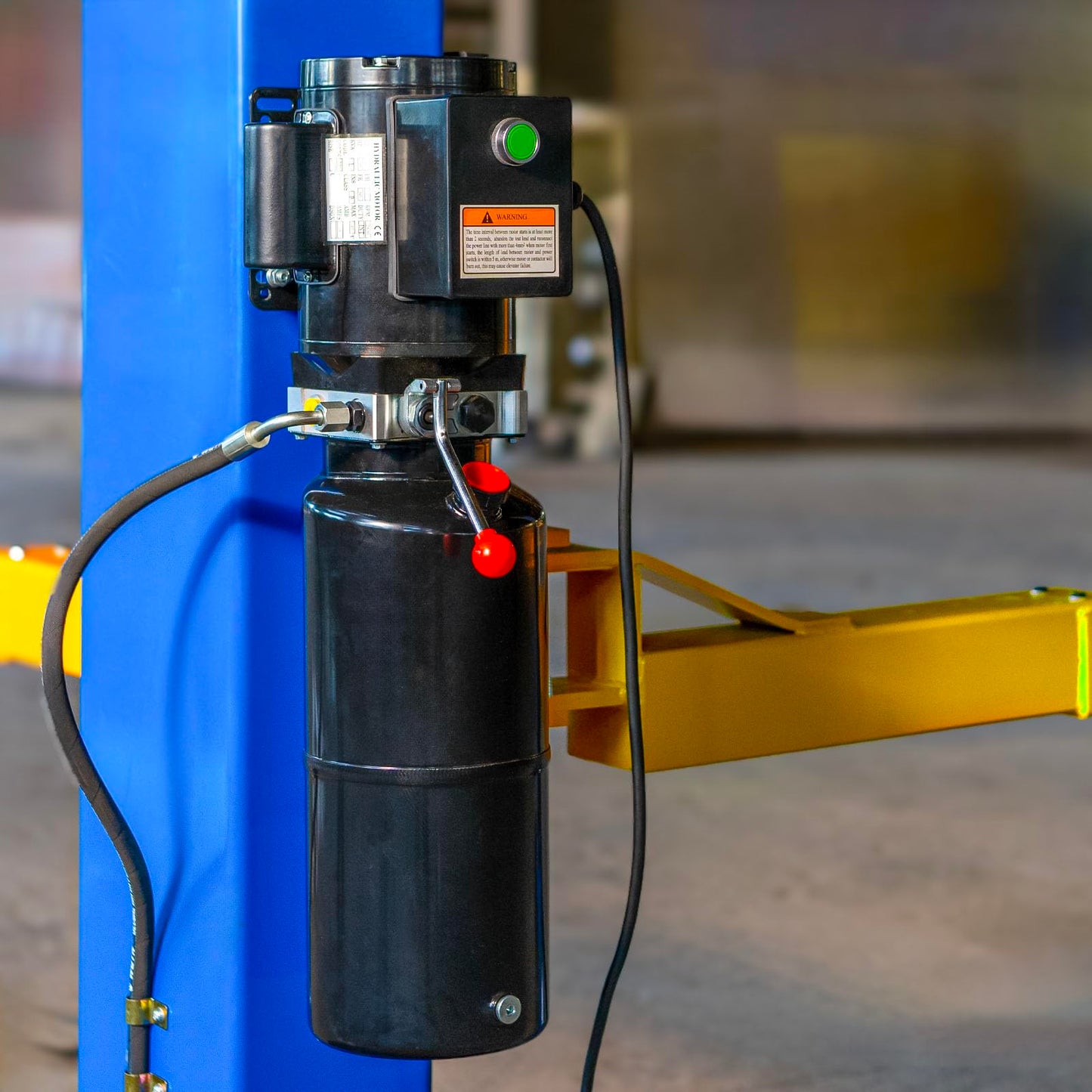

• Relief valve built in power pump to prevent overloading lifting capacity 10,000 lbs the overall height 141-47/64" the overall width 130-5/16" column width 10-5/8" base width 18-57/64" column thickness of steel 13/64" carriage thickness of steel 5/16" arms thickness of steel 13/64"manganese plate Q345
• Front arm 29-17/32" to 46-29/64" rear arm 29-17/32 " to 46-29/64" min pad height: 3-7/8" 4" tall.equipment required for unloading forklift or tractor is required from customer for unloading the product.

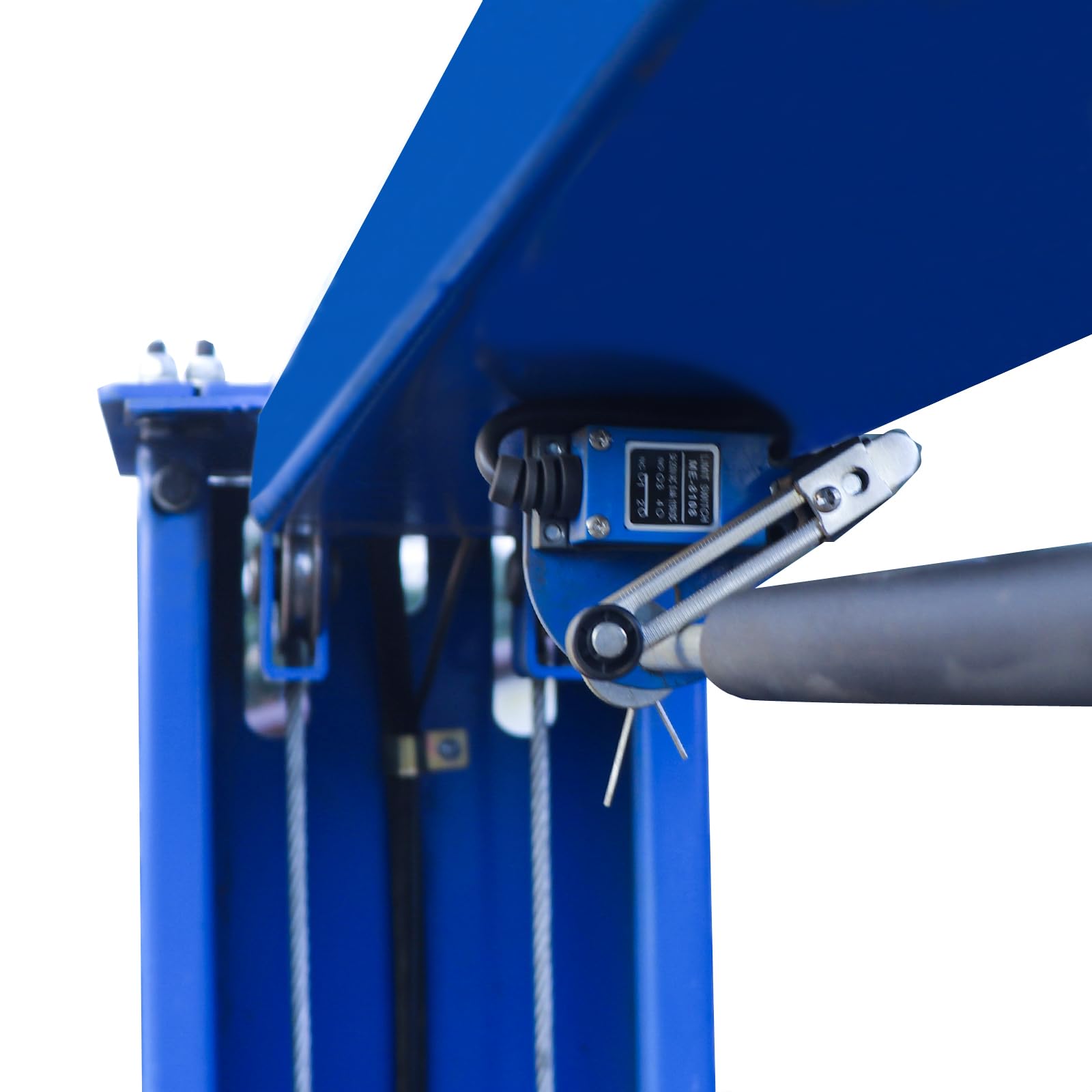

• Concrete requirement 6" at 3500 psi (4" for vehicles below 9000LB) door guards protection rubber / double point safety lock release
• Equipment Required for unloading:Forklift or tractor is required from customer for unloading the product, nearest terminal pickup can be requested if customer does not have the ability to unload

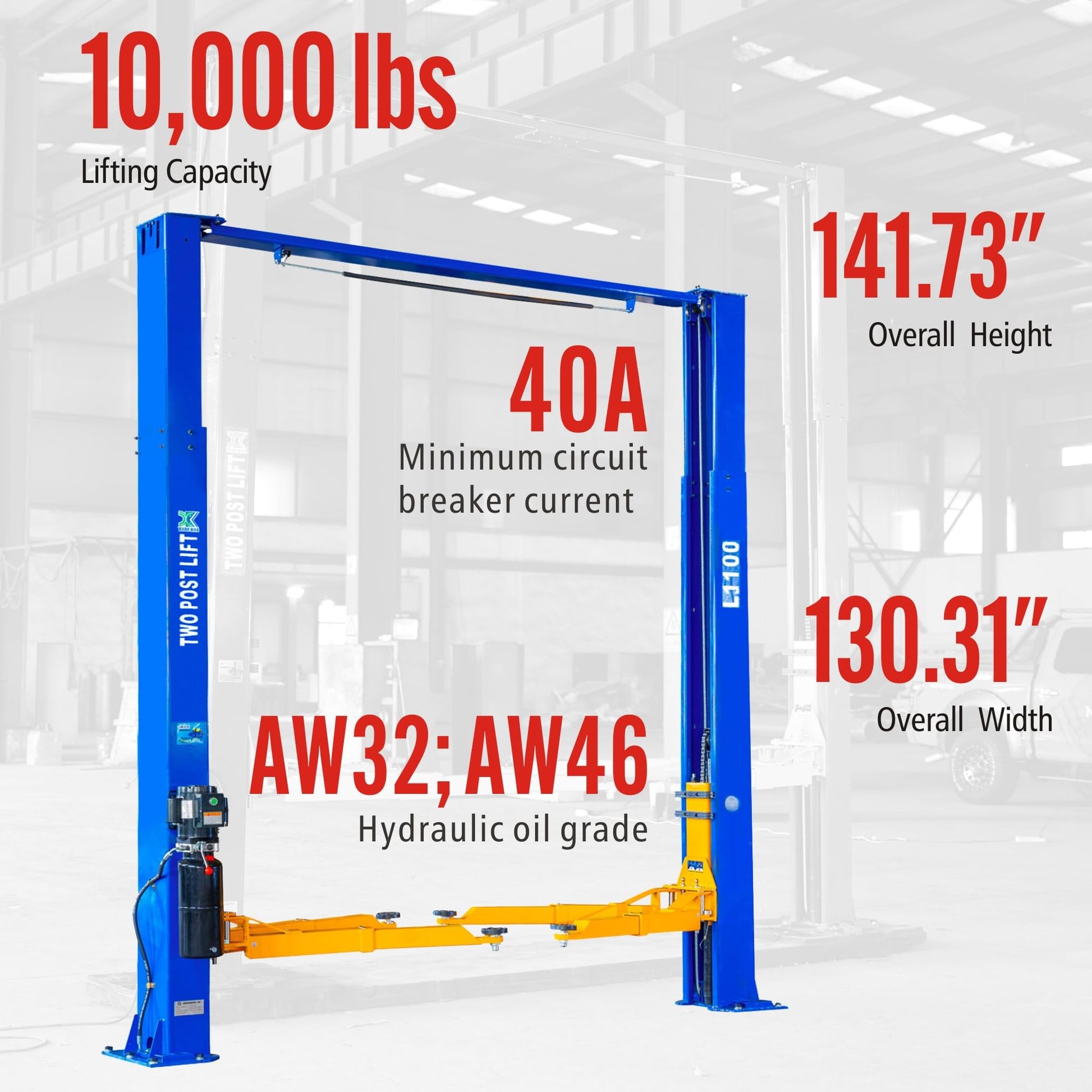

• Minimum Circuit Breaker Current: 40A, Hydraulic oil grade: AW32; AW46

model number: XK-L1100-110V

Part Number: XK-L1100-110V

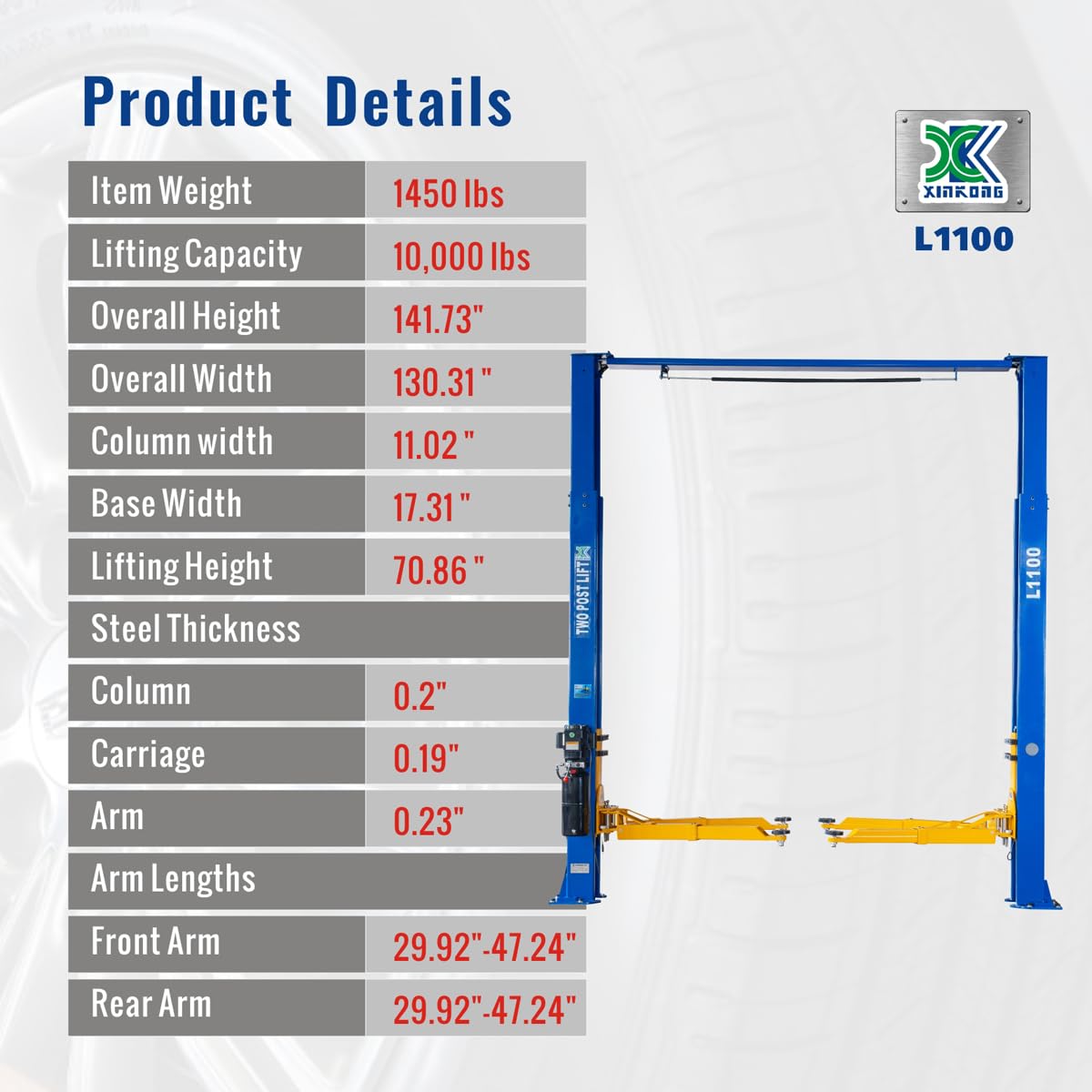

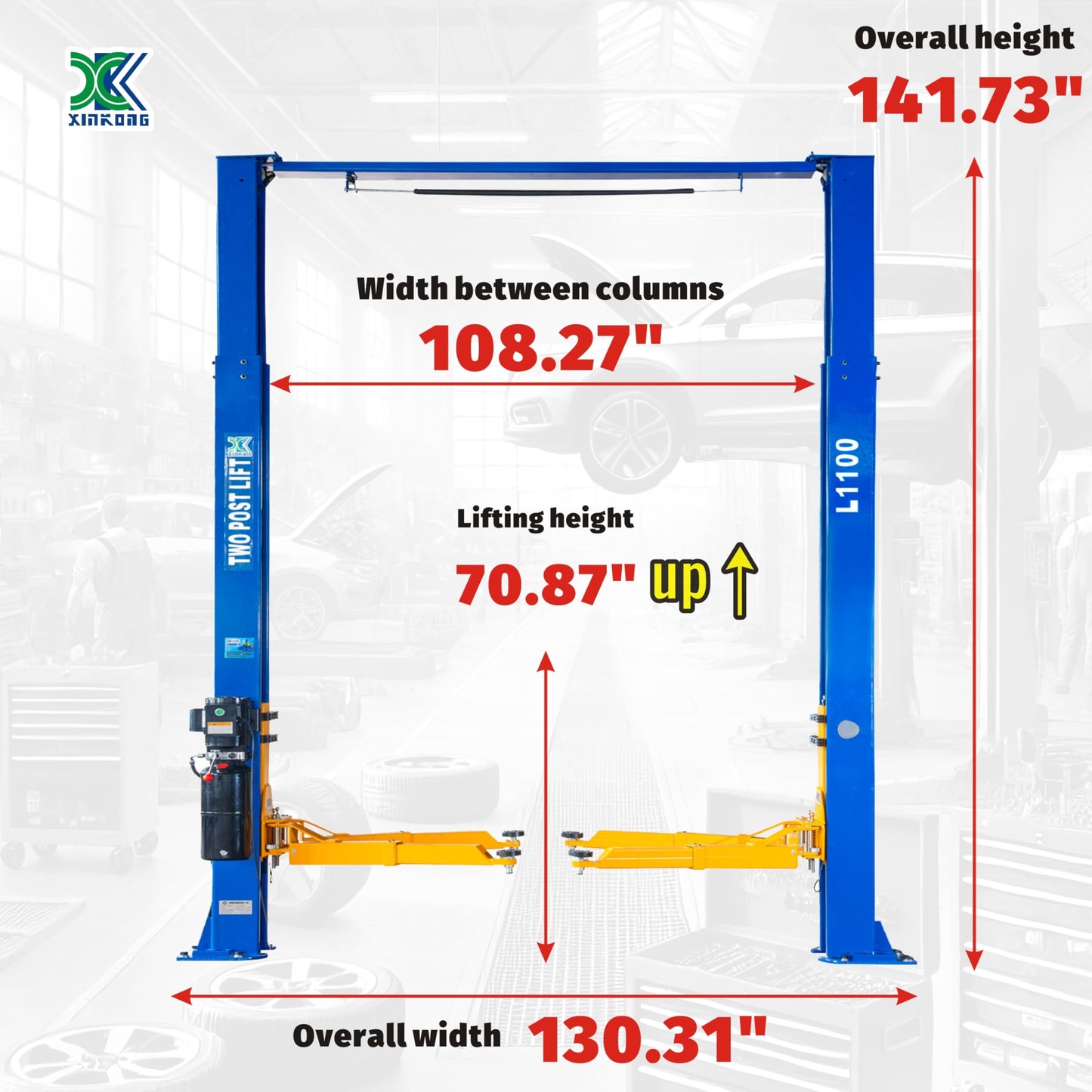

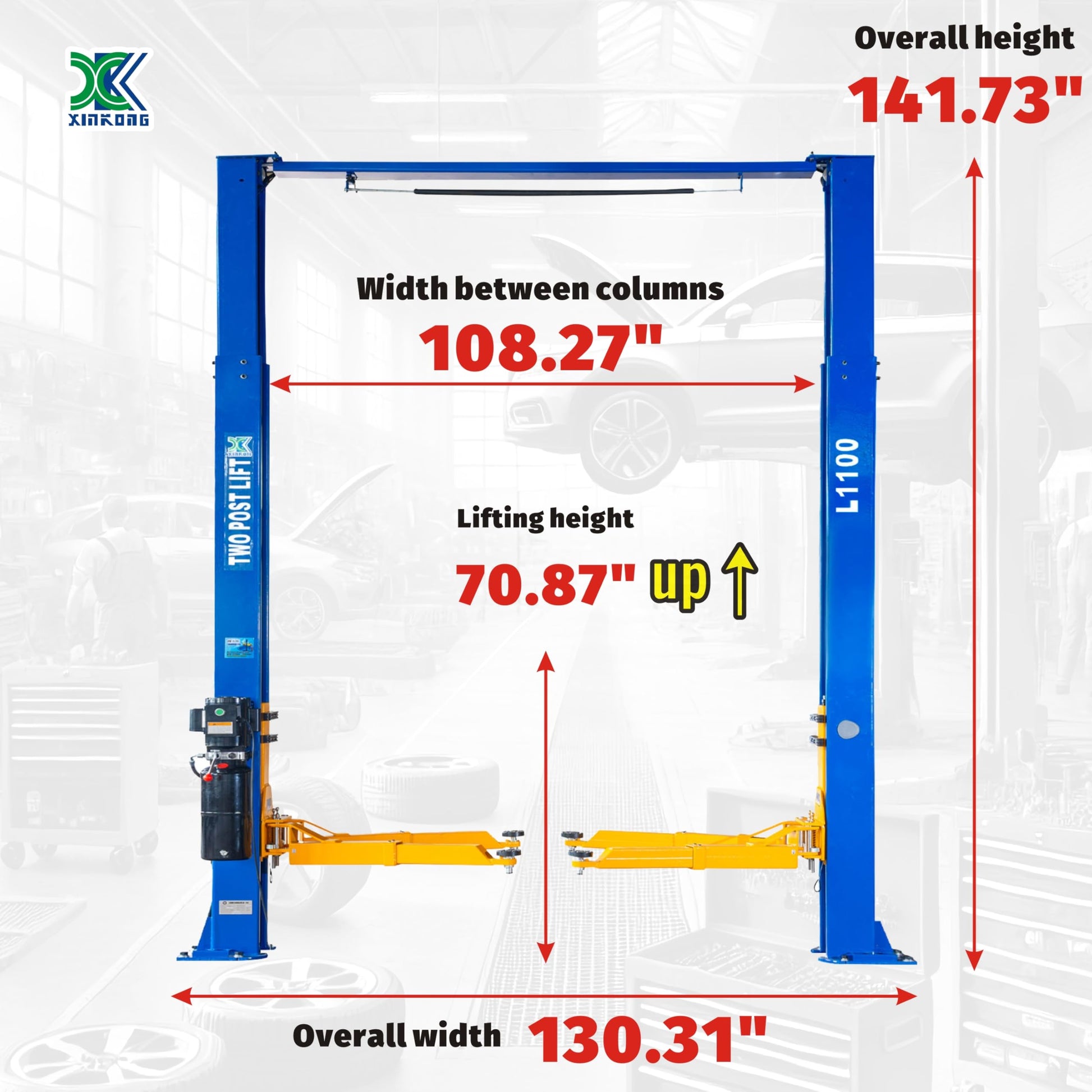

Details: Product Parameter Model: XK-L1100 Lifting capacity: 10000 Pounds Lifting height: 70.9 inches; 1800mm Lifting time: 45-55s Overall height: 141.73 inches; 3600mm Overall width: 130.31 inches; 3310mm Drive through width: 108.26 inches; 2750mm Width between columns: 122 inches; 3100mm Net weight: 1202 Pounds; 546 Kgs

EAN: 0753791217095
