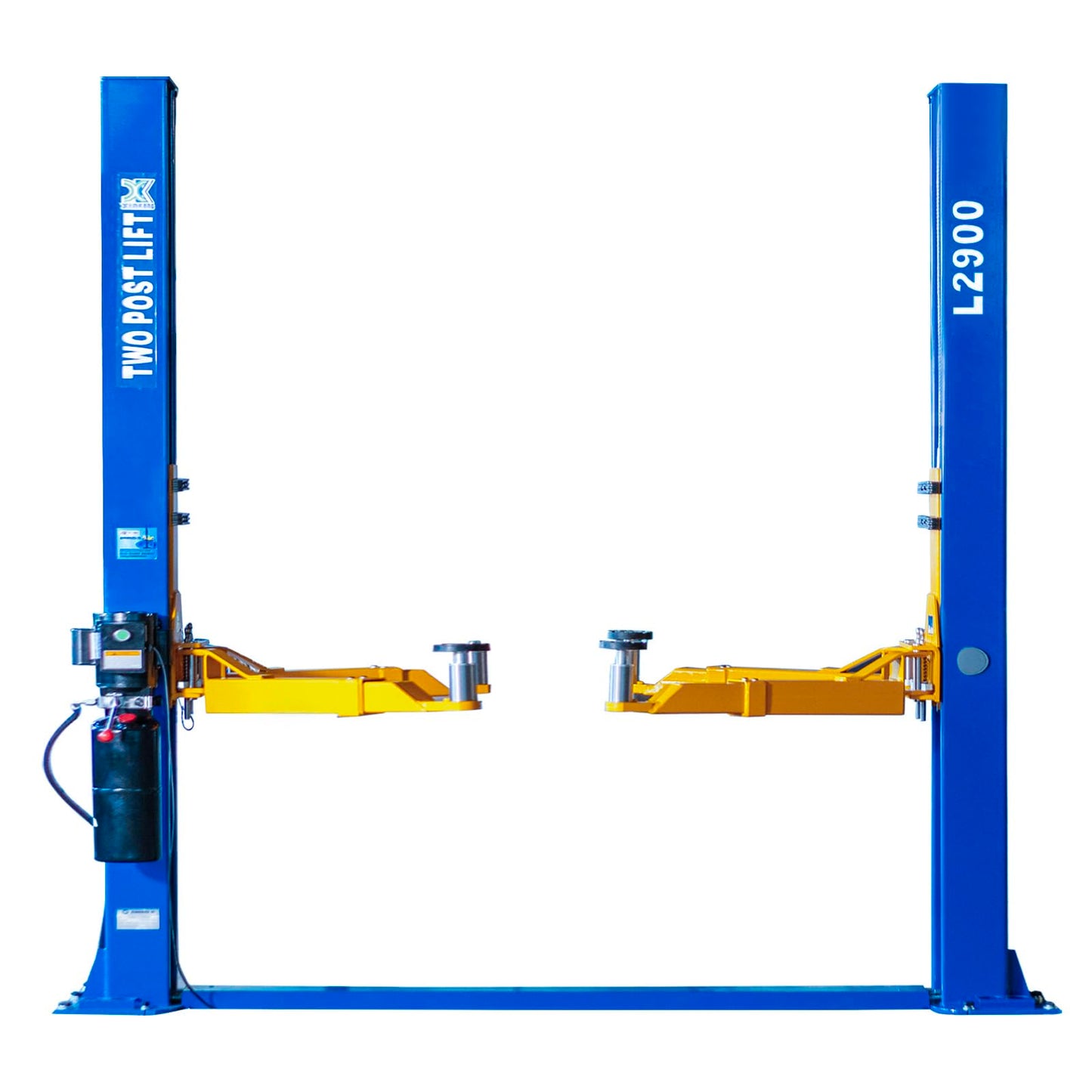

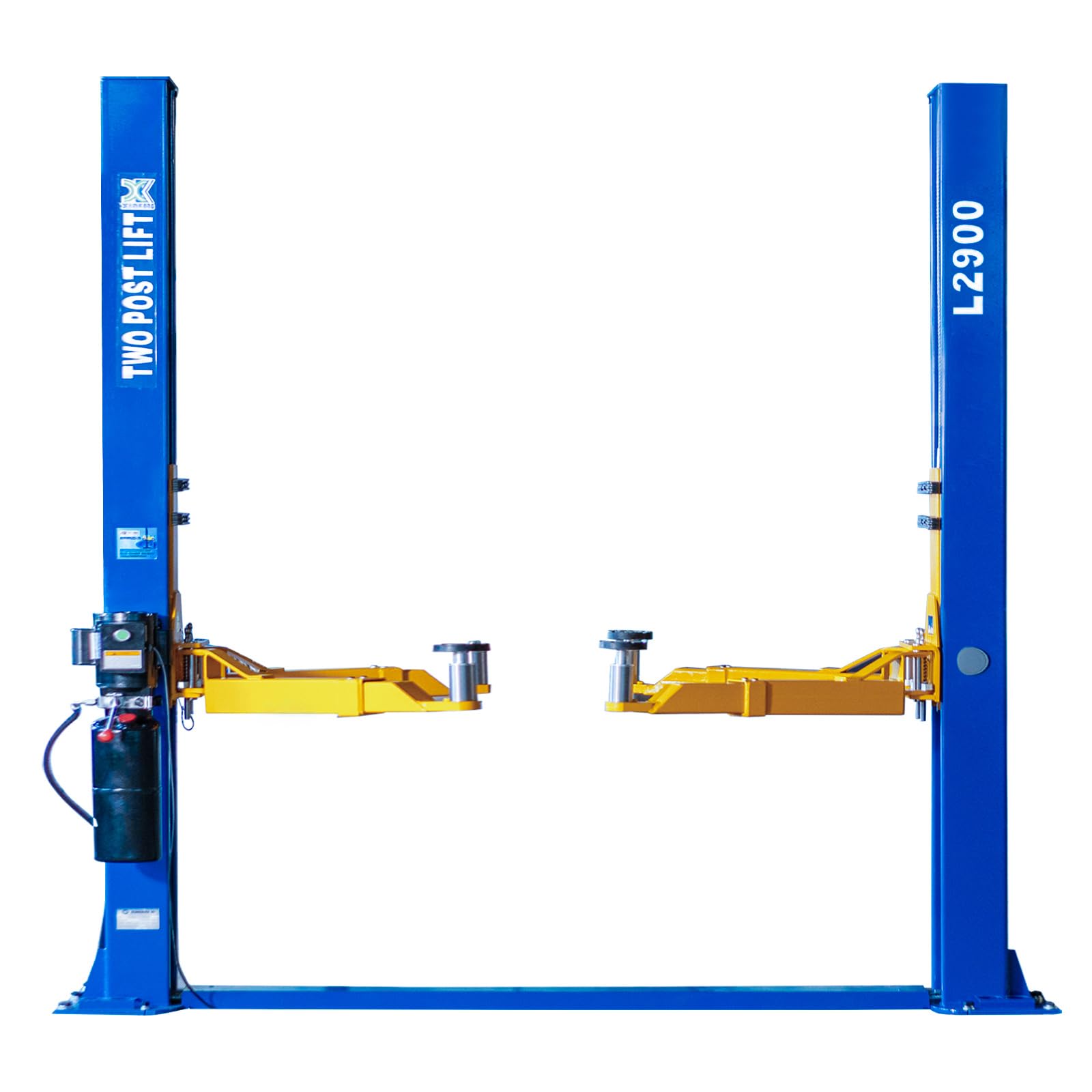

XK L2900 220V Car Lift 9,000 LB 2 Post Lift Car Auto Truck Hoist with 36 Months Parts Replacement

Brand: XK

Color: L2900220V

Features:

• Auto car lift L2900:Features 220V 60HZ 1PH 3HP motor safety mechanism: double point safety lock release automatic arm lock restraints relief valve built in power pump to prevent overloading door guards protection rubber Up-limit switch to protect cylinders working stroke used in safe

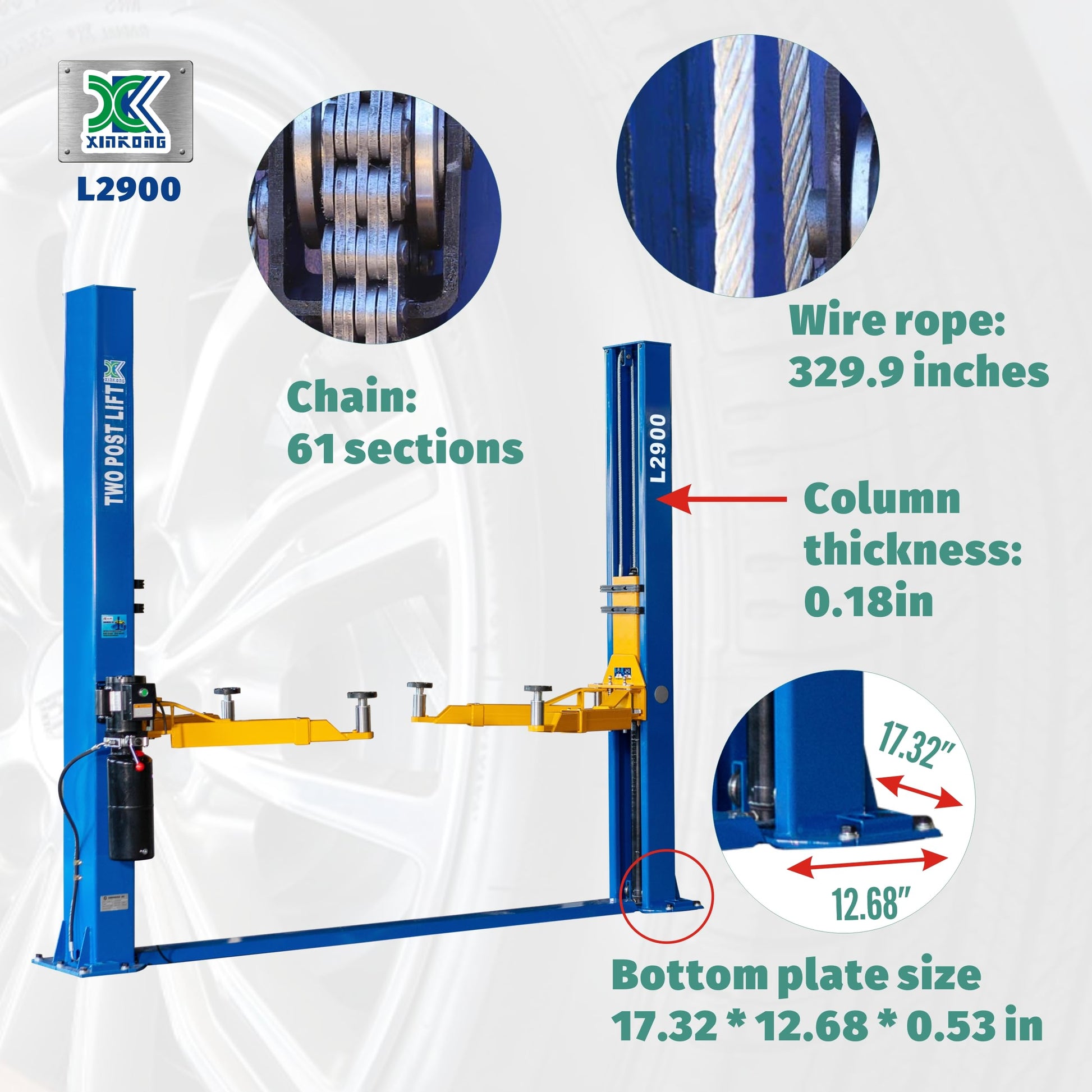

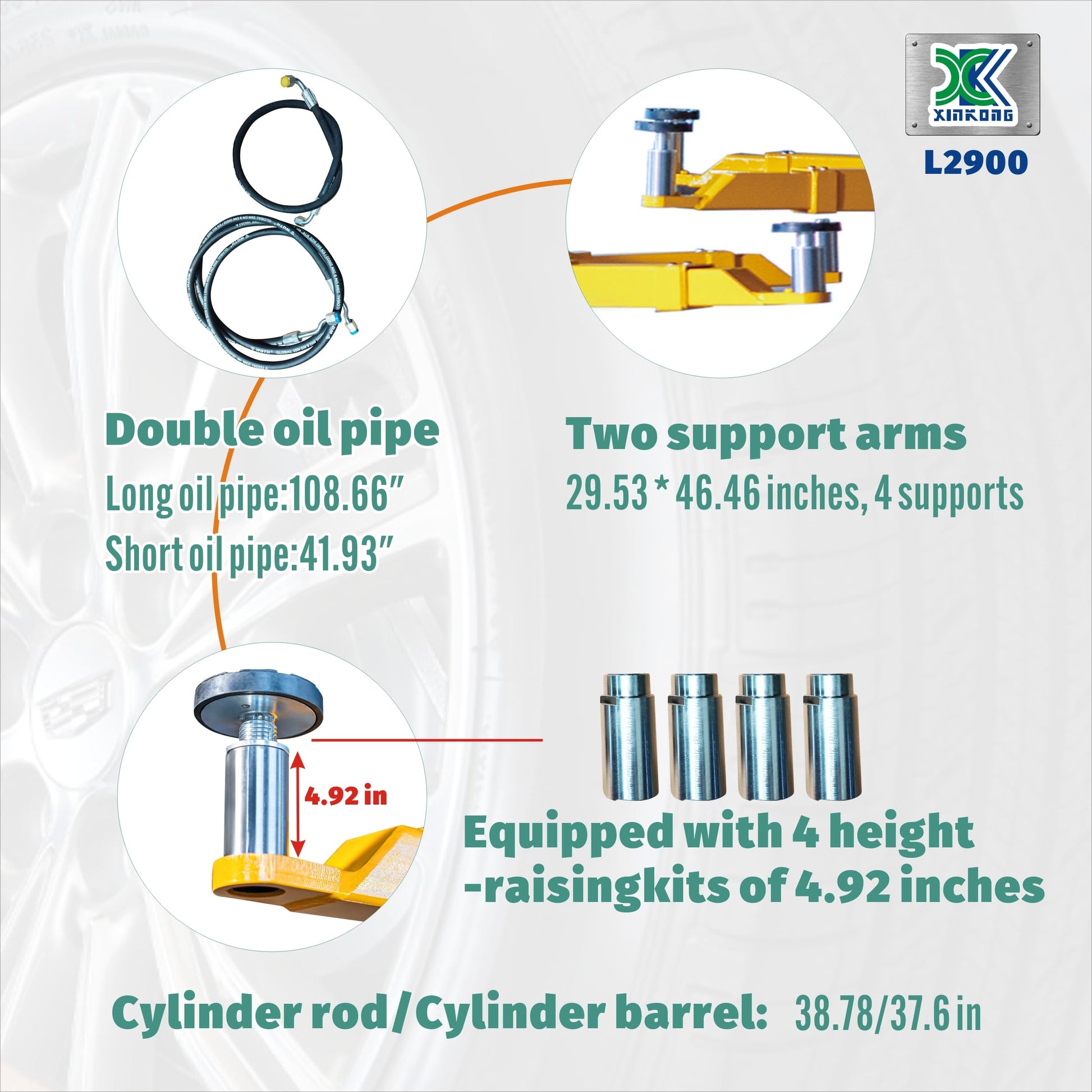

• Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life length scope heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life stiffened base plate 5/8" thickness ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down Anchor bolts/mounting hardware included

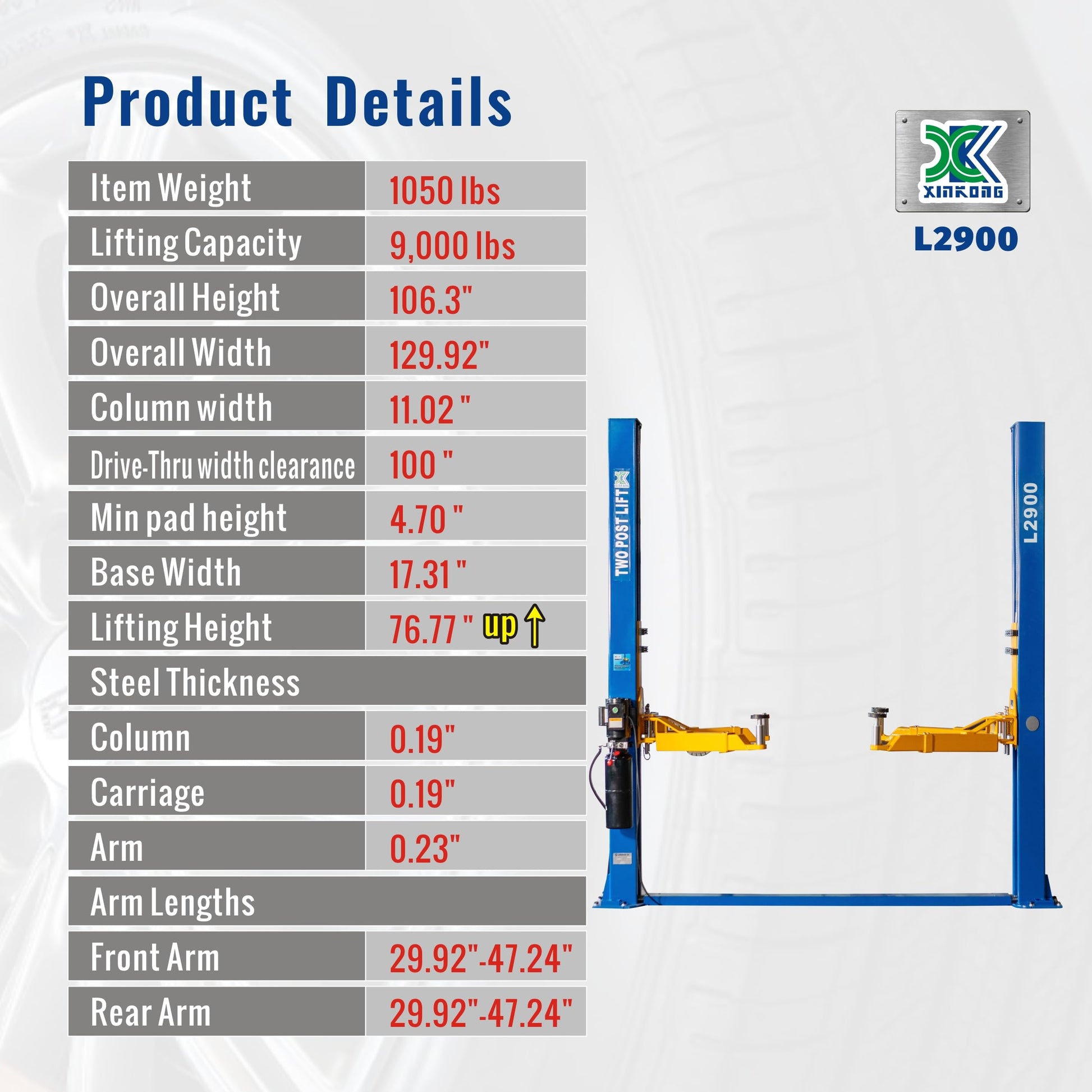

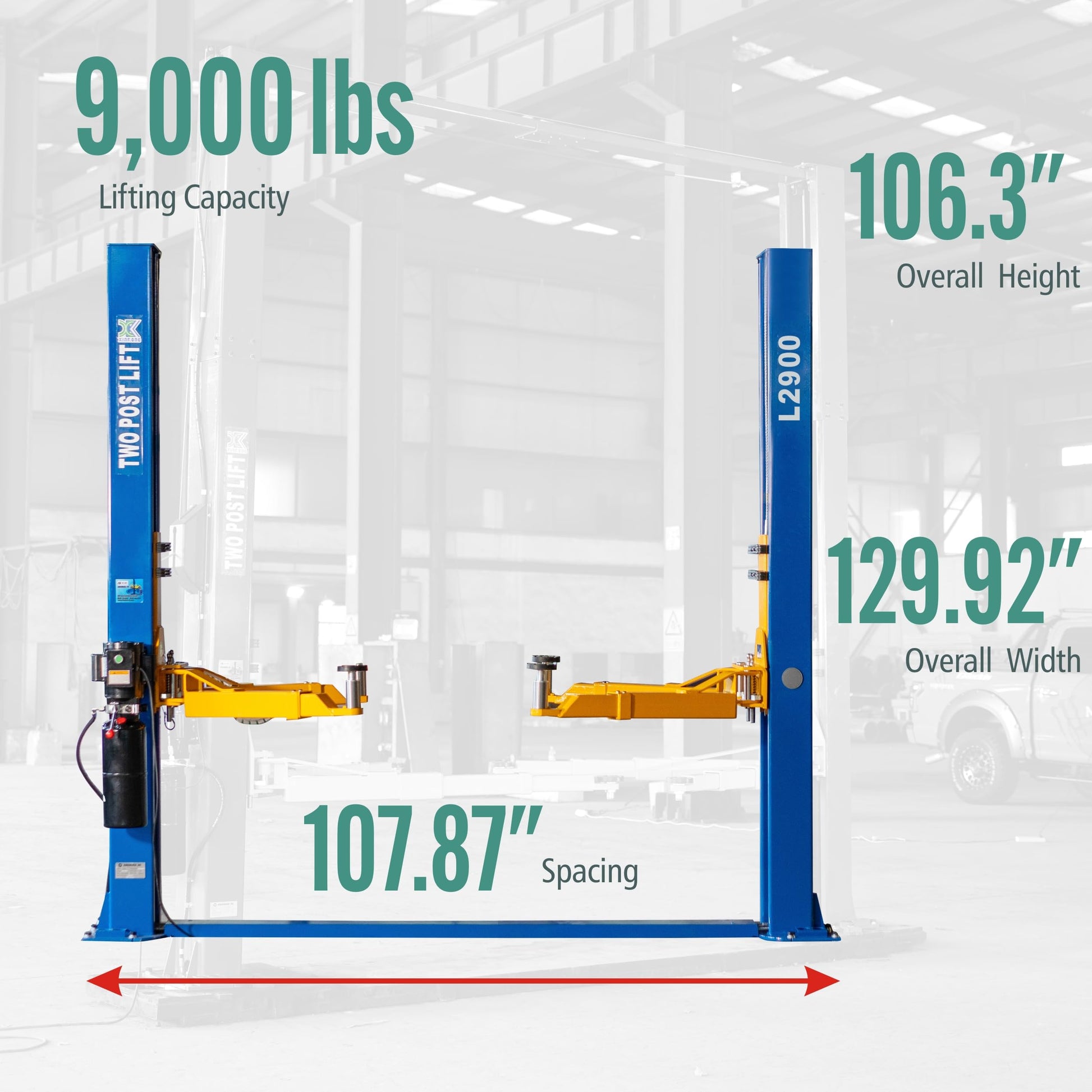

• Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down control system: lifting operation by pressing "up" button on motor manual lowering operation by pressing lever relief valve built in power pump to prevent overloading 1 sets truck adapters included Lifting Capacity: 9,000 lbs the overall Height 106.3" the overall width 133-1/4" column width 10.59" base width 18.89" column thickness of steel 11/64" carriage thickness of steel 3/16" arms thickness of steel 15/64" front arm 26-1/4"~40-1/8" rear arm 33-7/8"~51-3/16" min pad height: 3-7/8" lift height max: 78-5/32" drive-thru width clearance: 100" time to full rise: 20-60 sec

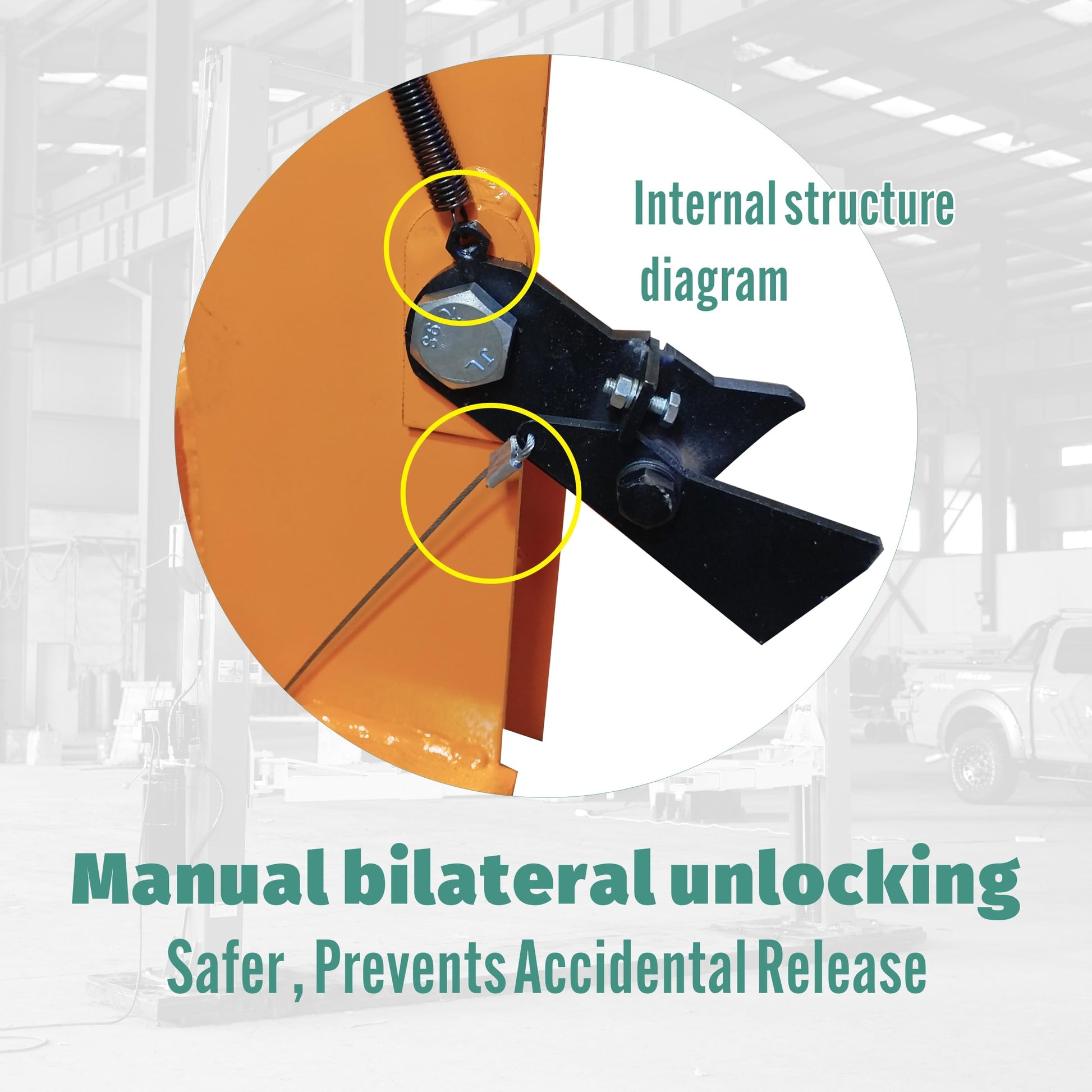

• Door guards protection rubber / double point safety lock release
• Customer must have forklift or fork tractor to unload the freight. package weights total 1400 LBS. If customer does not have either tool to unload, we can provide terminal pickup service
• Equipment required for unloading:Forklift or tractor is required from customer for unloading the product,nearest terminal pickup can be requested if customer does not have the ability to unload

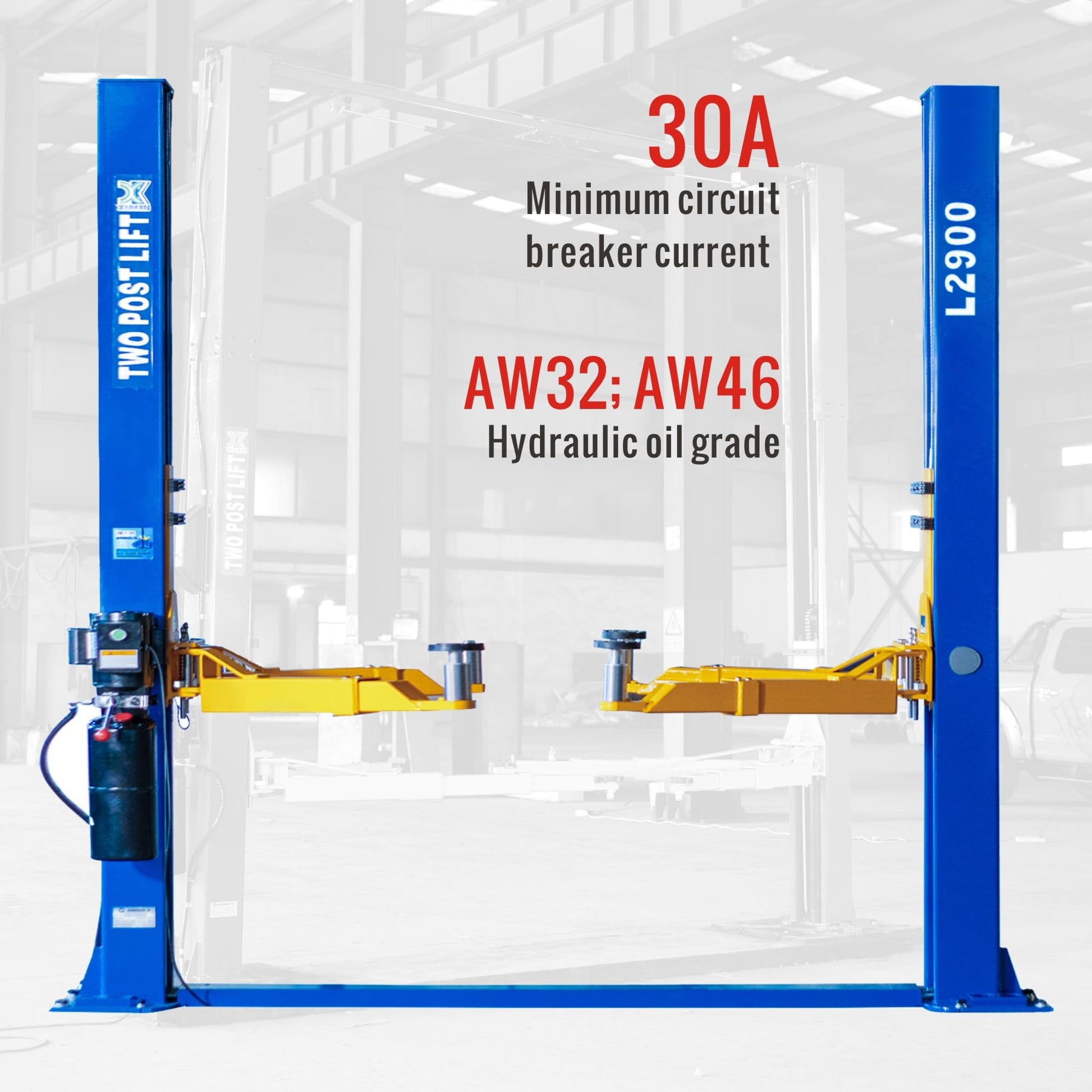

• Minimum Circuit Breaker Current: 30A, Hydraulic oil grade: AW32; AW46

Part Number: XK

EAN: 0723284412597
