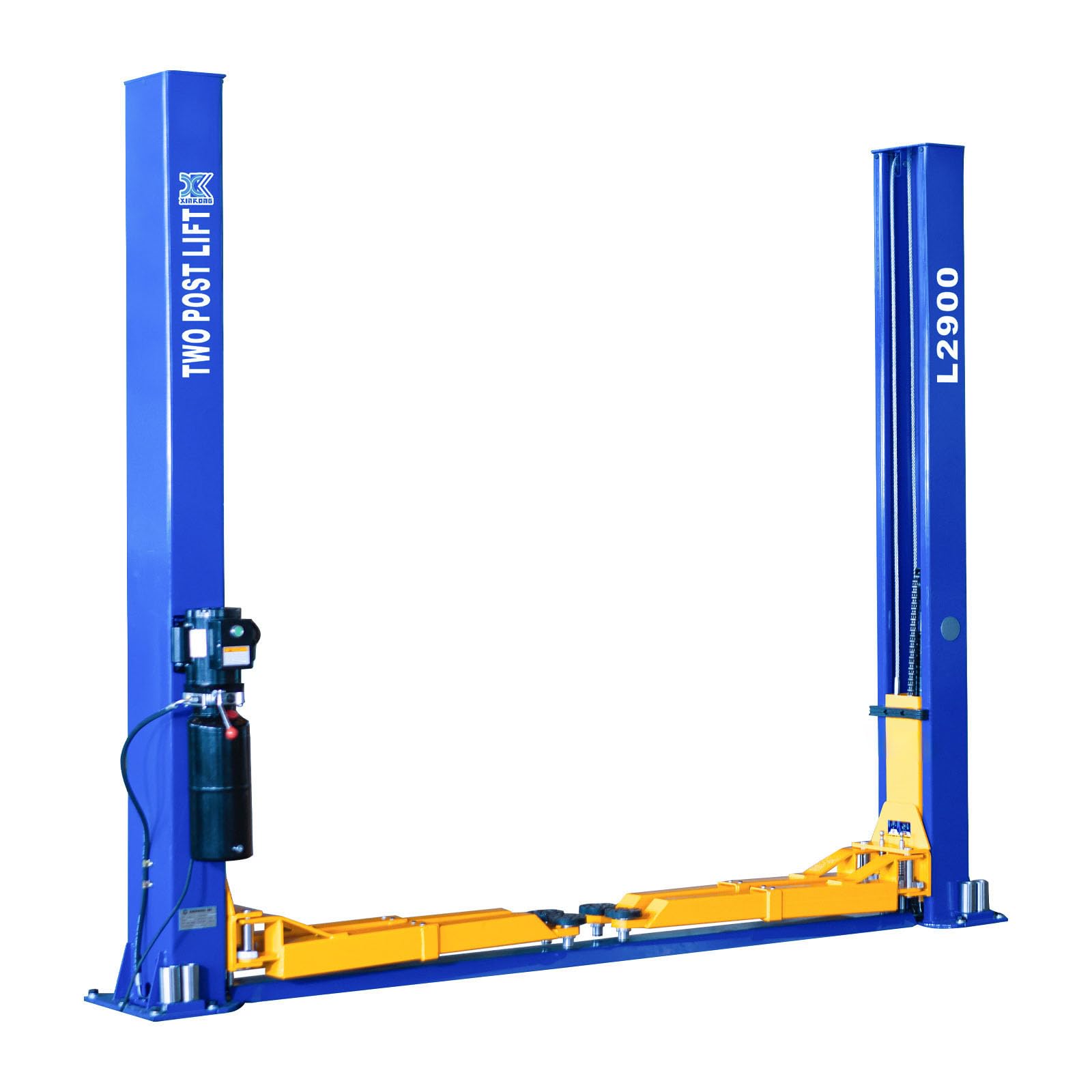

XK-L2900 Car Lift 9,000 LB 2 Post Lift Car Auto Truck Hoist 12 Month Parts Repalcement 220V

Brand: XK

Color: Blue/yellow

Features:

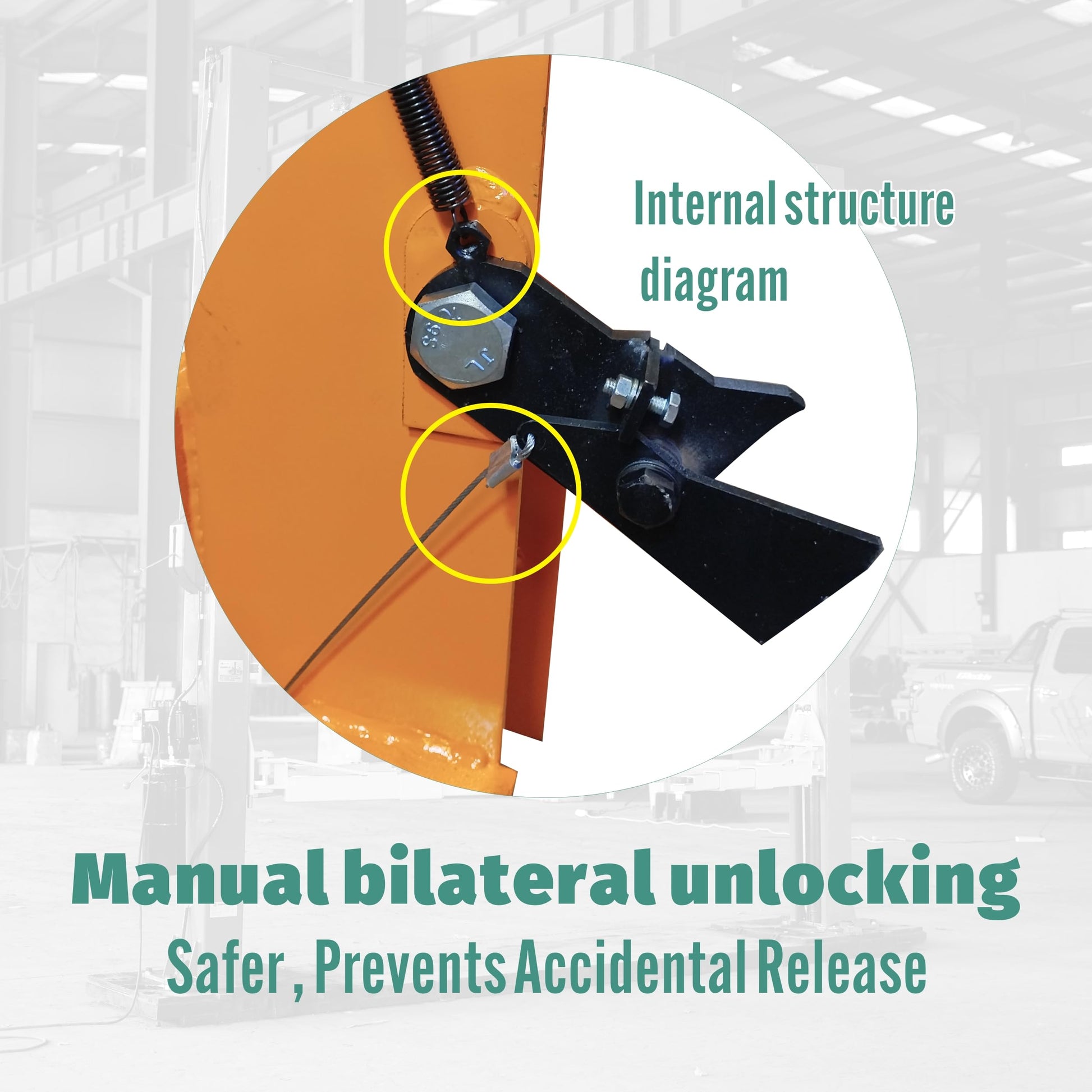

• 220V 50HZ 1PH 3HP motor safety mechanism double point safety lock release automatic arm lock restraints relief valve built in power pump to prevent ( recommend at least 30A breaker) Hydraulic Oil 3-5 gallons AW32/AW46

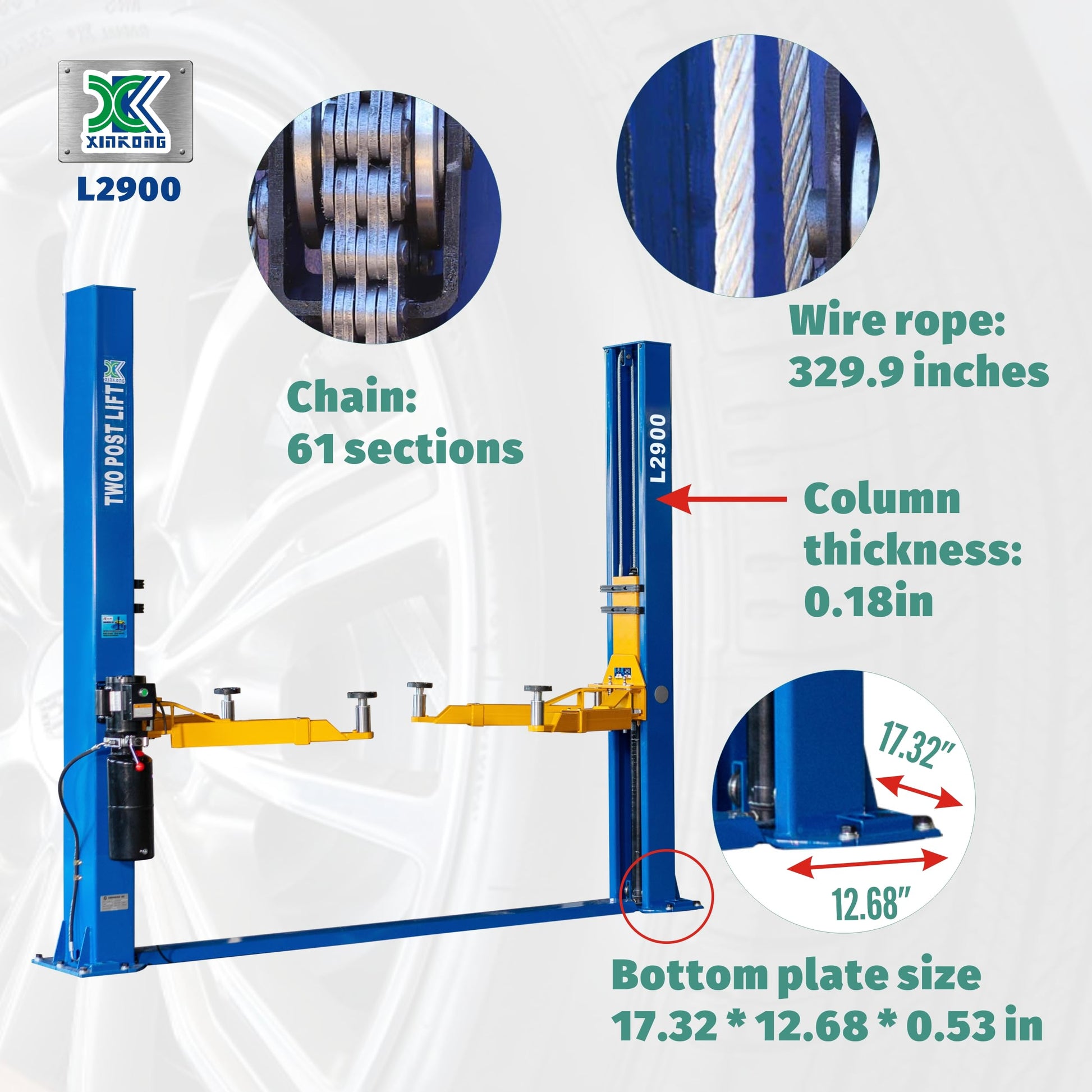

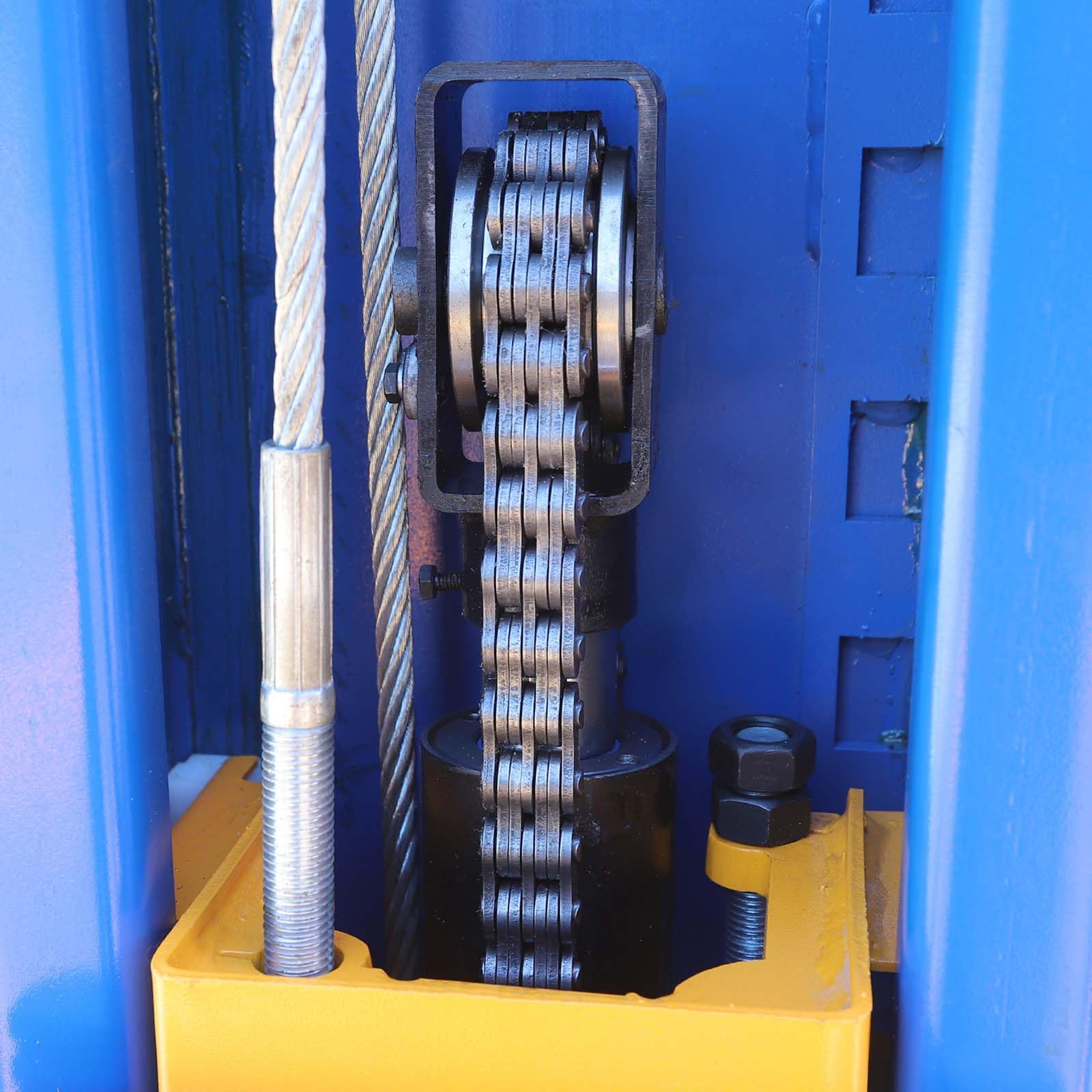

• Overloading door guards protection rubber up-limit switch to protect cylinders working stroke used in safe length scope heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization

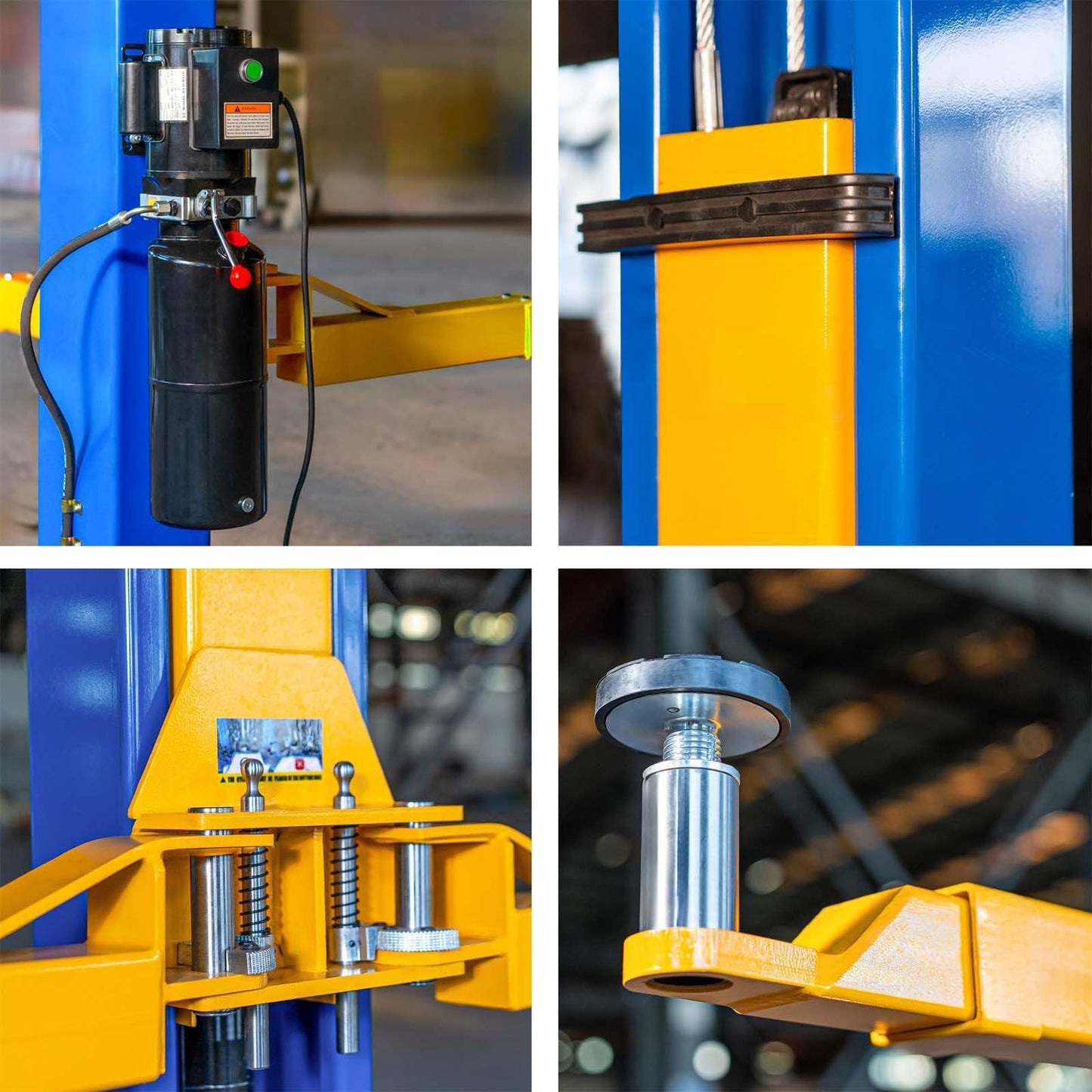

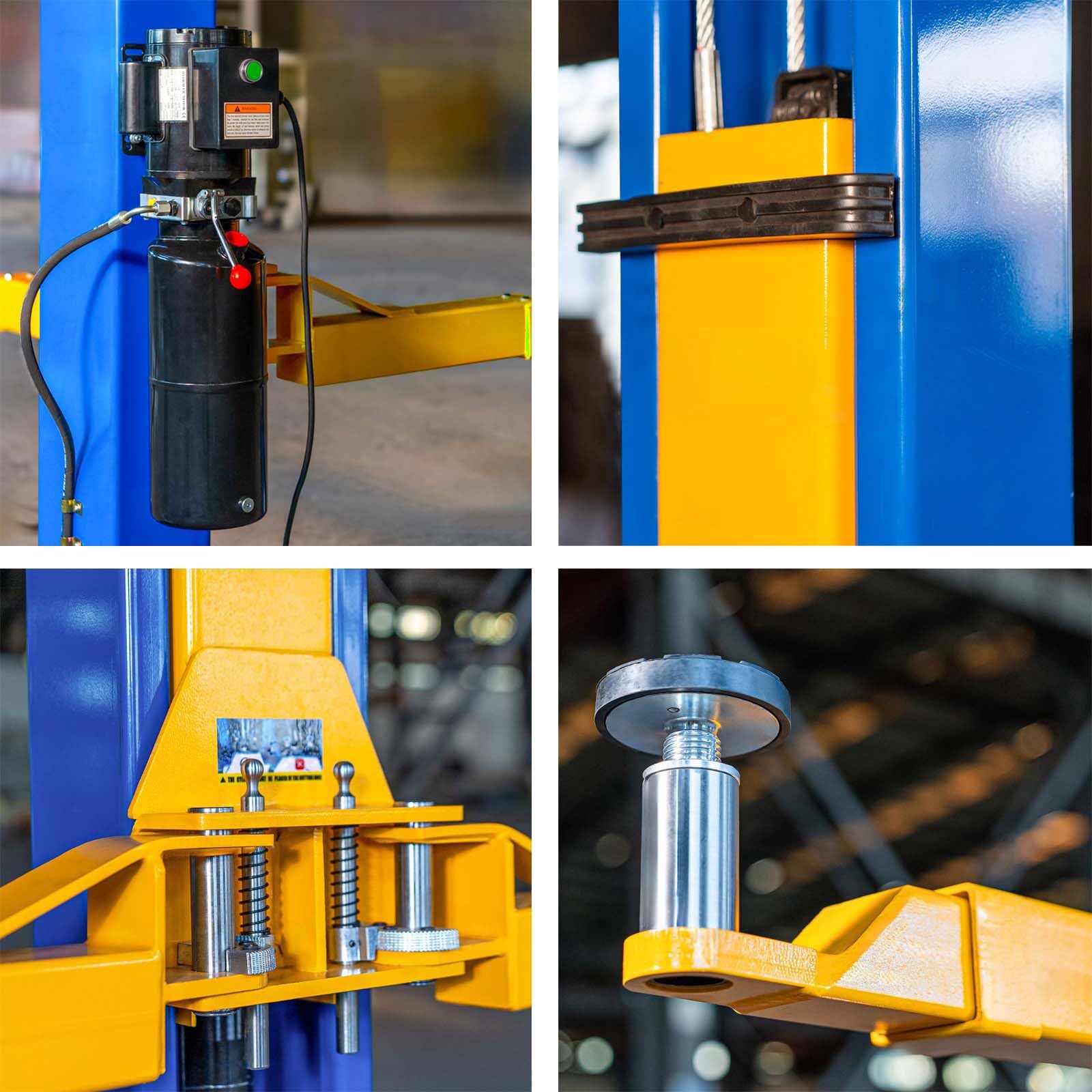

• Process and increase cable life stiffened base plate 5/8" thickness ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down Anchor bolts/mounting hardware included

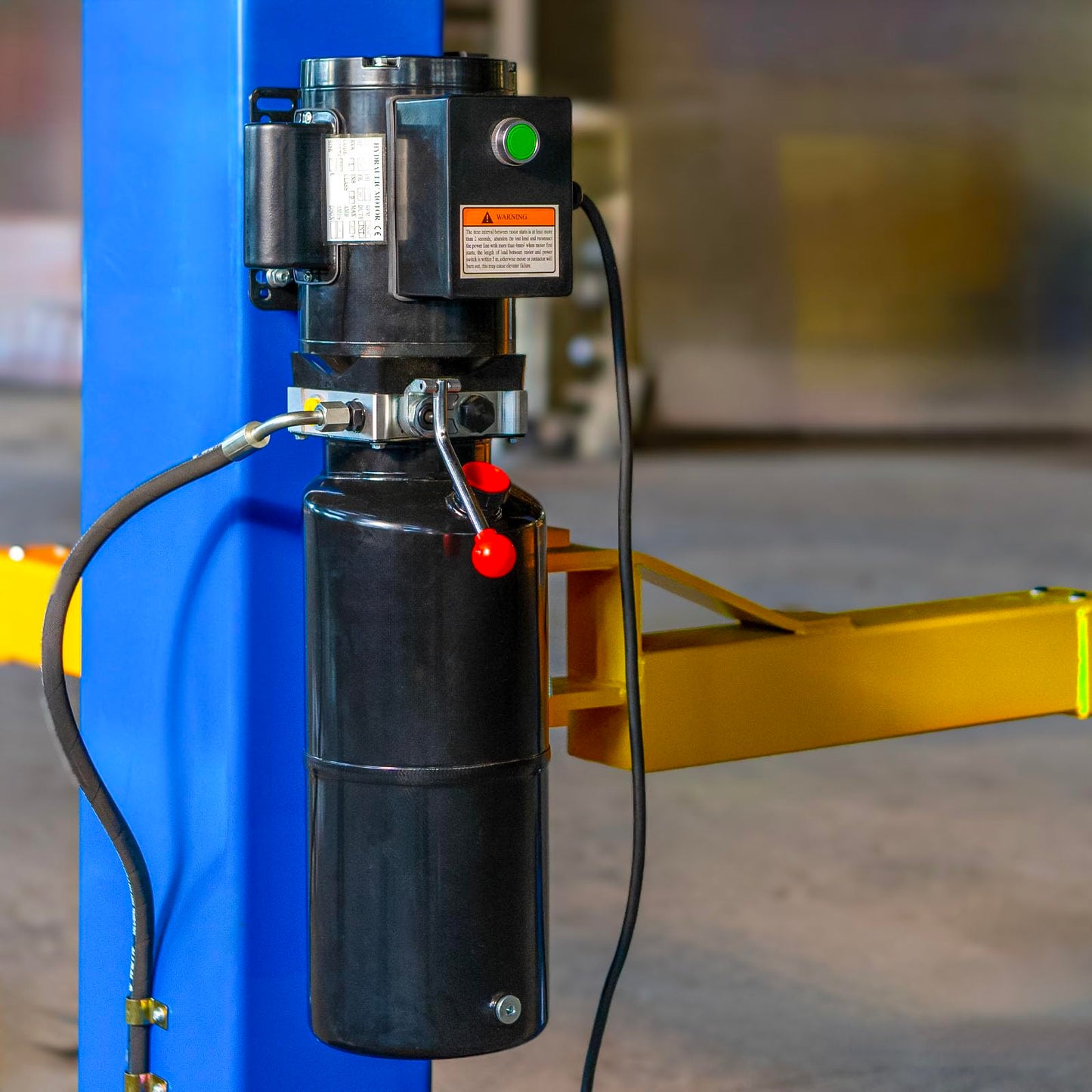

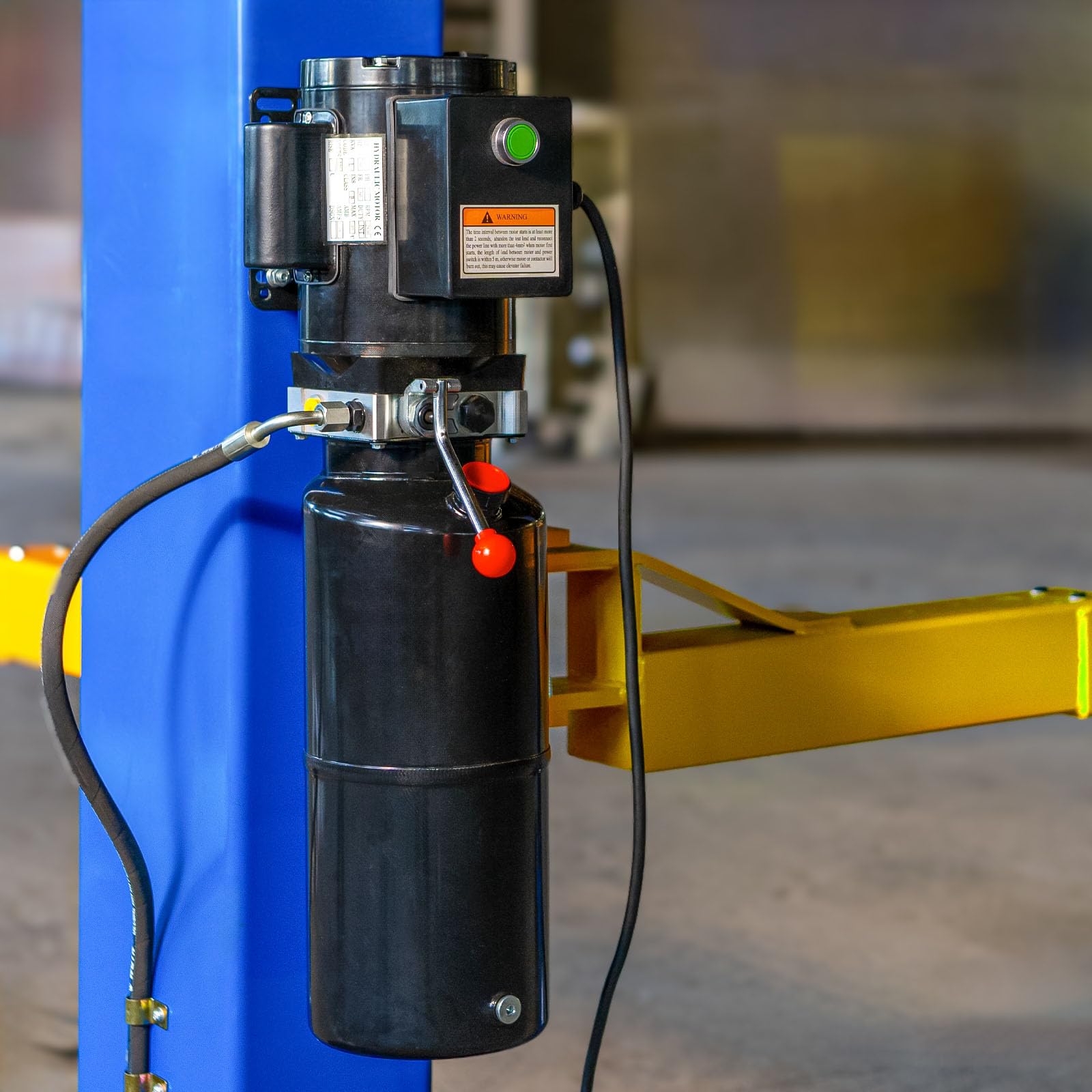

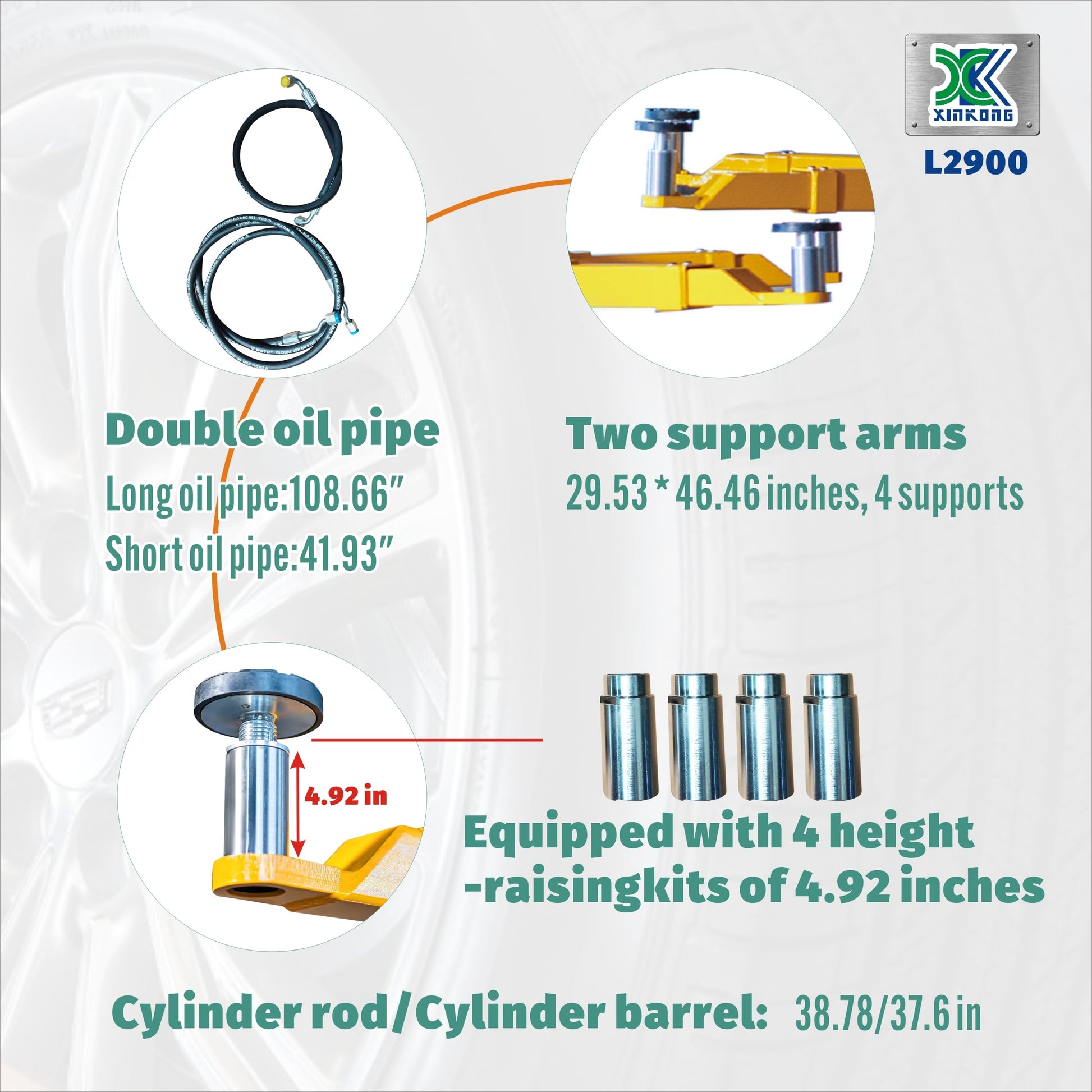

• Control system lifting operation by pressing "up" button on motor manual lowering operation by pressing lever relief valve built in power pump to prevent overloading 1 sets truck adapters included

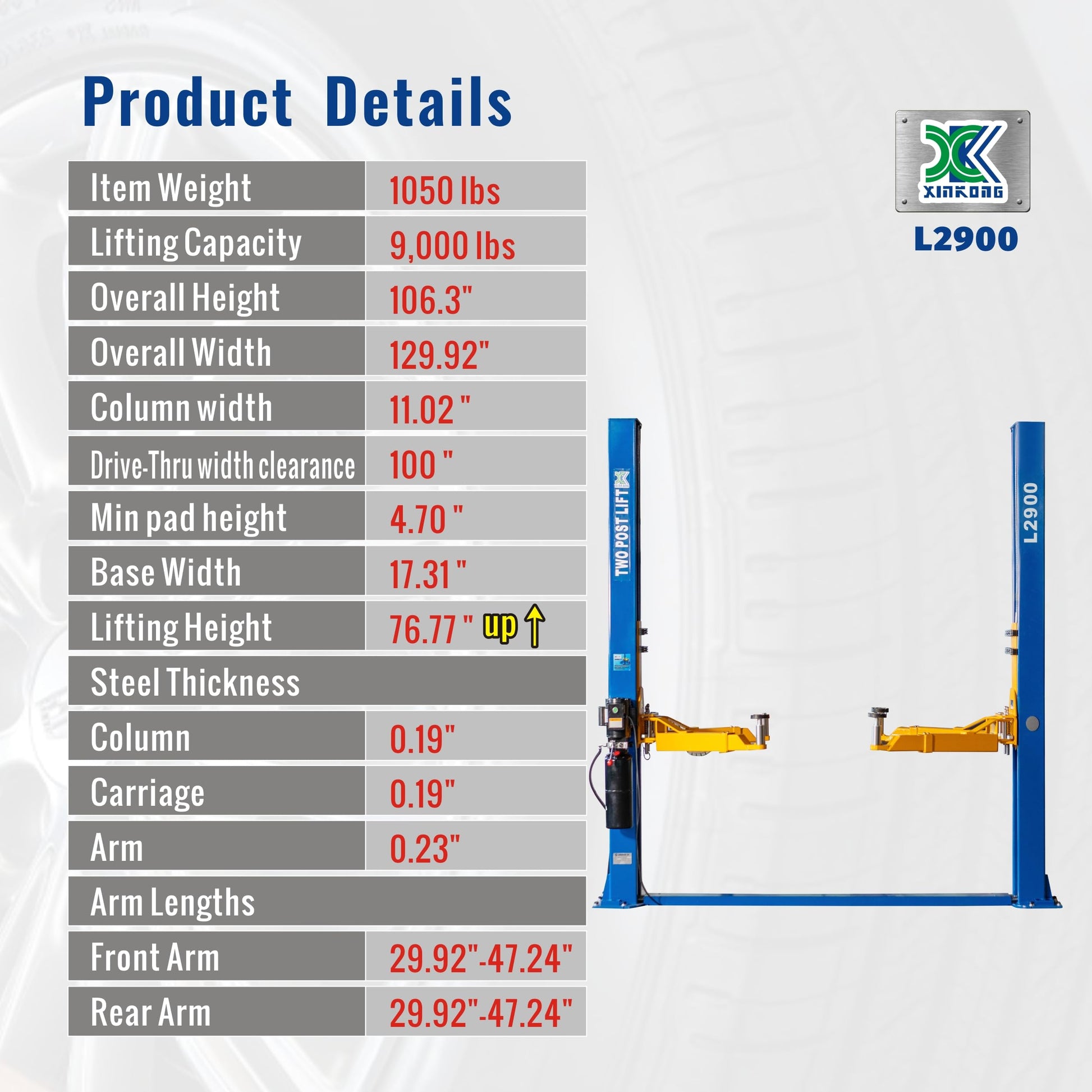

• Lifting capacity 9,000 lbs the overall height 106.3" The overall width 133-1/4" column width 10.59" base width 18.89" column thickness of steel 11/64" carriage thickness of steel 3/16" arms thickness of steel 15/64" front arm 26-1/4"~40-1/8" rear arm 33-7/8"~51-3/16" min pad height: 3-7/8" lift height max: 78-5/32" drive-thru width clearance: 100" time to full rise: 20-60 sec

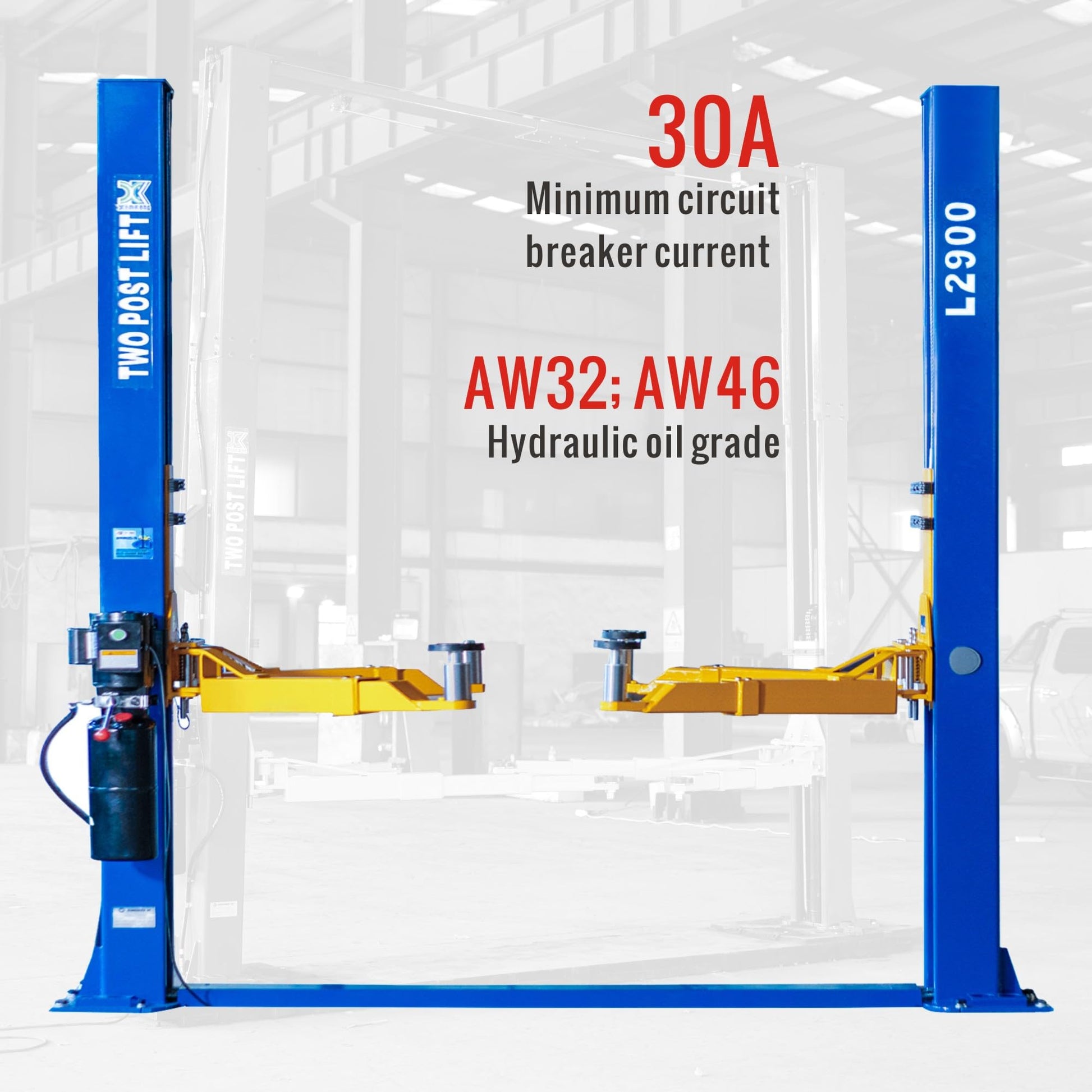

• Minimum Circuit Breaker Current: 30A, Hydraulic oil grade: AW32; AW46

model number: 23-20156

Part Number: 40-50S

EAN: 0659821135080
