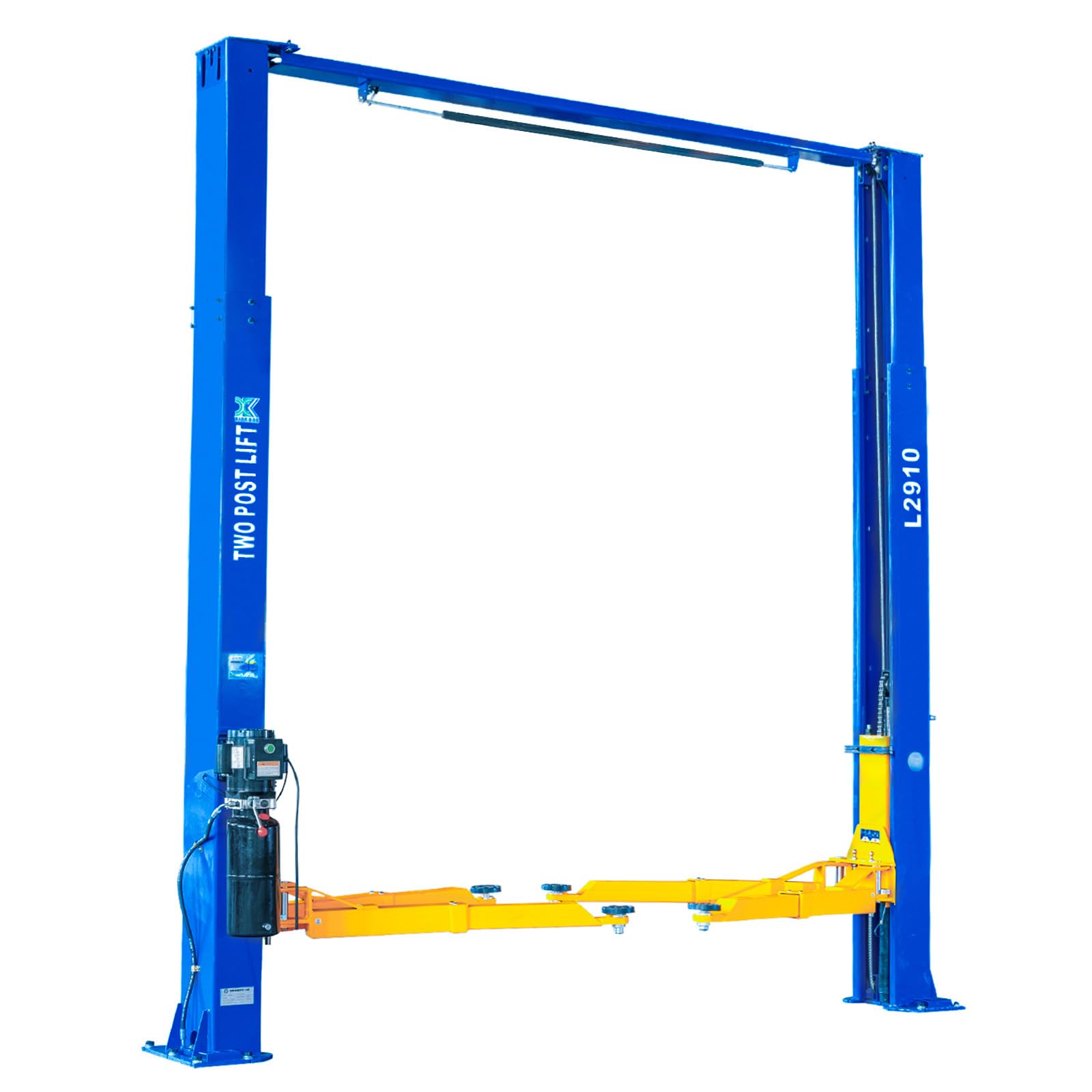

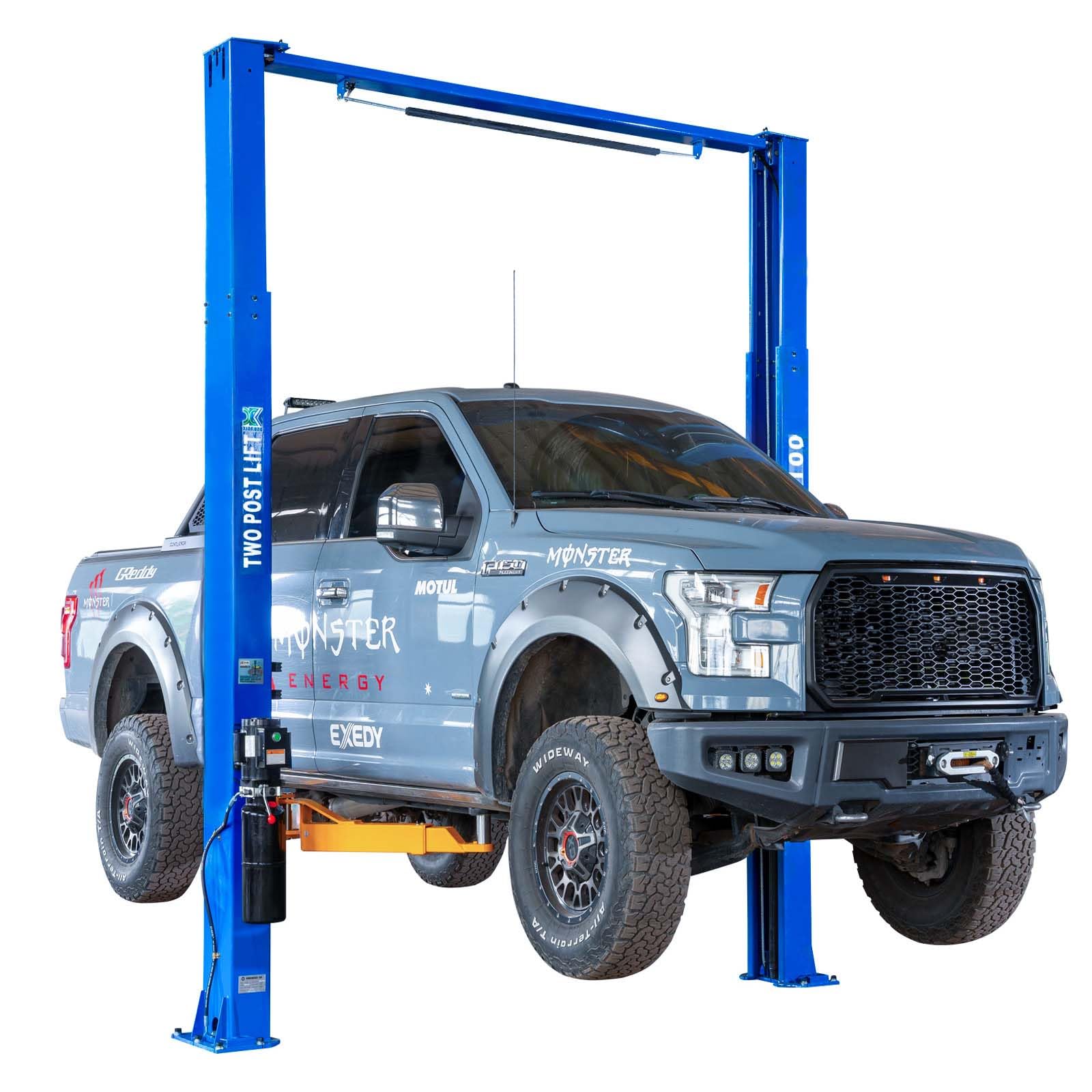

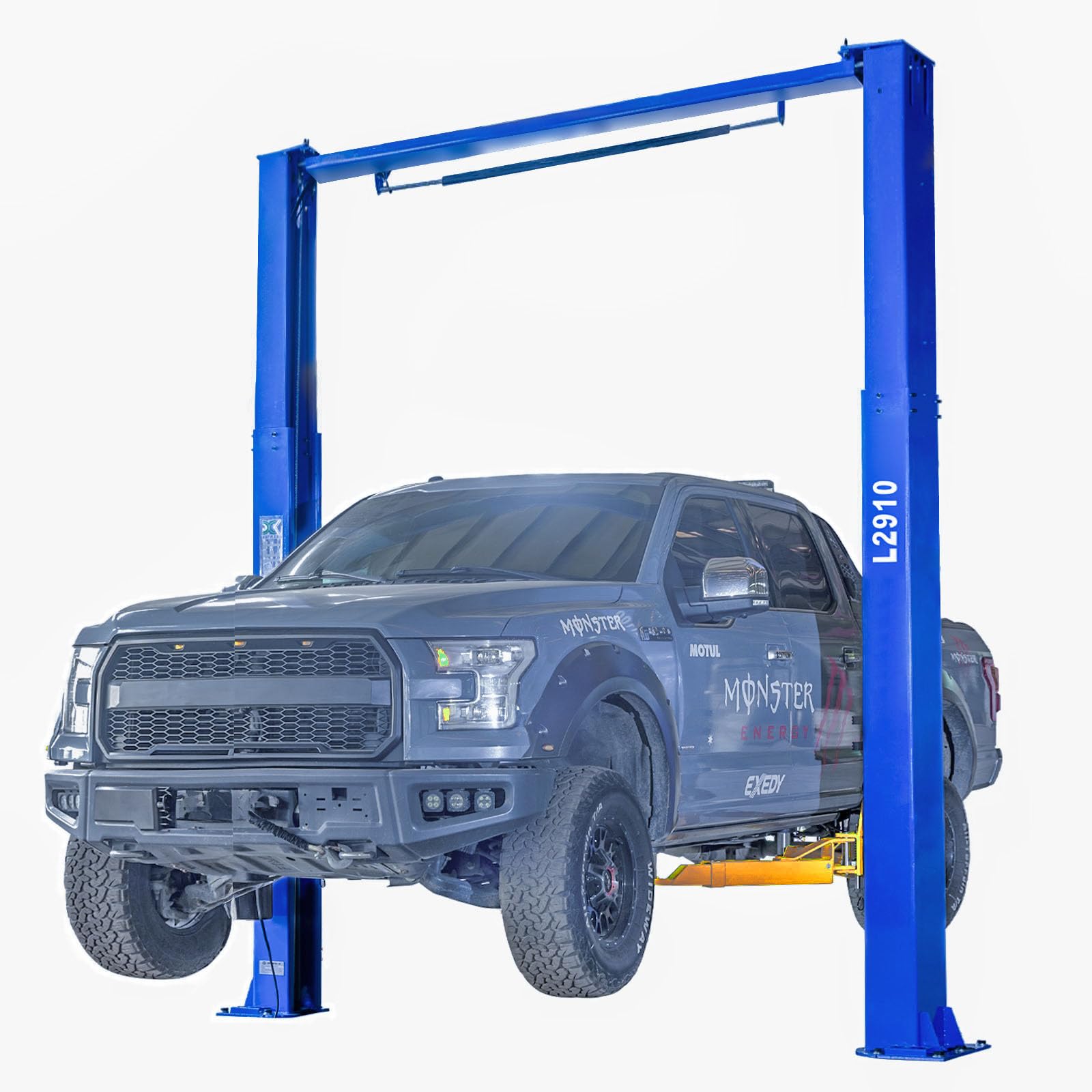

XK- L2910 220V Overhead Two Post Lift 9,000 lbs Capacity Car Auto Truck Hoist 12 Month Parts Replacement

Brand: CHIEN RONG

Color: Blue

Features:

• Safety mechanismouble point safety lock release automatic arm lock restraints relief valve built in power pump to prevent overloading door guards protection rubber ( recommend at least 30A breaker) Hydraulic Oil 3-5 gallons AW32/AW46

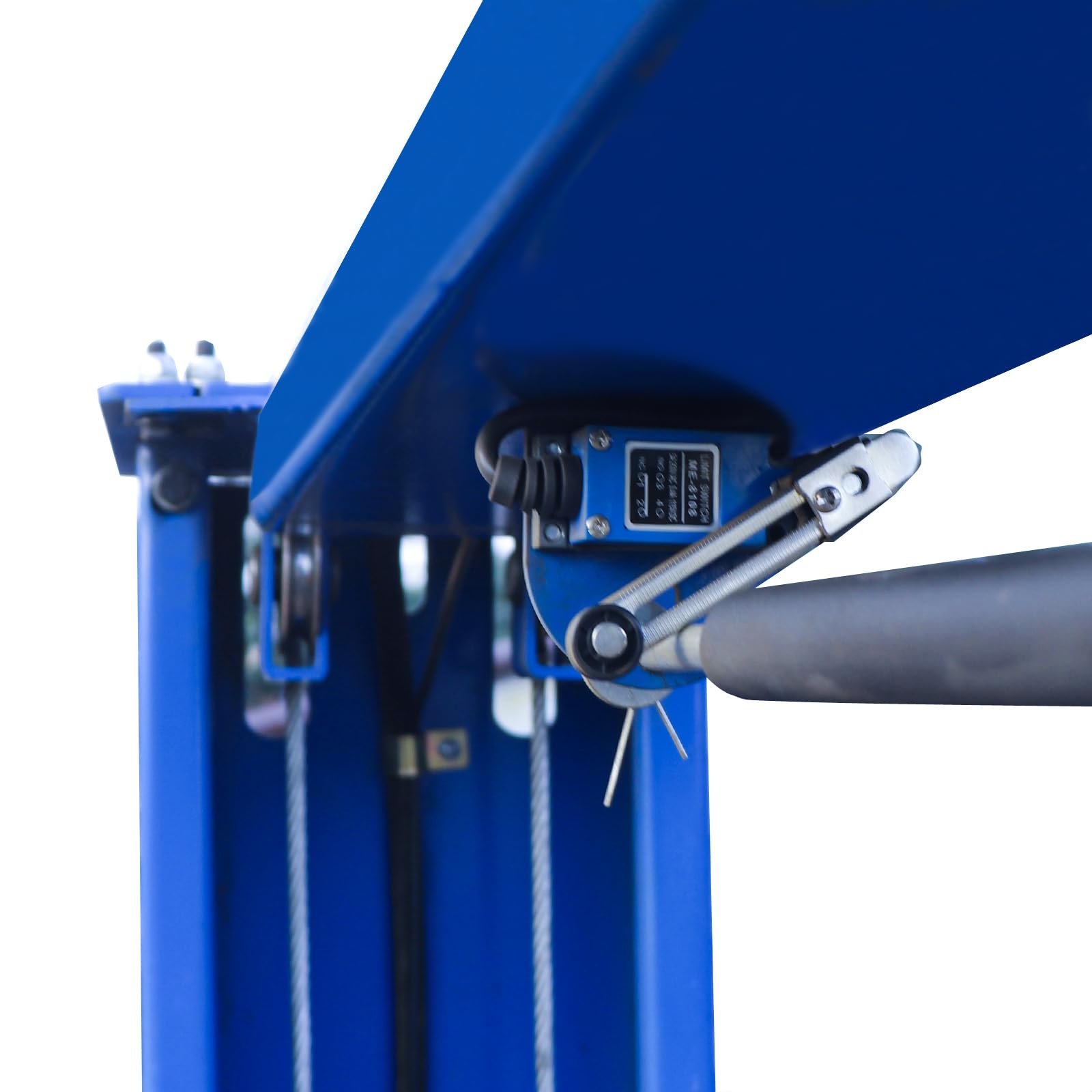

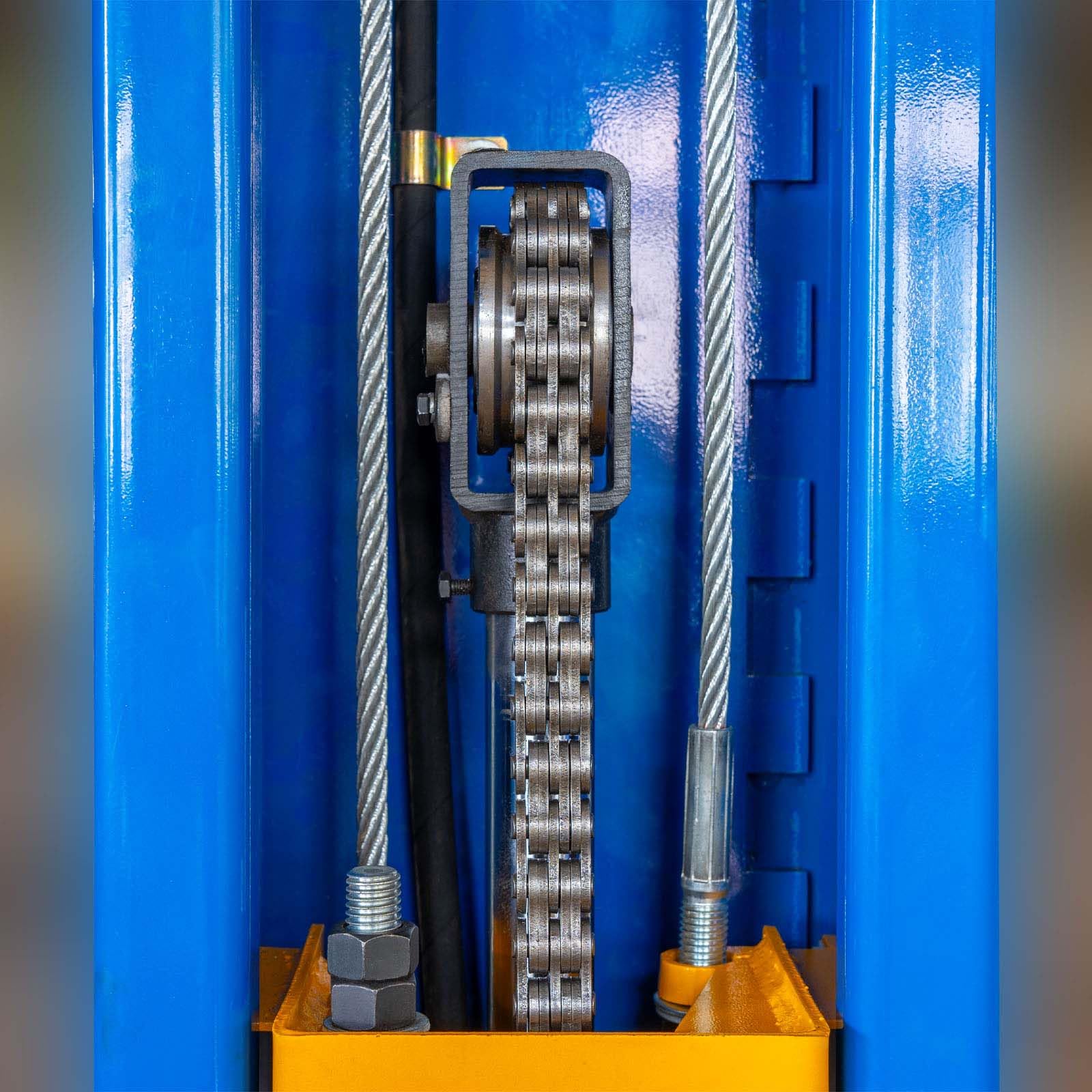

• Up-limit switch to protect cylinders working stroke used in safe length scope heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life Stiffened base plate 15/32" thickness

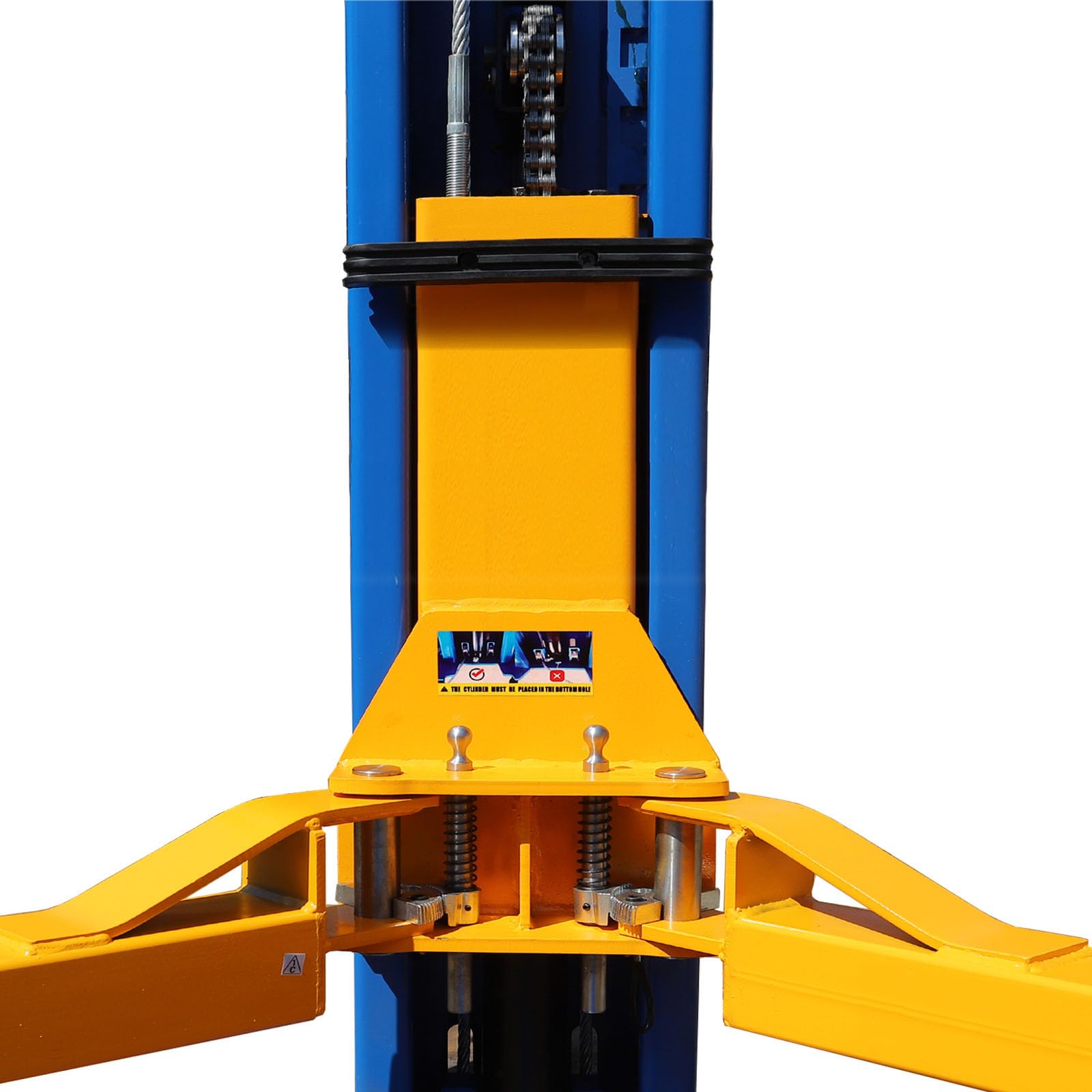

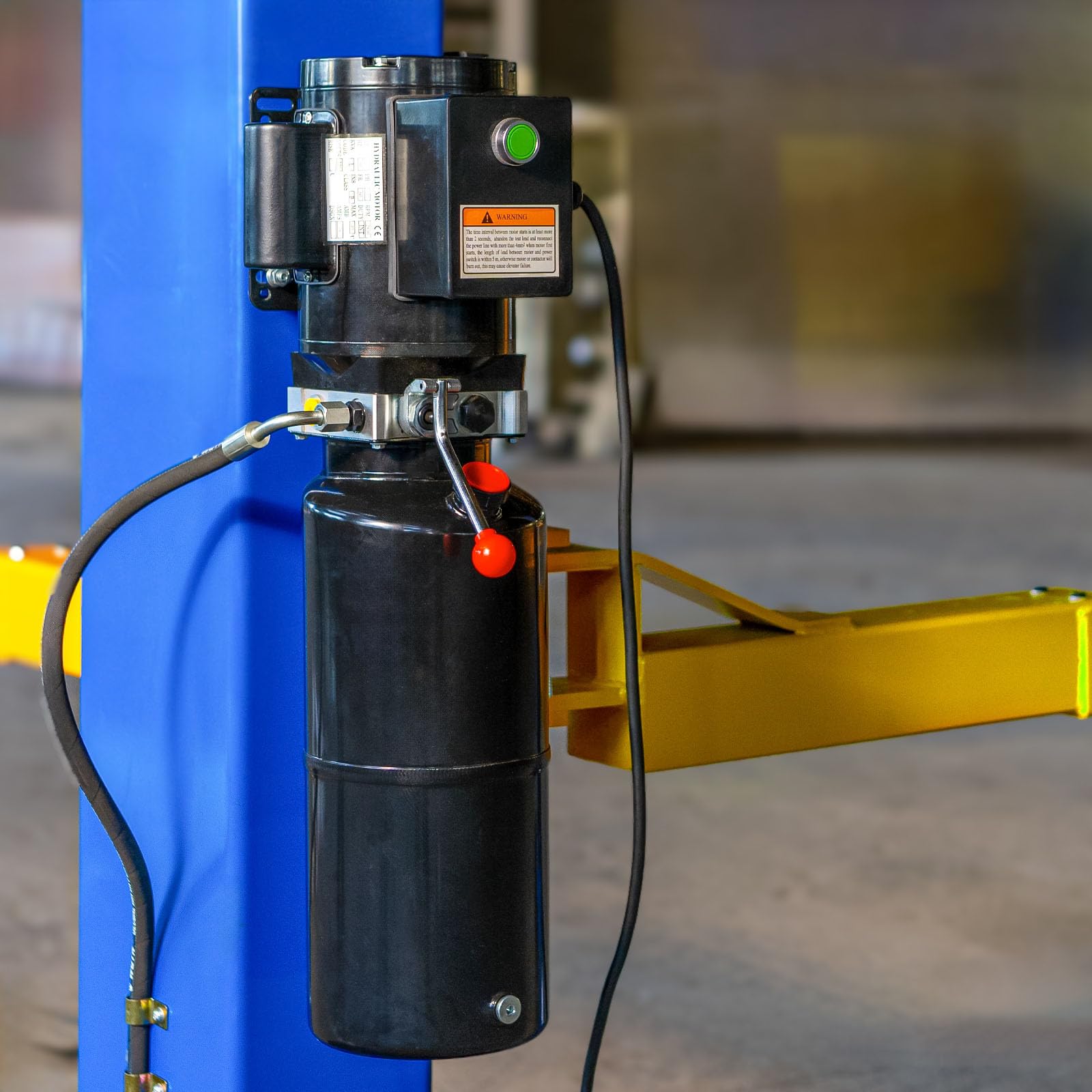

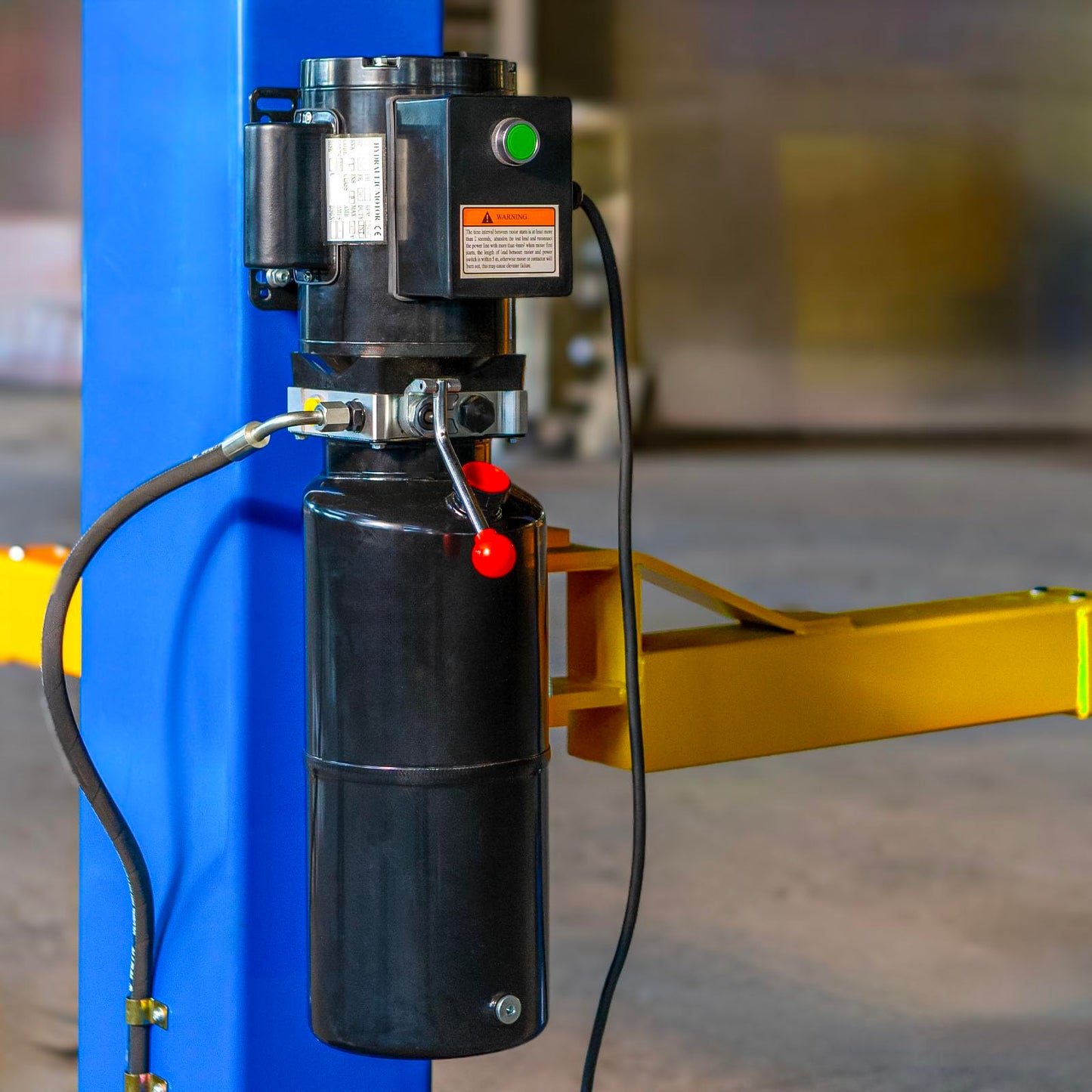

• Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down anchor bolts/mounting hardware included control System lifting operation by pressing "UP" button on motor manual lowering operation by pressing lever
• Relief valve built in power pump to prevent overloading lifting capacity: 9,000 lbs the overall height 145-1/2" the overall width 133-1/4" column width 10.59" base width 18.89" column thickness of steel 11/16" carriage thickness of steel 3/16" arms thickness of steel 15/64"

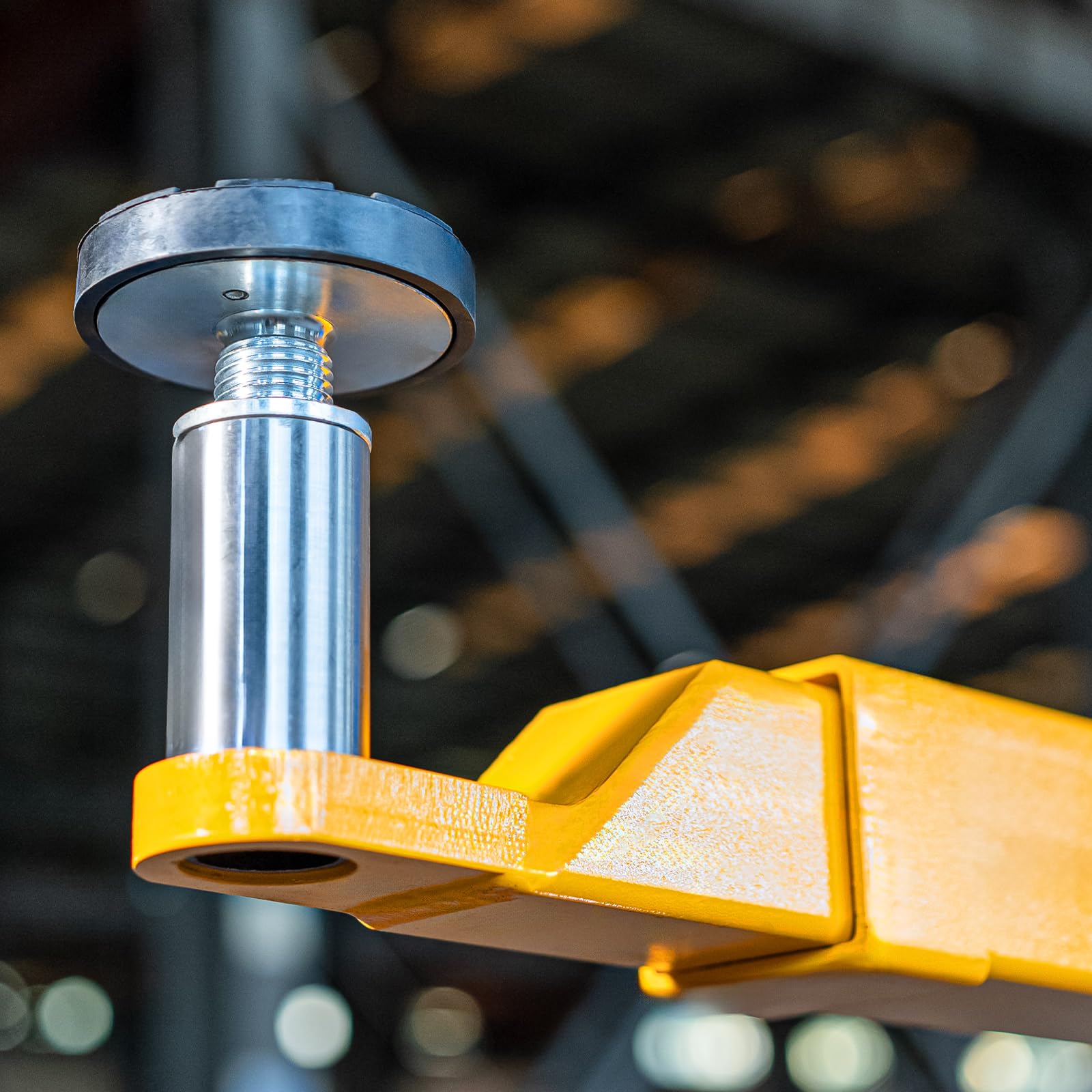

• Front arm 29.9"-47.2" rear arm 29.9"-47.2" min pad height: 3-7/32" lift height max: 70.86" drive-thru width clearance: 99.2" time to full rise: 20-60 sec shipping weight: 1300 lbs
• Equipment Required for unloading: forklift tractor is required from customer for unloading the product. nearest terminal pickup can be requested if customer does not have the ability to unload

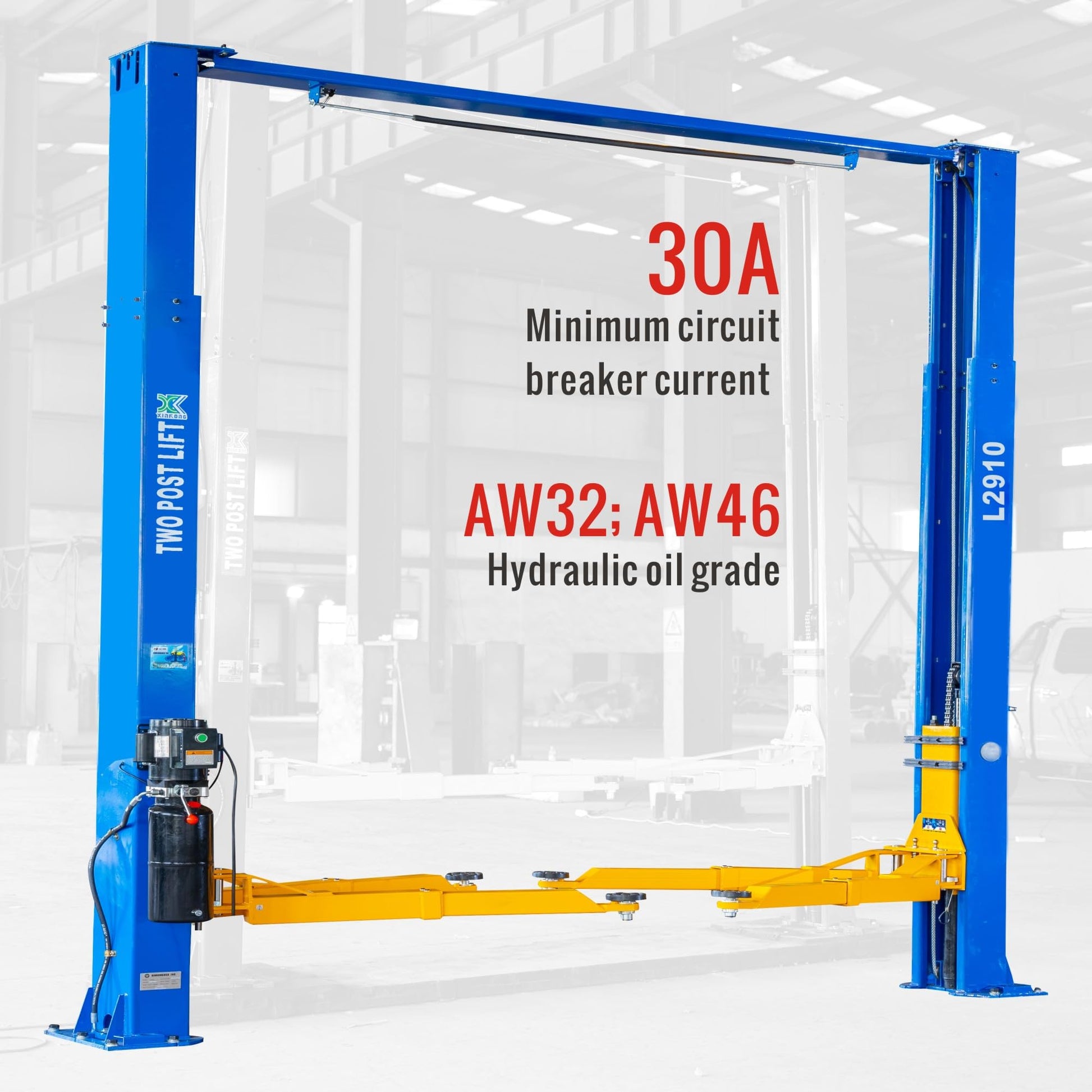

• Minimum Circuit Breaker Current: 30A, Hydraulic oil grade: AW32; AW46

Part Number: CR-023

EAN: 0723284413556
