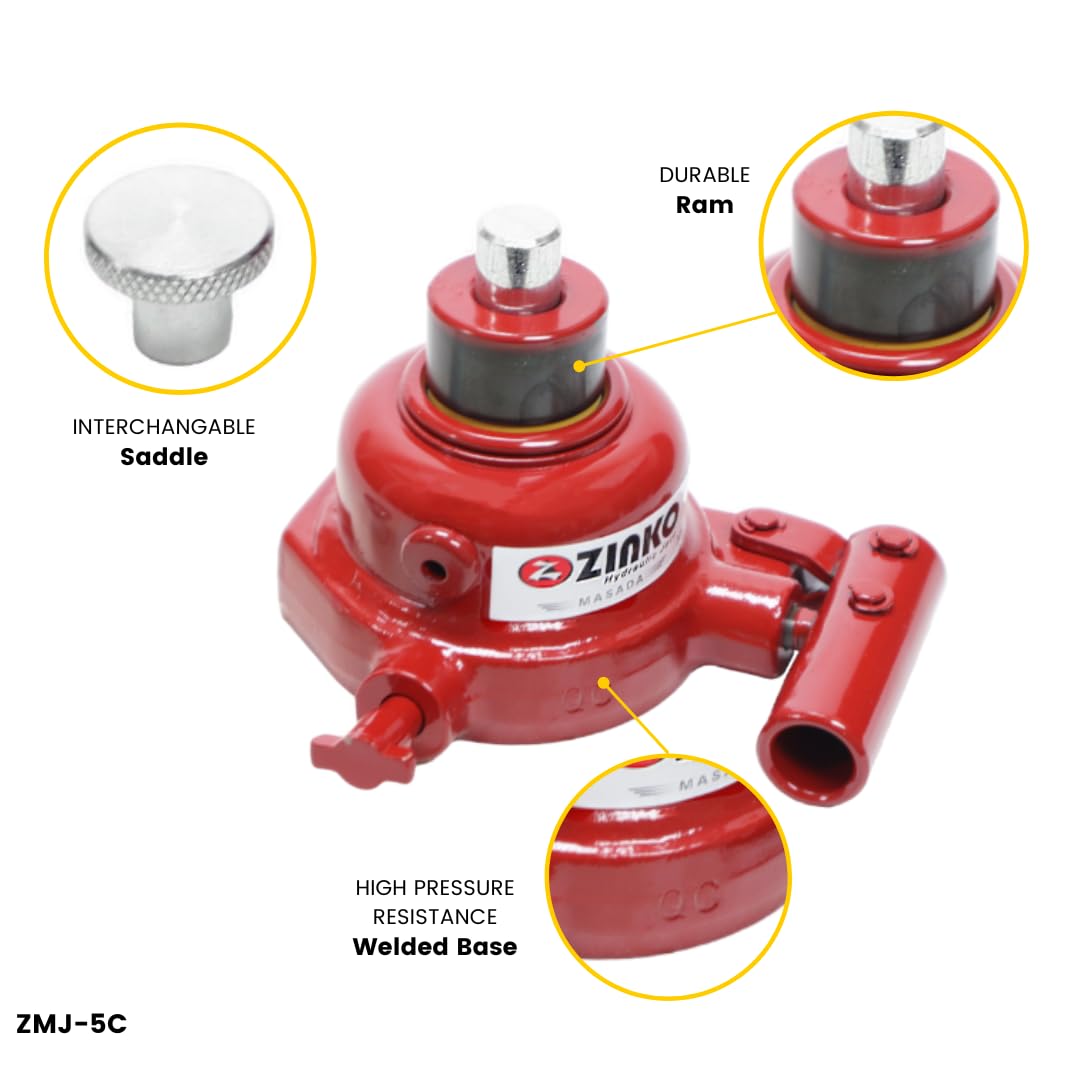

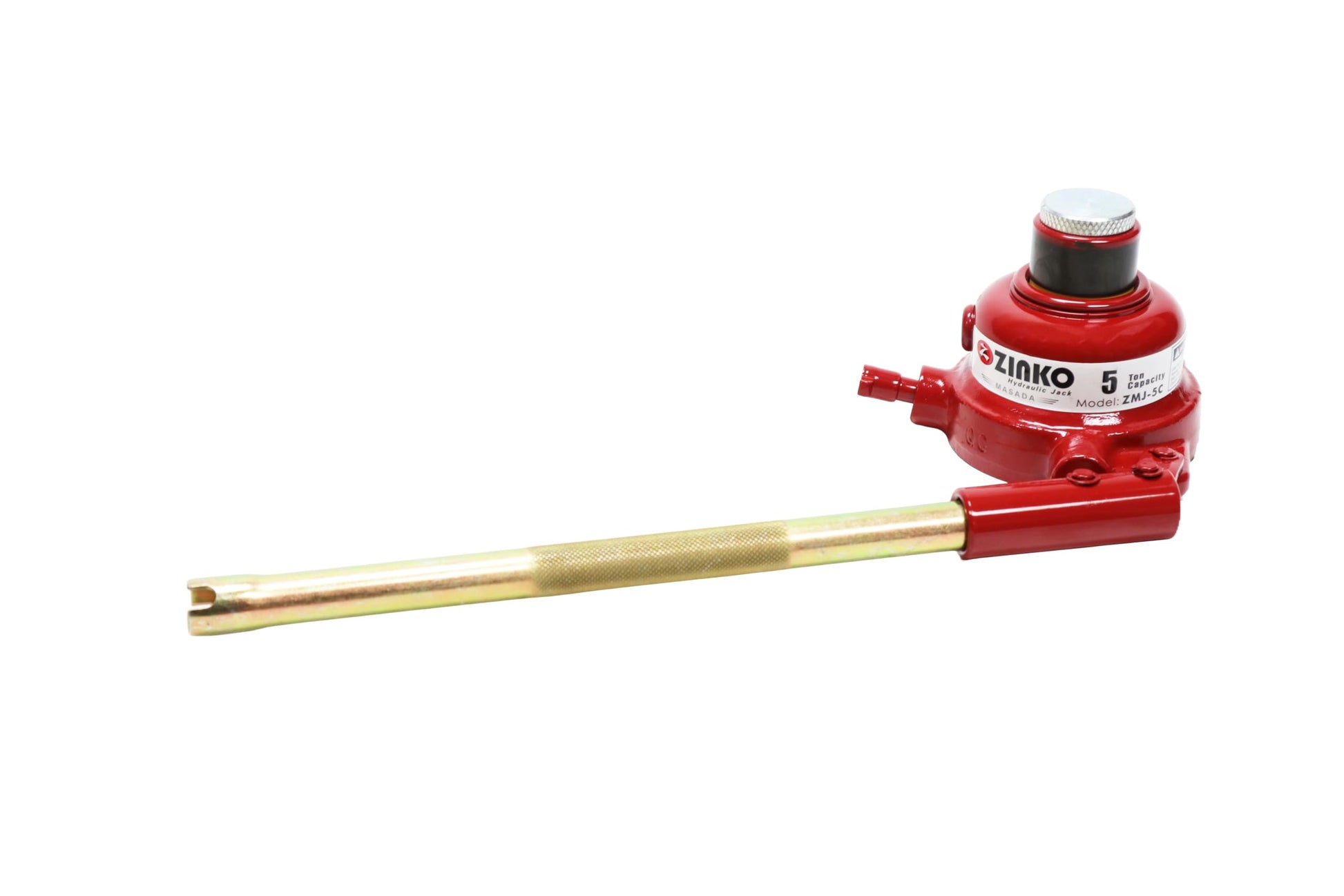

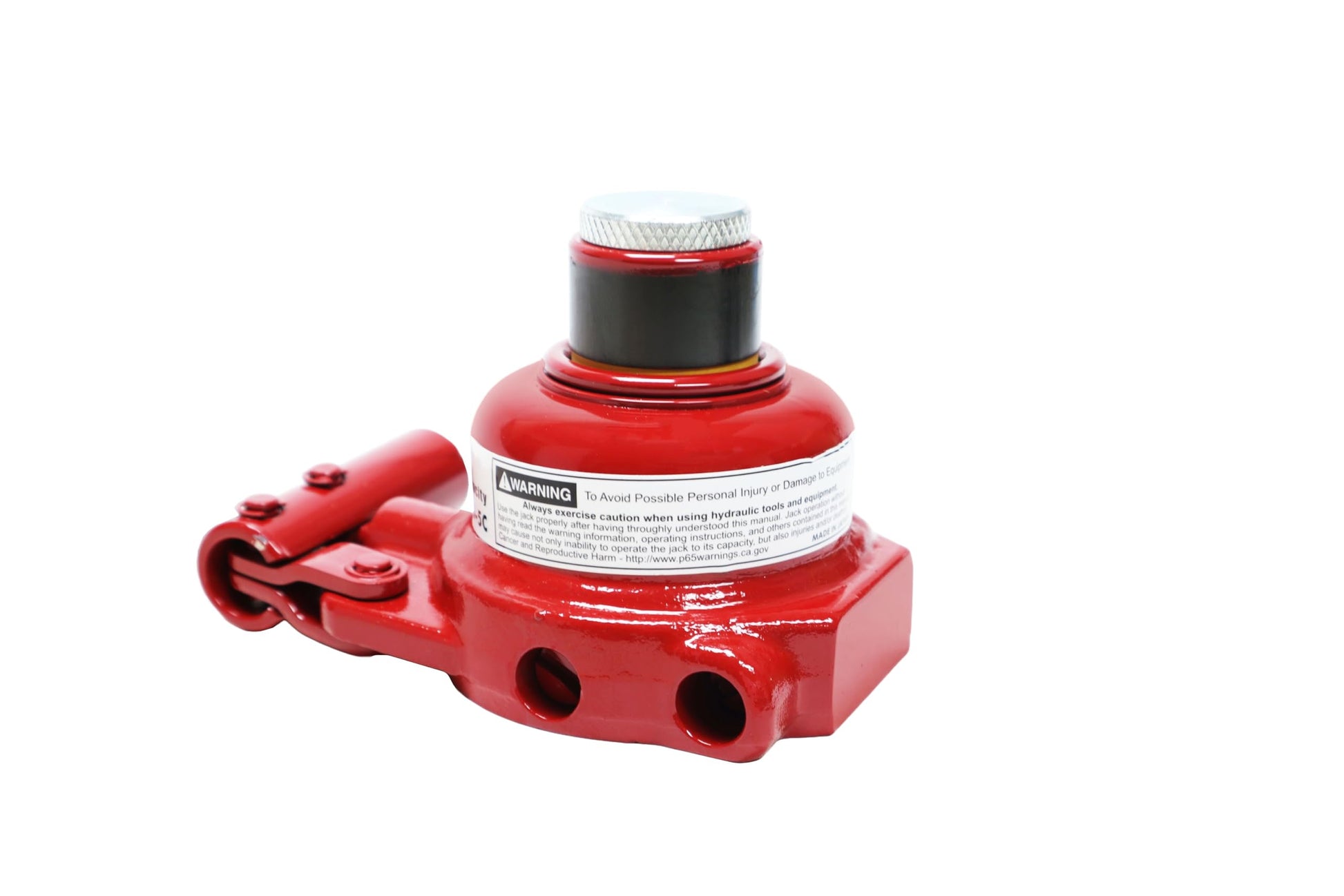

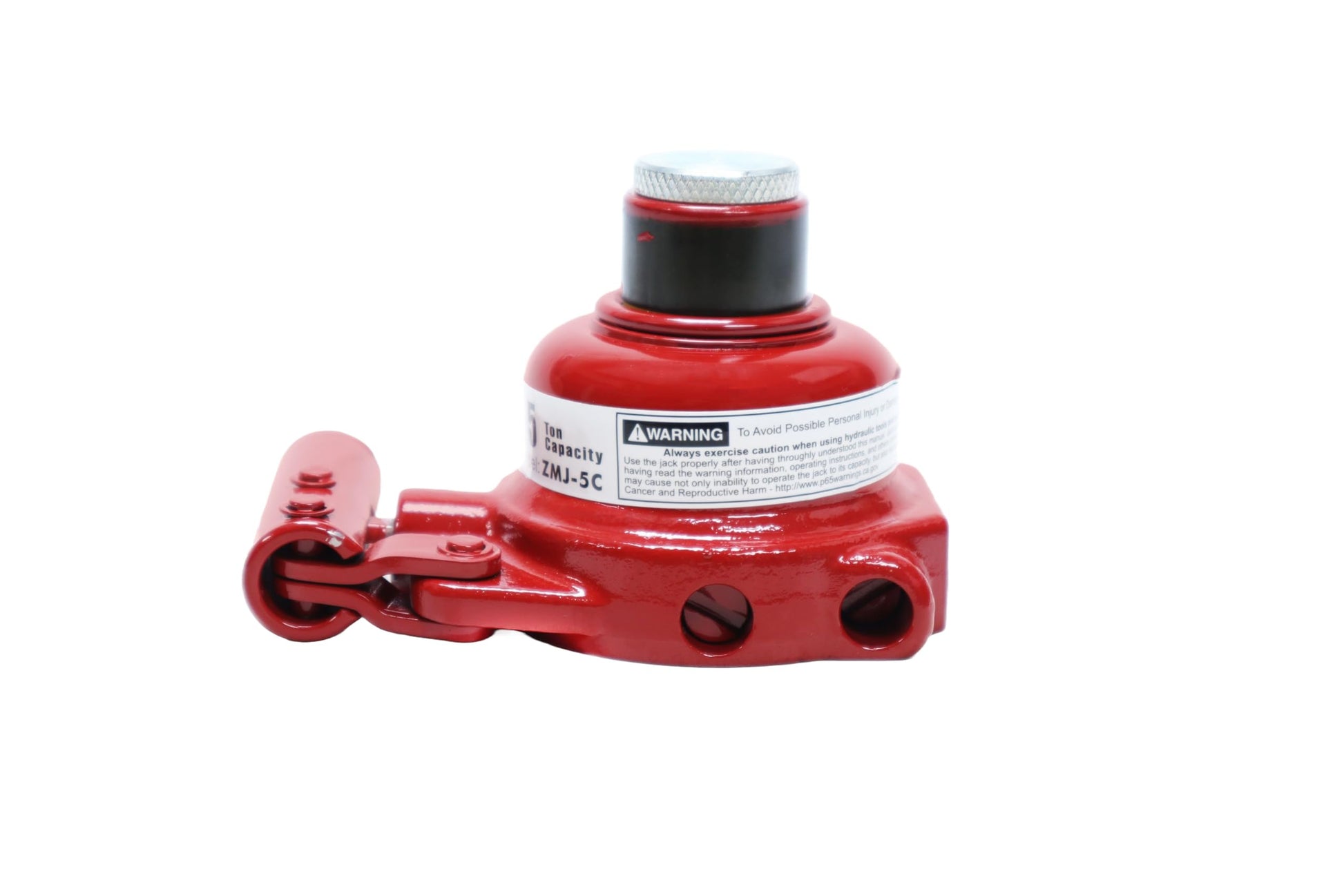

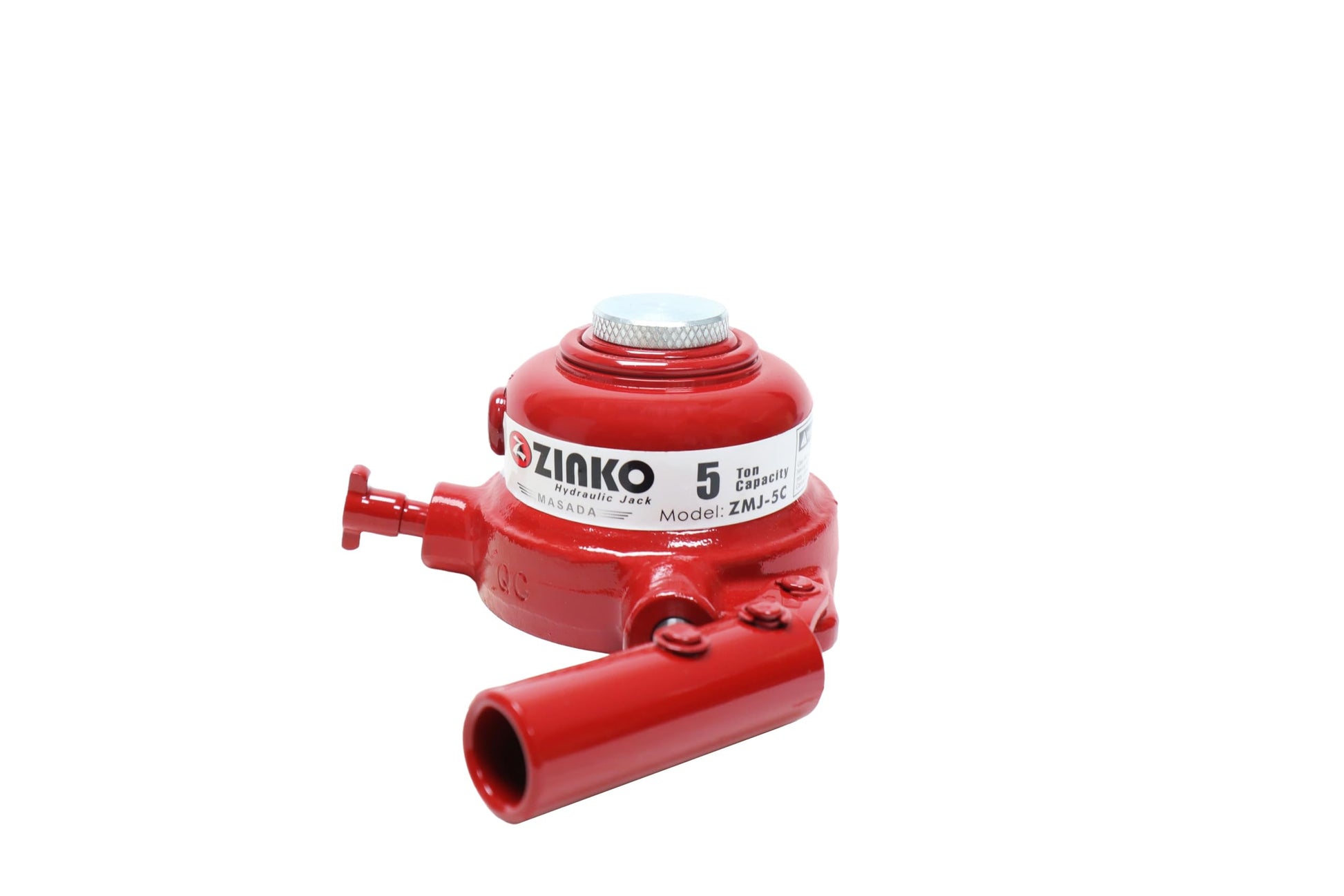

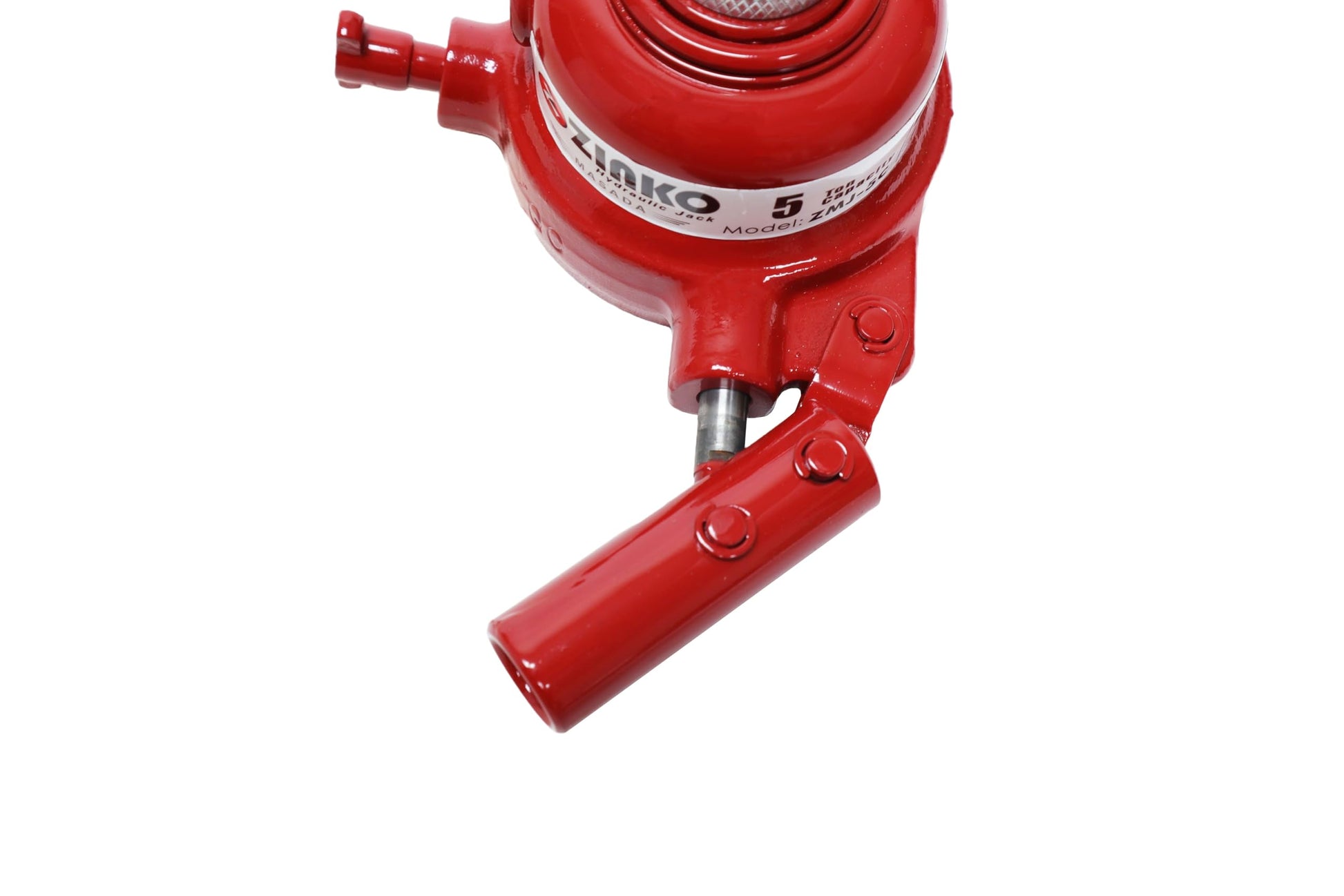

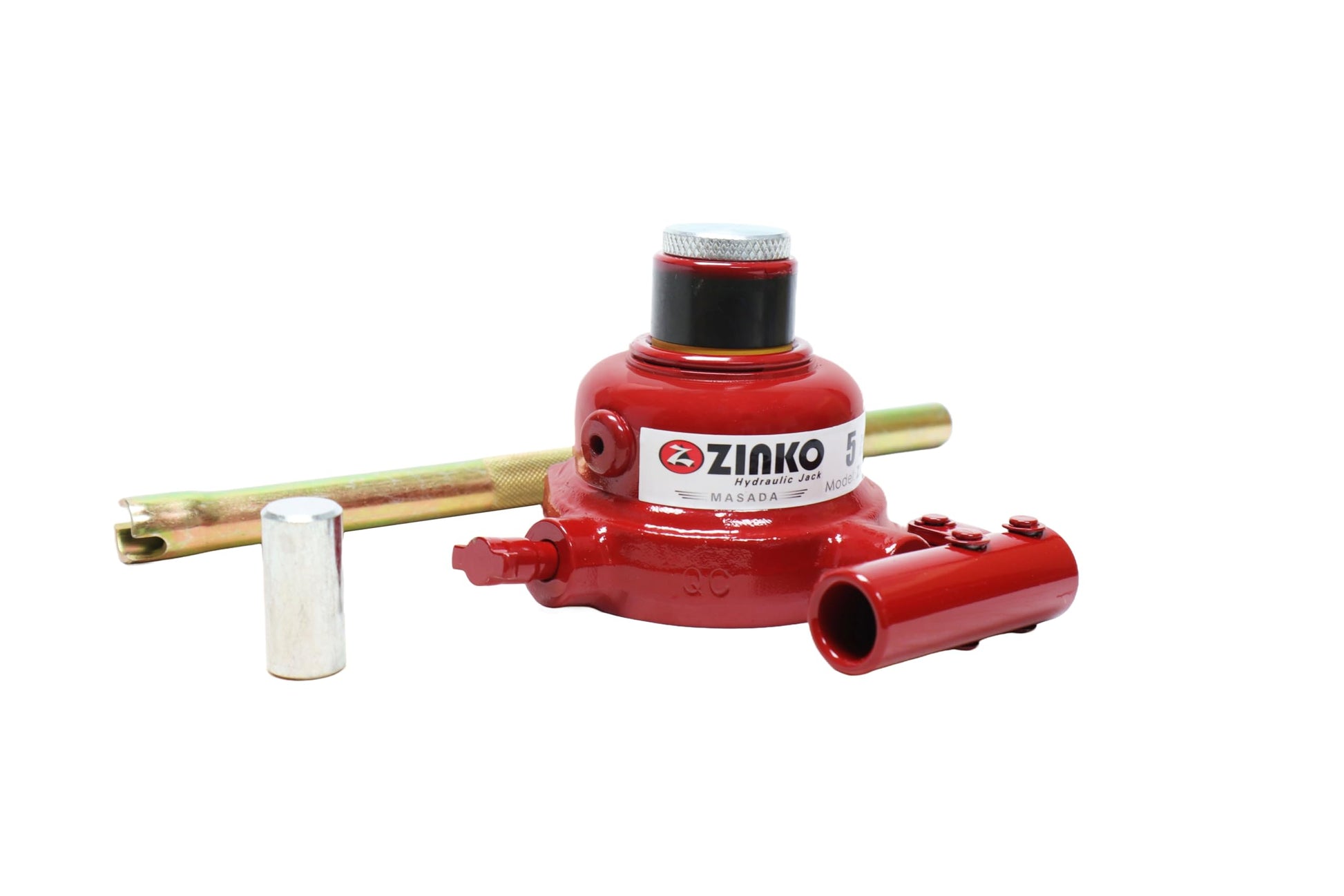

ZINKO 5-Ton Mini Hydraulic Bottle Jack, 0.78" Stroke, 3.15" Max. Height Model: ZMJ-5C

Brand: ZINKO

Color: Red

Features:

• Can be used in conjunction with a mechanical gear puller to create a hydraulic puller with over 5 ton capacity
• This product can be used both upright and horizontally. When used horizontally, the strokes decrease to about 60% of the full stroke.
• Capacity: 5 Tons

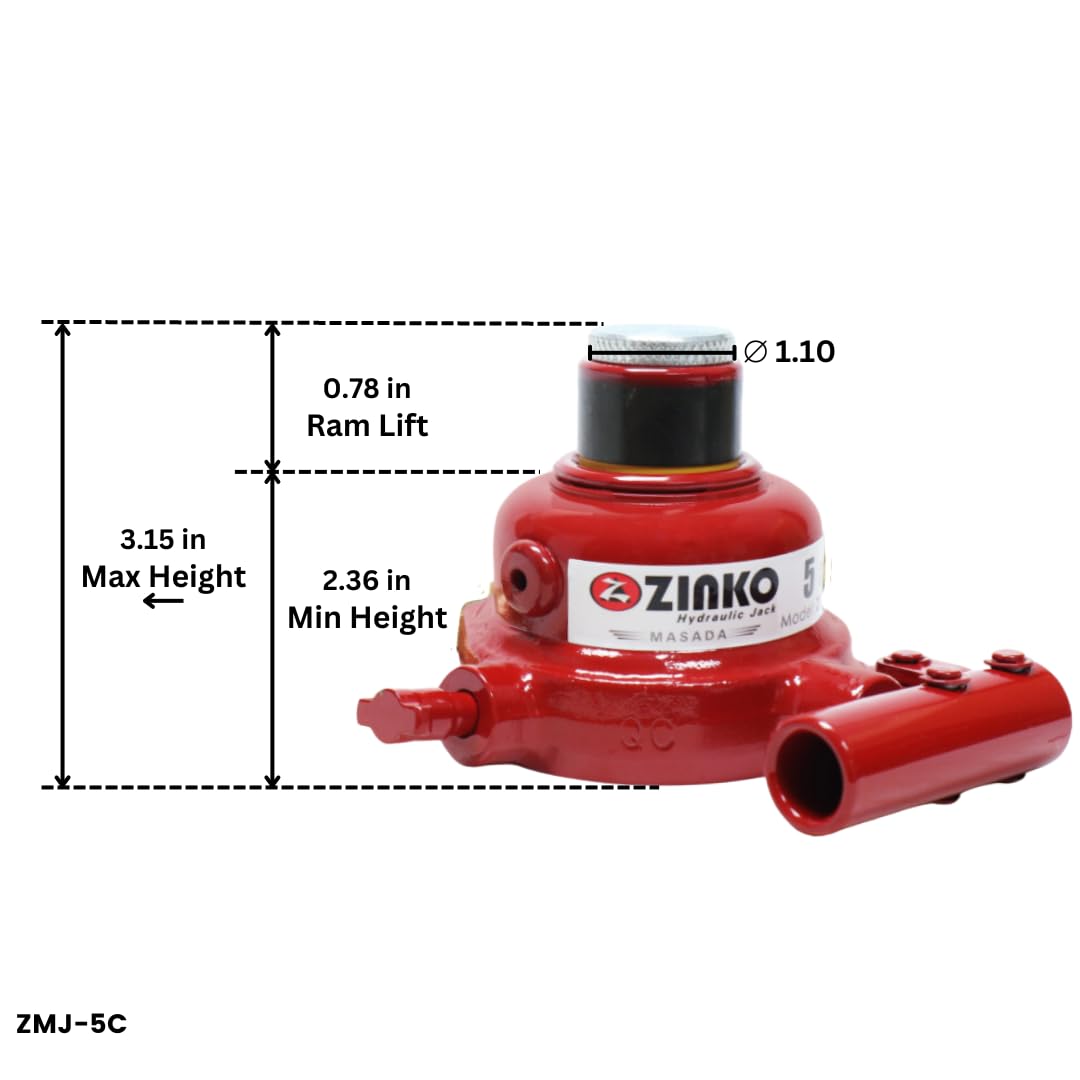

• Minimum Height (in): 2.36
• Maximum Heights (in)3.15
• Ram Lift (in): 0.78
• Base Area (in): 3.70 x 3.50
• Saddle Diameter (in): Ø 1.10

model number: ZMJ-5C

Part Number: 70-05C

Details: Zinko Jacks ZMJ-5C 5-Ton Mini Bottle Jack, Compact (min ht. 2.36") The compact jack with a 5-ton capacity allows for minor adjustments when shifting materials and repositioning equipment with very little clearance. It can also act as a spreader for applying force, provided that it has over 2-1/2" of clearance. Proudly made in Japan according to ANSI & JIS standards.

Package Dimensions: 10.0 x 5.0 x 3.0 inches
